NEXT GREEN Curb
Next Curb – straight section Item number: 24110021
Next Curb – cross section Item number: 24110022
Lim/adhesive Item number: 24110023
Next Curb – T section Item number: 24110024

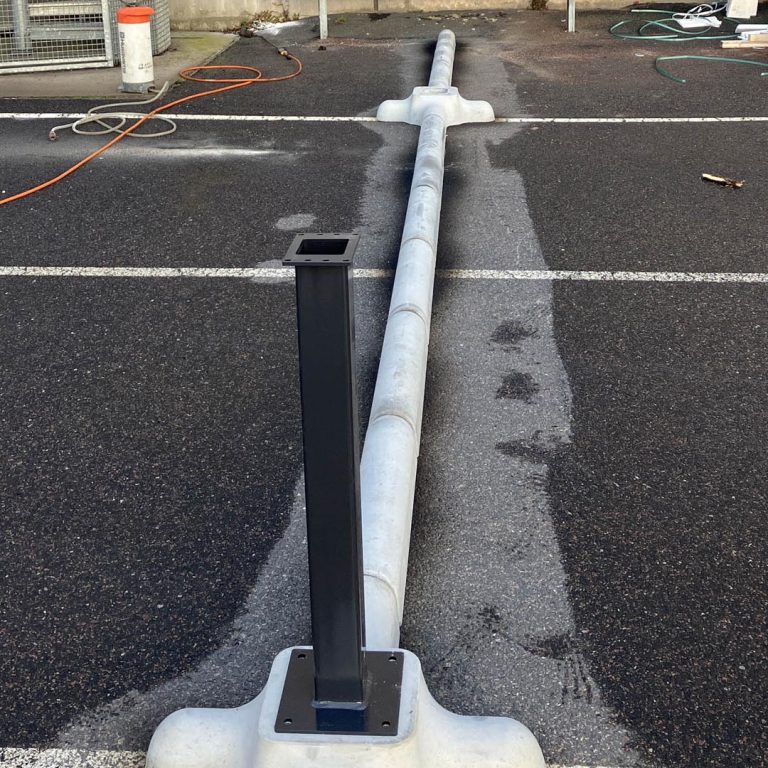

Next Green Next Curb is an innovative solution that allows the installation of EV-charging boxes without time-consuming and costly groundwork.

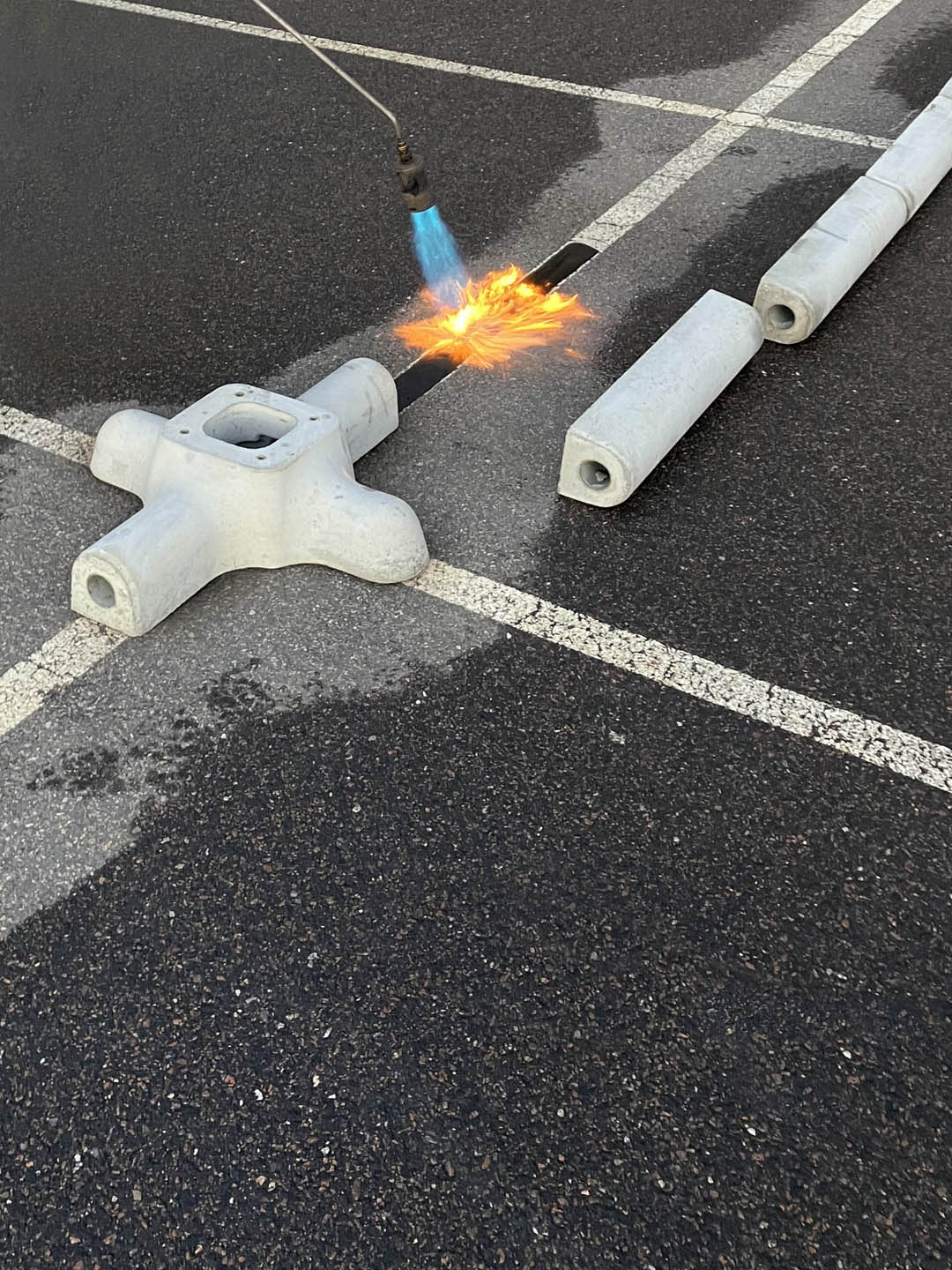

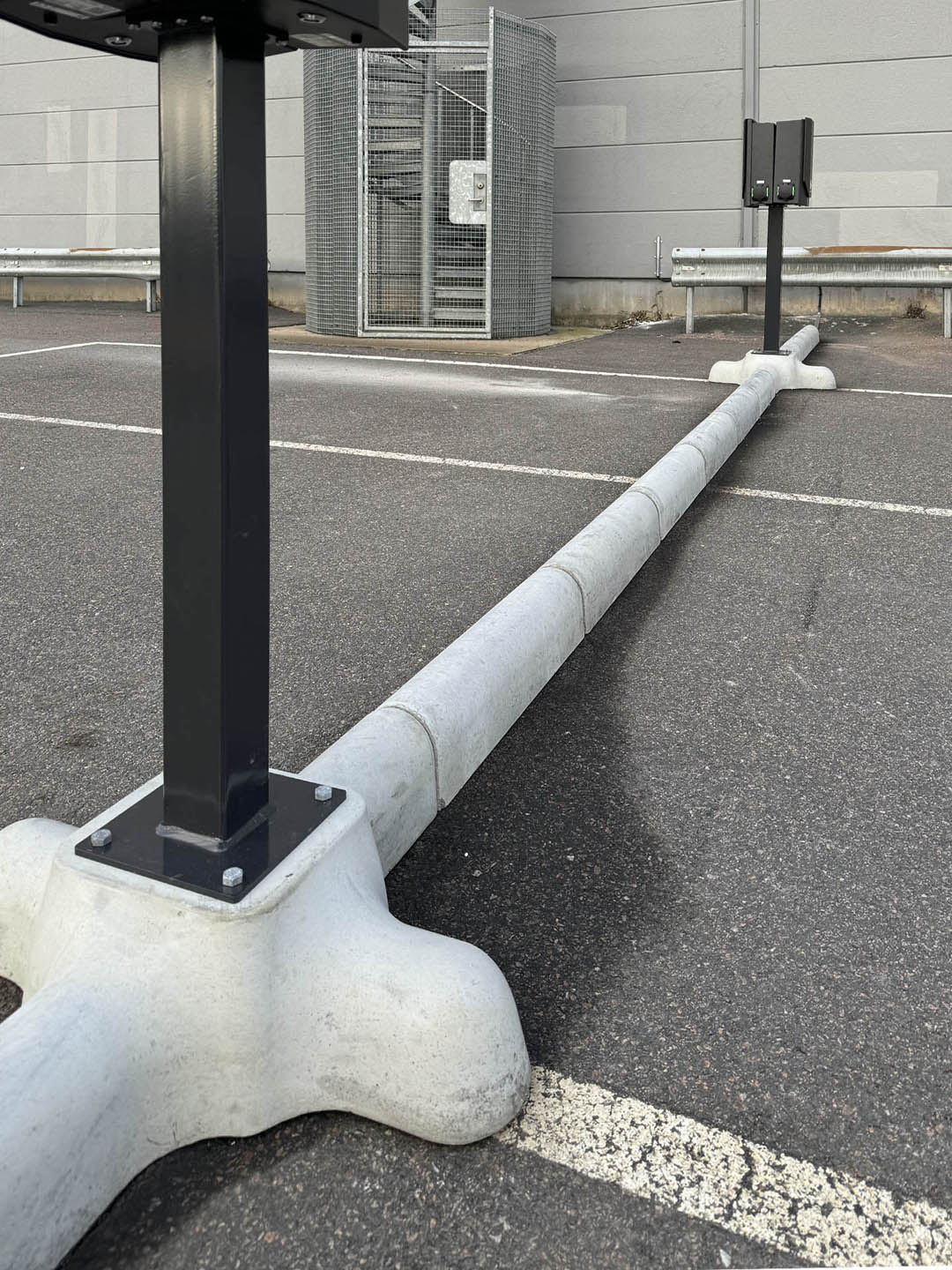

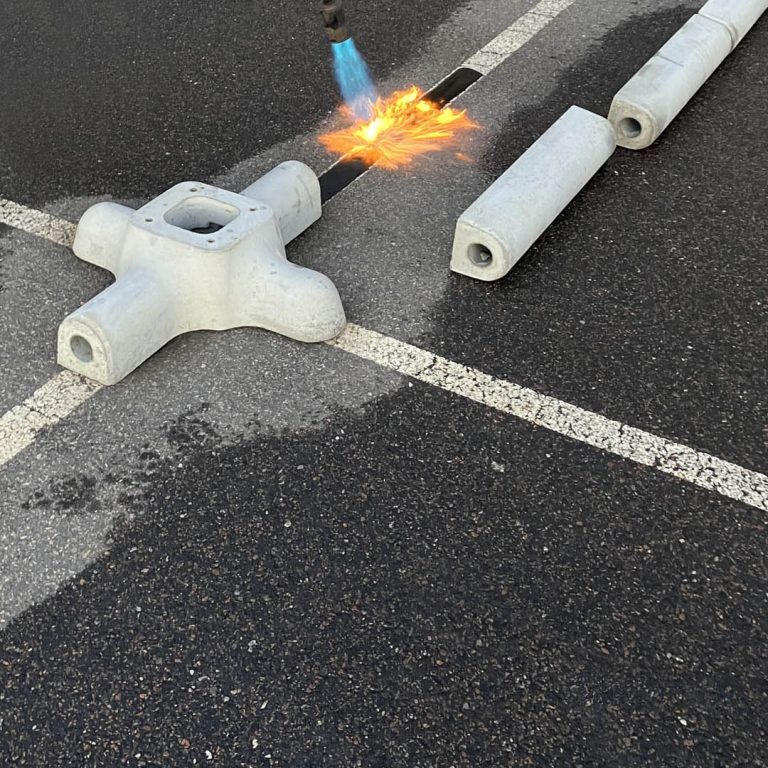

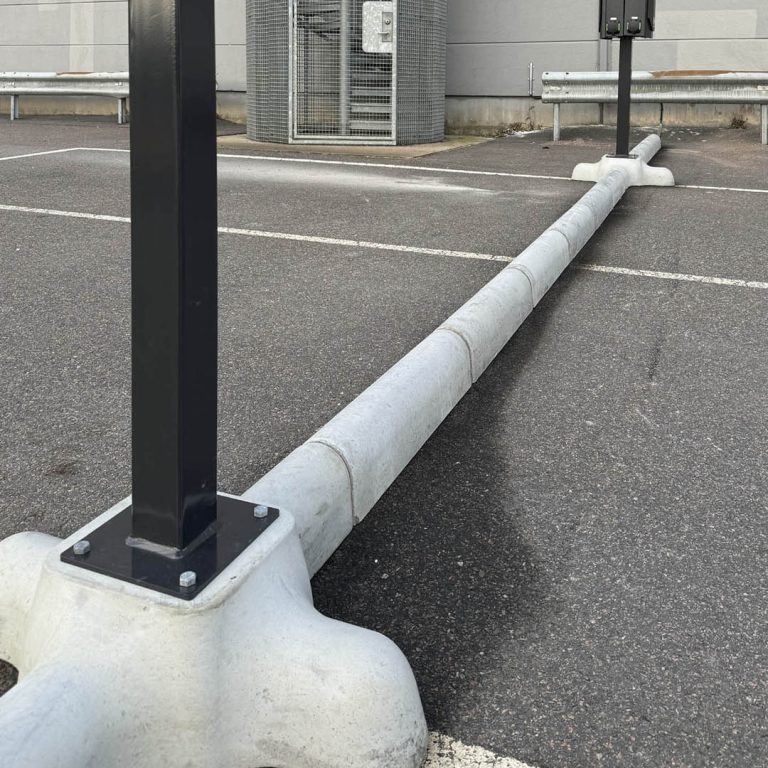

The concrete stone is bonded directly to the asphalt. The Curb features an embedded steel tube for low friction during cable routing. The cable is routed from the connection point through the cable stones and then linked between the charging boxes.
Next Curb is manufactured from durable materials to provide optimal lifespan.
Cables and conductors routed through the cable ducts shall have at least double insulation and shall otherwise be suitable for this type of installation. The cable manufacturer’s installation instructions must be followed.
The product is intended for installations falling within the scope of the Low Voltage Directive (AC 1000V and DC 1500V).
Item number: 24110021

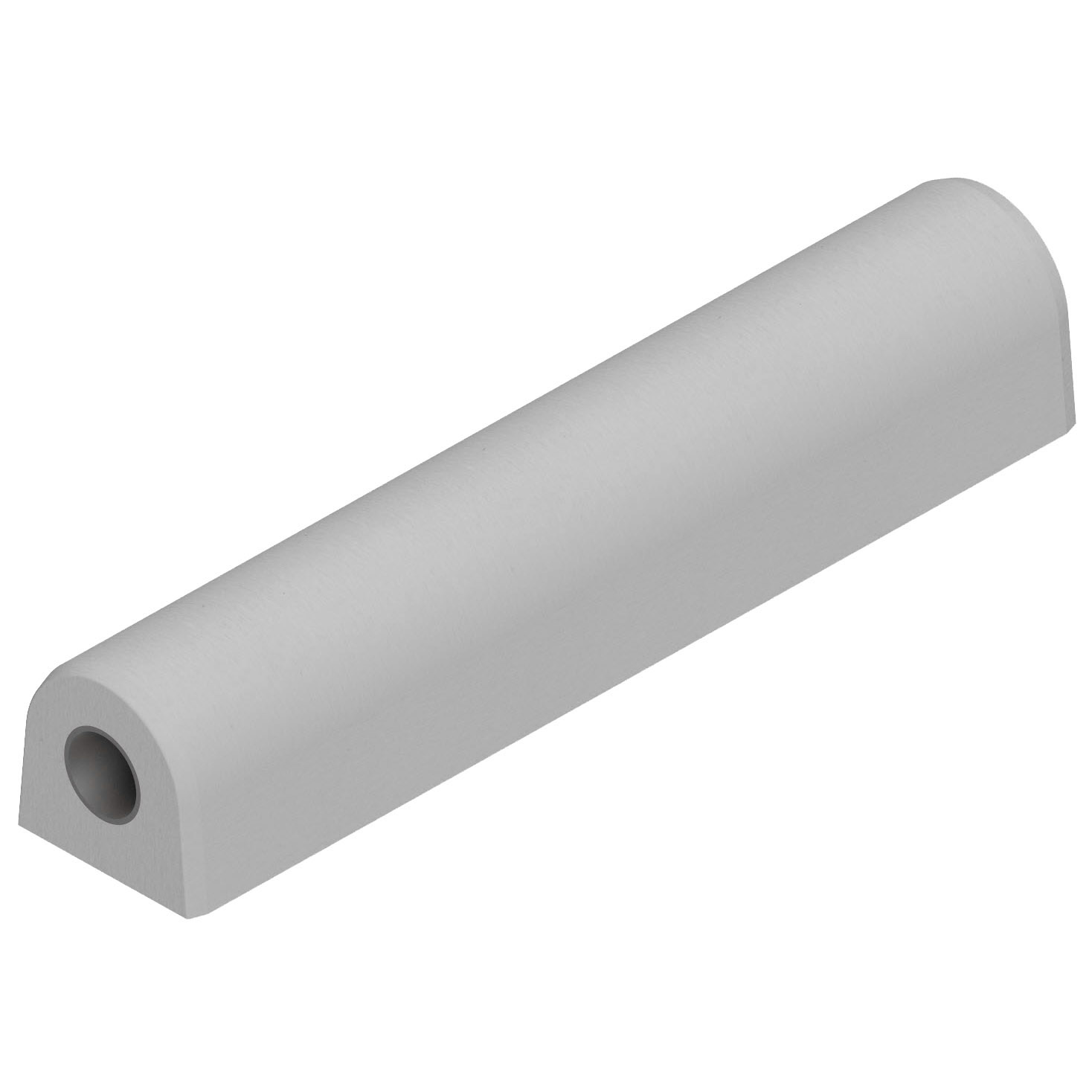

Product name: Next Curb – straight section
C35/45 16 S4 Frysprovad anläggningscement
Svart
Vikt 21 kg
Höjd 160 mm
Bredd 700 mm
Djup 142 mm
Vikt 3,5 kg
Höjd 519 mm
Bredd 268 mm
Djup 268 mm
Item number: 24110022

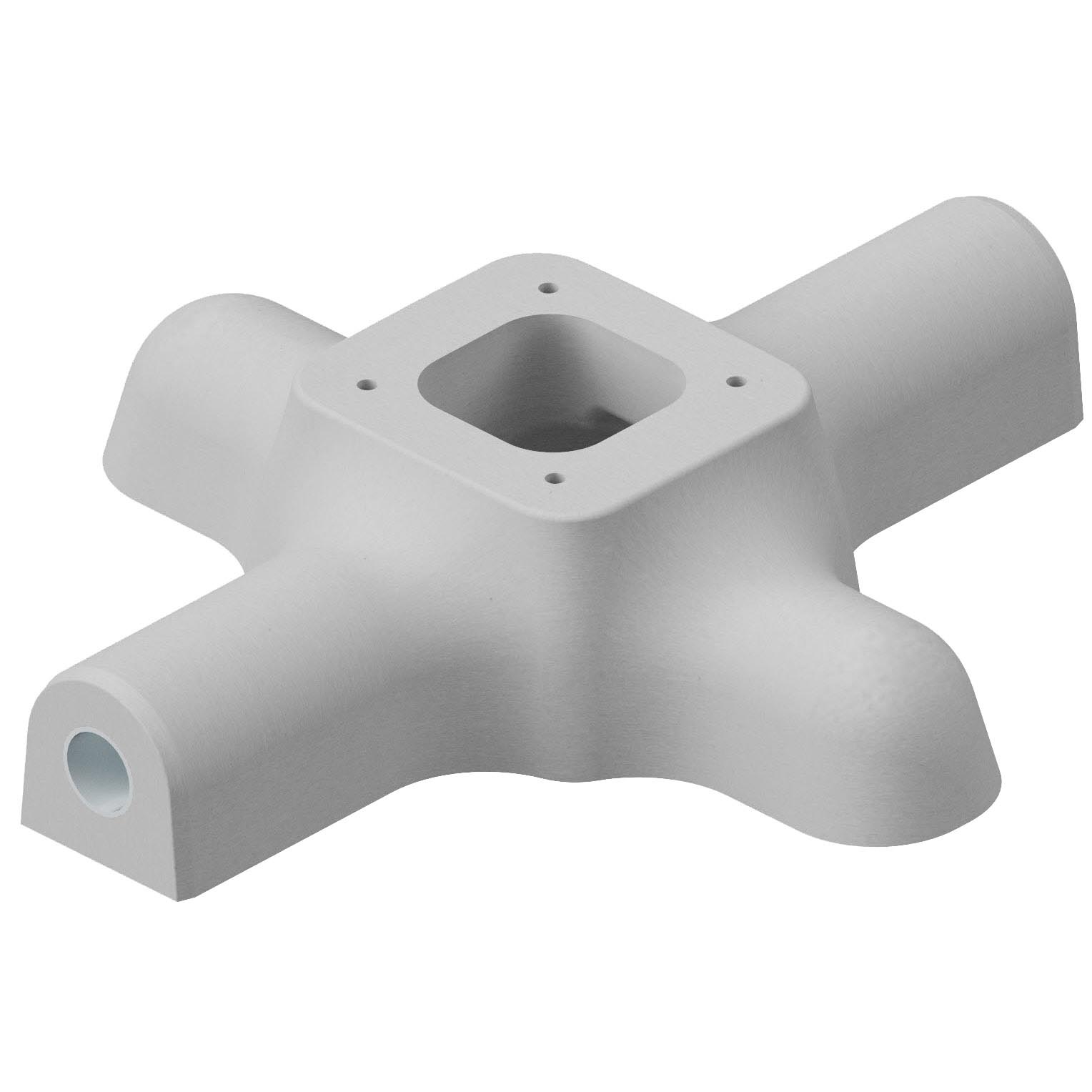

Product name: Next Curb – cross section
C35/45 16 S4 Frysprovad anläggningscement
Svart
Vikt 60 kg
Höjd 170 mm
Bredd 800 mm
Djup 700 mm
Vikt 3,5 kg
Höjd 519 mm
Bredd 268 mm
Djup 268 mm
Item number: 24110024

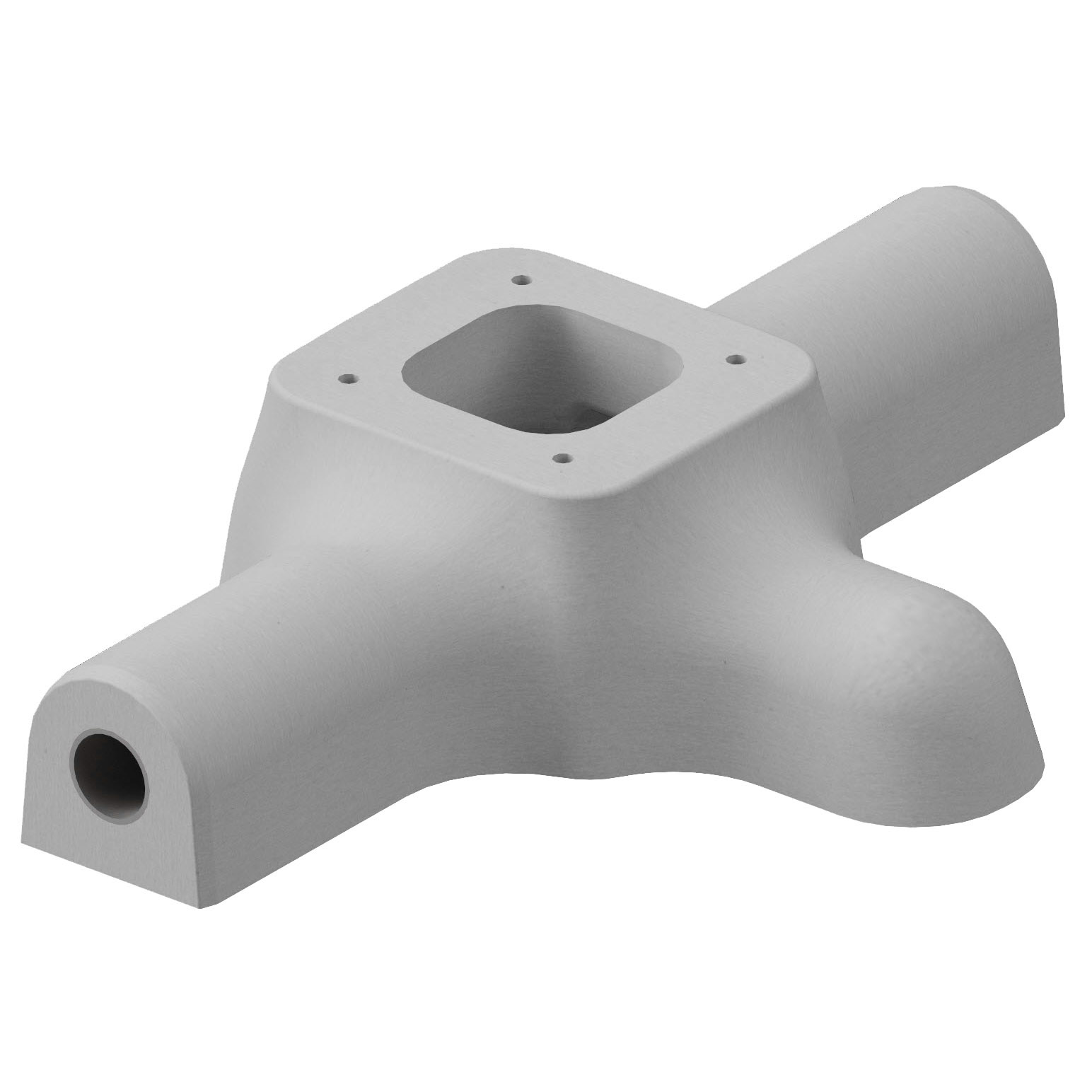

Product name: Next Curb – T section
C35/45 16 S4 Frysprovad anläggningscement
Svart
Vikt 53 kg
Höjd 170 mm
Bredd 800 mm
Djup 502 mm
Vikt 3,5 kg
Höjd 519 mm
Bredd 268 mm
Djup 268 mm
E-number: 27 004 88

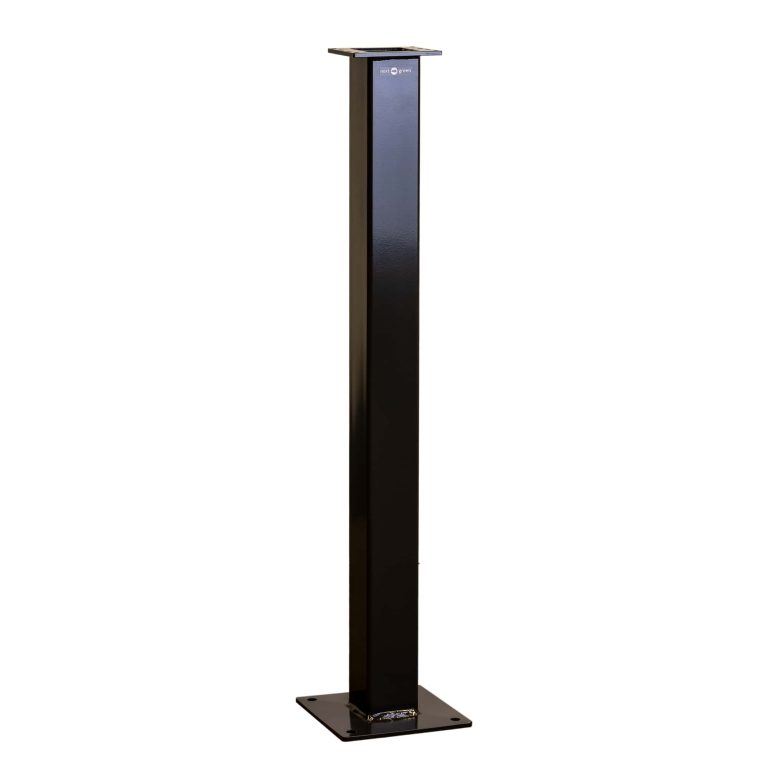

Product name: Piedestal Dynamic
E-number: 27 009 89

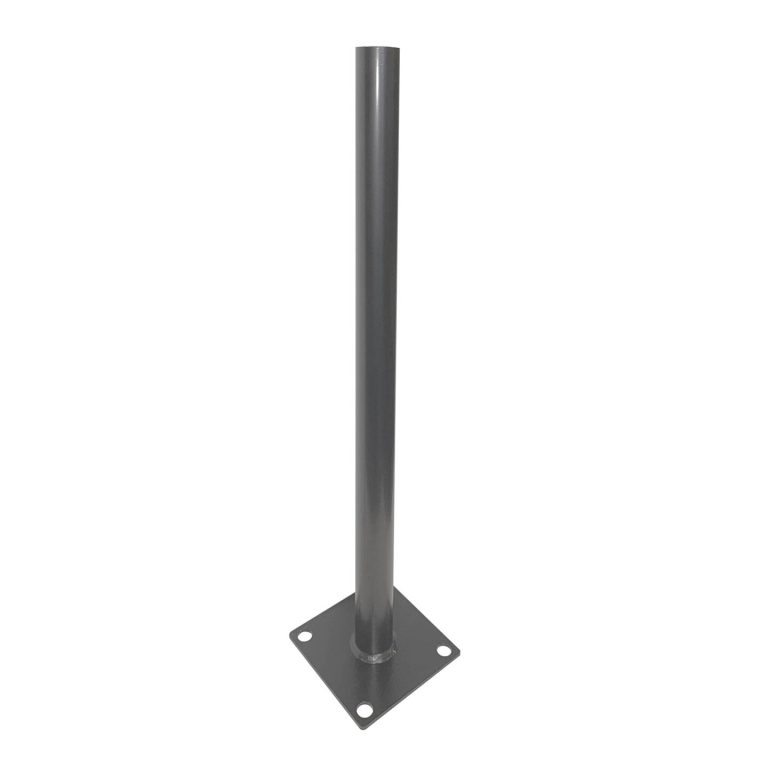

Product name: Stolprör 1000-160 Combo
