Wallplate

Wallplate

Mounting and installation products
Wall mount
NEXT GREEN WALLPLATE 250

Wallplate 250 E-number: 24 803 68 S-No: 35 063 02

Wallplate 320 E-number: 27 005 11 S-No: 35 063 14

Wallplate 250 E-number: 24 803 68 2480368 S-No: 35 063 02 3506302

Wallplate 320 E-number: 2700511 S-No: 3506314

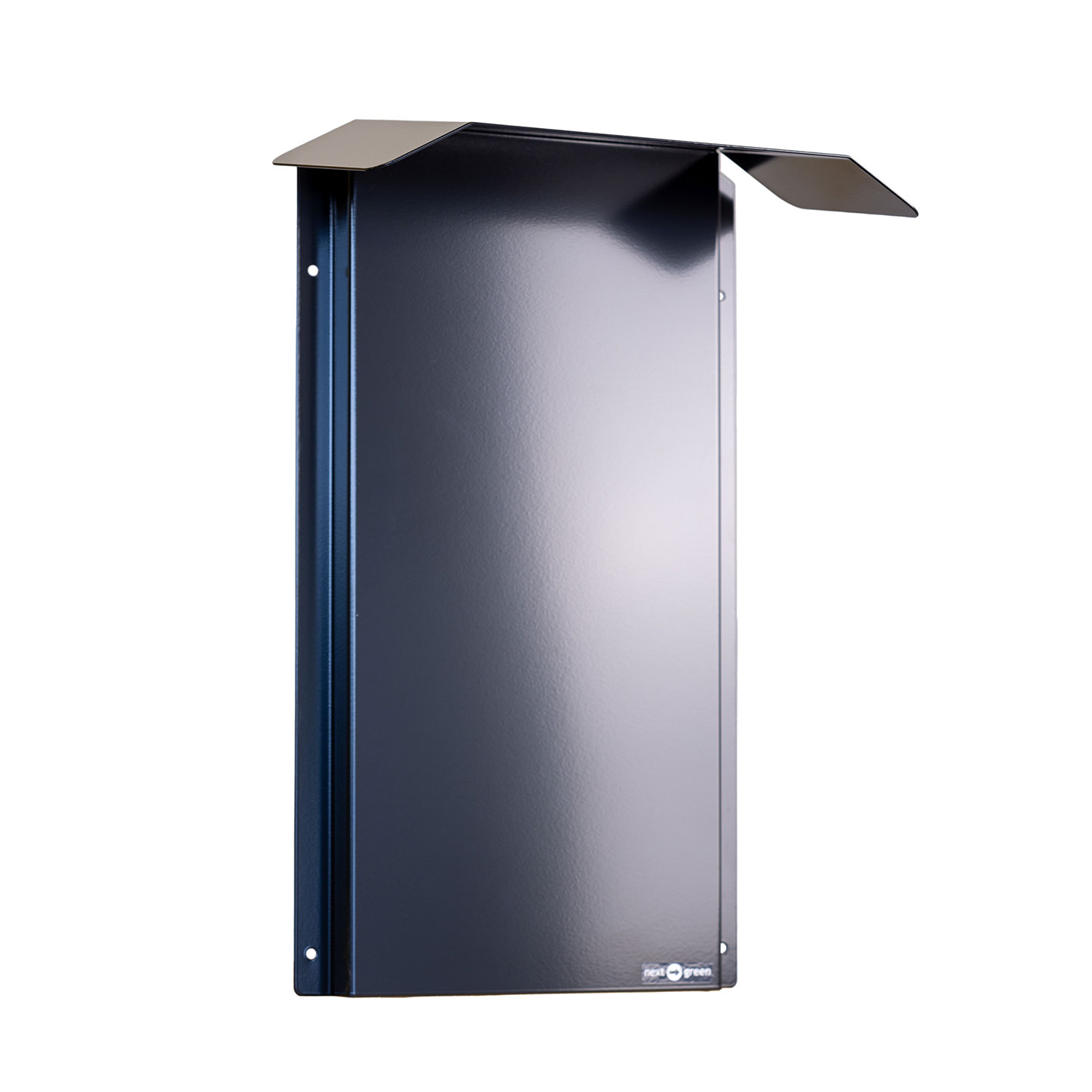

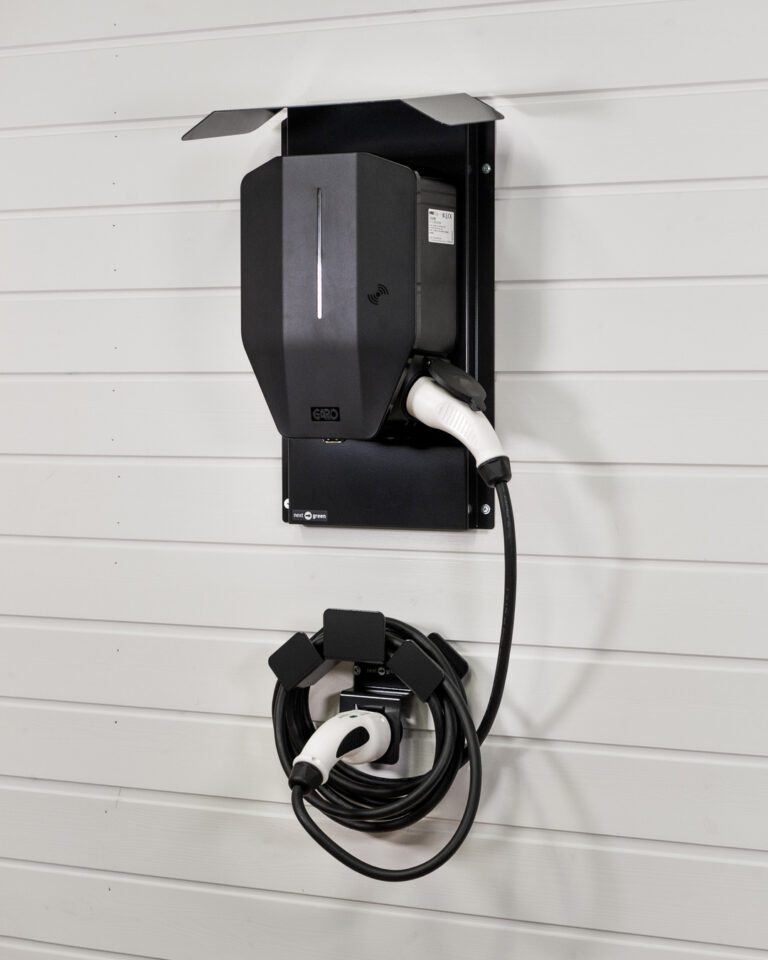

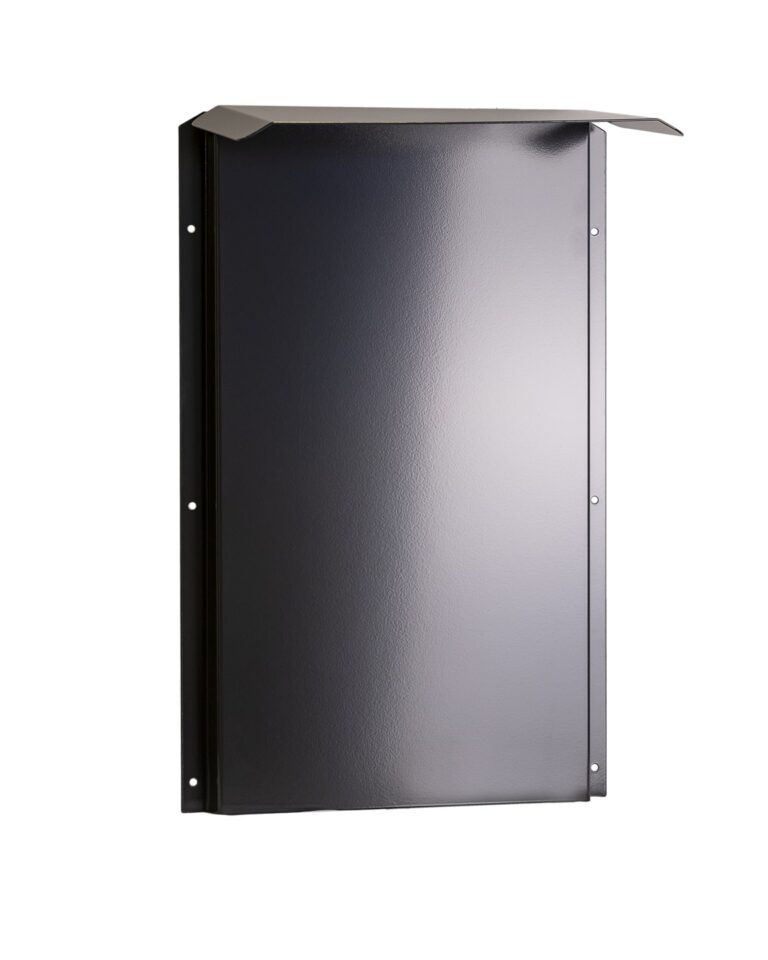

Next Green Wallplate is a universal wall mount for EV-charging stations.

Wallplate provides a flat and stable mounting surface even on uneven facades and minimizes stress that can otherwise occur on the back of the charging box. Wallplate is designed to enable assembly of various differently sized EV-charging box models. The integrated roof protects against precipitation. Wallplate provides one solid mount for the EV-charging box.

Mounting holes for respective EV-charging box is drilled directly into the Wall plate mount for installation.

Product film

Play Video

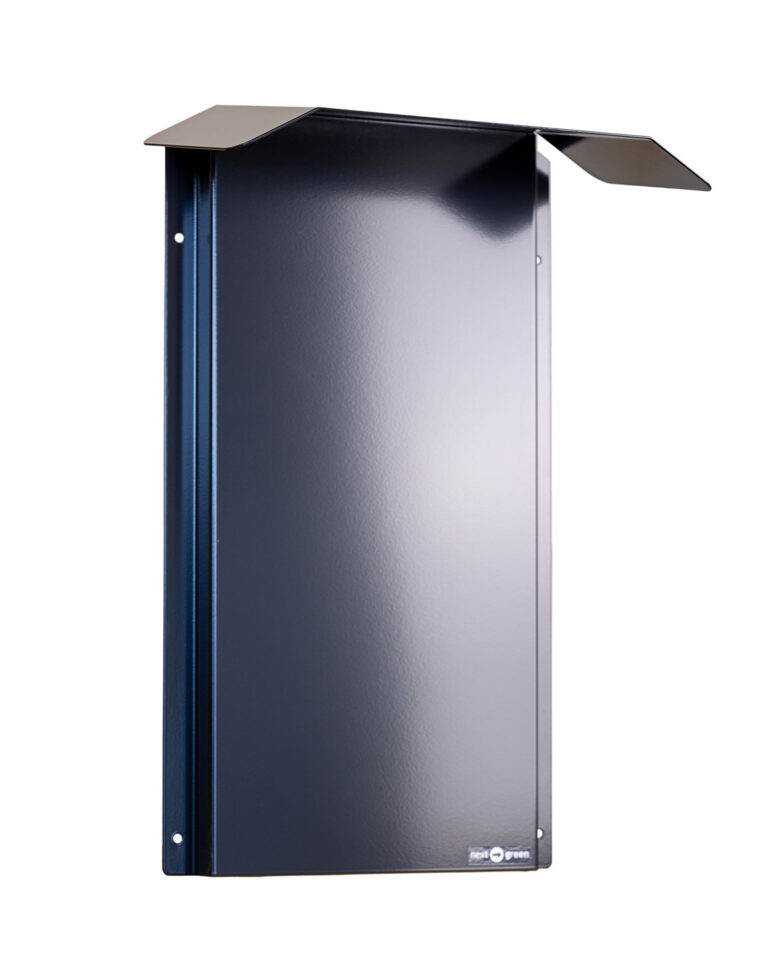

Wallplate 250

E-Number: 24 803 68
S-No: 35 063 02
Product name: Wallplate 250

Product sheet

Assembly instructions

Share

SELECTION OF COMPATIBLE CHARGING BOXES

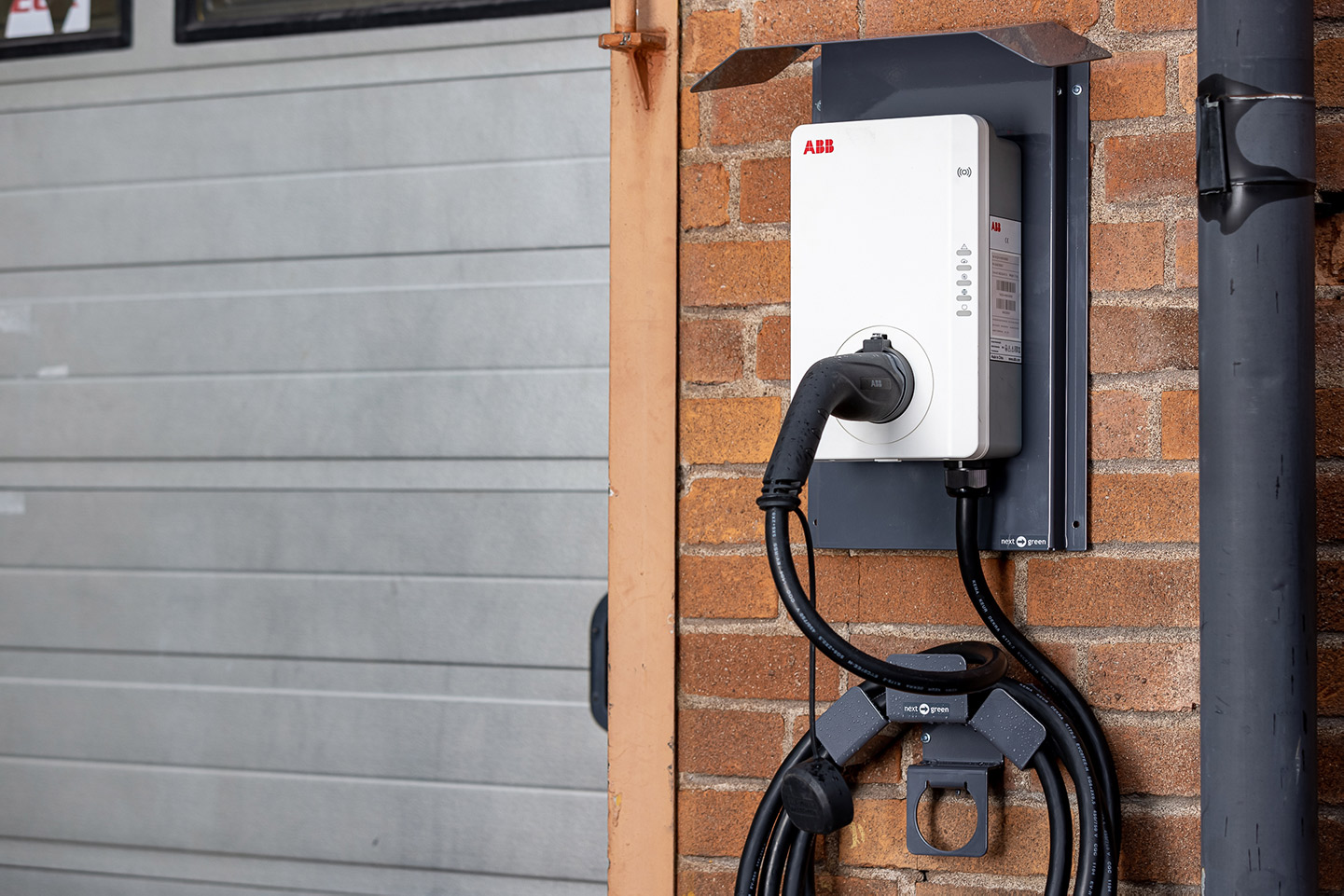

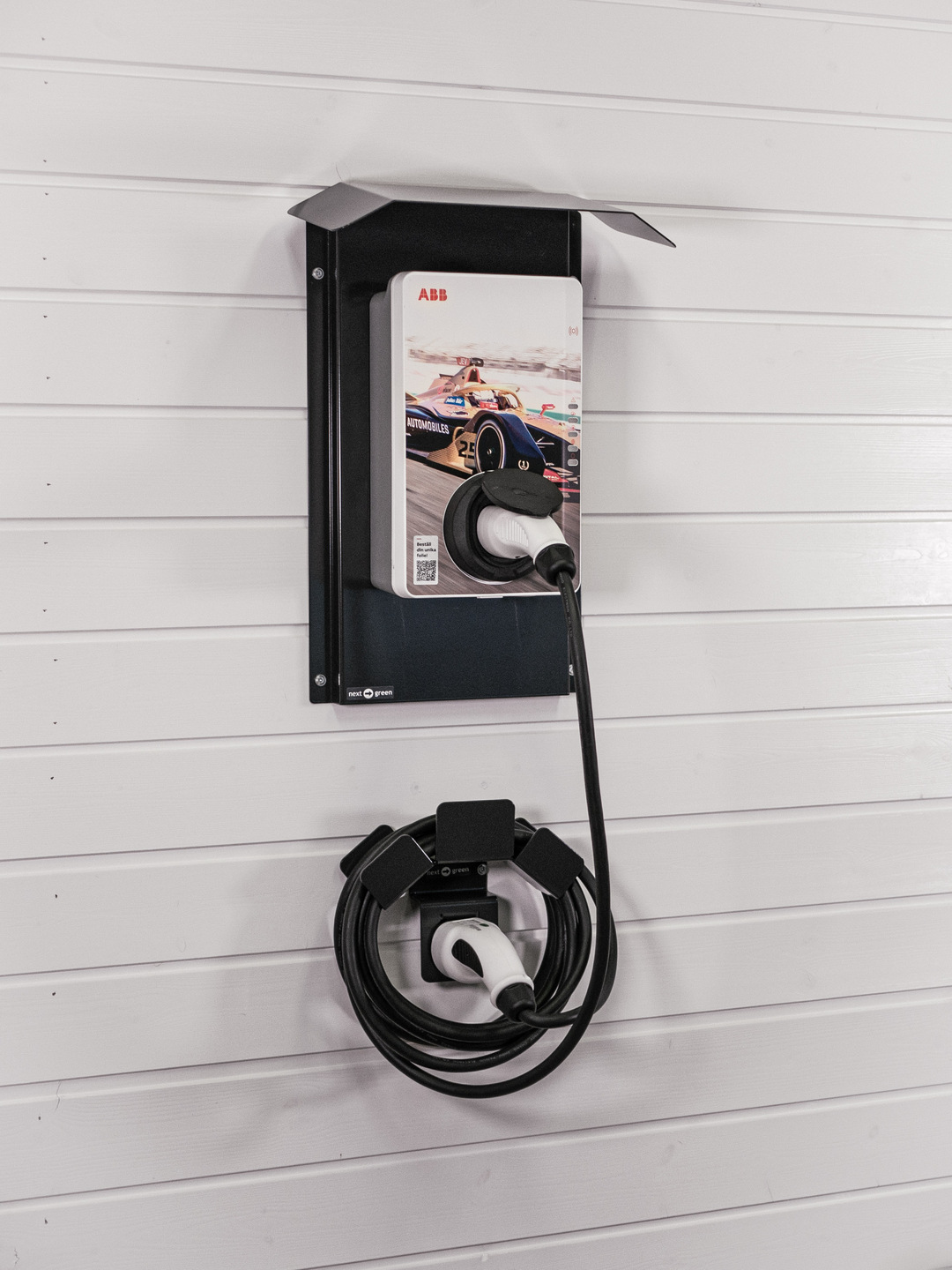

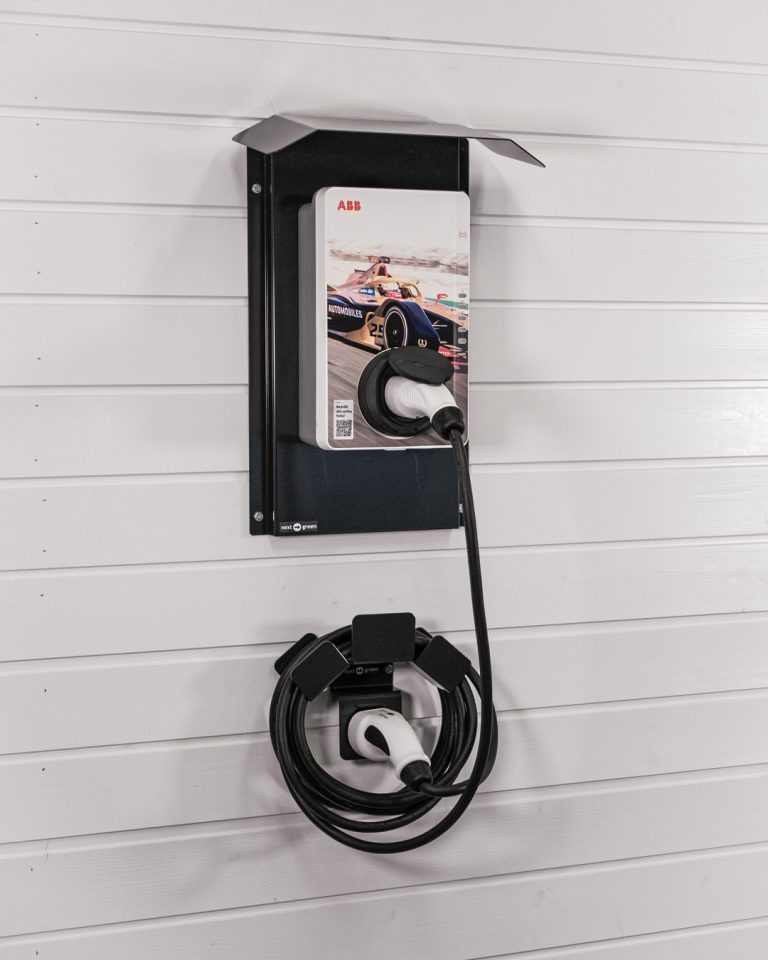

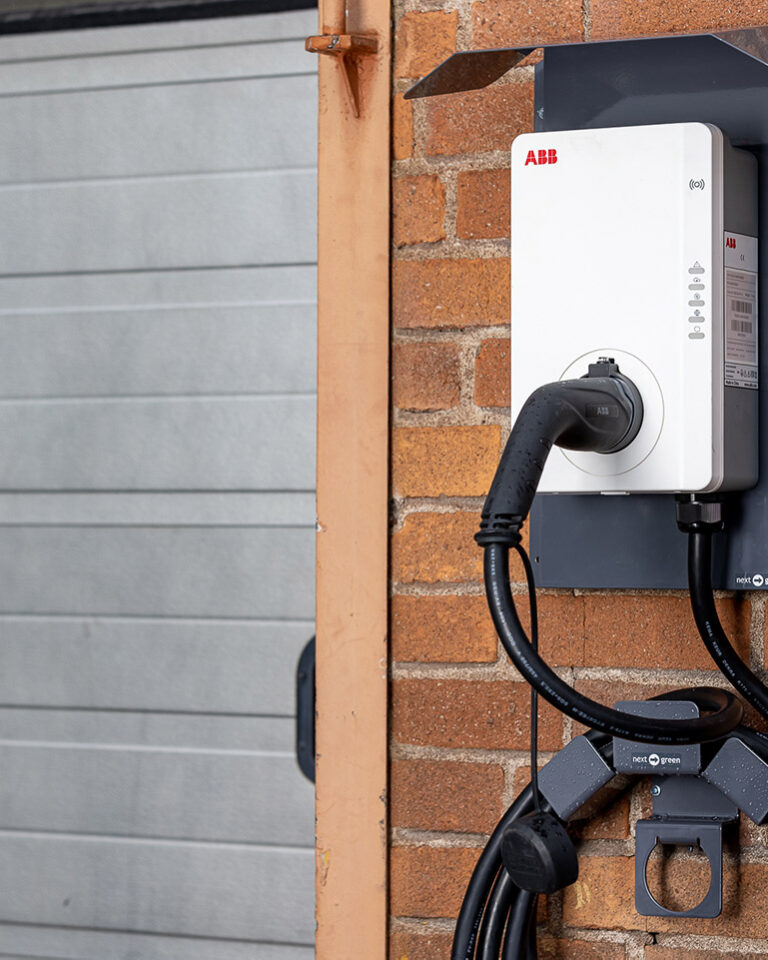

  • ABB Terra AC

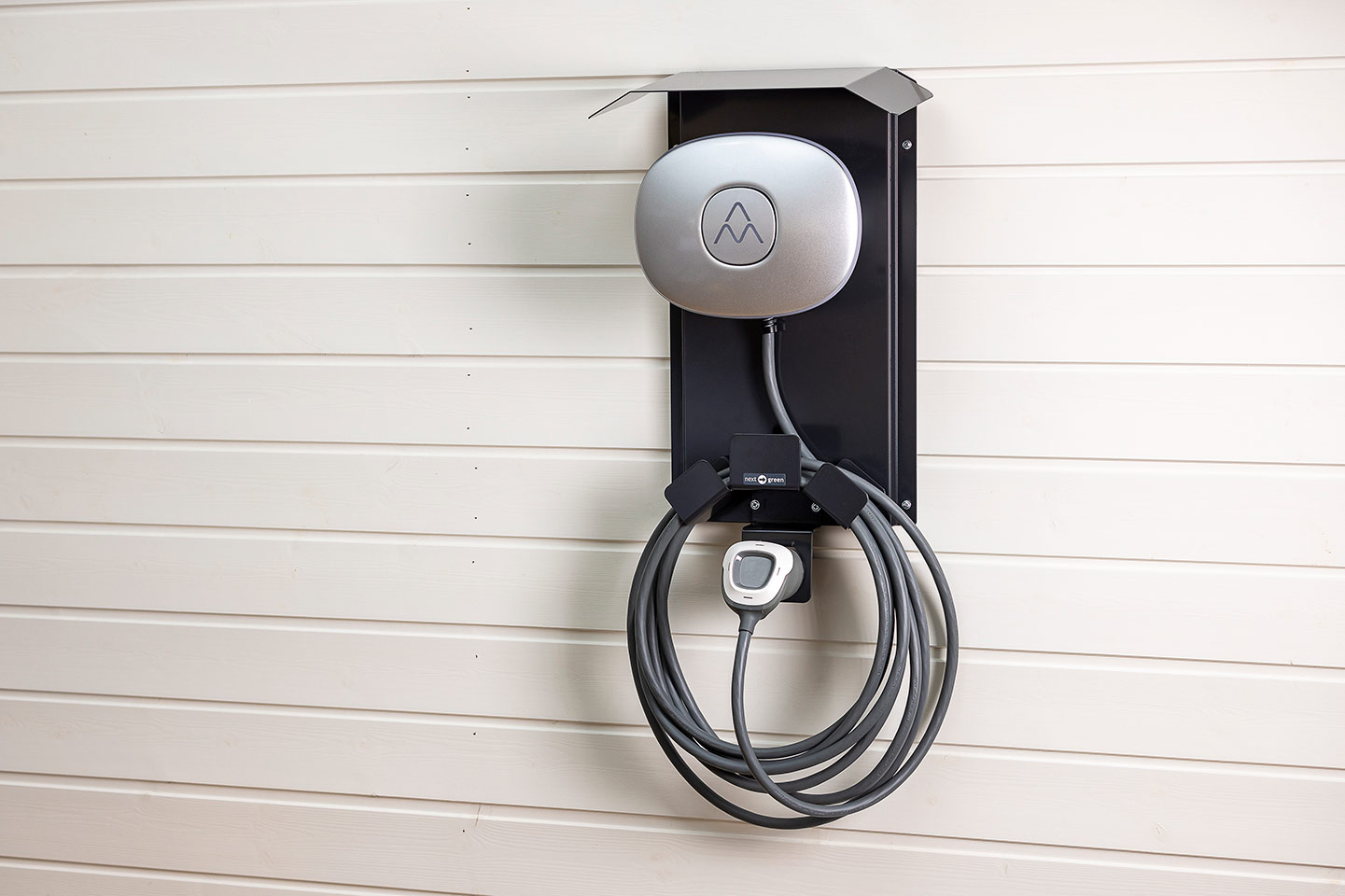

  • Charge Amps Halo

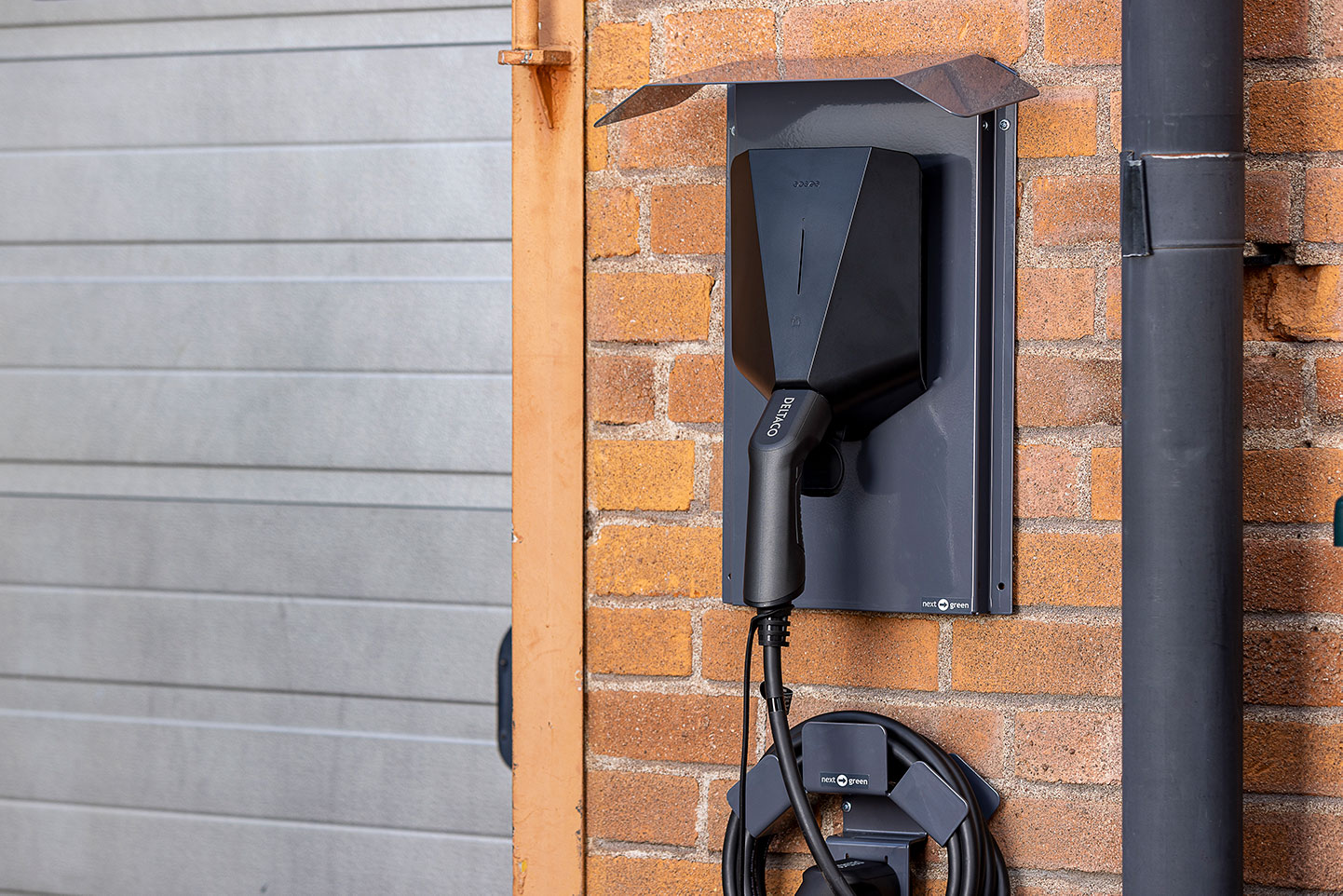

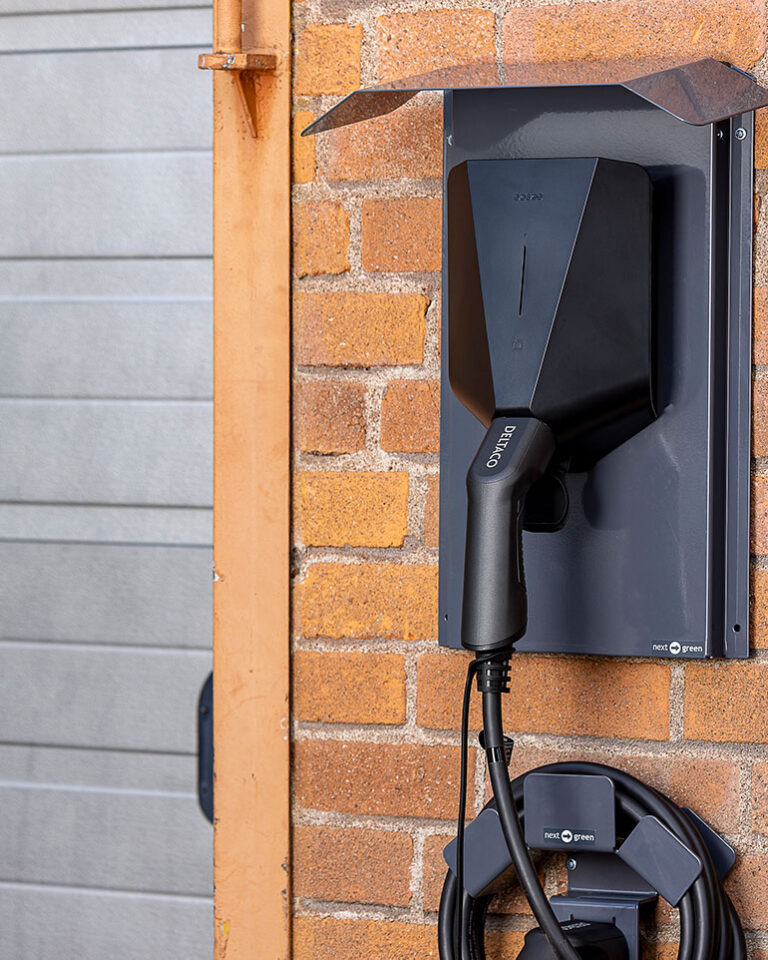

  • Easee Home
  • Easee Charge
  • Elinta Homebox Slim
  • Ensto One
  • Ensto Home

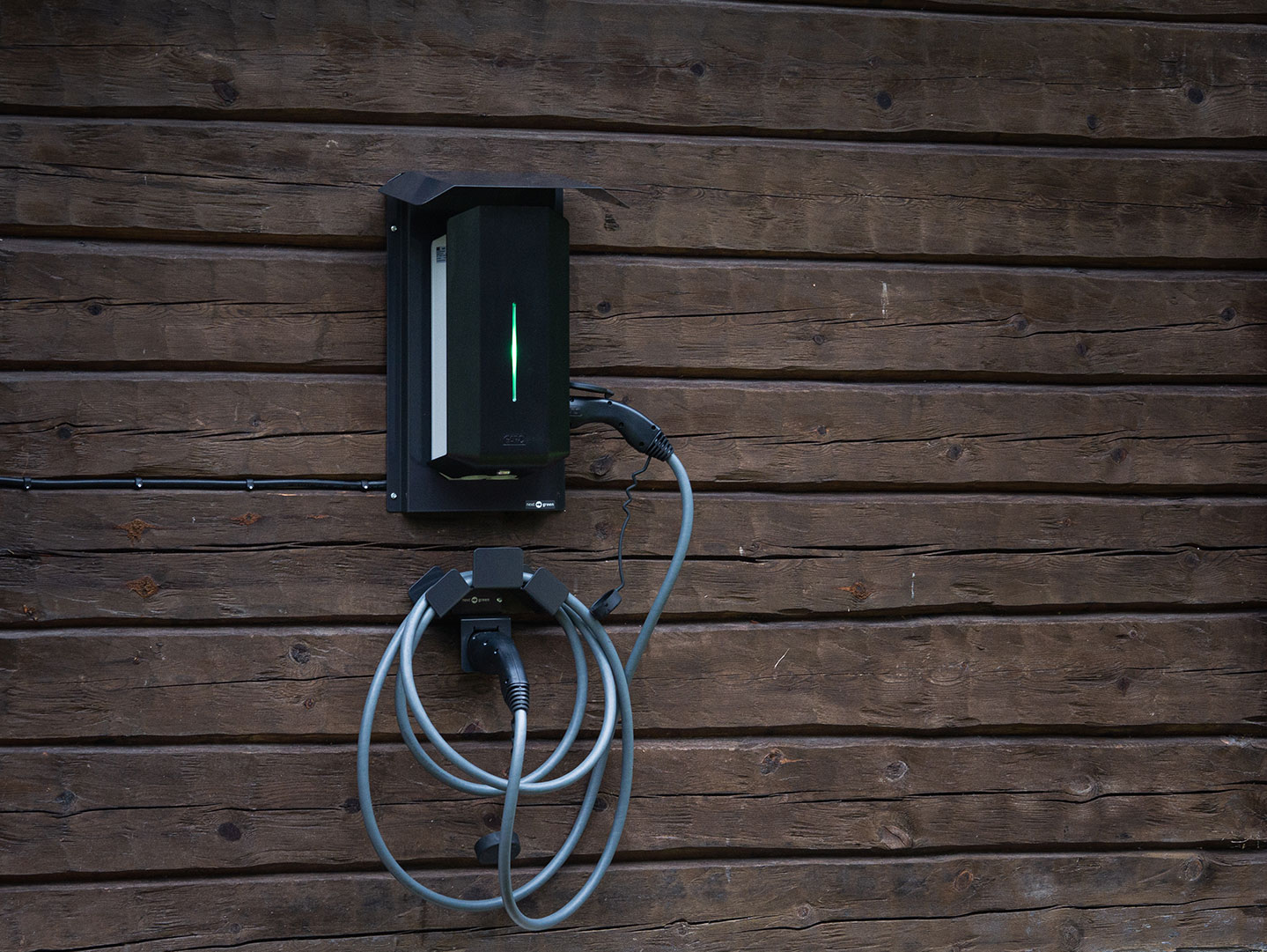

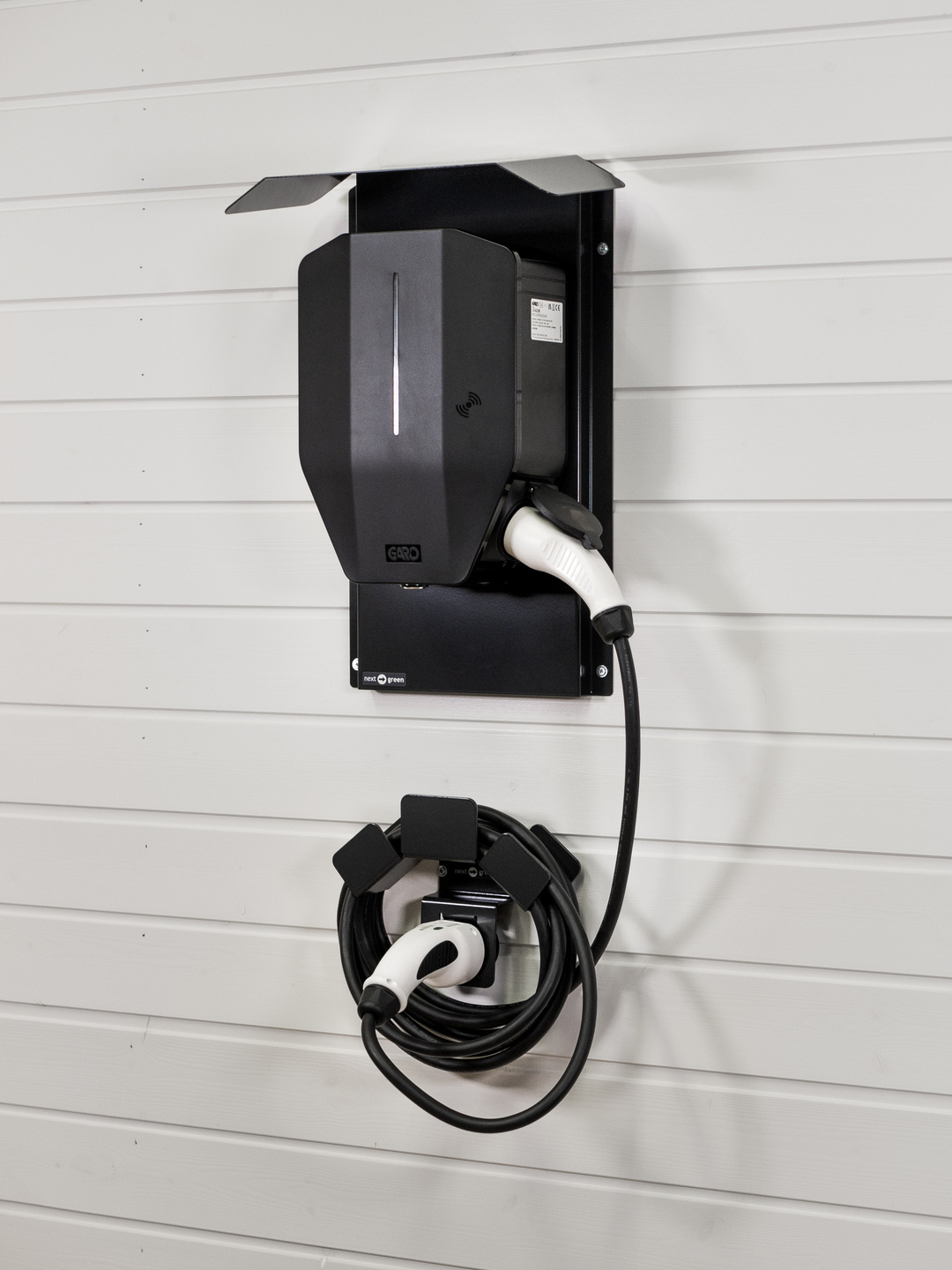

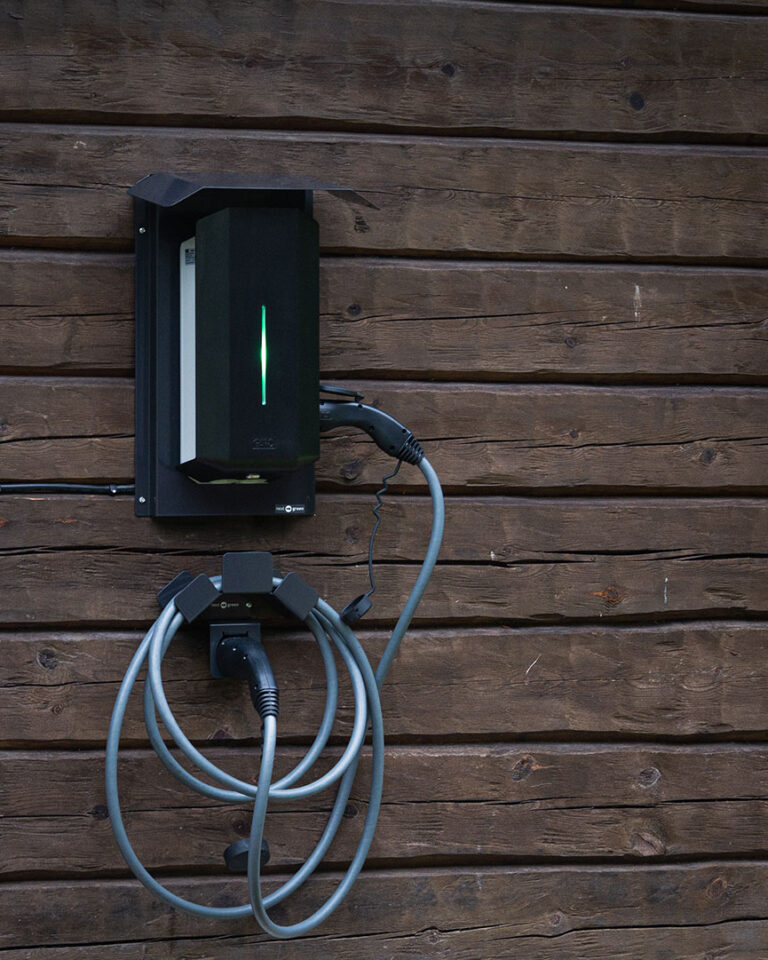

  • Garo GLB

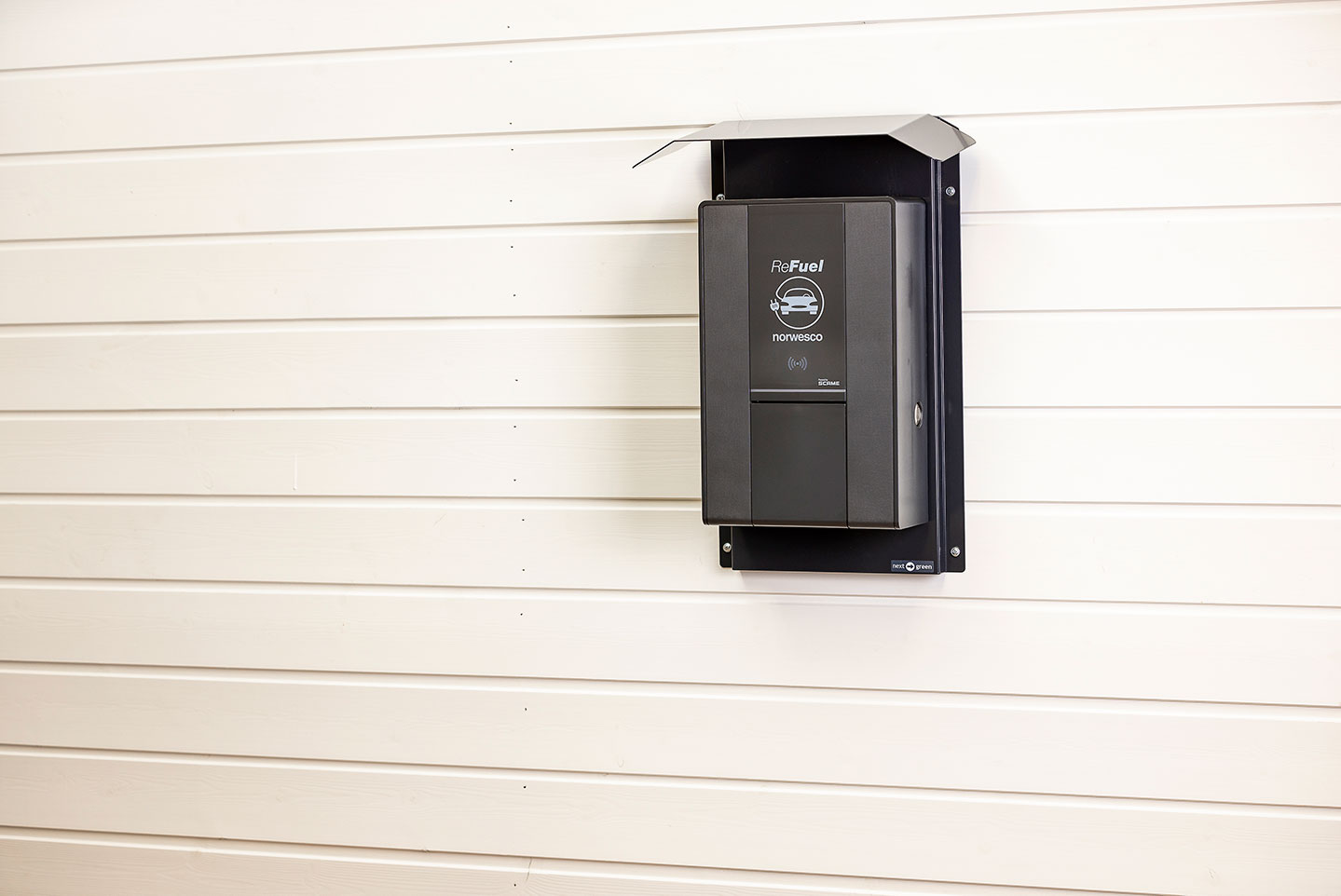

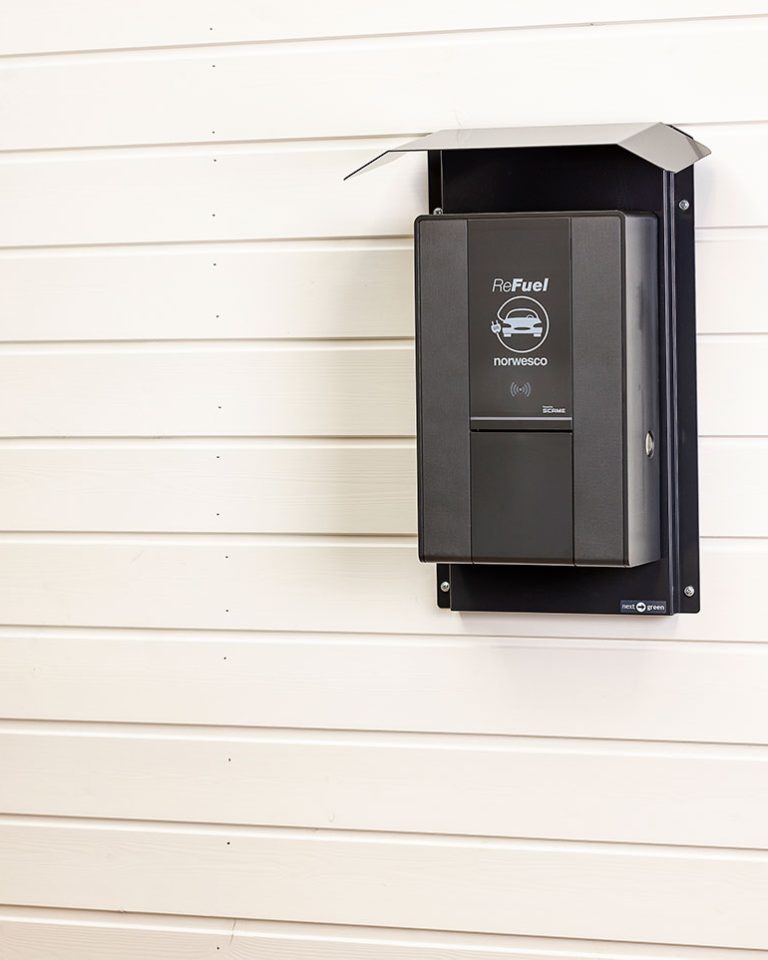

  • Norwesco Refuel

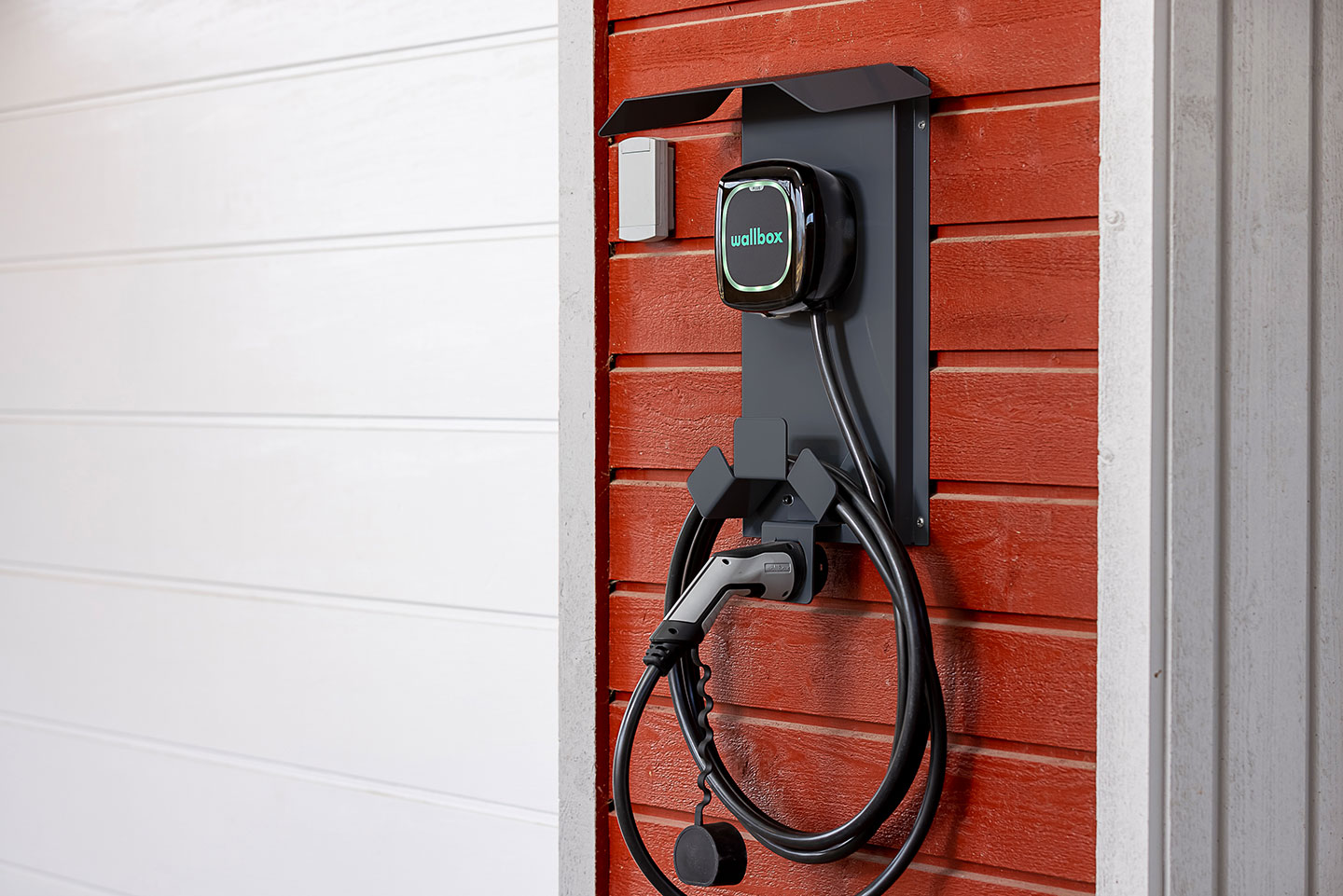

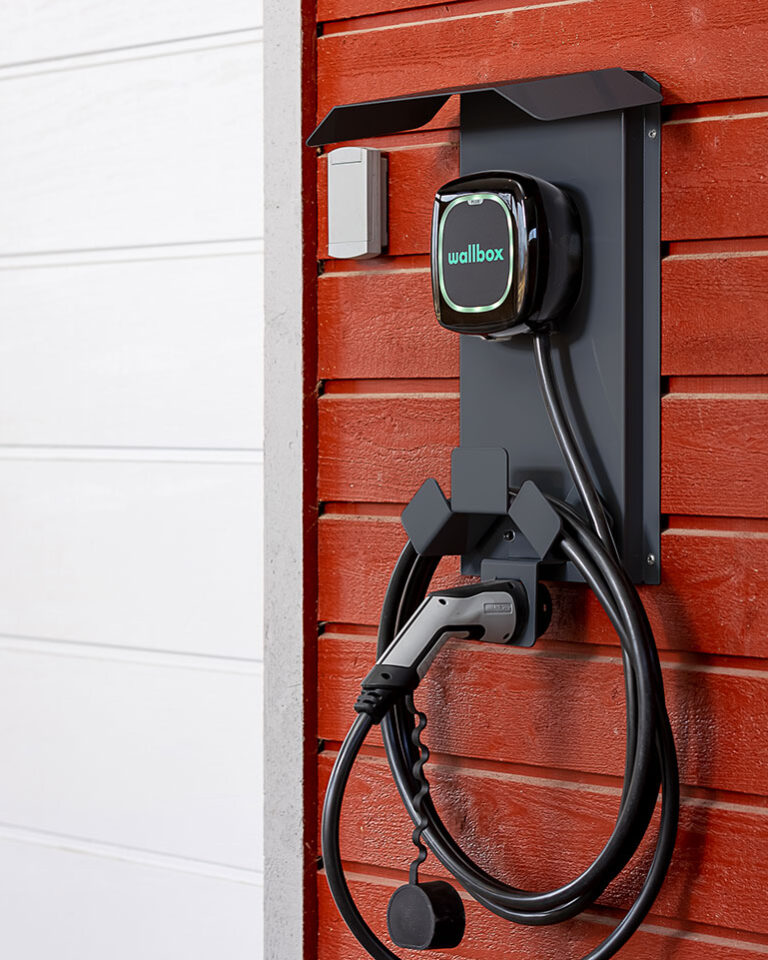

  • Wallbox Pulsar

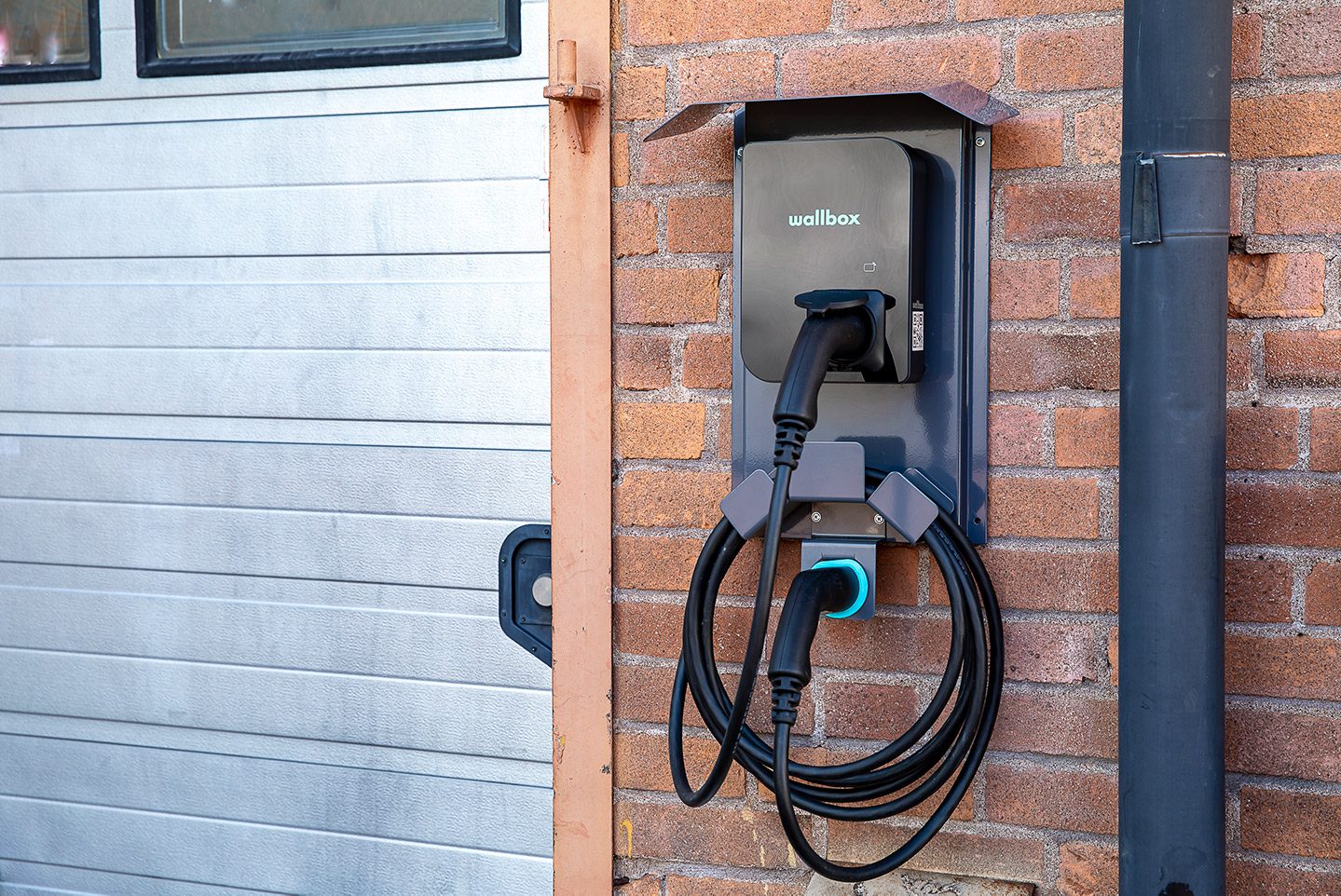

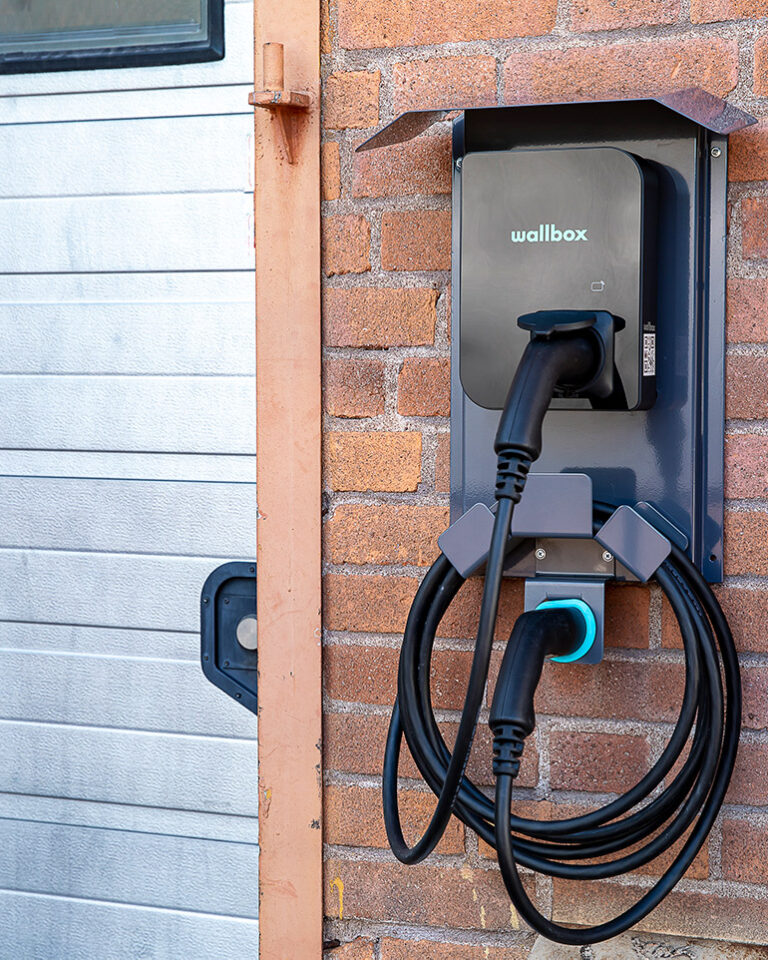

  • Wallbox Copper SB
  • Wallbox Commander

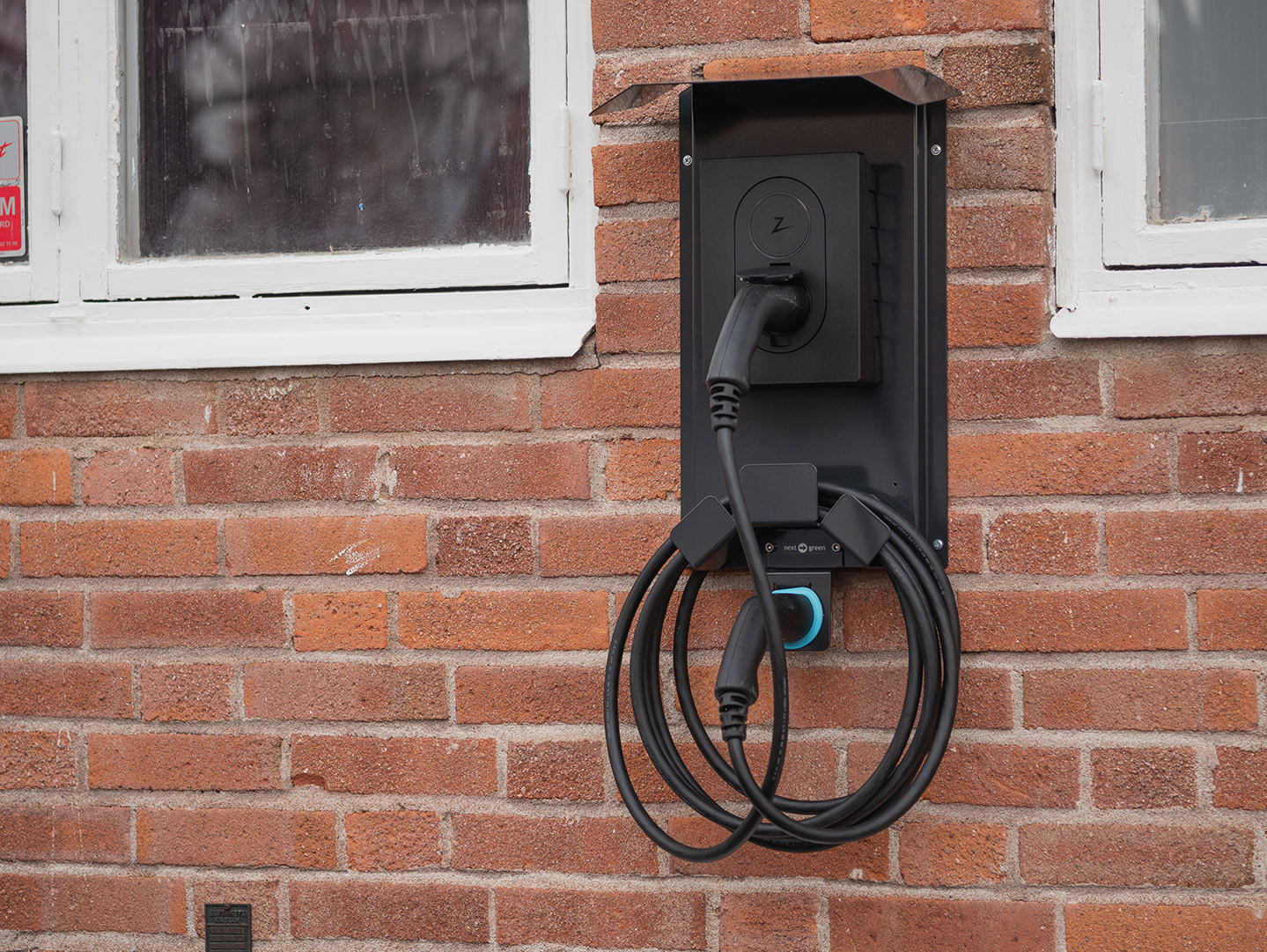

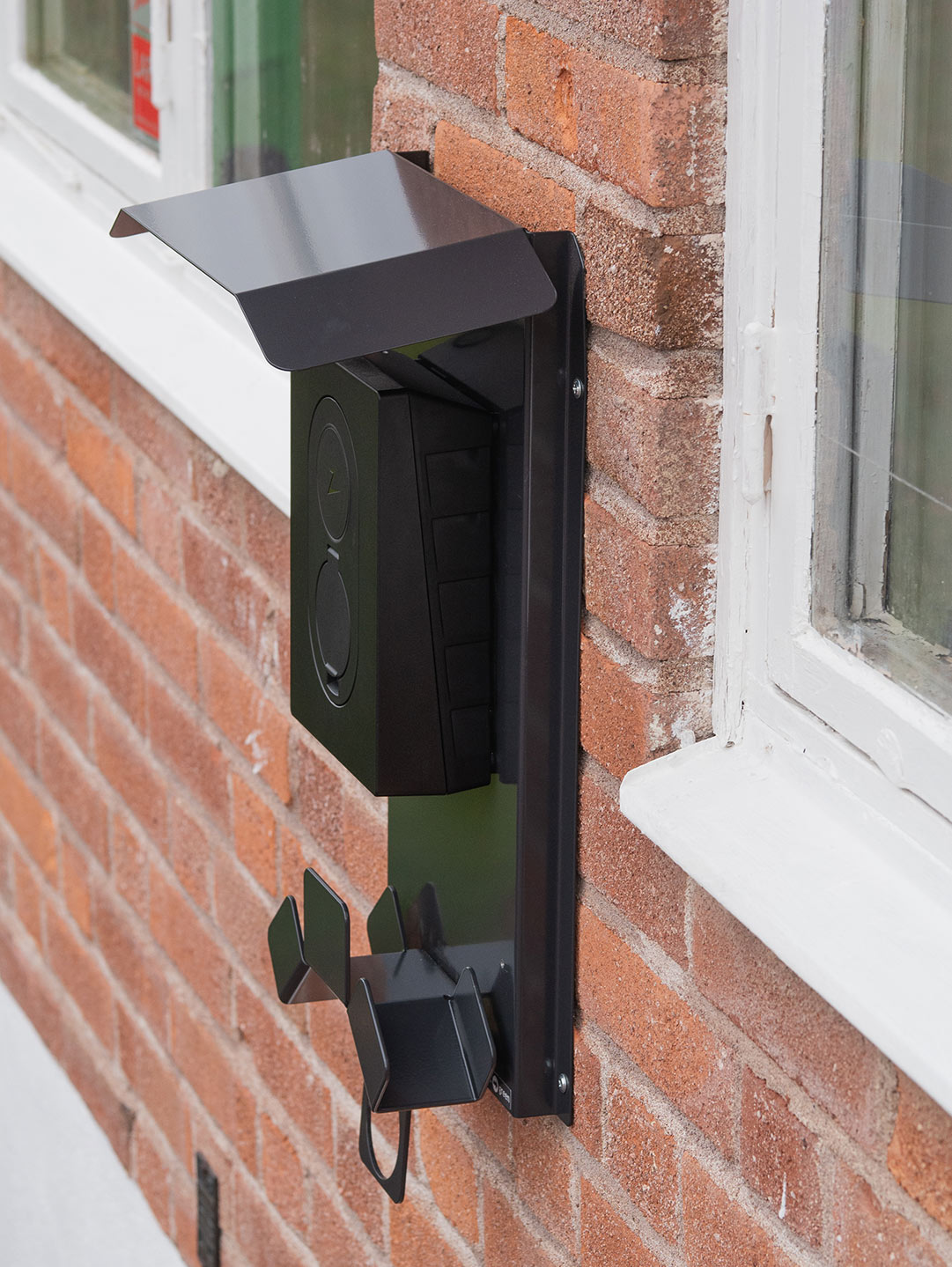

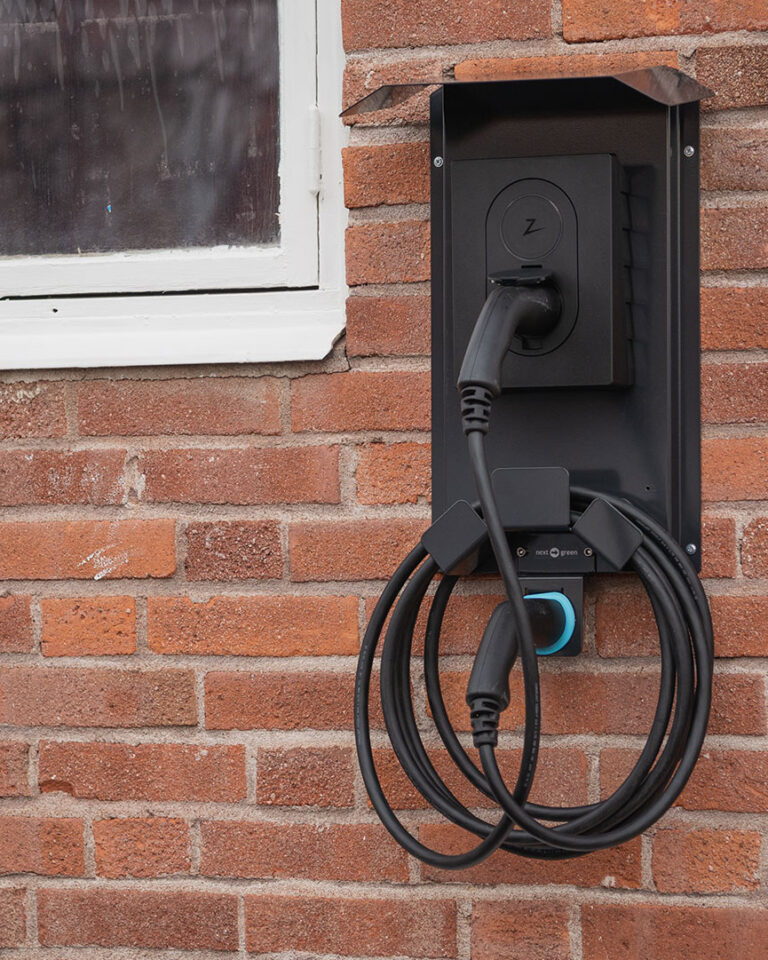

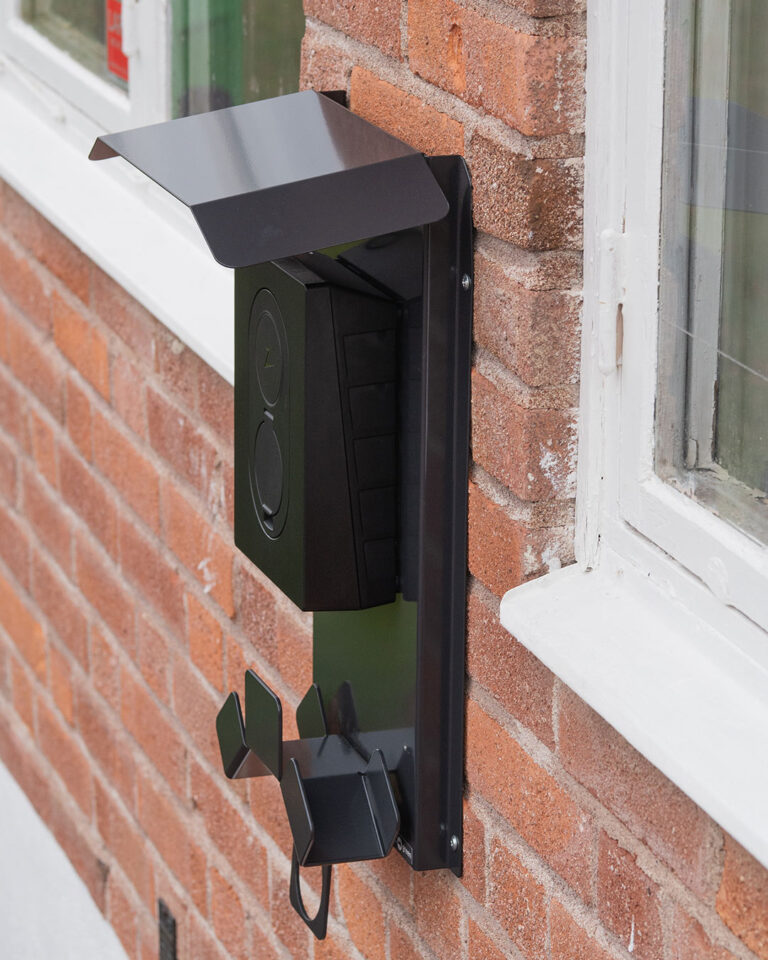

  • Zaptec Go
  • For mounting an EV-charging station on wall
  • Facilitates mounting on uneven surfaces
  • Wiring can be done behind the Wallplate
  • Protects EV-charging station and the wall
  • Powder coated, available in various colors. Contact Next Green for more information

Material

Steel plate, powder coated

Color

Graphite grey

Dimensions

Weight 3 kg
Height 524 mm
Width 377 mm
Depth 191 mm

Packaging dimensions

Weight 3,1 kg
Height 550 mm
Width 380 mm
Depth 200 mm

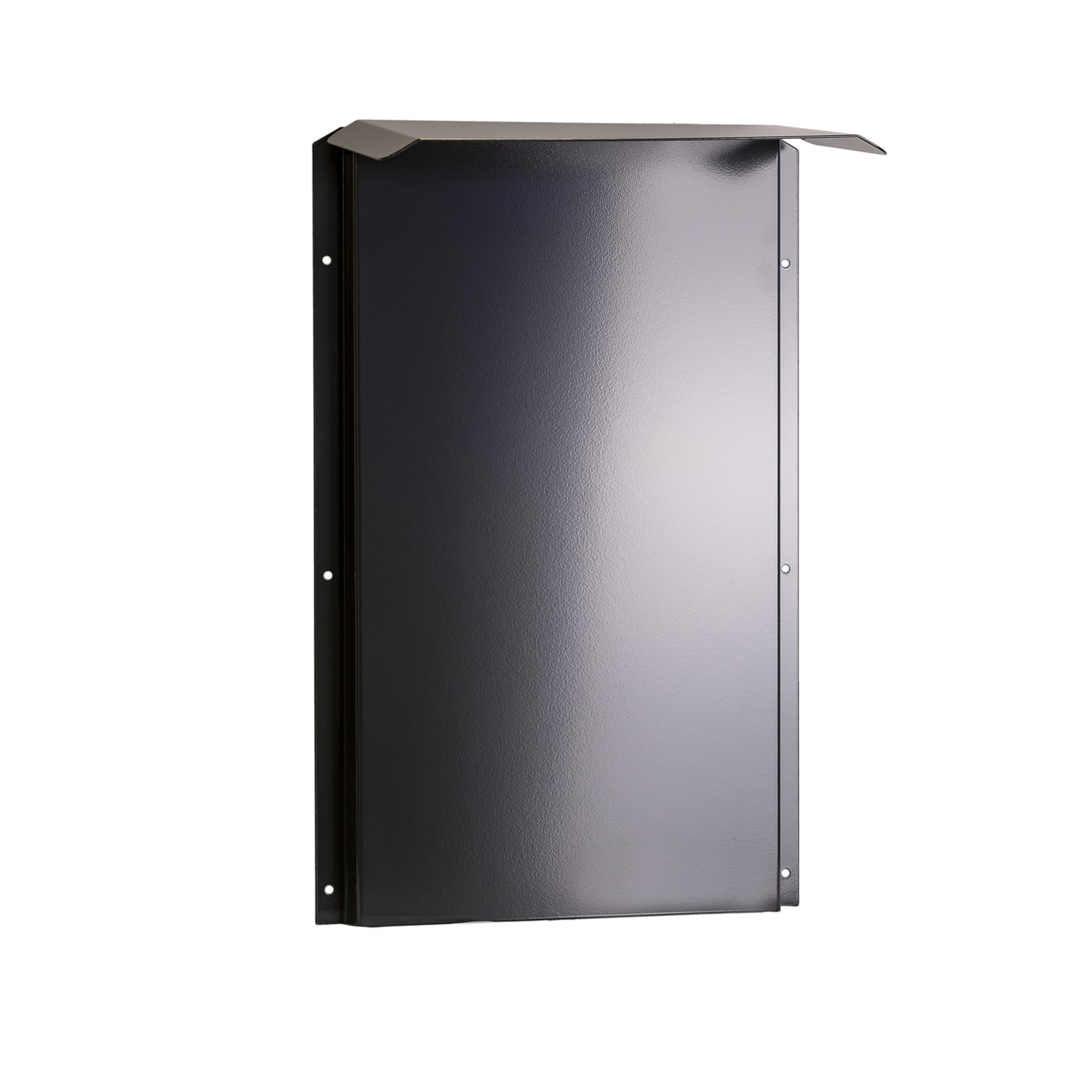

Wallplate 320

E-Number 27 005 11
S-No: 35 063 14
Product name: Wallplate 320

Product sheet

Assembly instructions

Share

SELECTION OF COMPATIBLE CHARGING BOXES

  • Alfen Eve Double

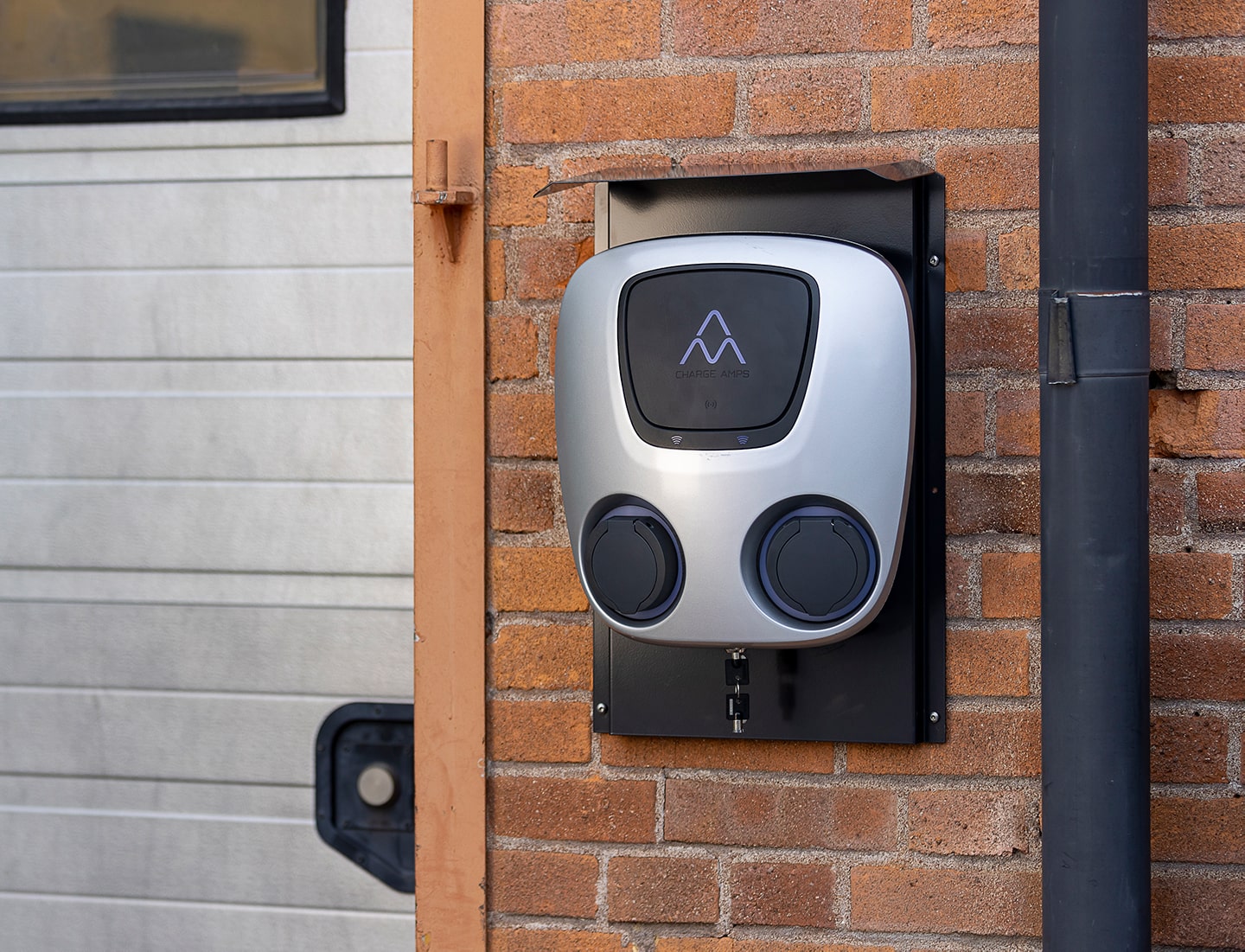

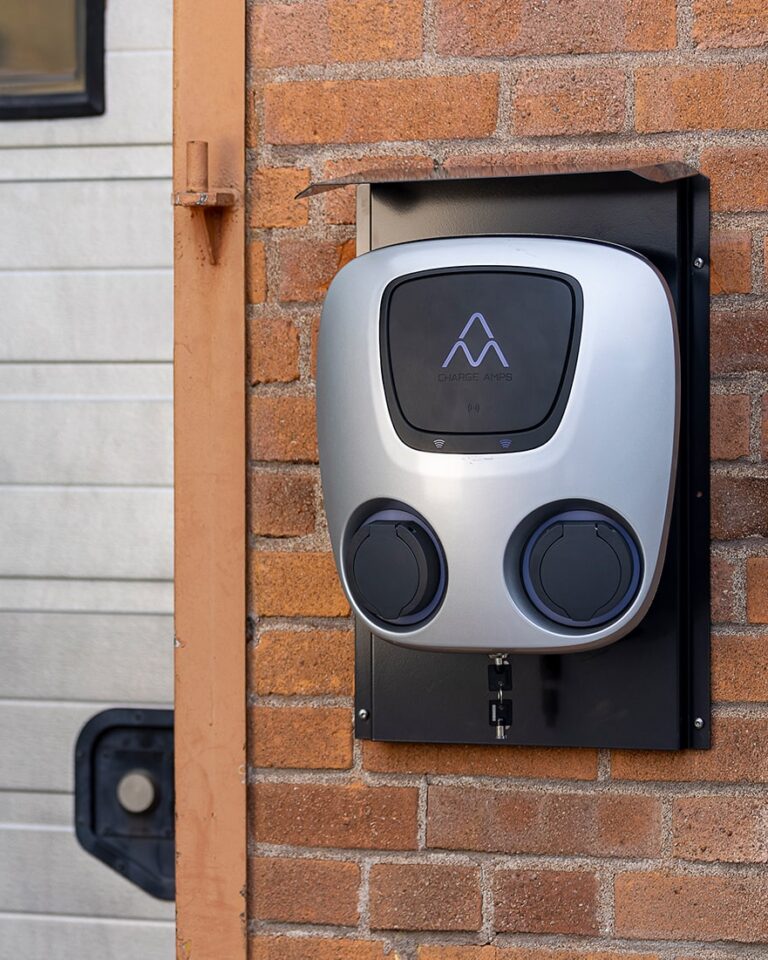

  • Charge Amps Aura
  • CTEK Chargestorm
  • DEFA eRange Duo
  • Hager Witty
  • Schneider EVlink Home

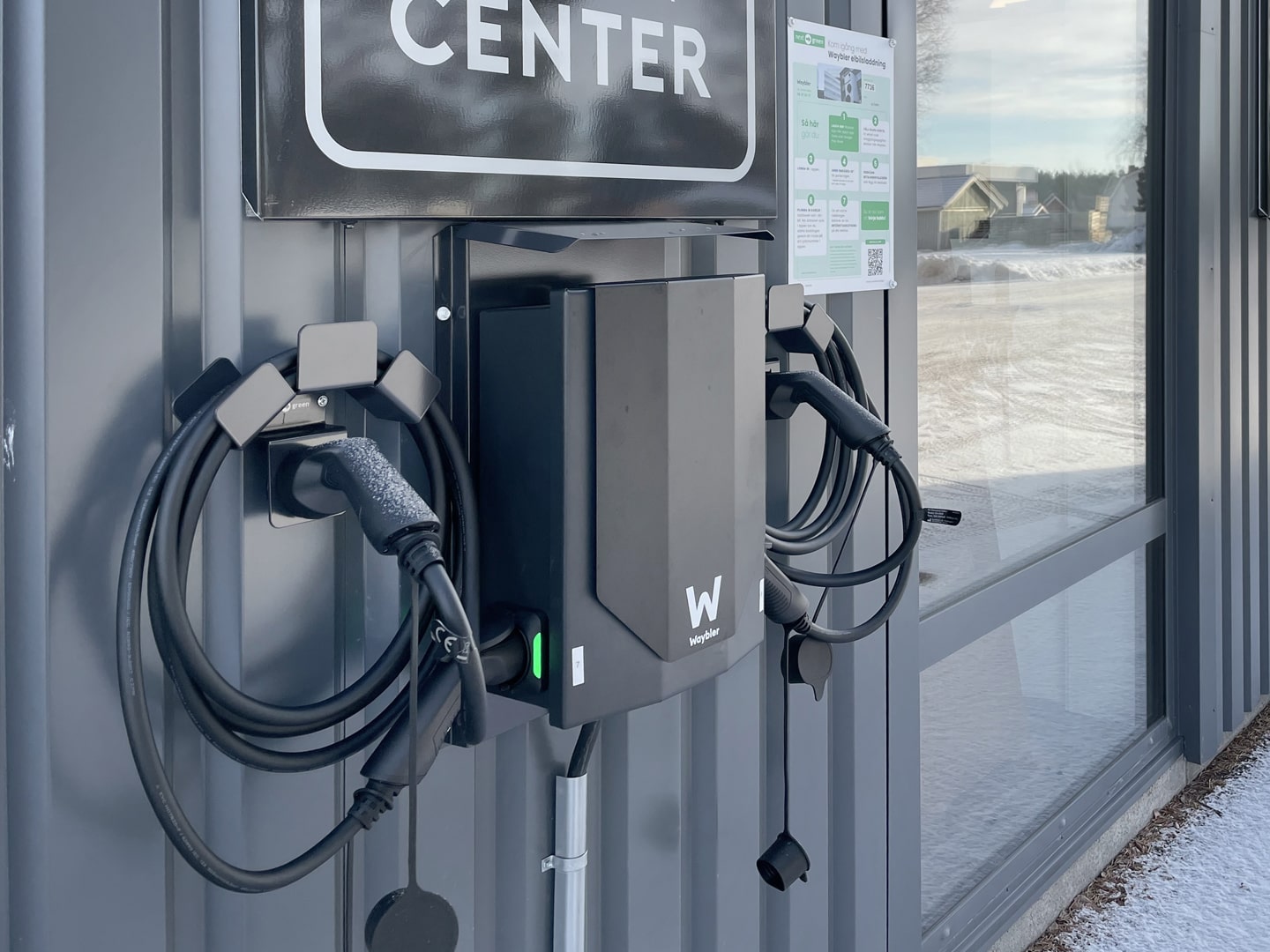

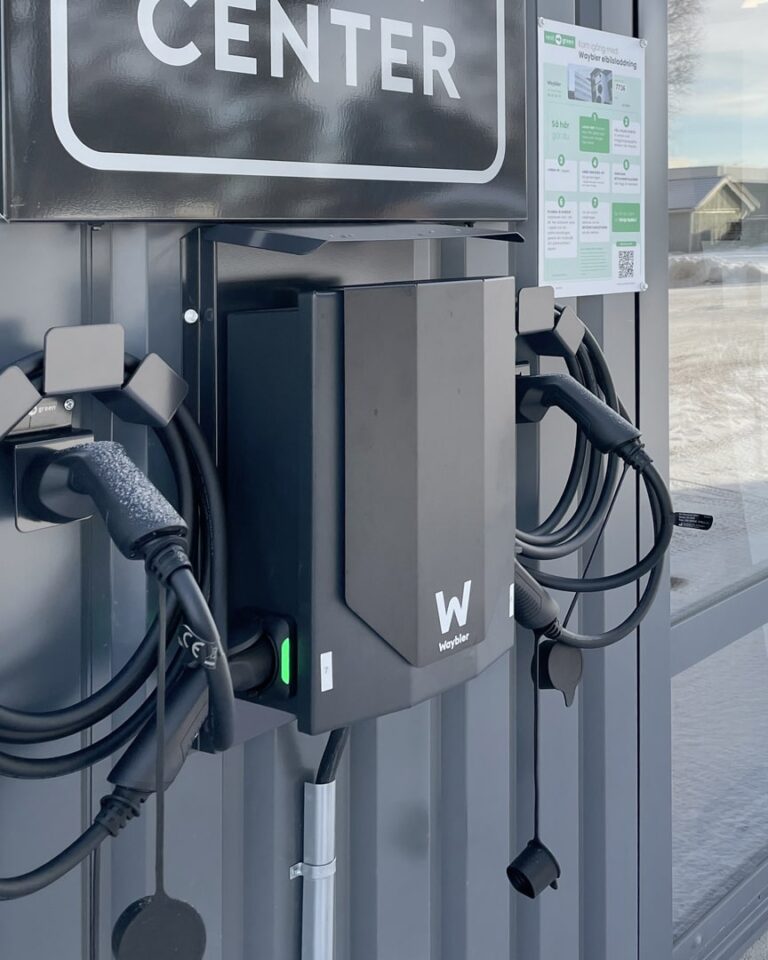

  • Waybler Dynamic
  • Zaptec Pro
  • For mounting an EV-charging station on wall
  • Facilitates mounting on uneven surfaces
  • Wiring can be done behind the Wallplate
  • Protects EV-charging station and the wall
  • Powder coated, available in various colors. Contact Next Green for more information

Material

Steel plate, powder coated

Color

Graphite grey

Dimensions

Weight 3,5 kg
Height 580 mm
Width 370 mm
Depth 191 mm

Packaging dimensions

Weight 3,6 kg
Height 580 mm
Width 370 mm
Depth 200 mm

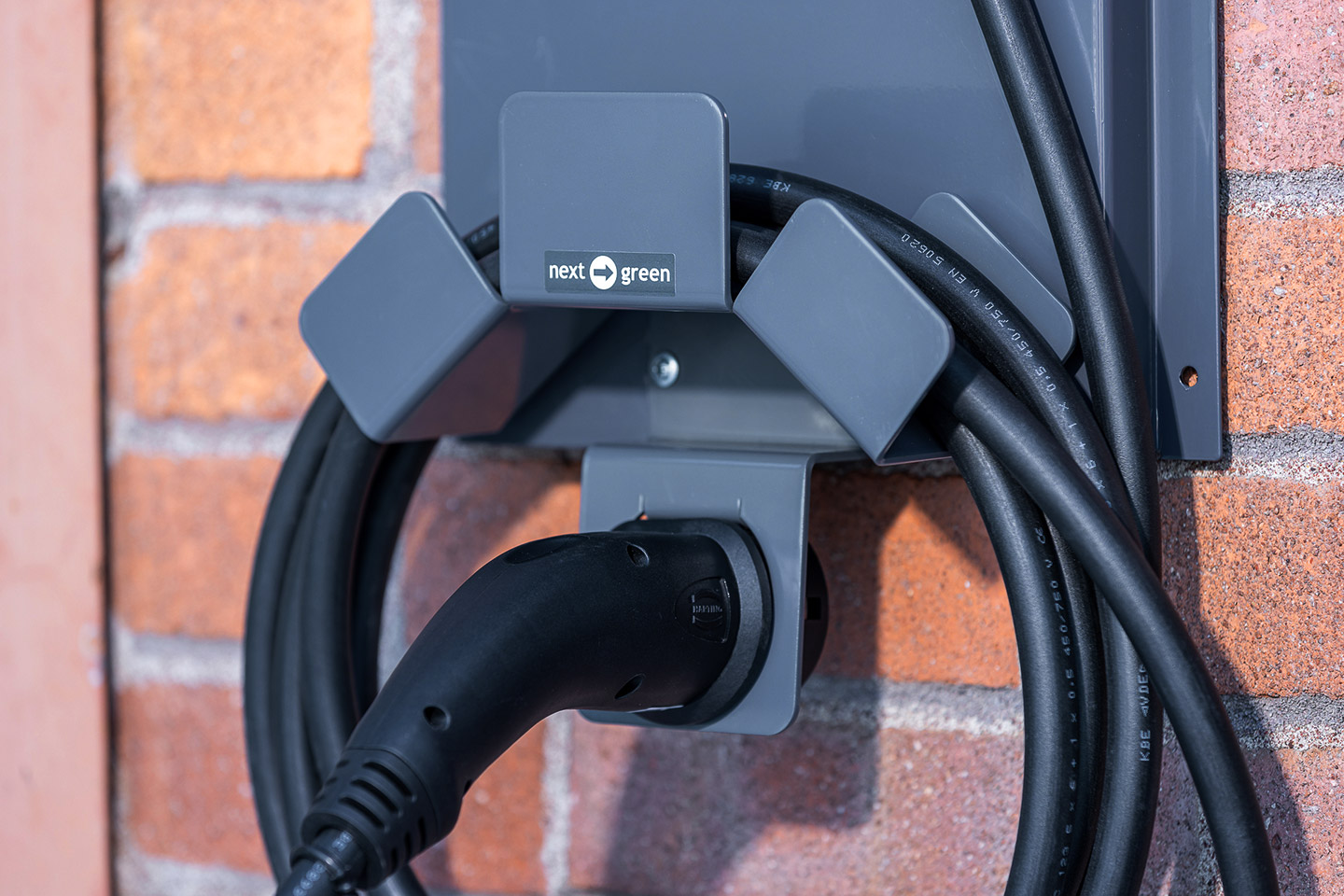

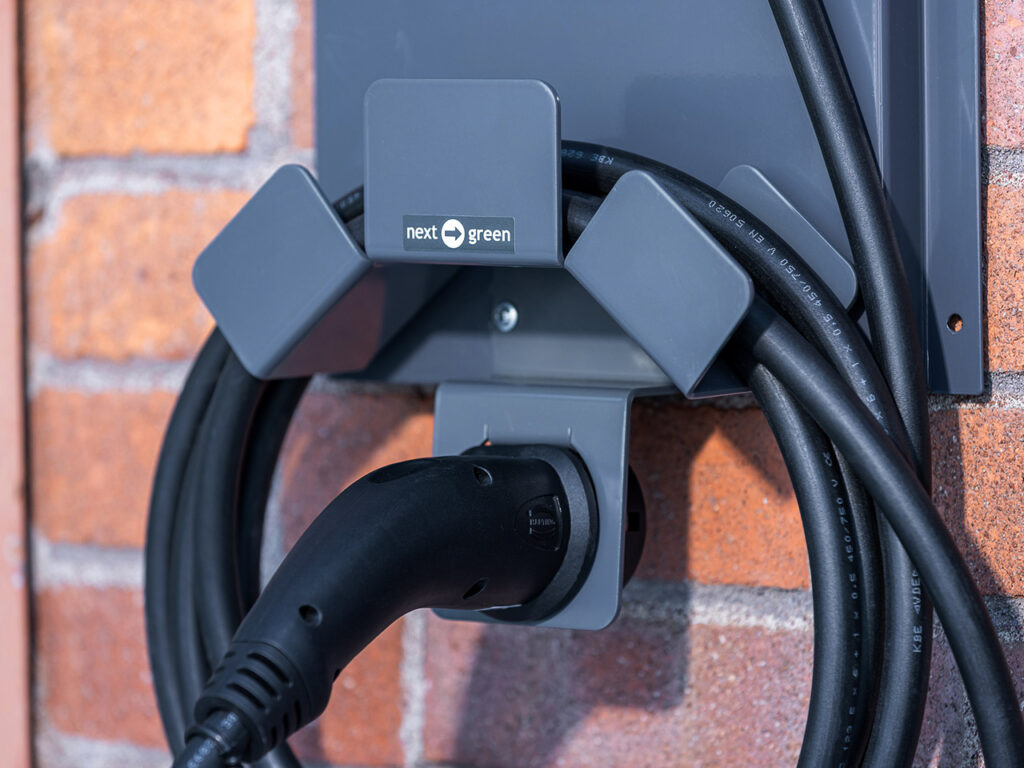

Daytona T2

E-Number: 24 803 56
S-No: 35 063 00
Product name: Cable holder Daytona T2
