NEXT GREEN – CEILING AND FLOOR MOUNT HD 60
Ceiling and floor mount HD 60 E-number: 27 001 76
Ceiling and floor mount HD 60 E-number: 27 001 76 2700176
Mounting and installation products
NEXT GREEN – CEILING AND FLOOR MOUNT HD 60
Ceiling and floor mount HD 60 E-number: 27 001 76
Ceiling and floor mount HD 60 E-number: 27 001 76 2700176

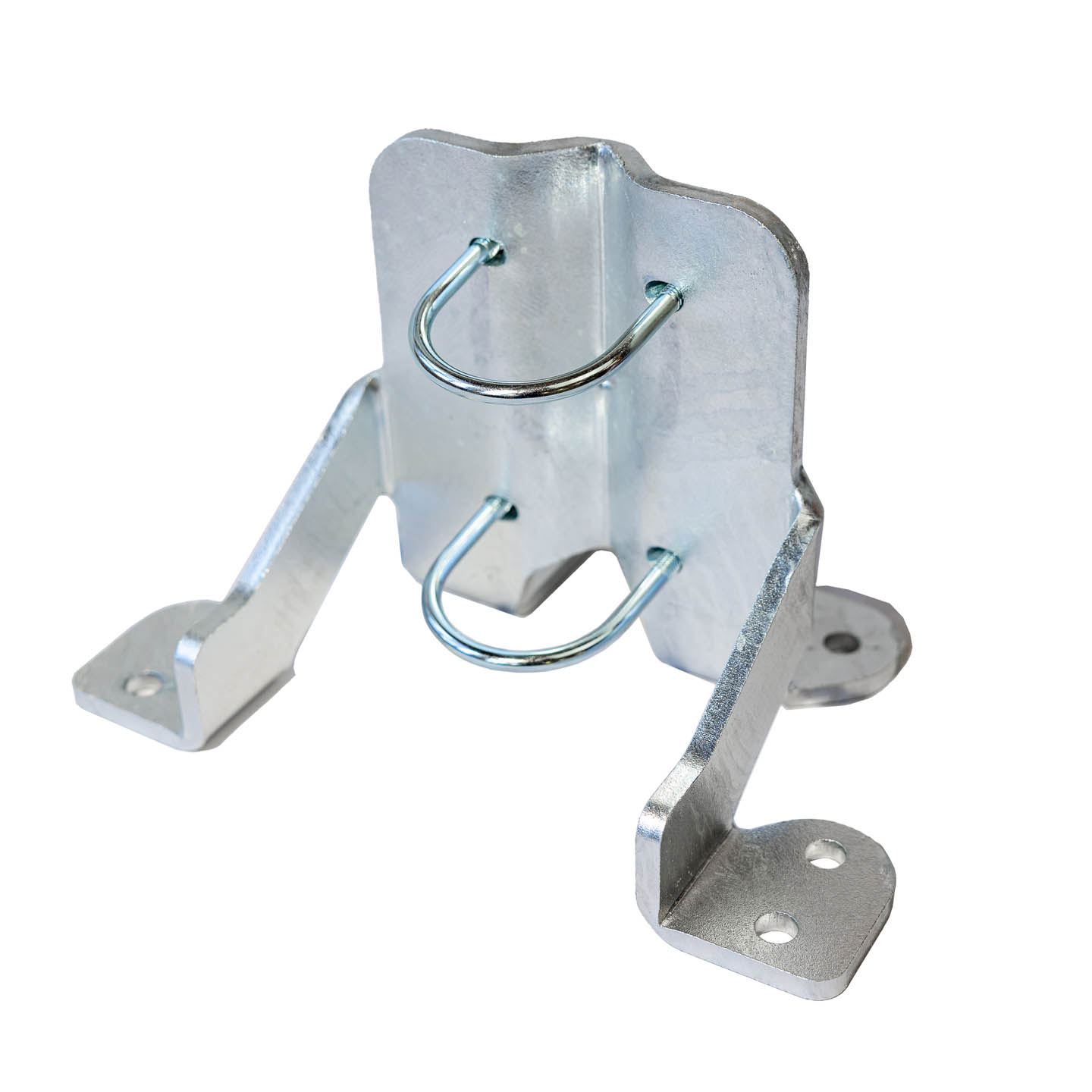

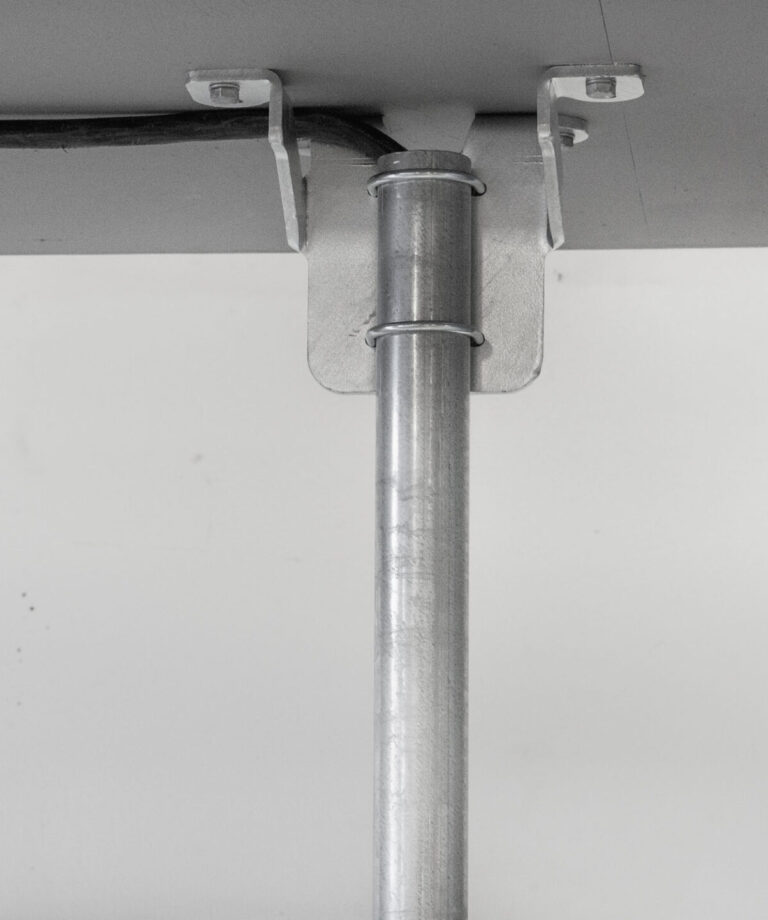

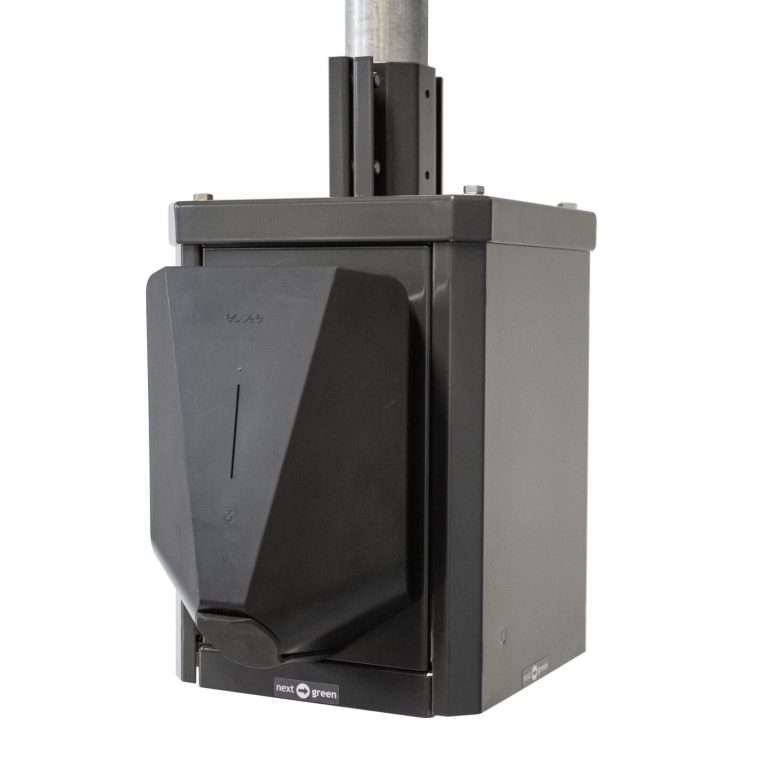

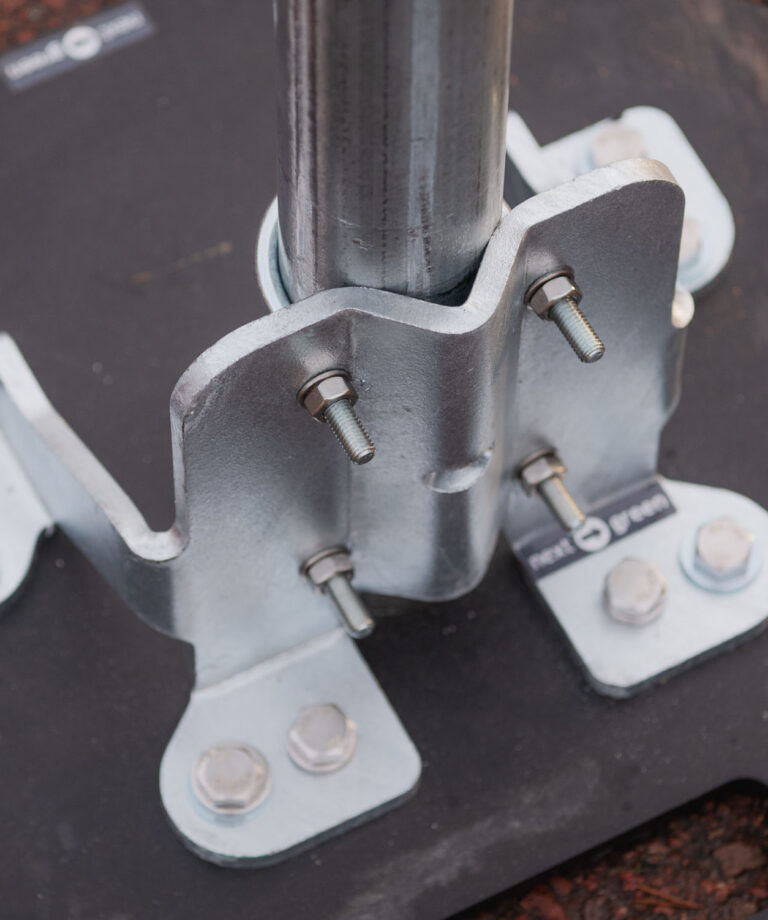

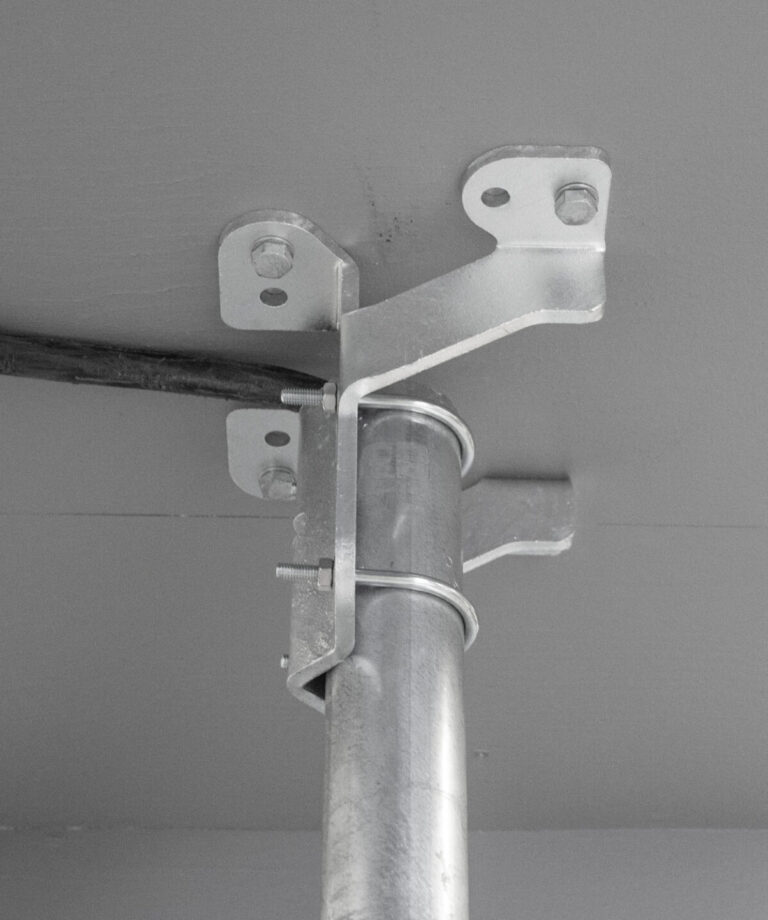

Next Green – Ceiling and floor mount HD 60 has been developed to mount a 60 mm steel tube for further installation of a charging box from the ceiling or floor, for example in a parking garage. The ceiling and floor mounts allow for cable entry 360˚. The bracket comes with U-bolts for mounting 60 mm Steel tubes of any length.
Attached with expander. Screw and plug not included.
Steel tubes not included.
E-number: 27 001 76
Product name: Ceiling and floor mount HD 60
Galvanized steel – SS-EN ISO 1461
Svart
Weight 3,4 kg
Height 189 mm
Width 287 mm
Depth 172 mm
Vikt 3,5 kg
Höjd 519 mm
Bredd 268 mm
Djup 268 mm
E-number: 27 003 76
Product name: Steel tube 500 mm
E-number: 27 003 76
Product name: Steel tube 750 mm
E-number: 27 003 74
Product name: Steel tube 1000 mm
E-nummer: 27 001 81
Product name: Steel tube 1200 mm
E-number: 27 000 28
Product name: Steel tube 1500 mm
Item number: 24190021
Product name: Steel tube 2500 mm
Item number: 24190022
Product name: Steel tube 2850 mm
