NEXT GREEN – POLE MOUNT BEAM AND FACADE 60-108

Pole mount beam and facade 60-108 E-number: 27 002 97 S-No: 35 063 13

Pole mount beam and facade 60-108 E-number: 27 002 97 2700297 S-No: 35 063 13 3506313

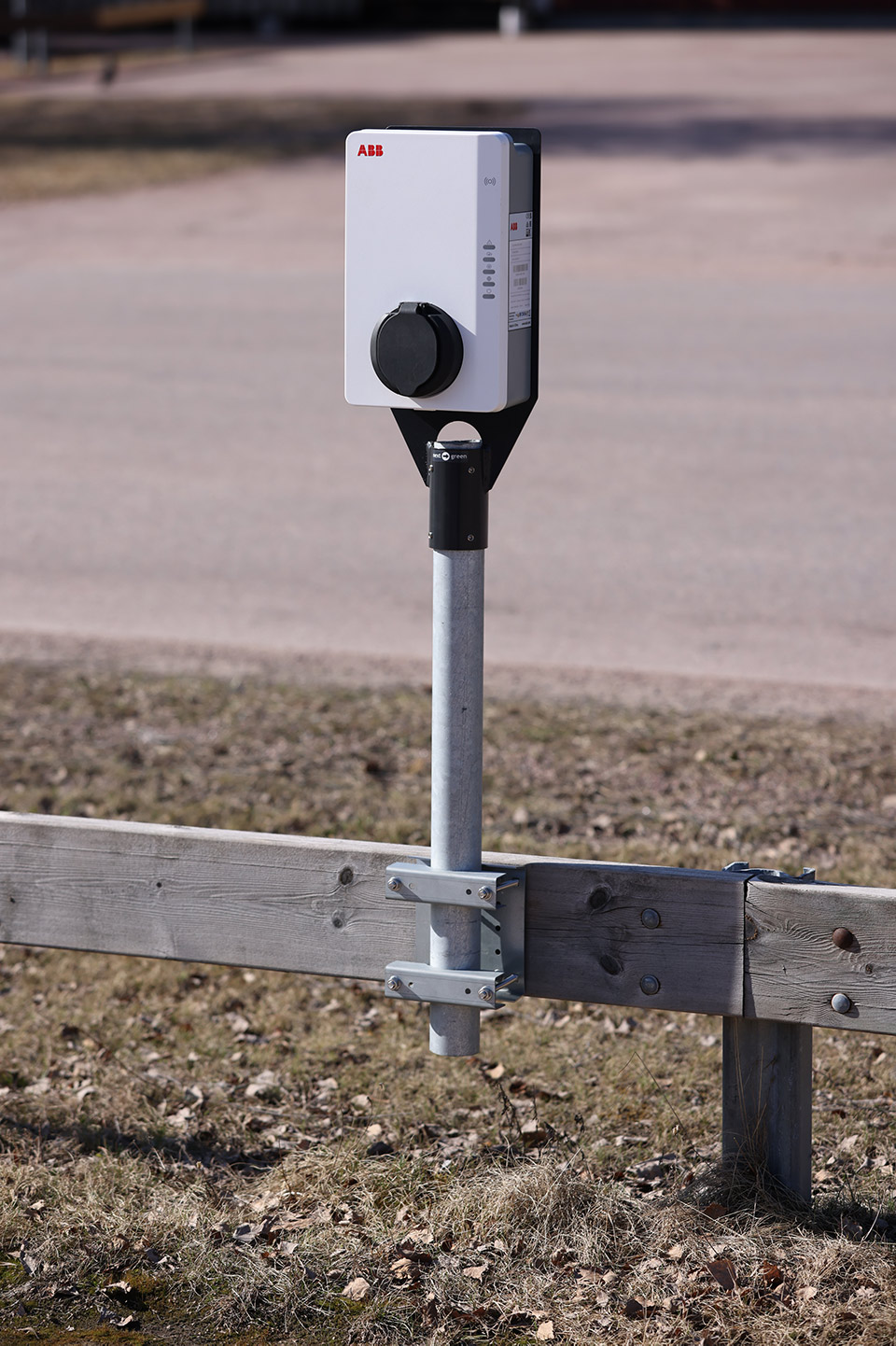

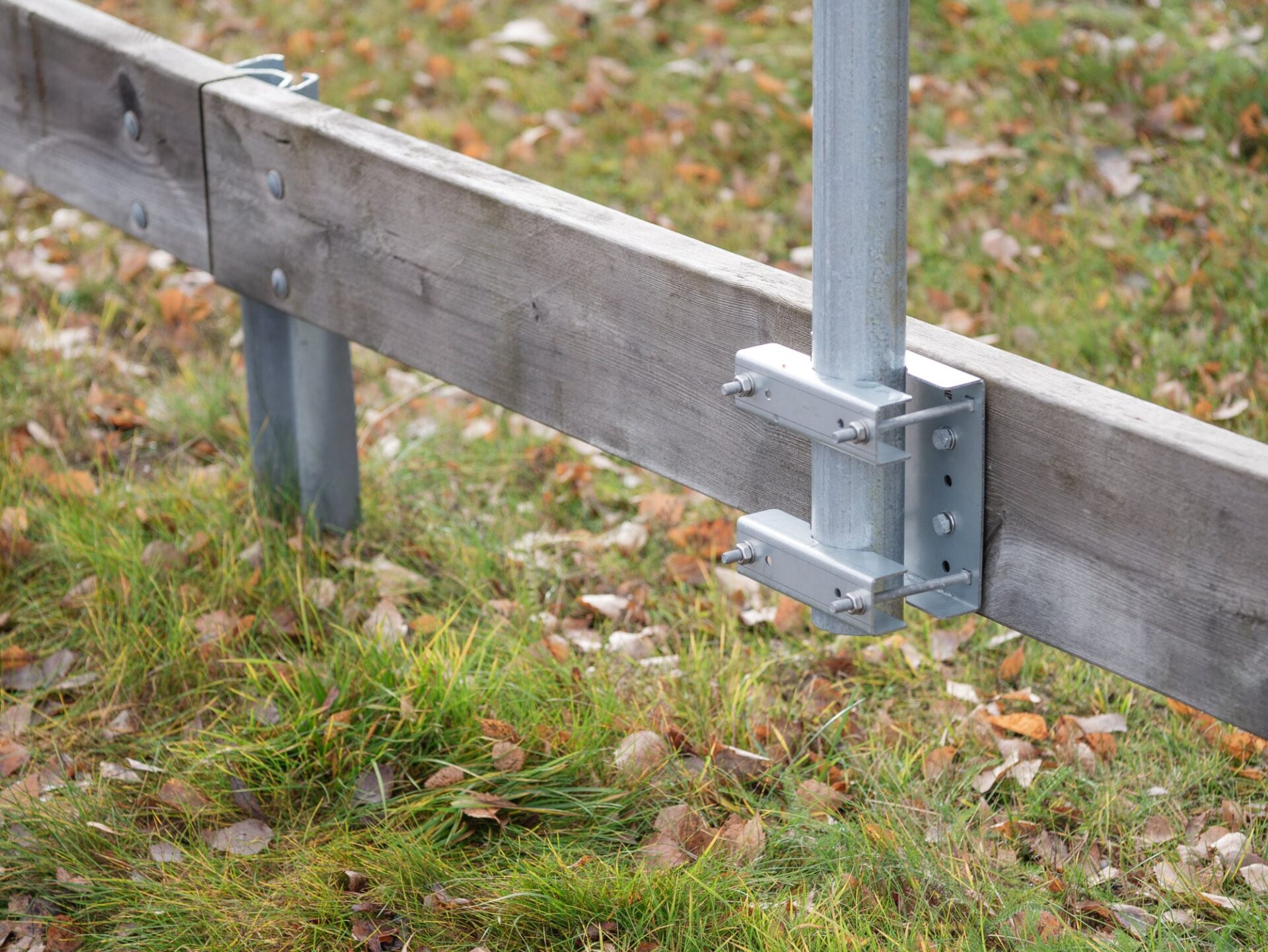

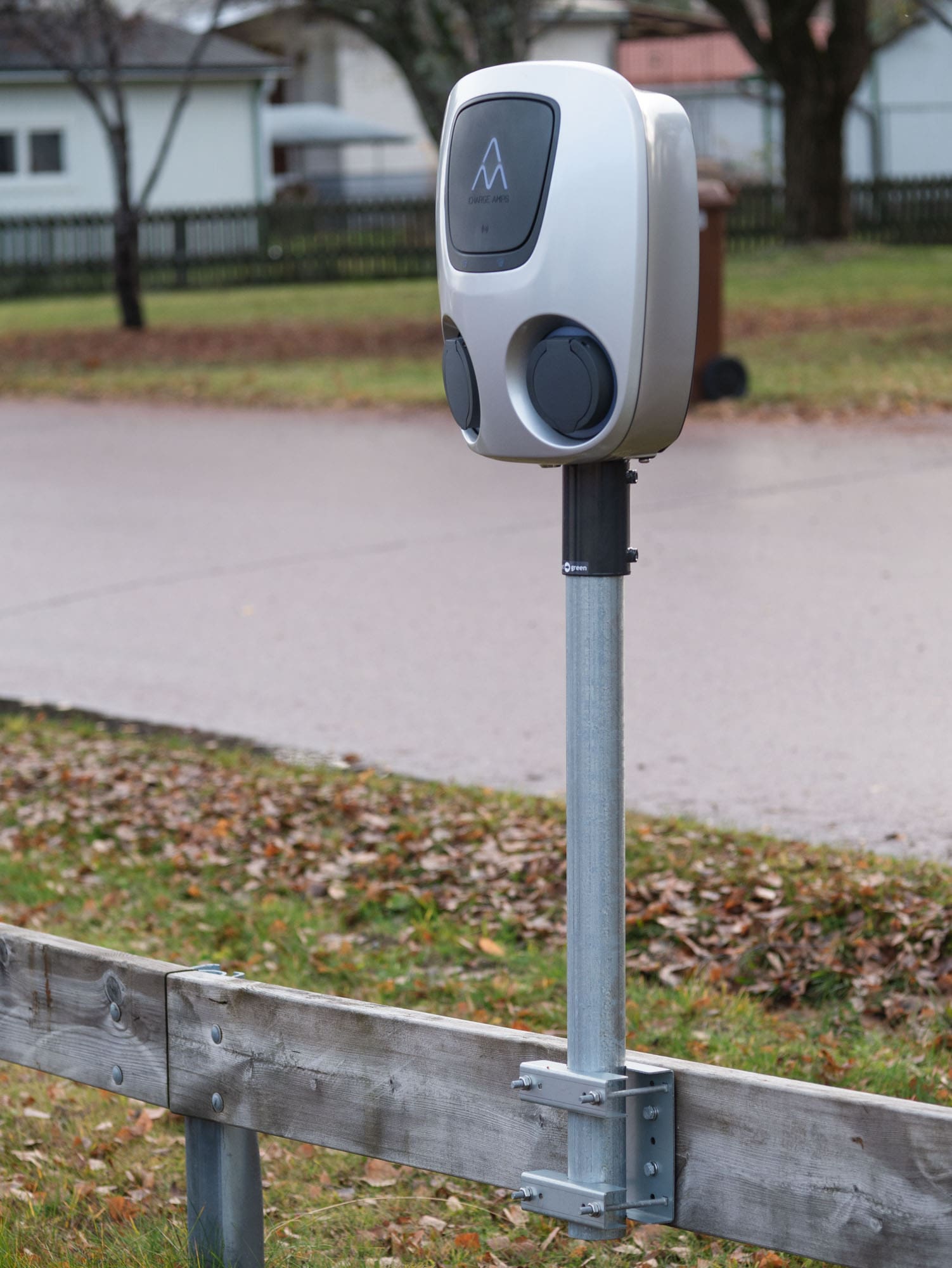

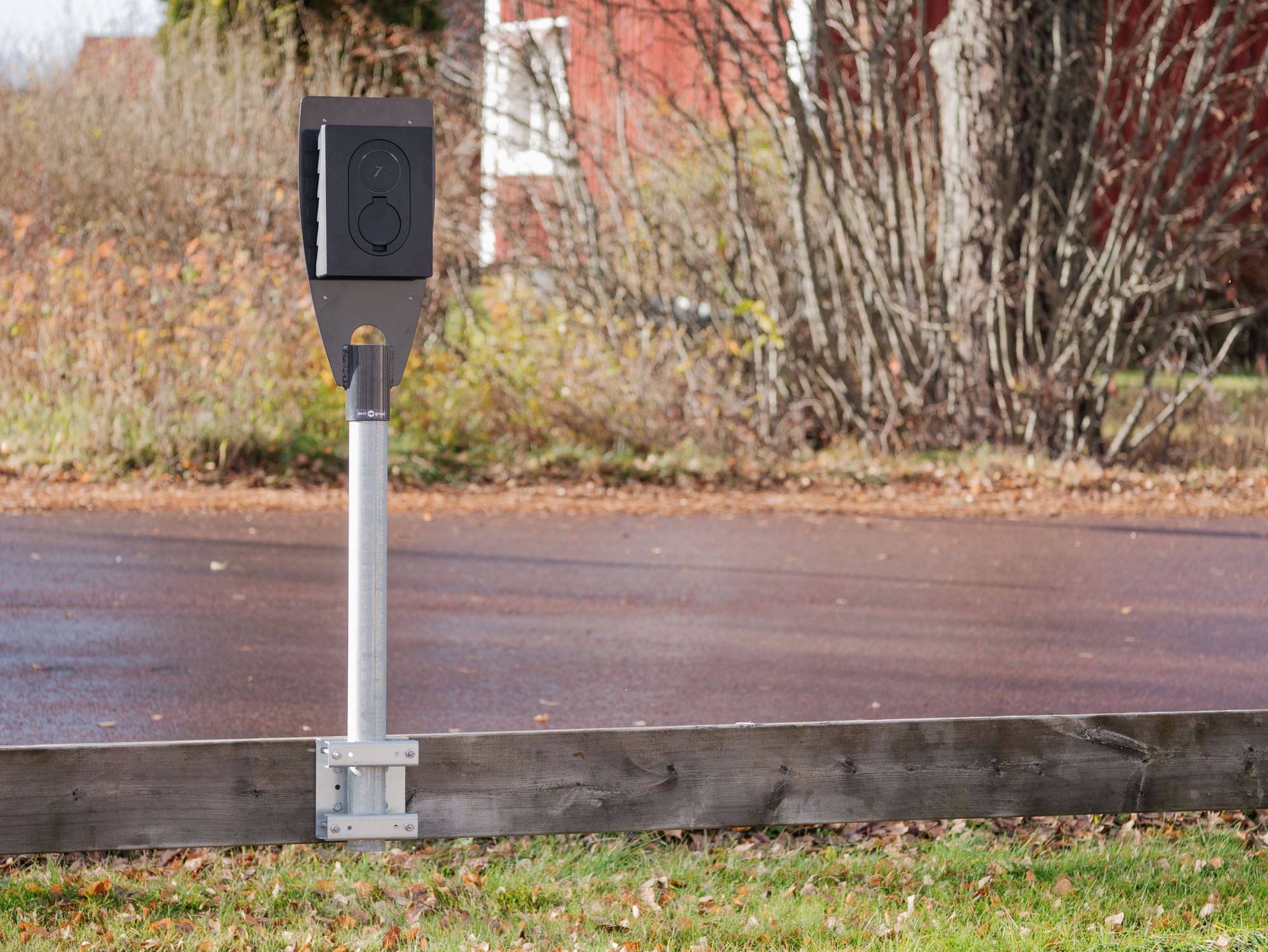

Next Green – Pole mount beam and facade 60-108 is used to attach a Ø 60-108 mm tube or pole to support such as dividing planks in parking lots, fender beams, wooden edge beams, retaining walls or facades for EV-charger installation.

The mounting bracket comes with bolts for attachment of any length of Ø 60 mm tube or poles.

Pole mount beam and facade 60-108

E-number: 27 002 97
S-No: 35 063 13
Product name: Polemount beam and facade 60-108

Product sheet

Assembly instructions

Share

  • Precut hole pattern for installation on wood beams, edge planks or beams, reatining walls of facades
  • Fit any length of Ø 60-108 mm steel tubes
  • Robust Magnelis® steel construction

Material

2 mm Magnelis® Steel

Kulör

Svart

Dimensions

Weight 1,1 kg
Height 158 mm
Width 146 mm
Depth 90 mm

Dimensioner GP60

Vikt 3,5 kg
Höjd 519 mm
Bredd 268 mm
Djup 268 mm

Steel tube Ø 60mm

E-number: 27 003 76
Product name: Steel tube 500 mm

E-number: 27 003 75
Product name: Steel tube 750 mm

E-number: 27 003 74
Product name: Steel tube 1000 mm

E-number: 27 001 81
Product name: Steel tube 1200 mm

E-number: 27 000 28
Product name: Steel tube 1500 mm

E-number: 27 009 88
Product name: Steel tube 2500 mm

E-number: 27 009 95
Product name: Steel tube 3000 mm

Item number: 24190022
Product name: Steel tube 2850 mm

E-number: 27 005 66
Product name: Steel tube 1500 mm PL Graphite grey

E-number: 27 010 87
Product name: Steel tube 1500 mm PL Jet Black
