NEXT GREEN POLEBOX

Polebox Compact E-number: 27 004 12

Polebox 190 S E-number: 24 803 57 S-No: 34 079 01

Polebox 205 D2 E-number: 24 804 40 S-No: 34 079 03

Polebox 270 S E-number: 24 803 65 S-No: 34 079 07

Polebox 270 D E-number: 27 000 70 S-No: 34 079 08

Polebox 330 S E-number: 24 803 66

Polebox 330 D E-number: 27 002 50

Polebox 205 ES E-number: 24 803 64

Polebox 205 ED E-number: 27 001 77

Polebox Compact E-number: 2700412

Polebox 190 S E-number: 24 803 57 2480357 S-No: 34 079 01 3407901

Polebox 205 D2 E-number: 24 804 40 2480440 S-No: 34 079 03 3407903

Polebox 270 S E-number: 24 803 65 2480365 S-No: 34 079 07 3407907

Polebox 270 D E-number: 27 000 70 2700070 S-No: 34 079 08 3407908

Polebox 330 S E-number: 24 803 66 2480366

Polebox 330 D E-number: 27 002 50 2700250

Polebox 205 ES E-number: 24 803 64 2480364

Polebox 205 ED E-number: 27 001 77 2700177

Next Green Polebox is a post mount for charging boxes for mounting on a 60 mm pipe post. Polebox makes it easy, for example when changing from engine heater location to charging location and can therefore be used to replace an engine heater hood. The product is intended for feeding electrical cables inside the pole tube.

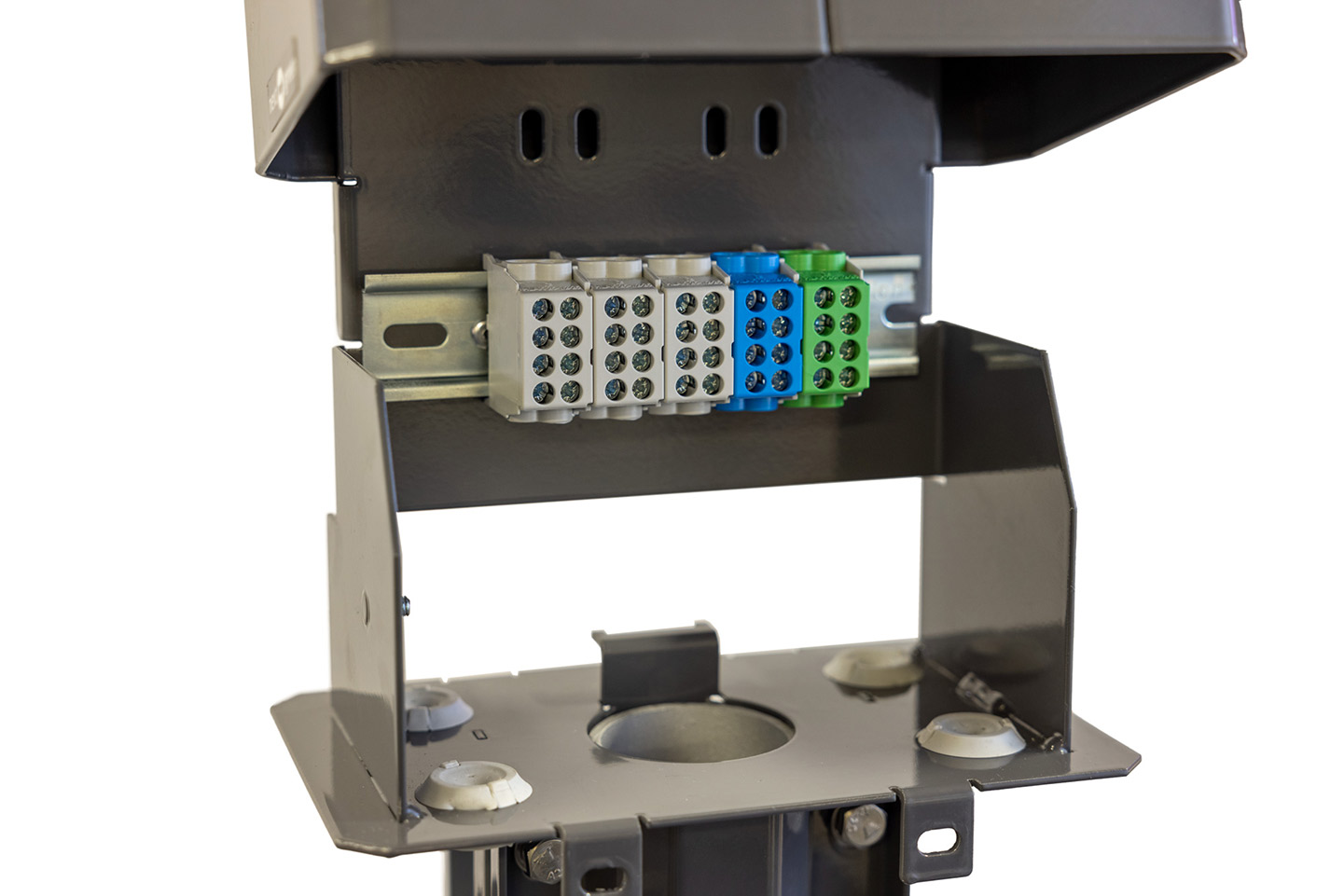

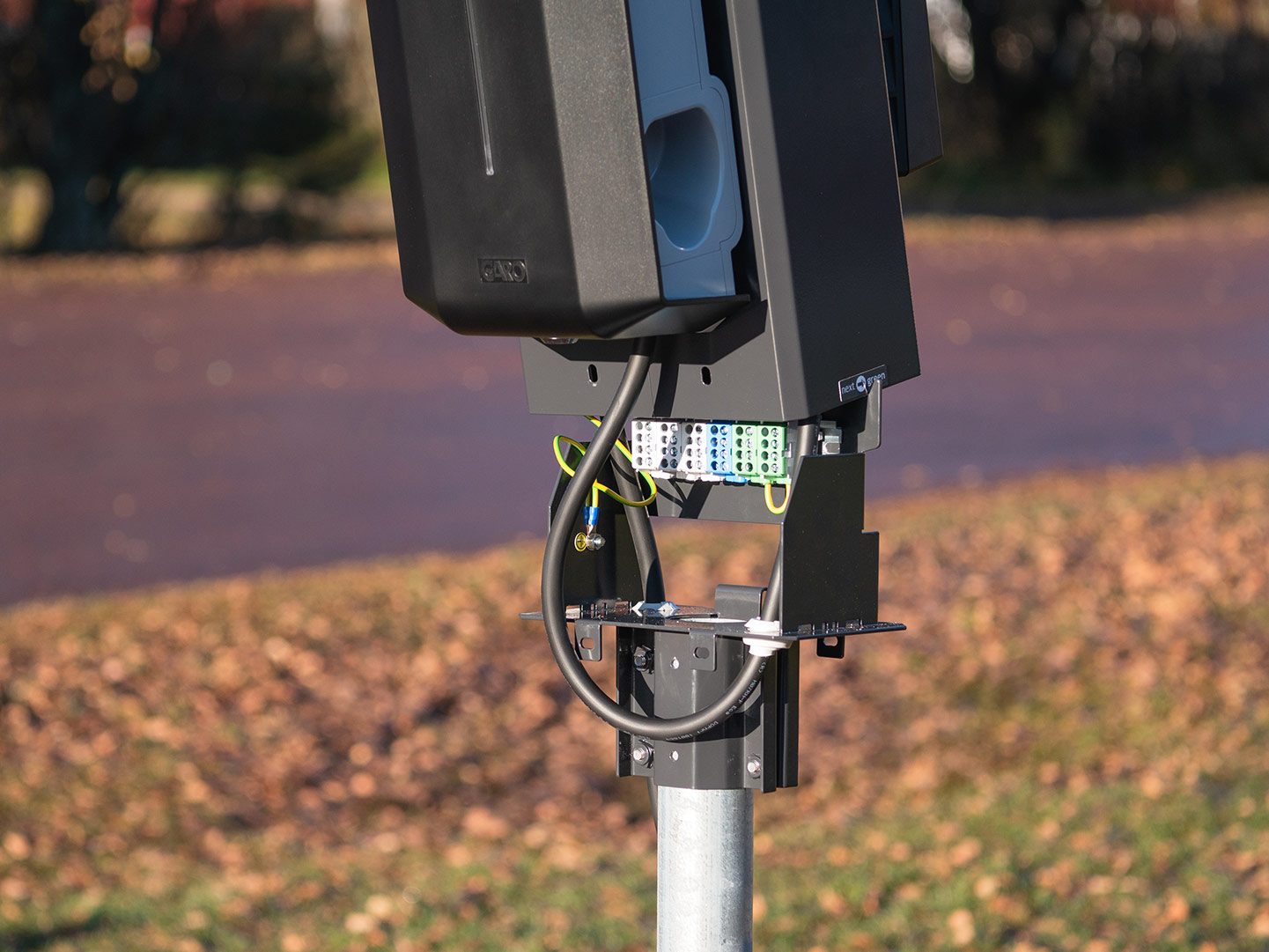

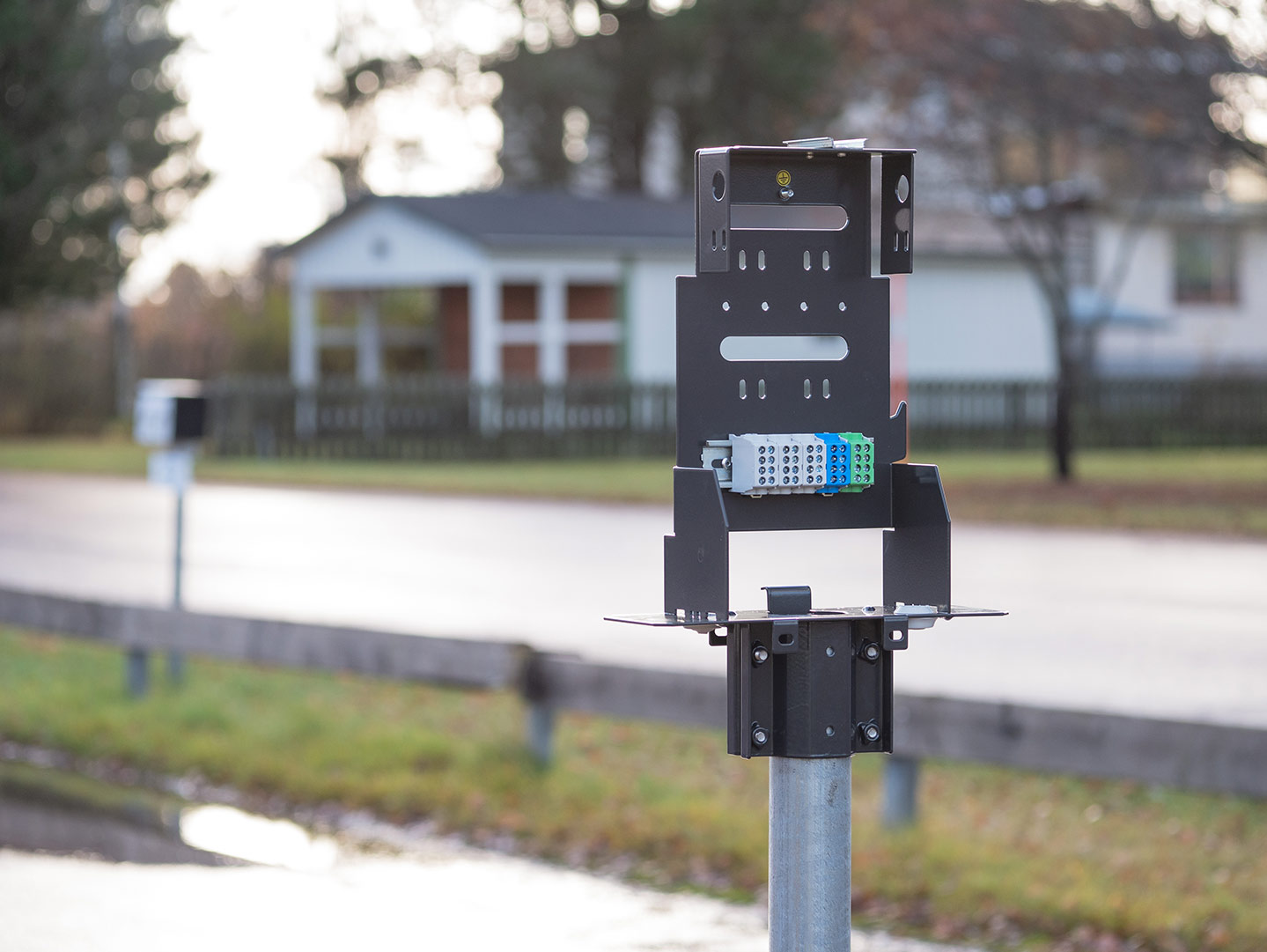

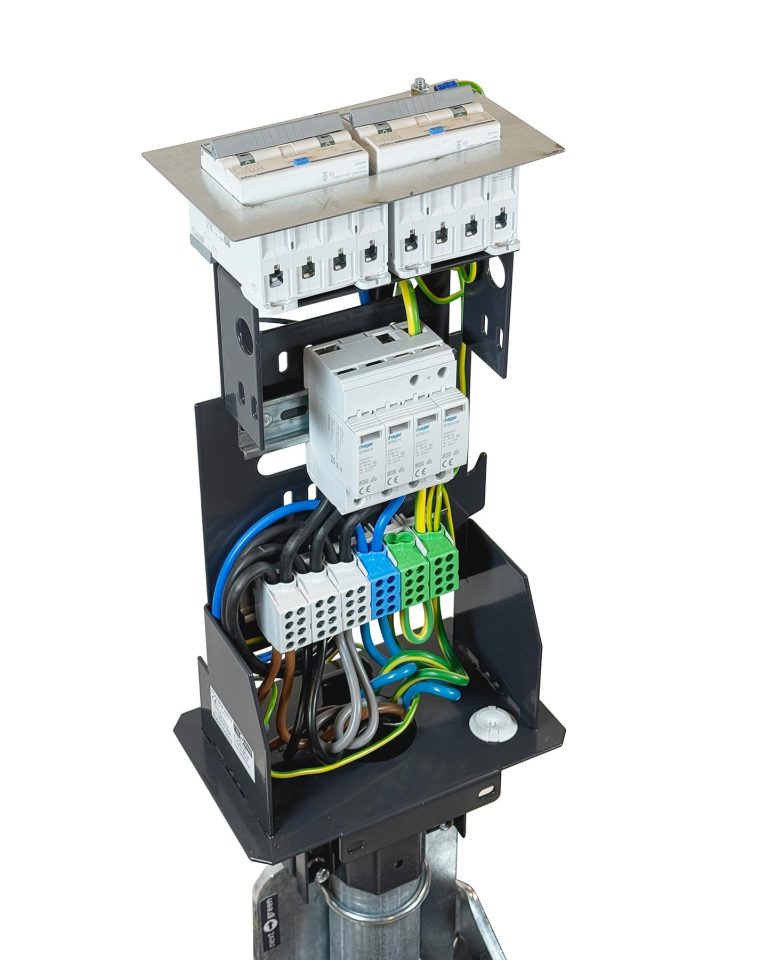

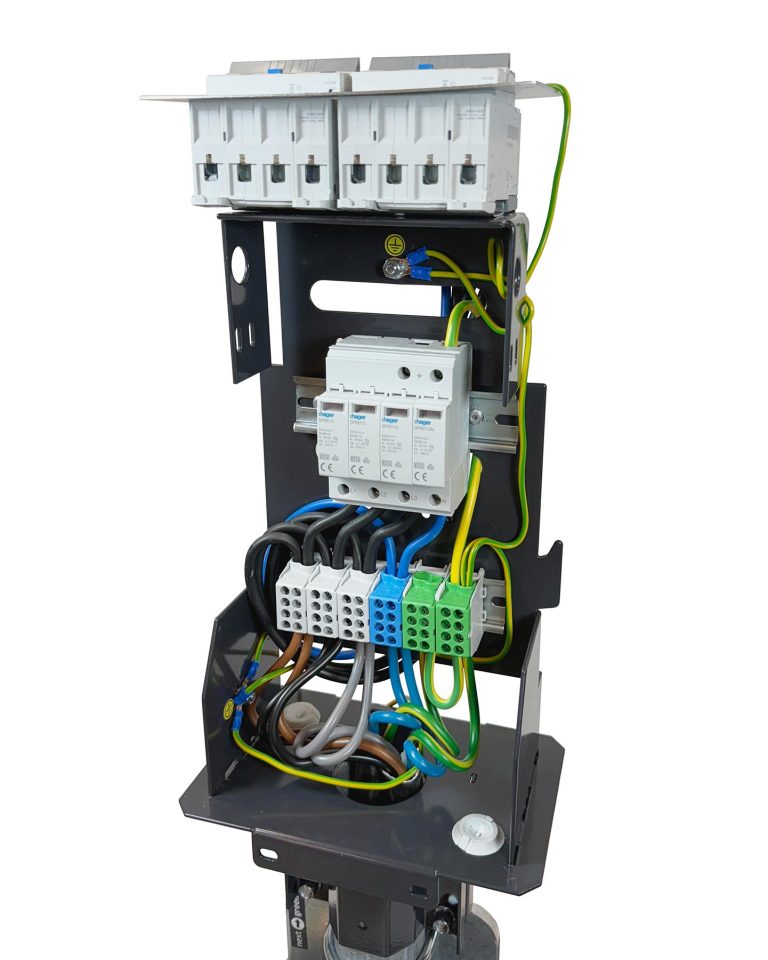

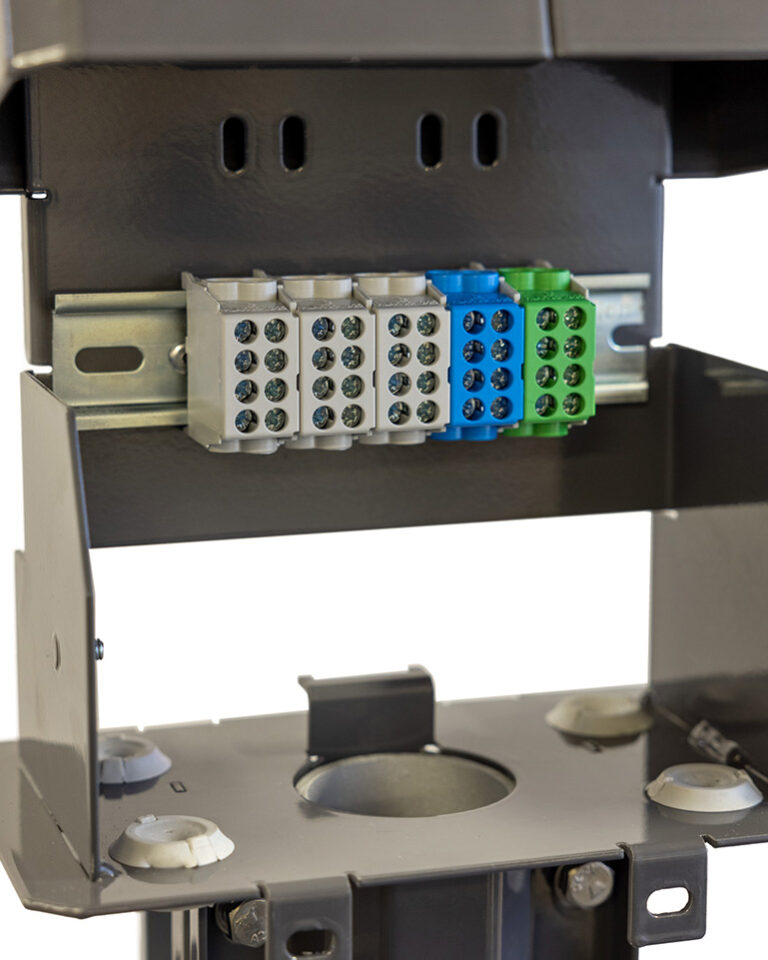

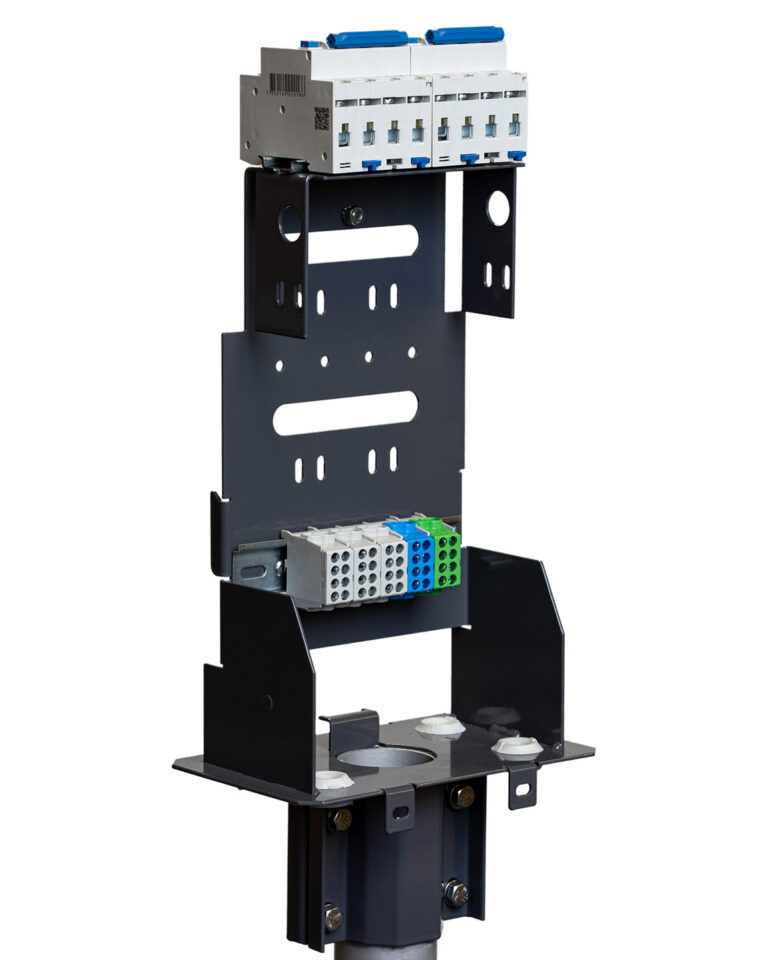

Polebox has a built-in distribution terminal for up to 2 x 5G25 power cable for extending the connection to the next charging post. From the distribution terminal in the Polebox, the respective charging box is then connected using a 5G2.5 rubber cable. Polebox comes with a DIN rail for residual current circuit breakers and can be fitted with an additional DIN rail for units such as a Wi-Fi-router or a 3G/4G modem or power supply. Everything fits neatly inside the box. Polebox is made of Swedish steel and powder coated to provide the highest quality.

Polebox is made to fit many different charger models. Screw holes for each charger are drilled upon installation.

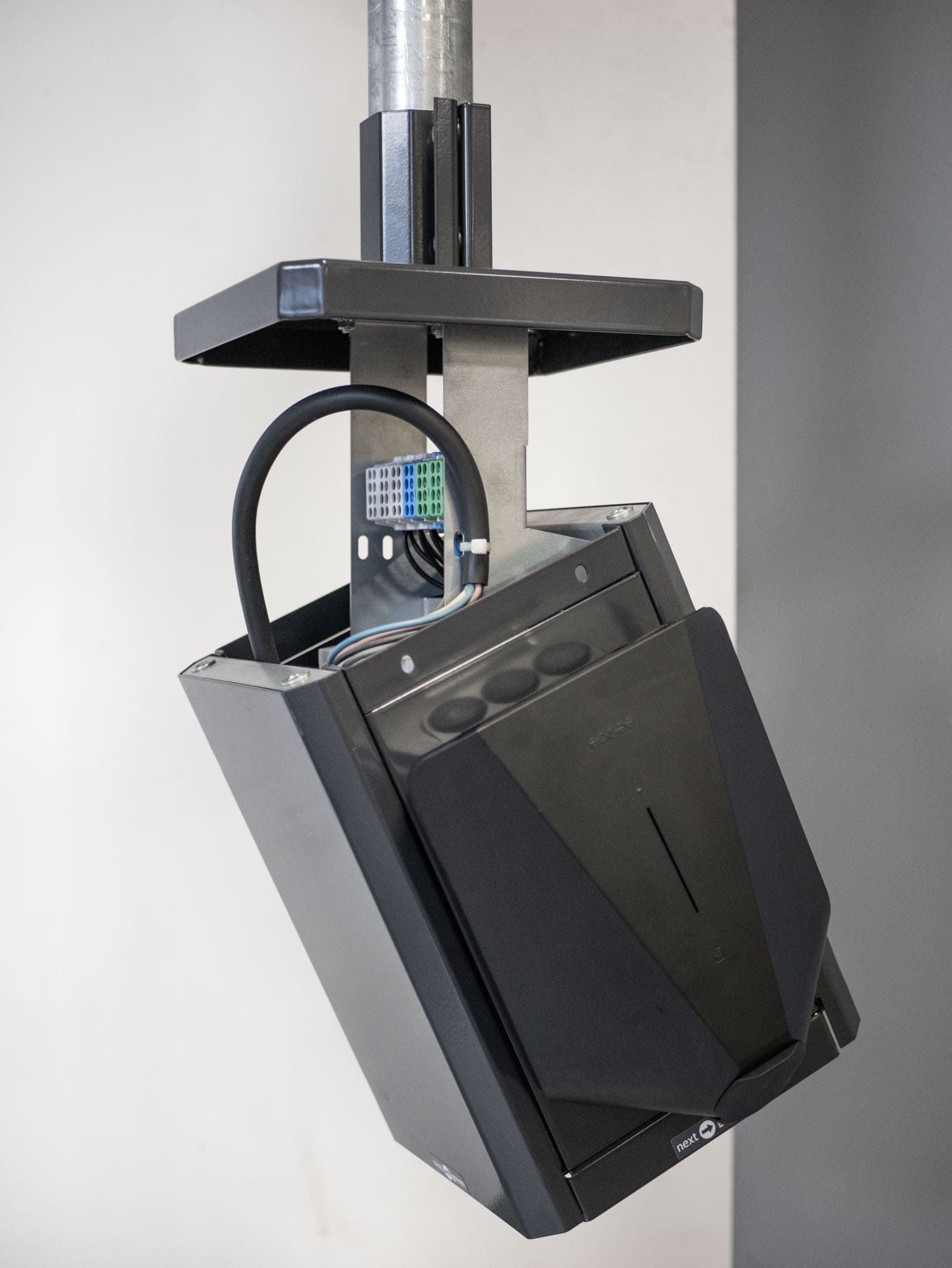

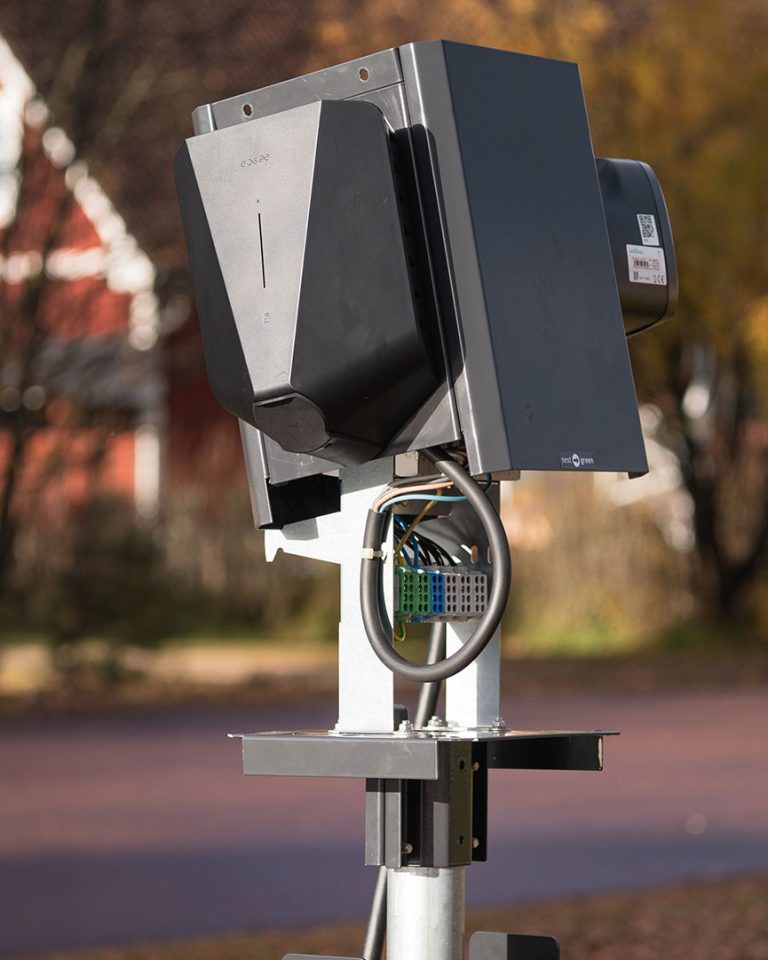

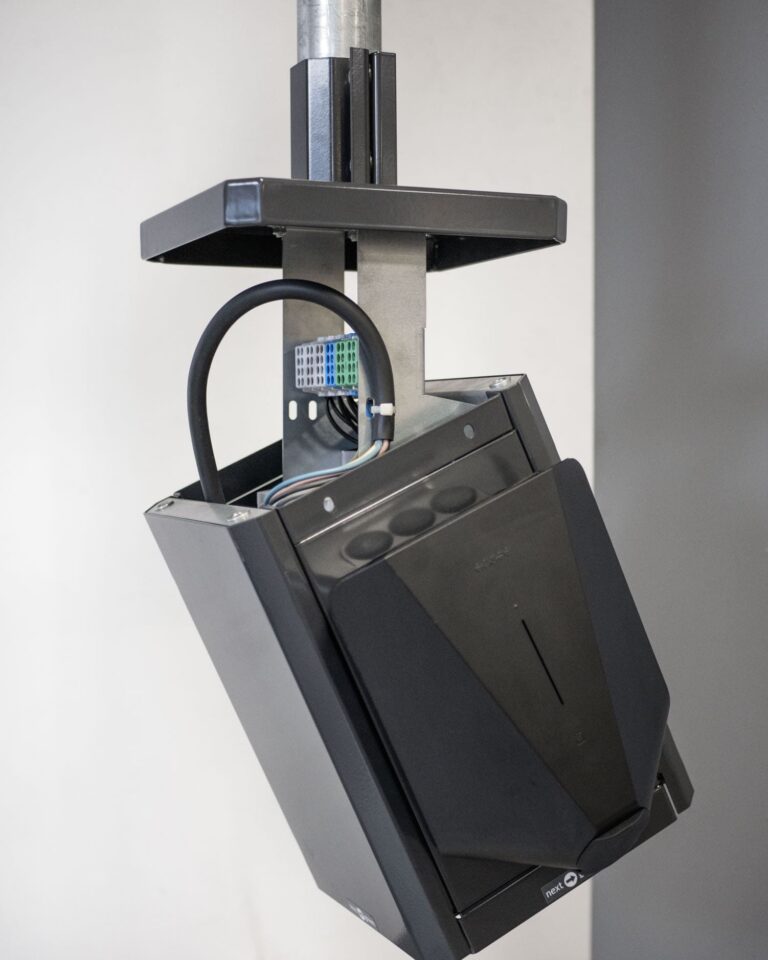

Polebox is very easy to install. It is prepared indoors by mounting charging boxes and unplugging the wiring from the dispersion terminal. Polebox is then put in place outside on the existing steel tube and the charger hood is lifted and fastened. This provides easy to access for screwing supply wires into the plinth.

Suitable for charging boxes with a maximum hole pattern width of 190mm and 430mm high.

Product film

Play Video

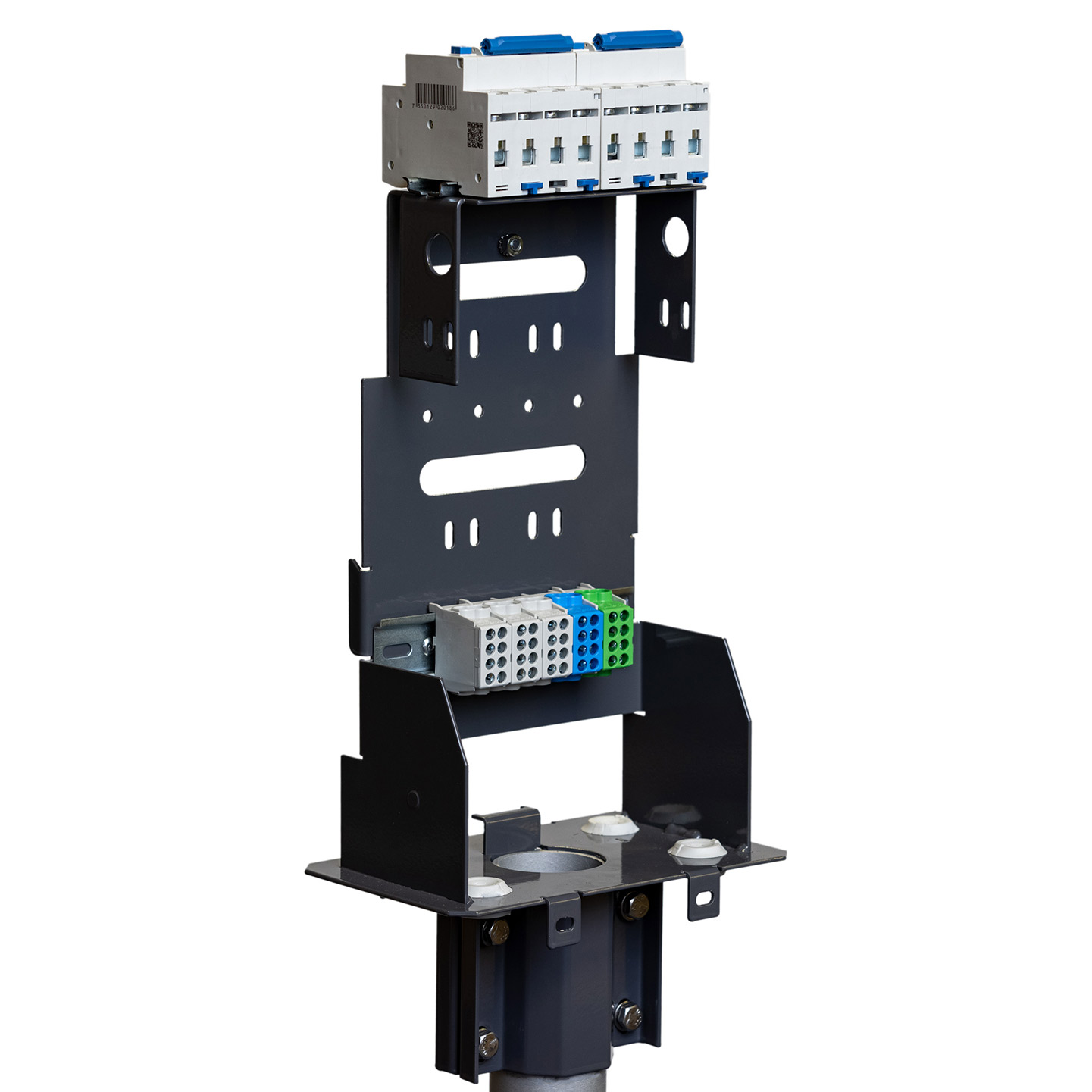

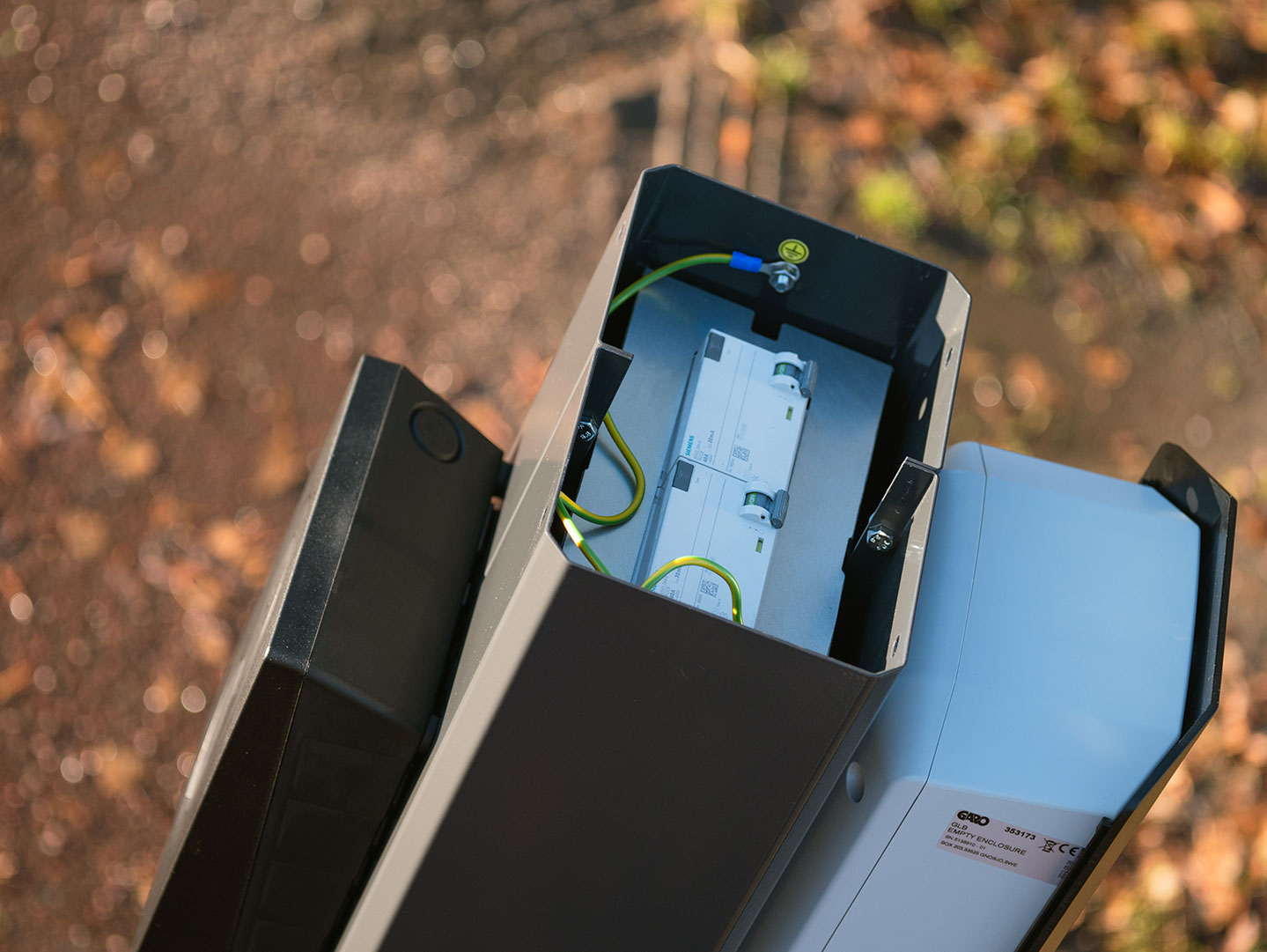

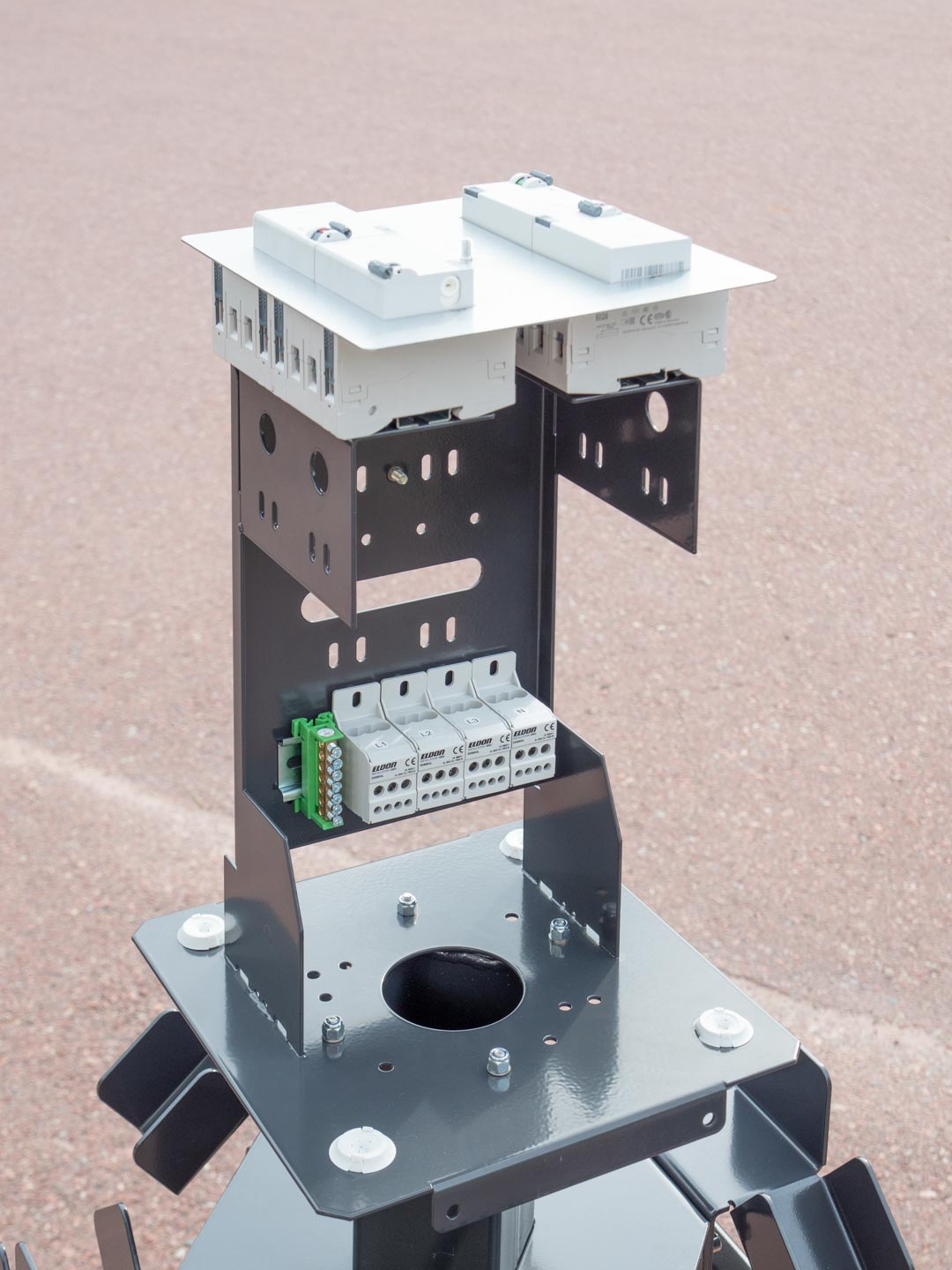

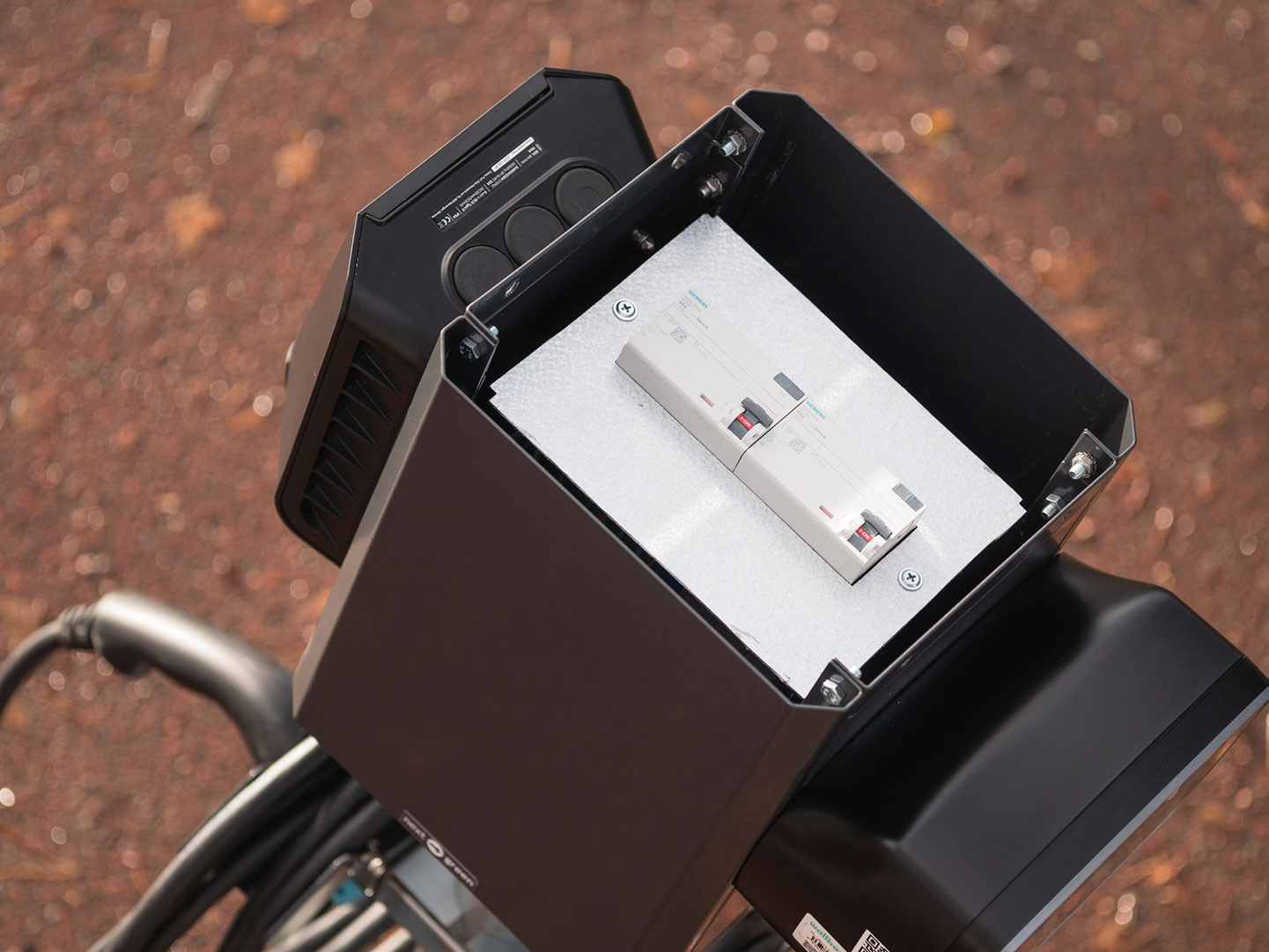

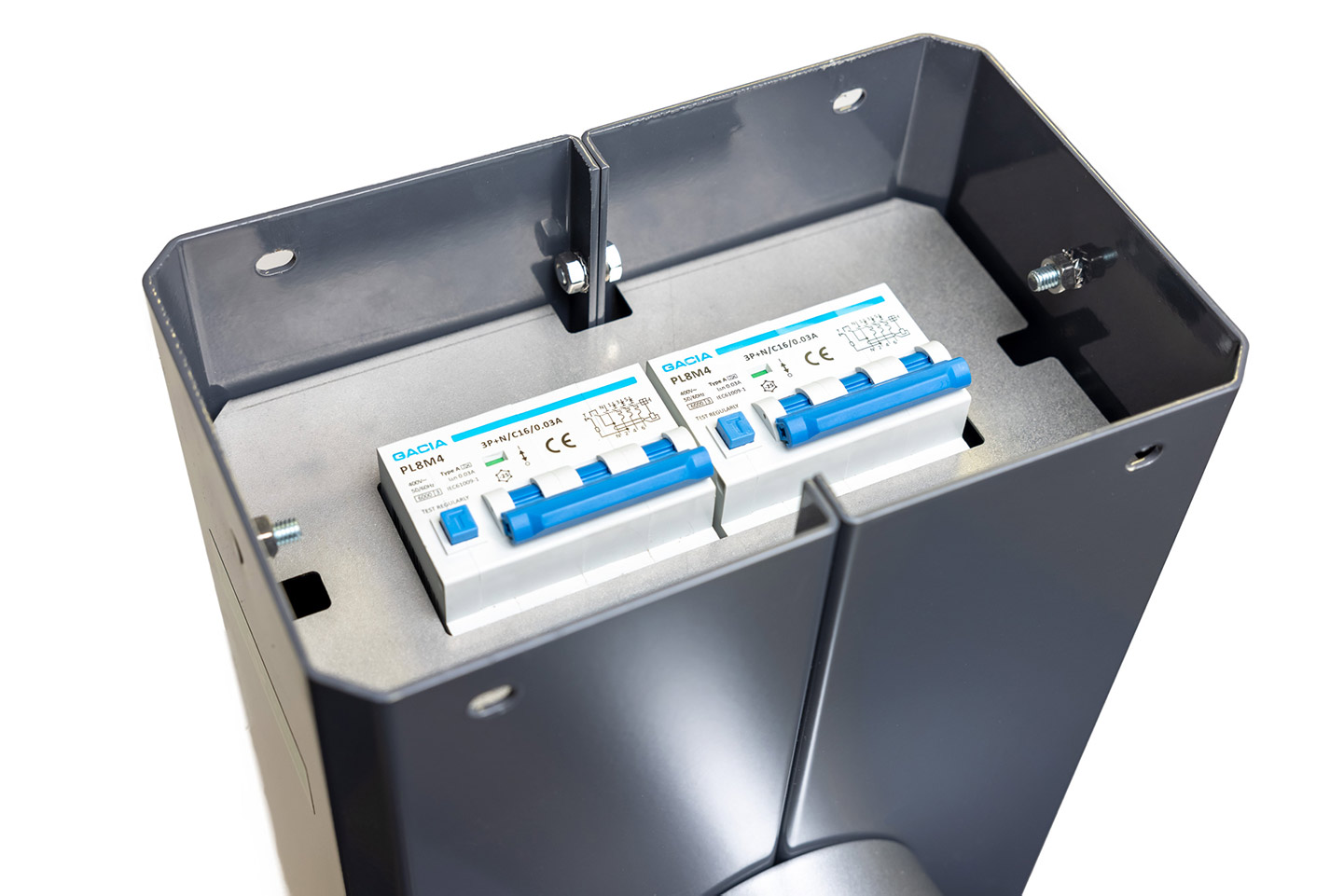

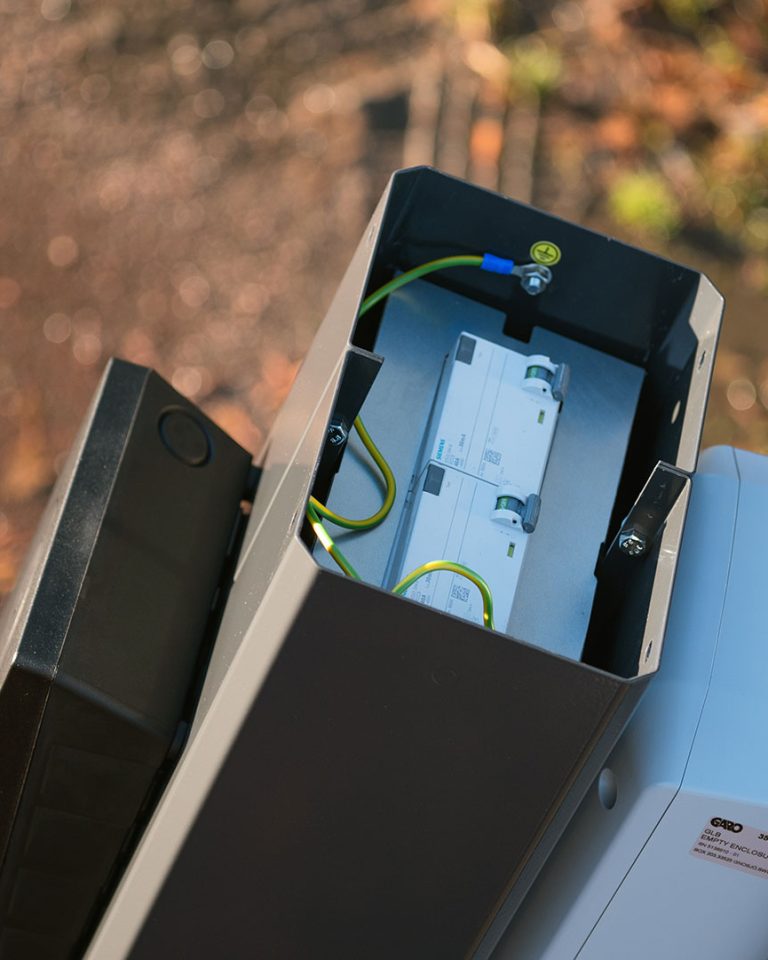

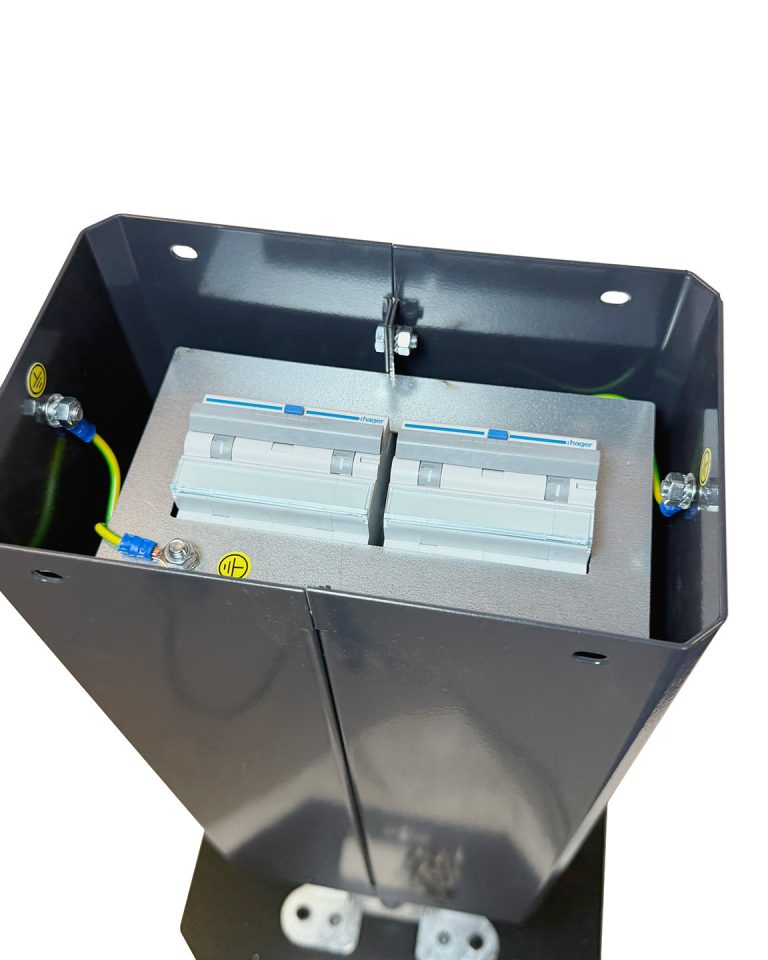

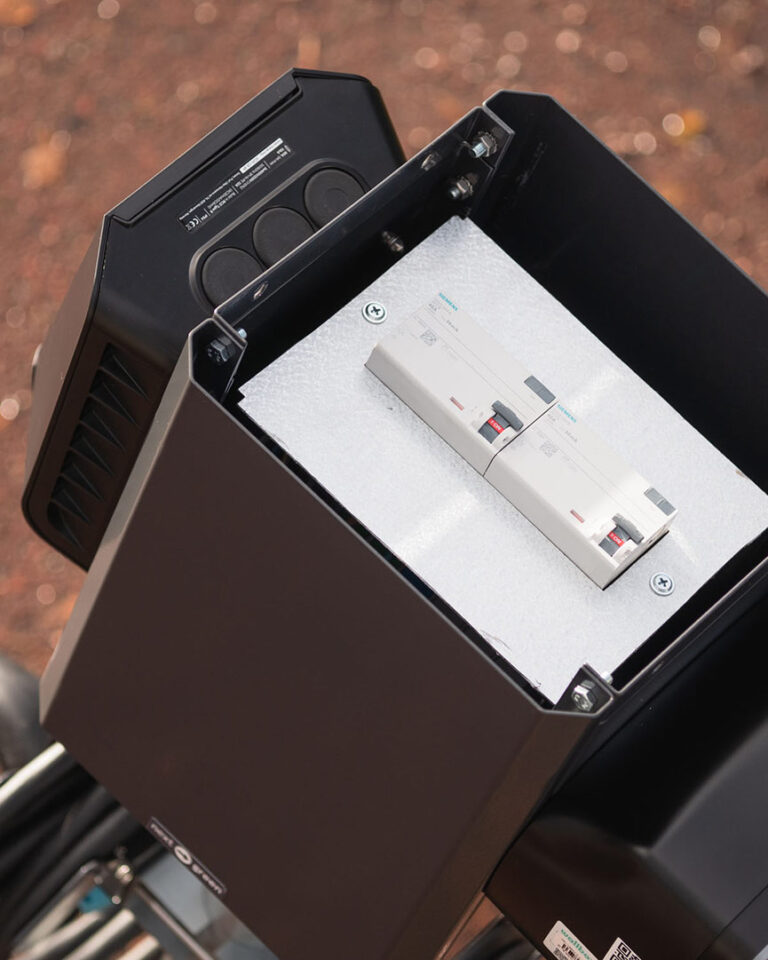

Prepared with DIN-rail for RCBO or RCCB inside the cabinet

The Next Green Polebox series is prepared with DIN-rail for RCBO or RCCB inside the cabinet.

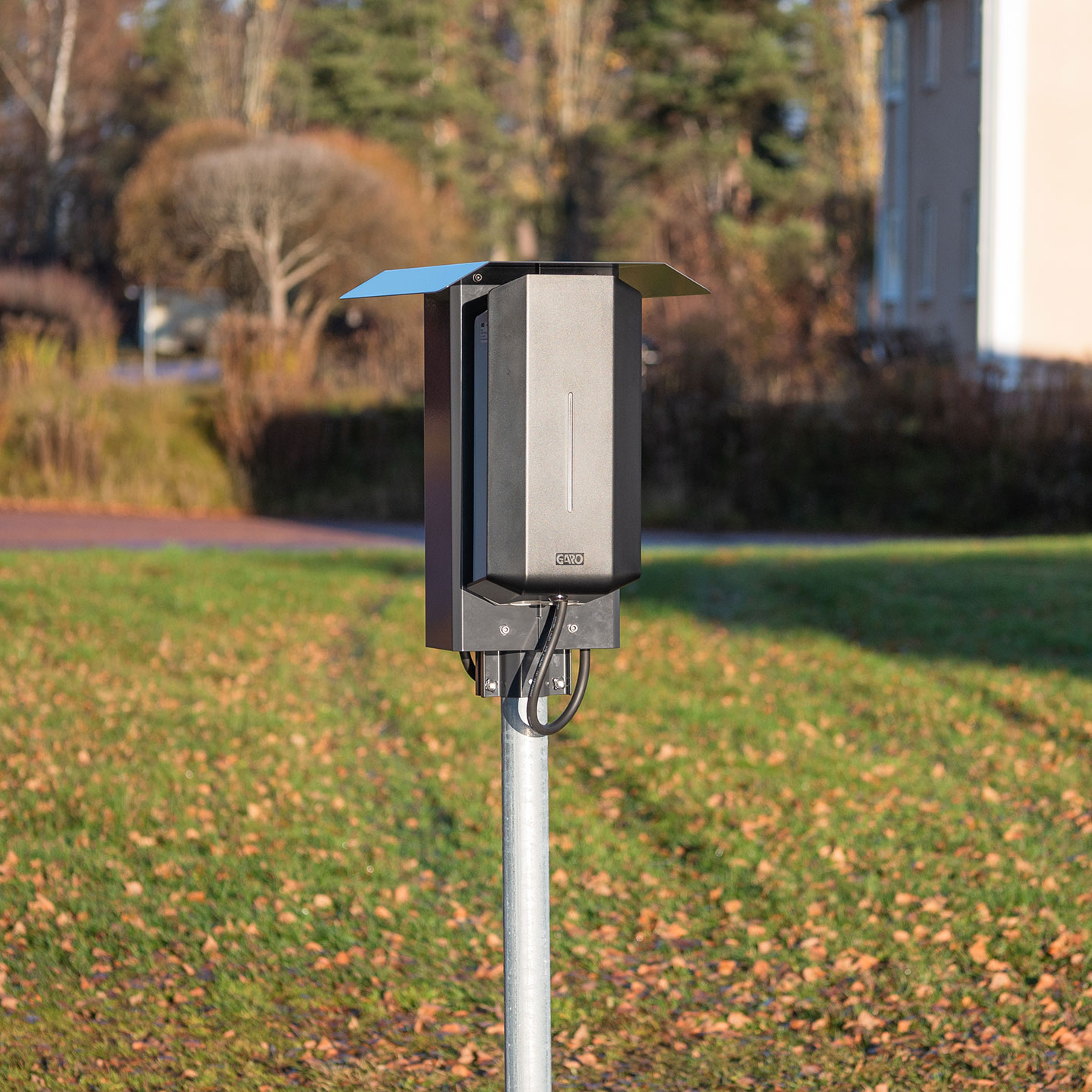

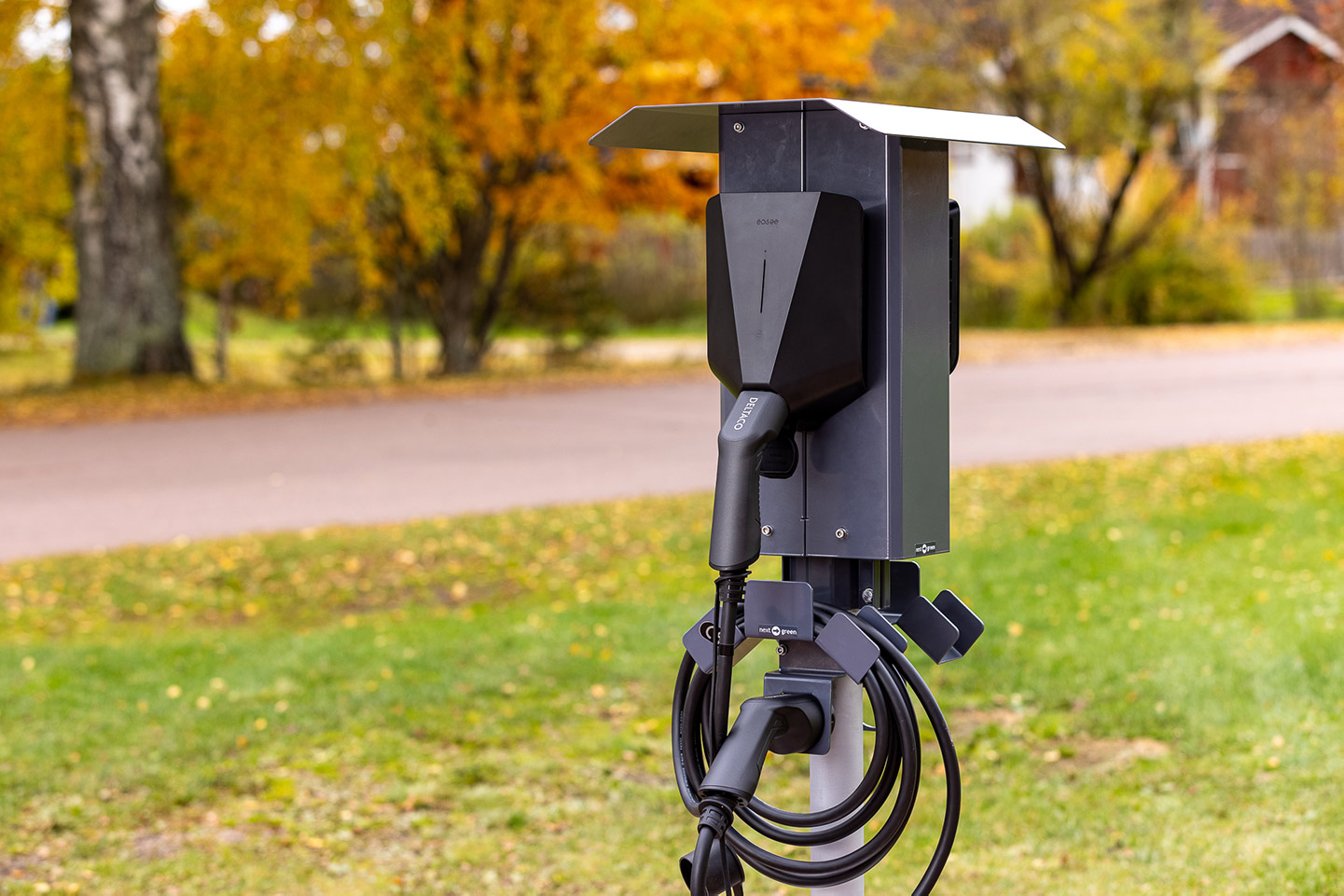

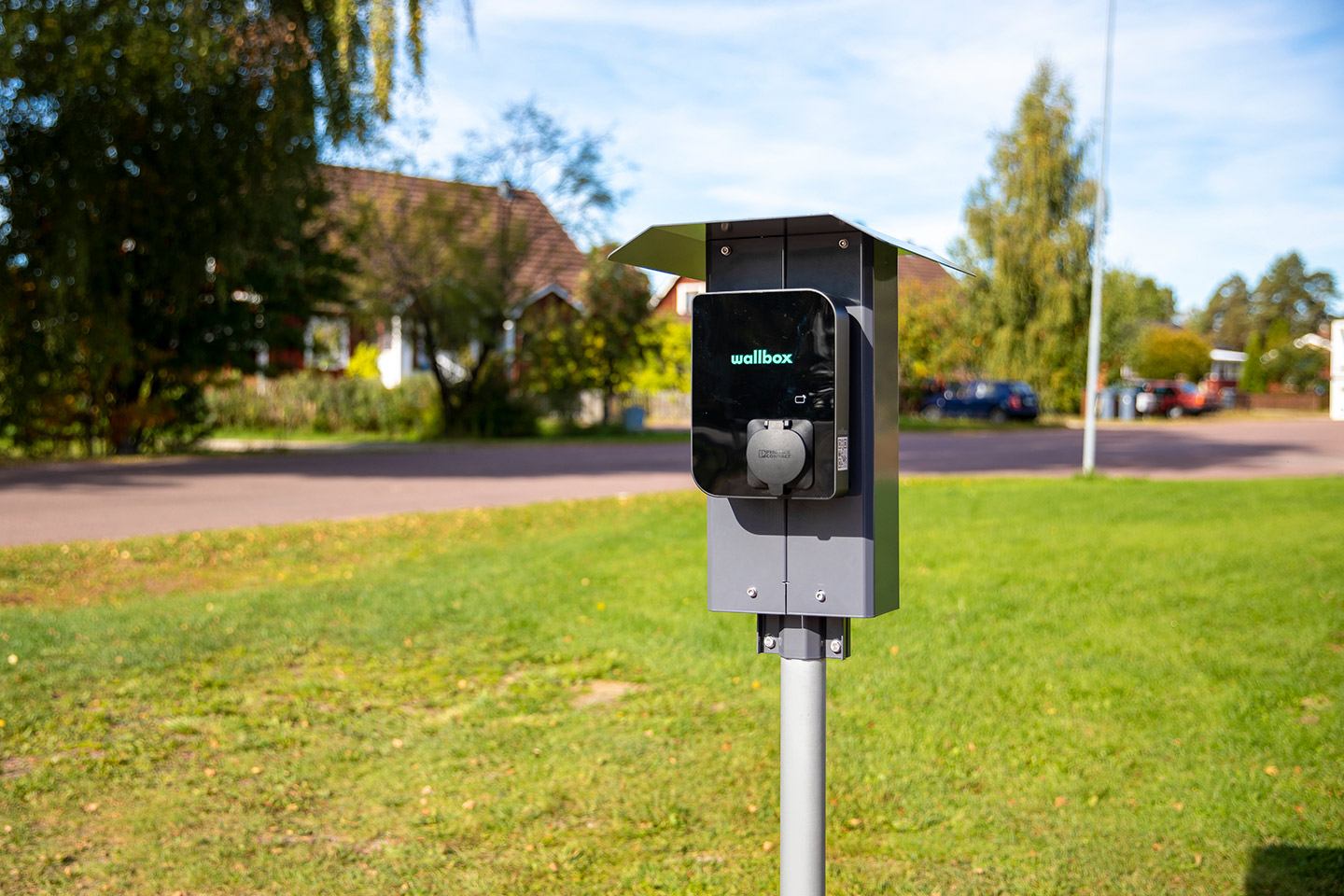

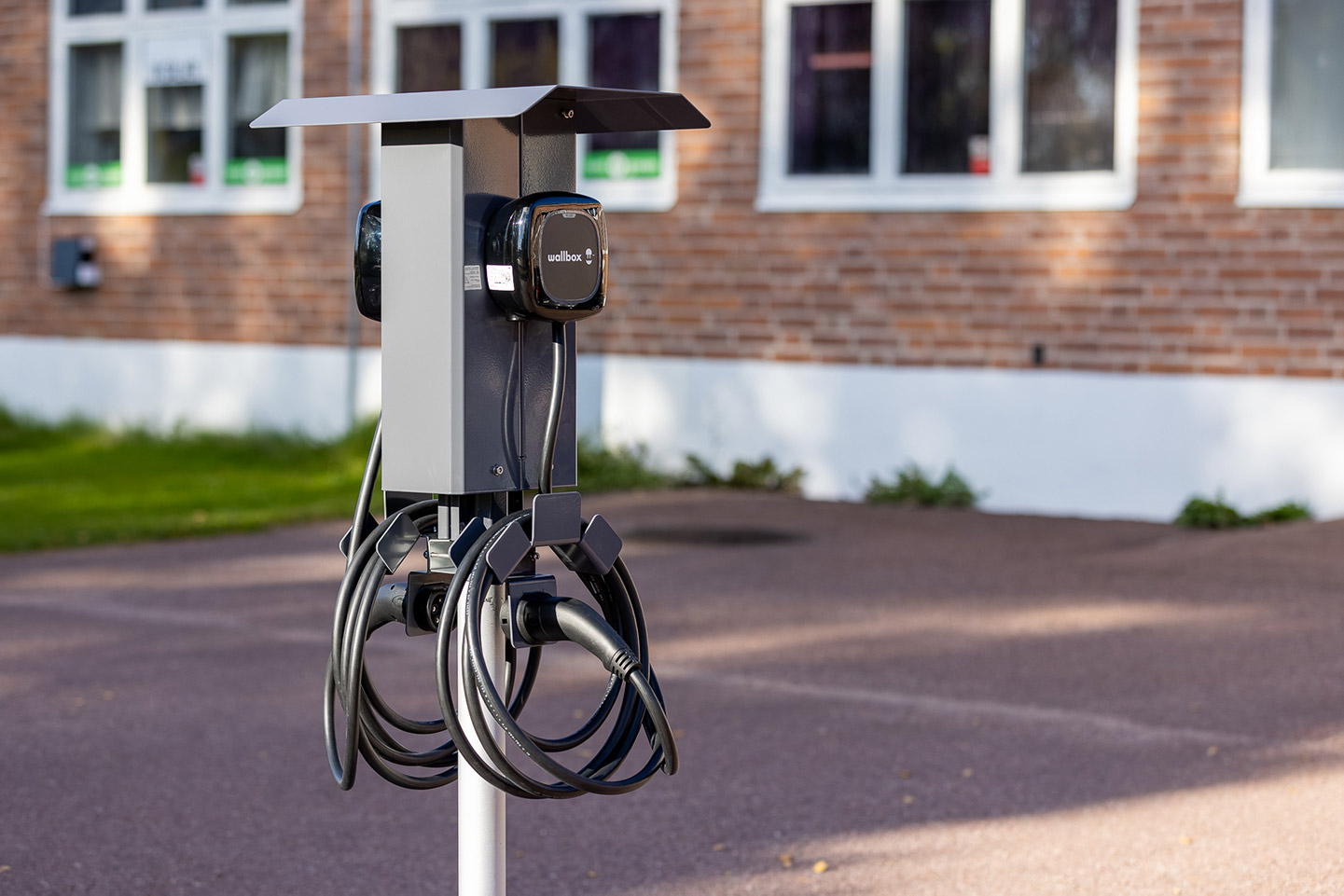

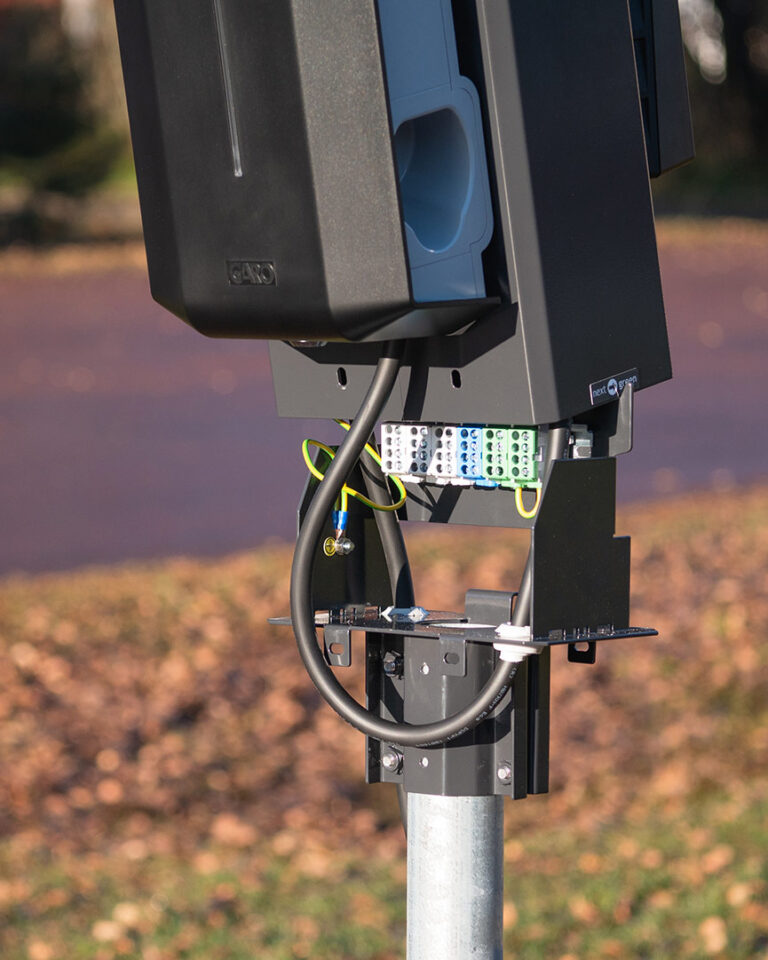

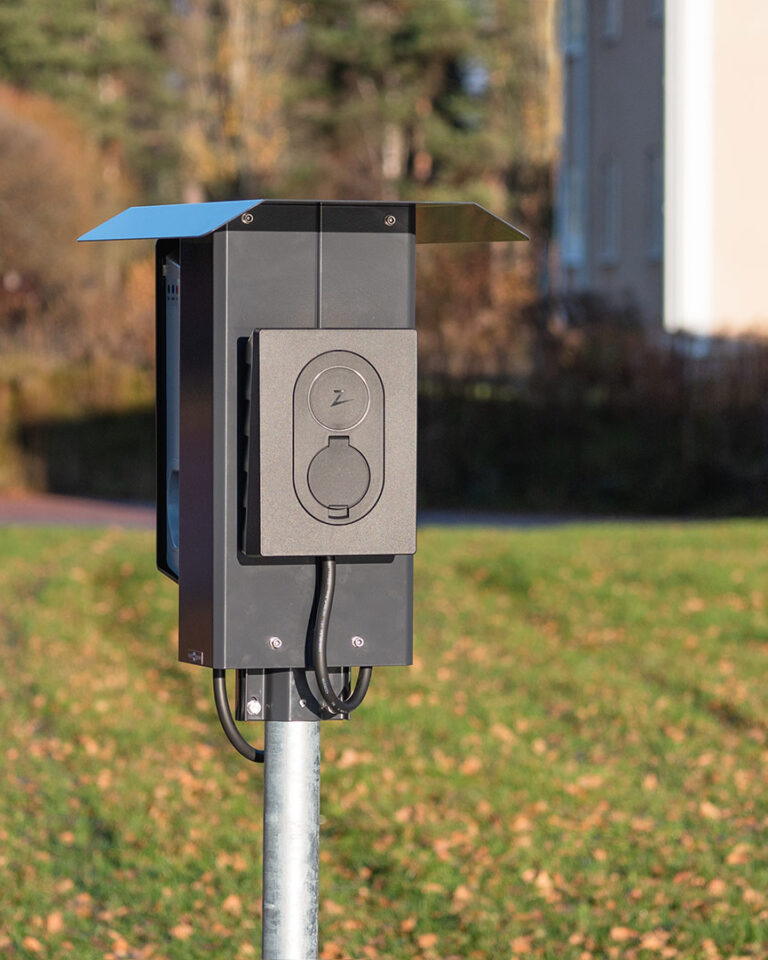

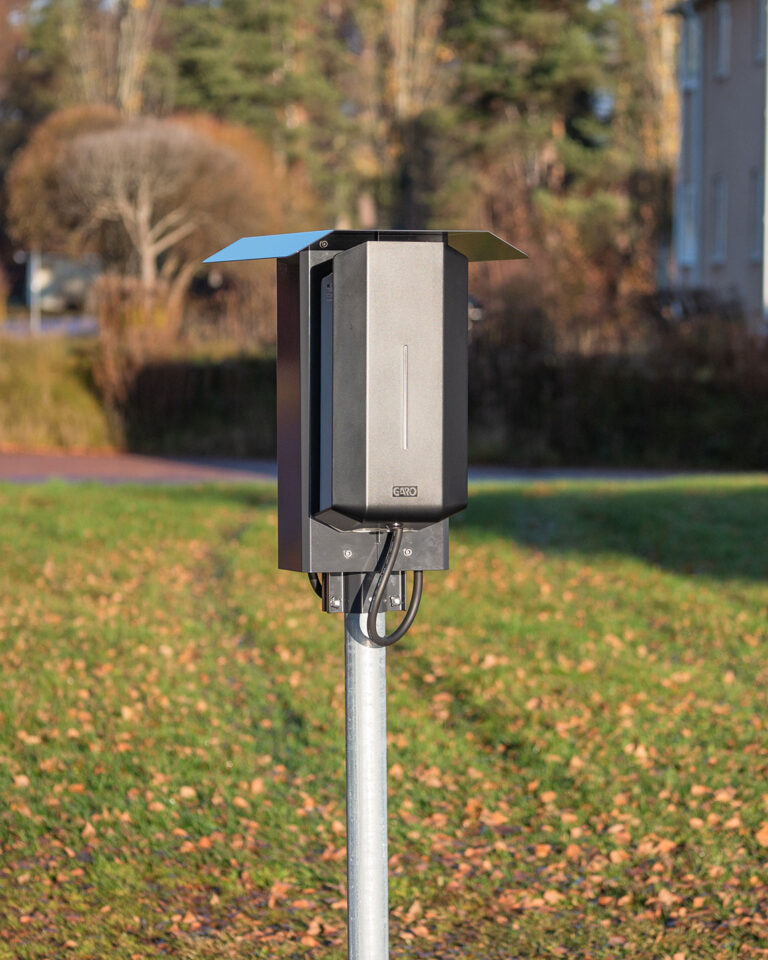

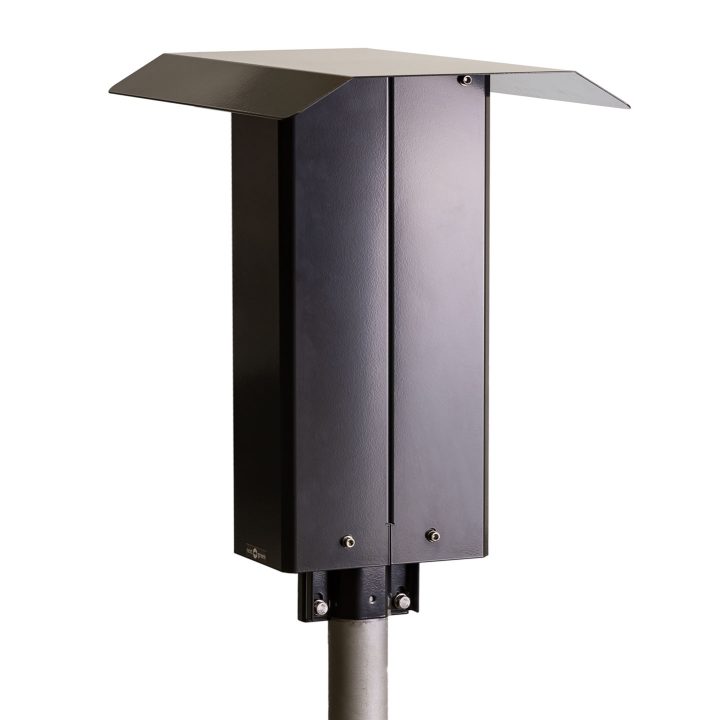

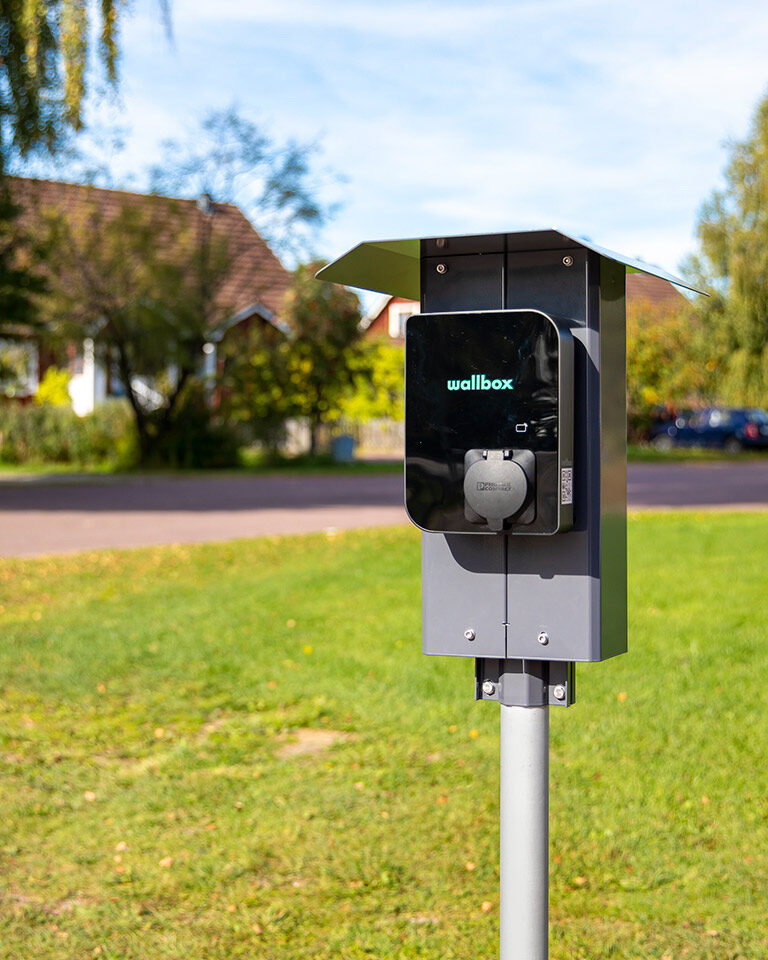

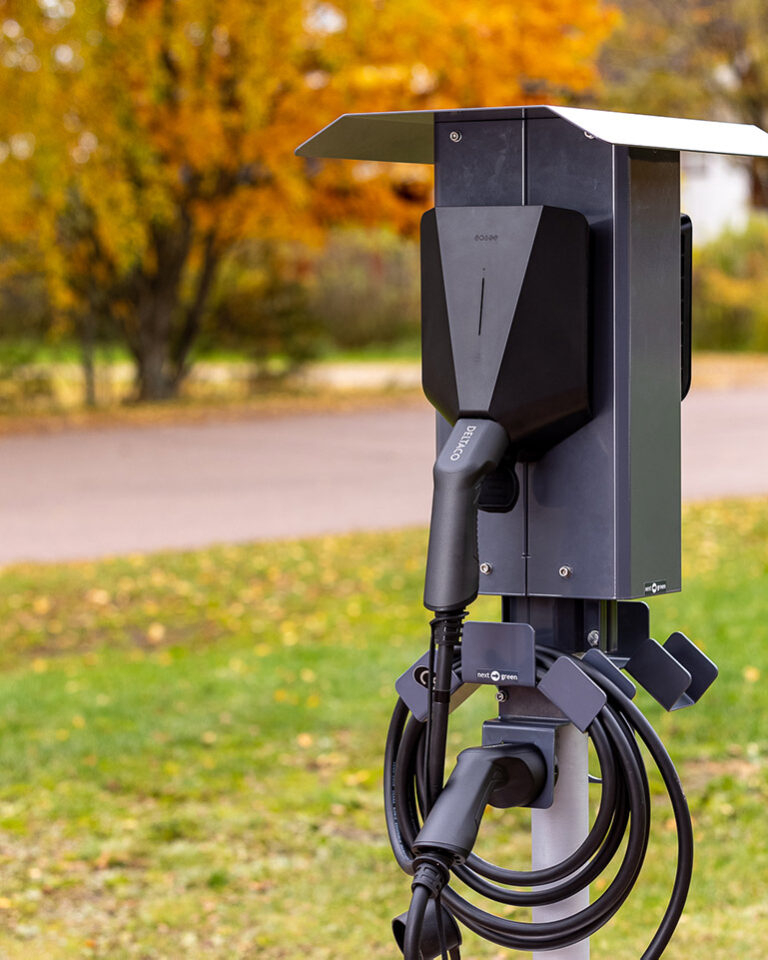

The pictures show the Next Green Polebox 205 D2.

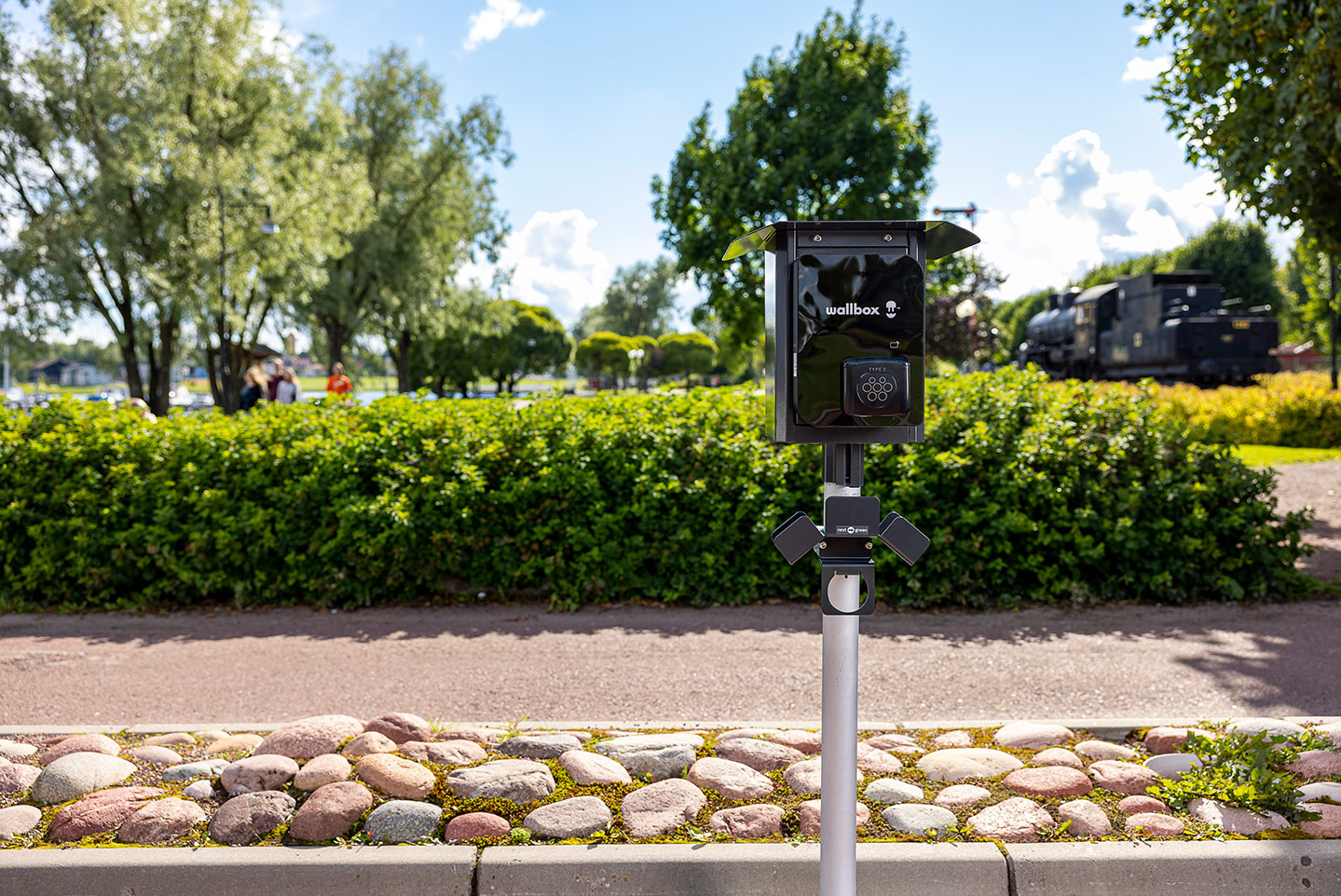

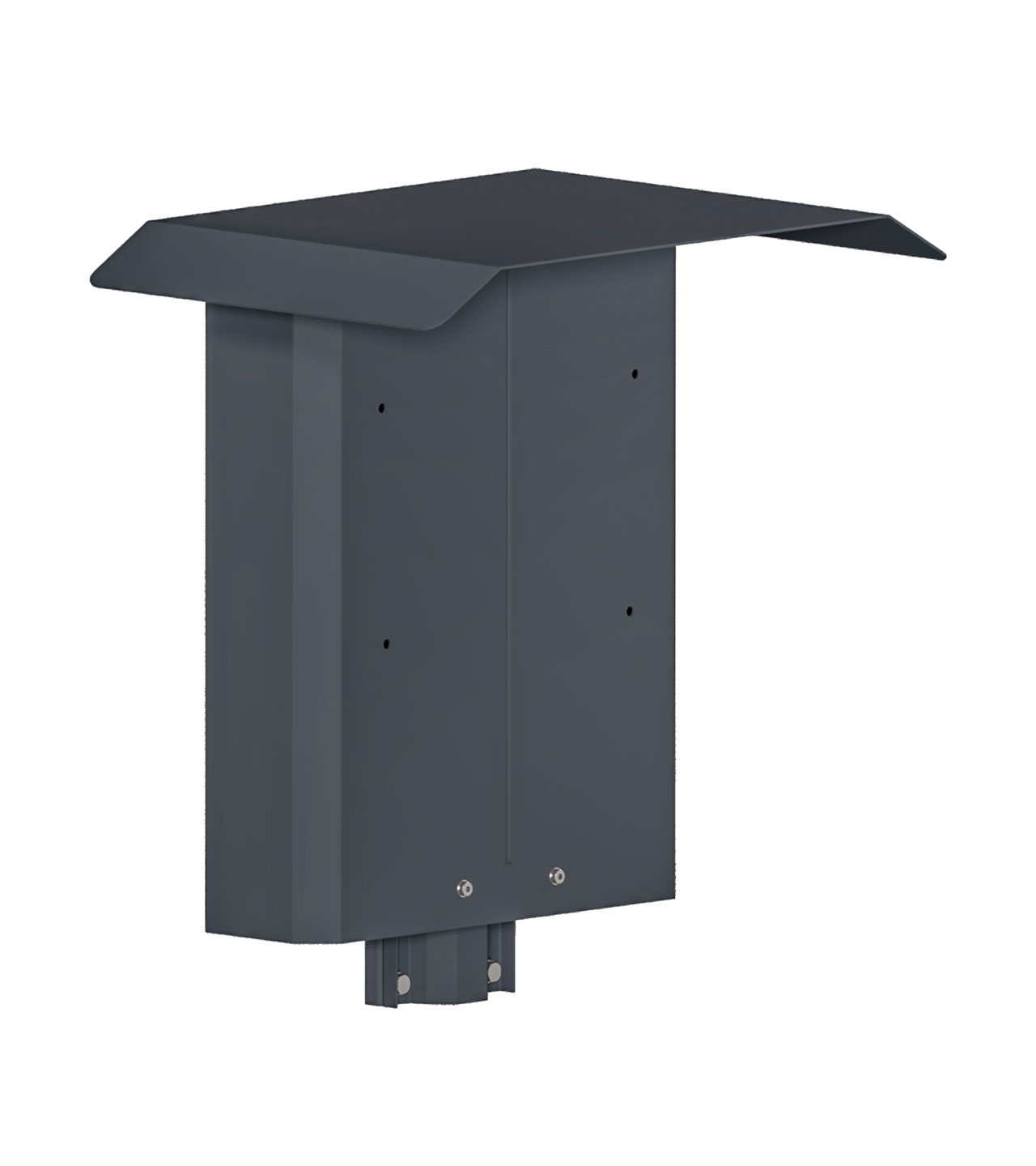

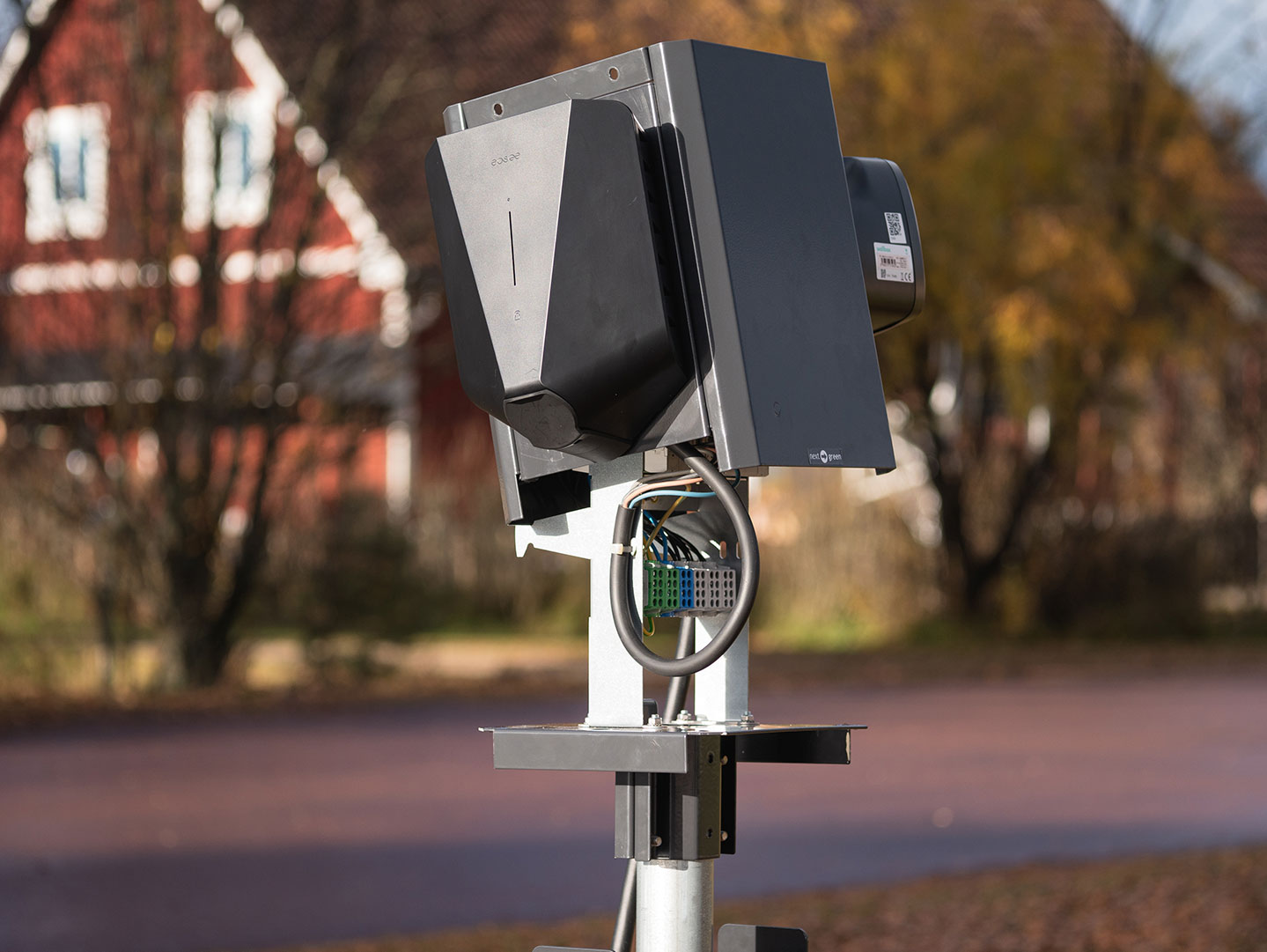

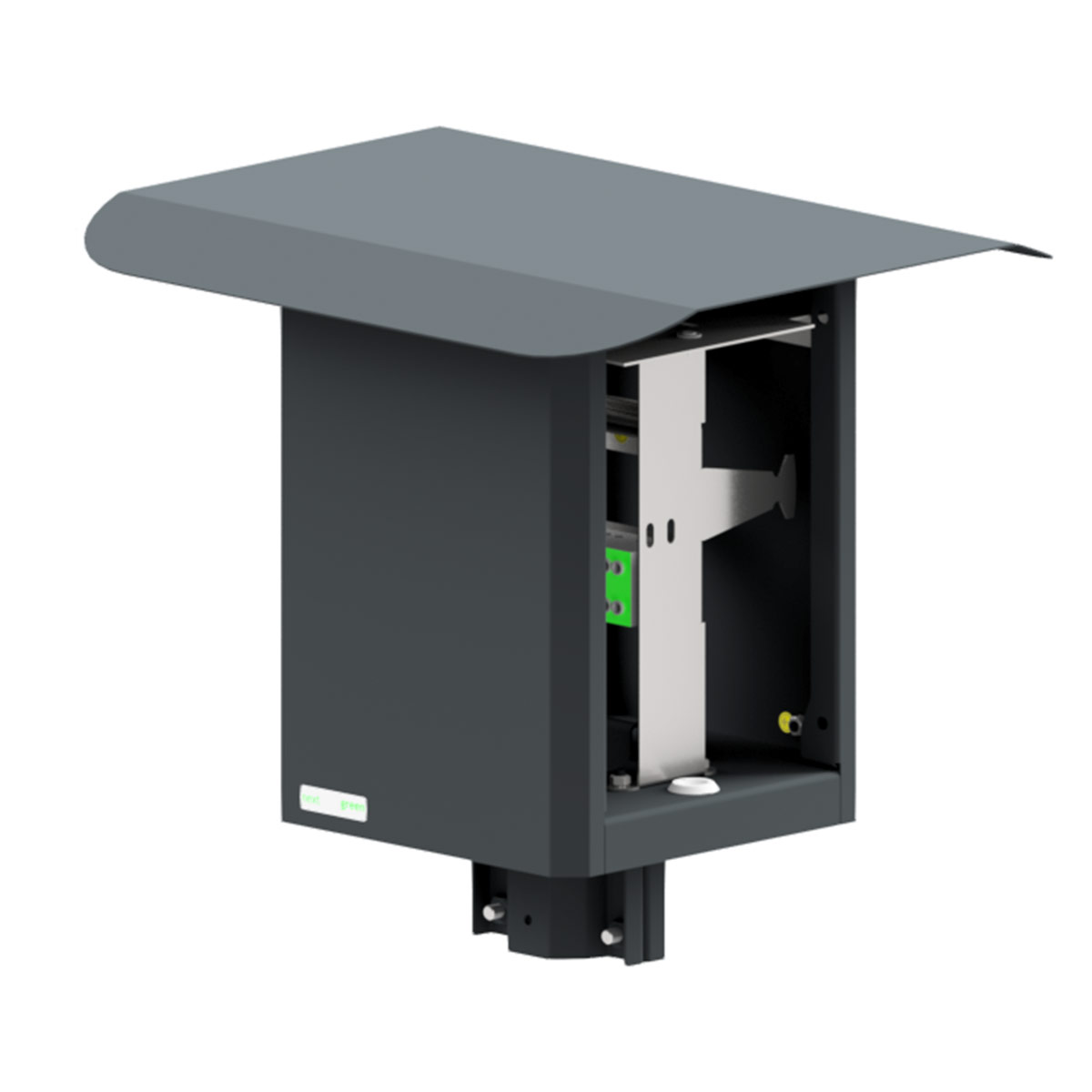

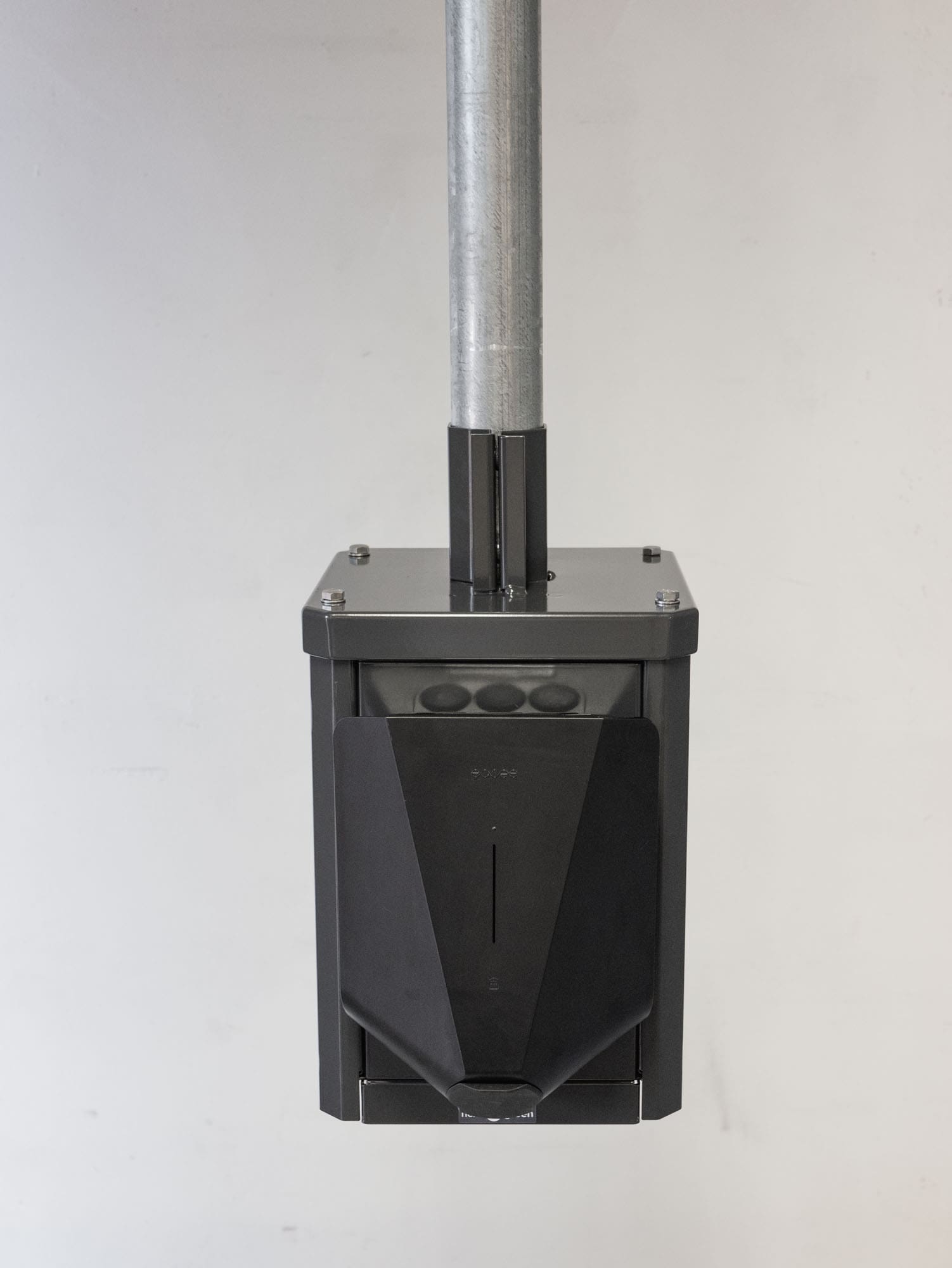

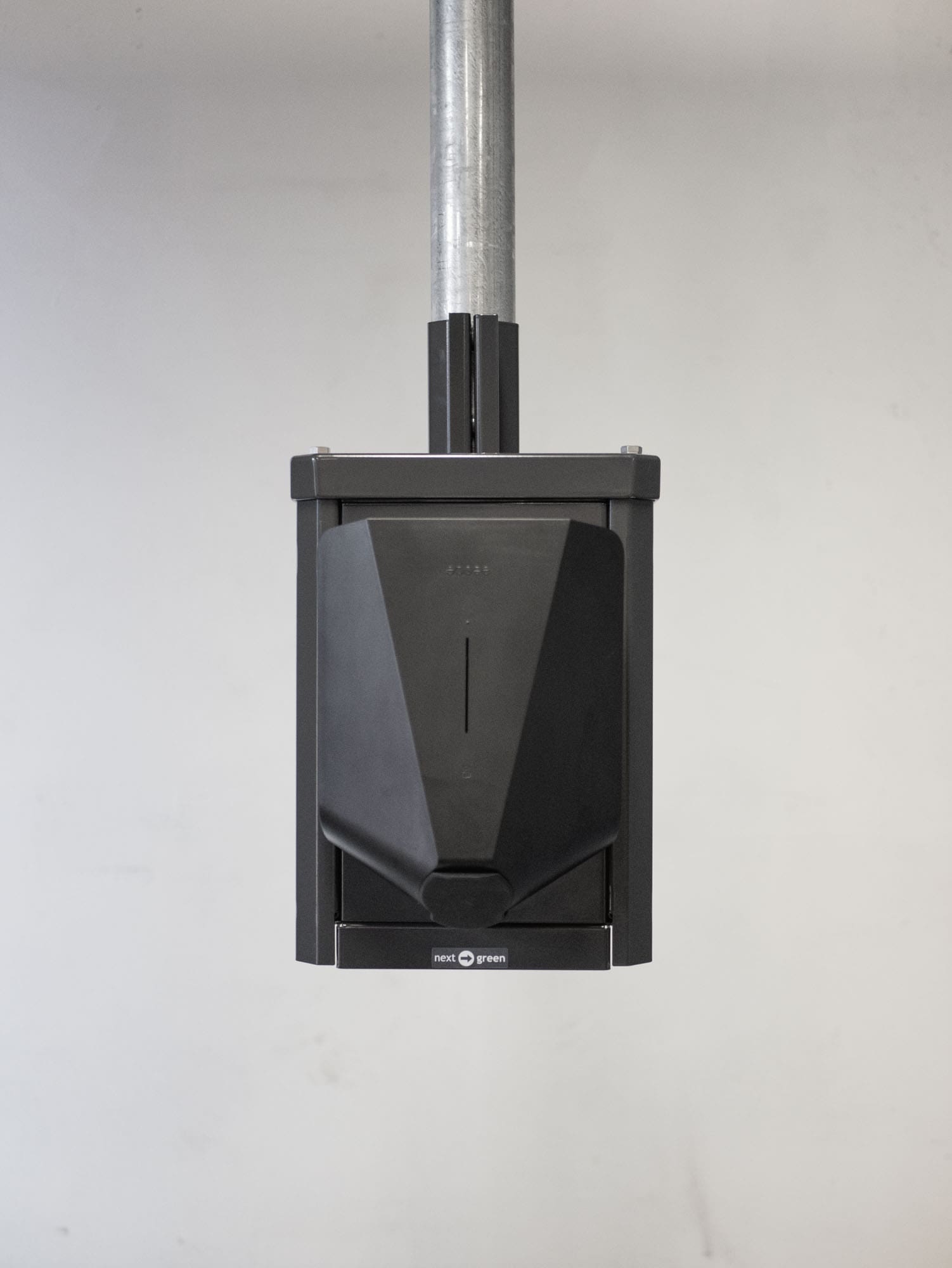

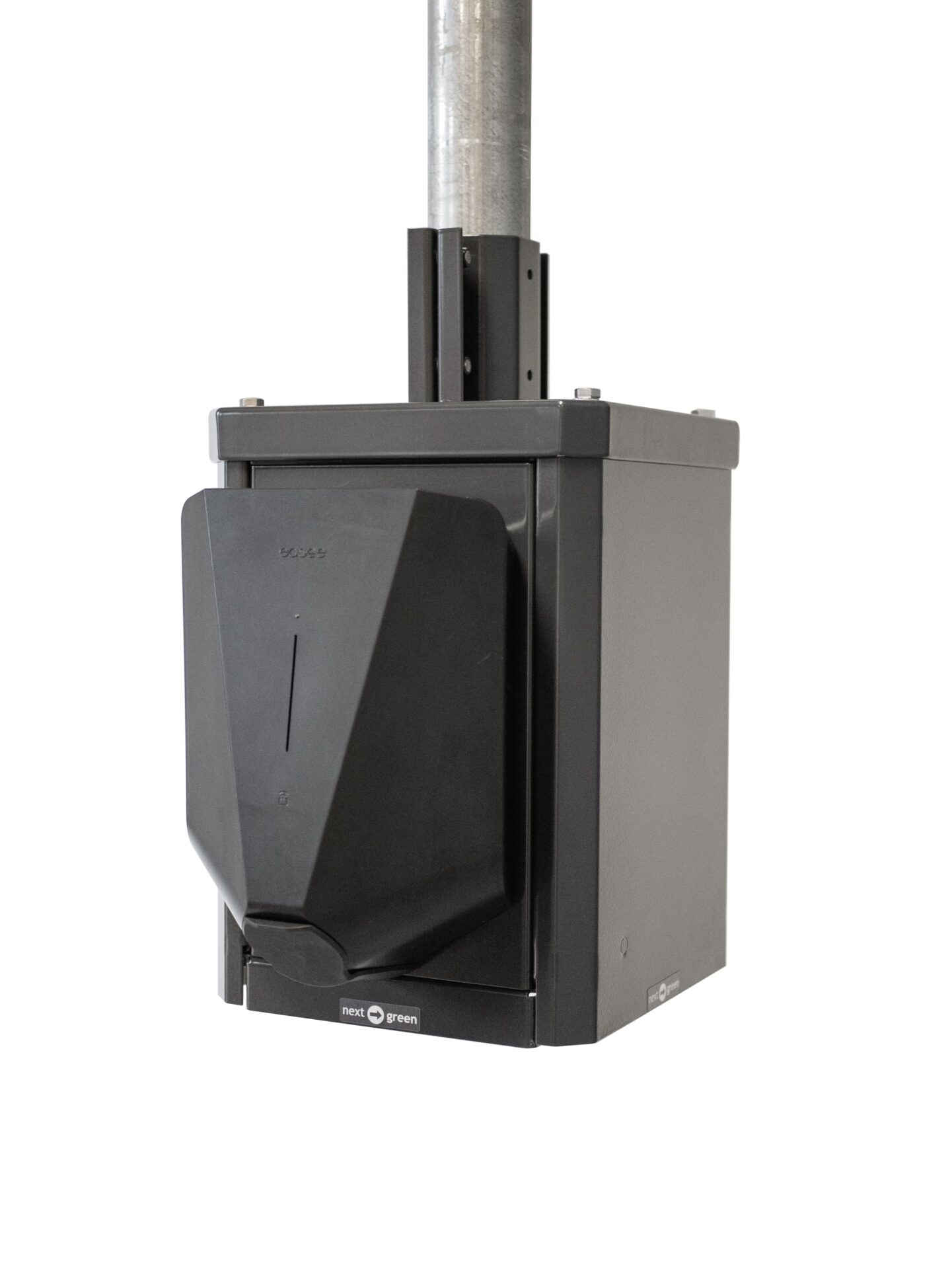

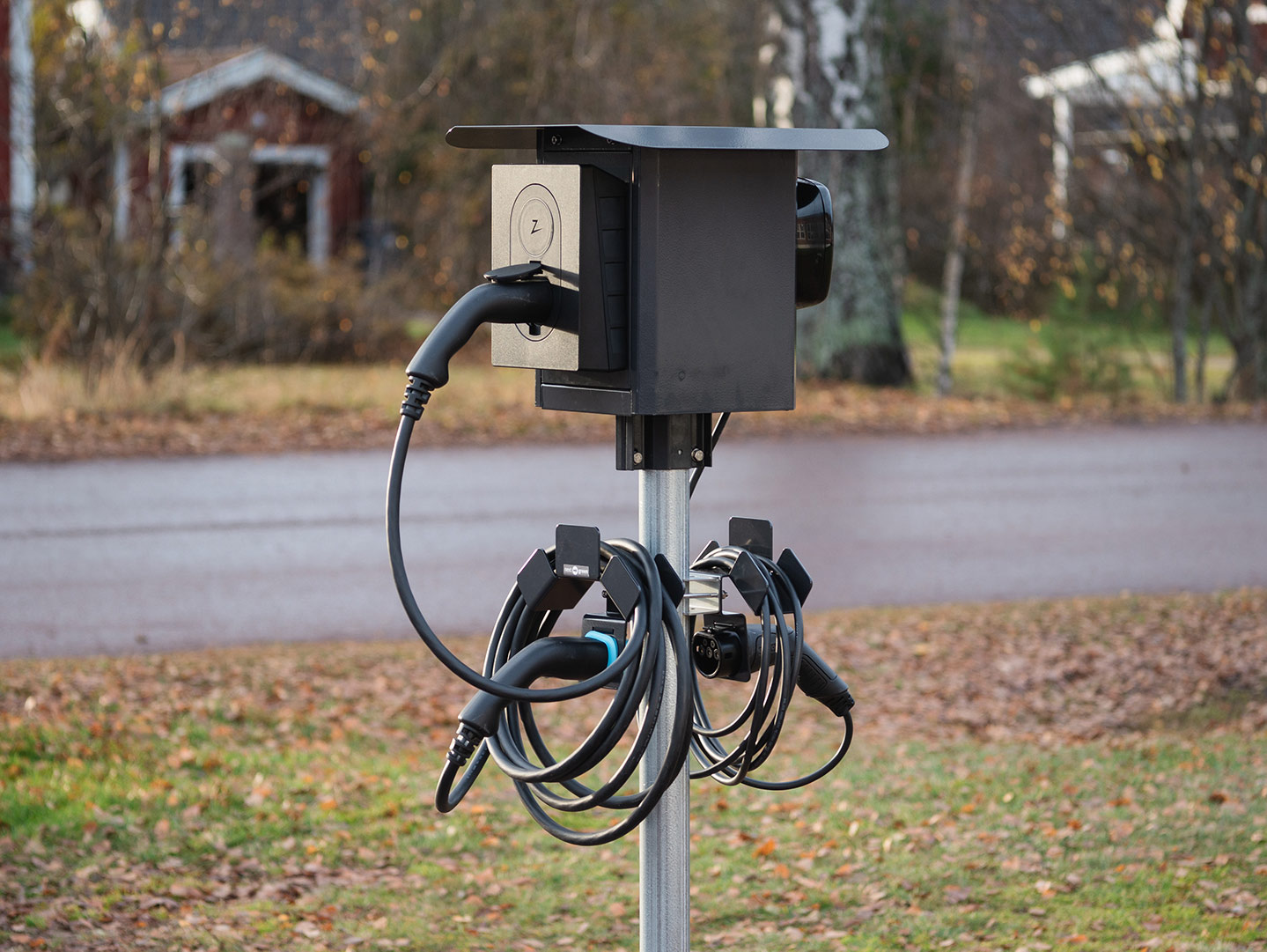

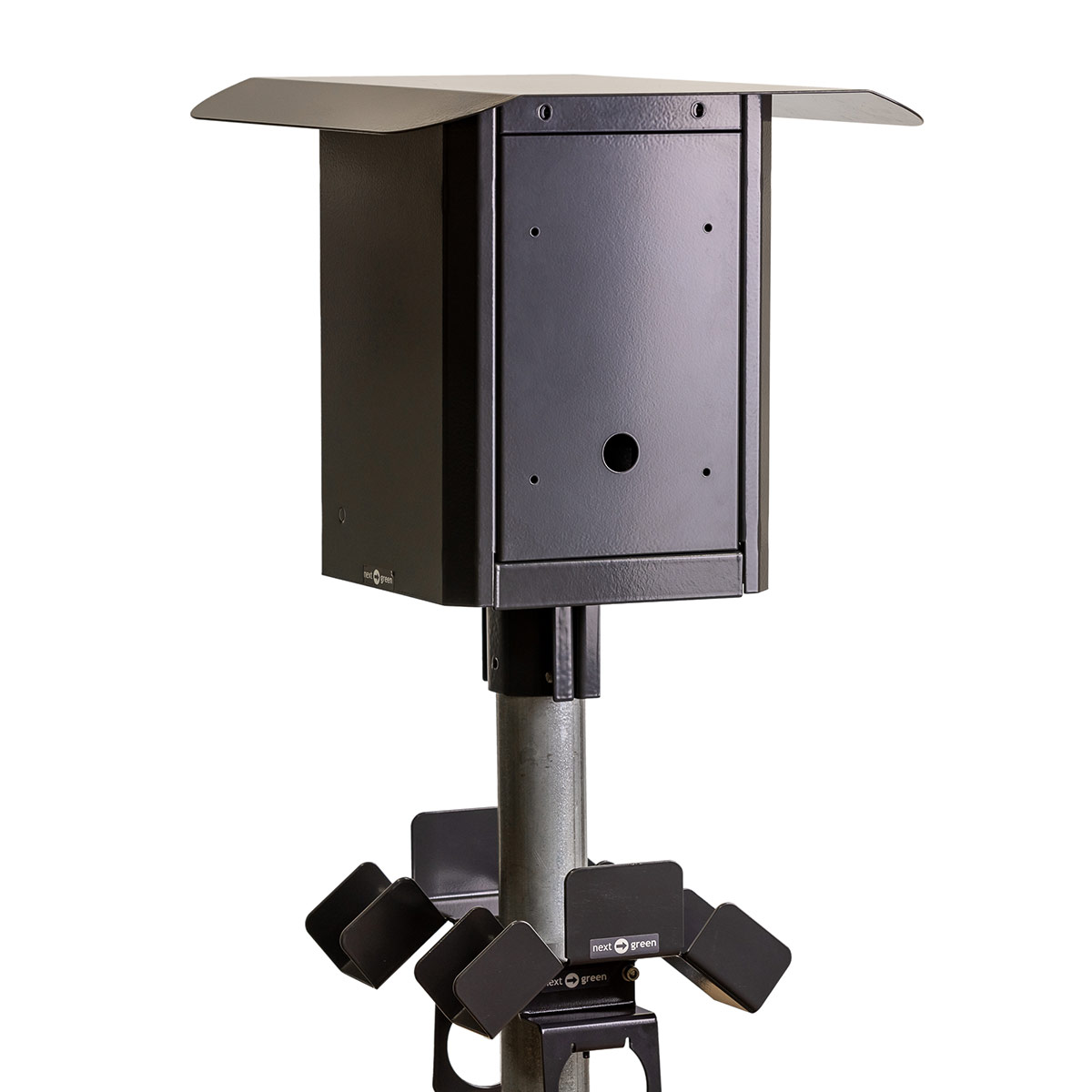

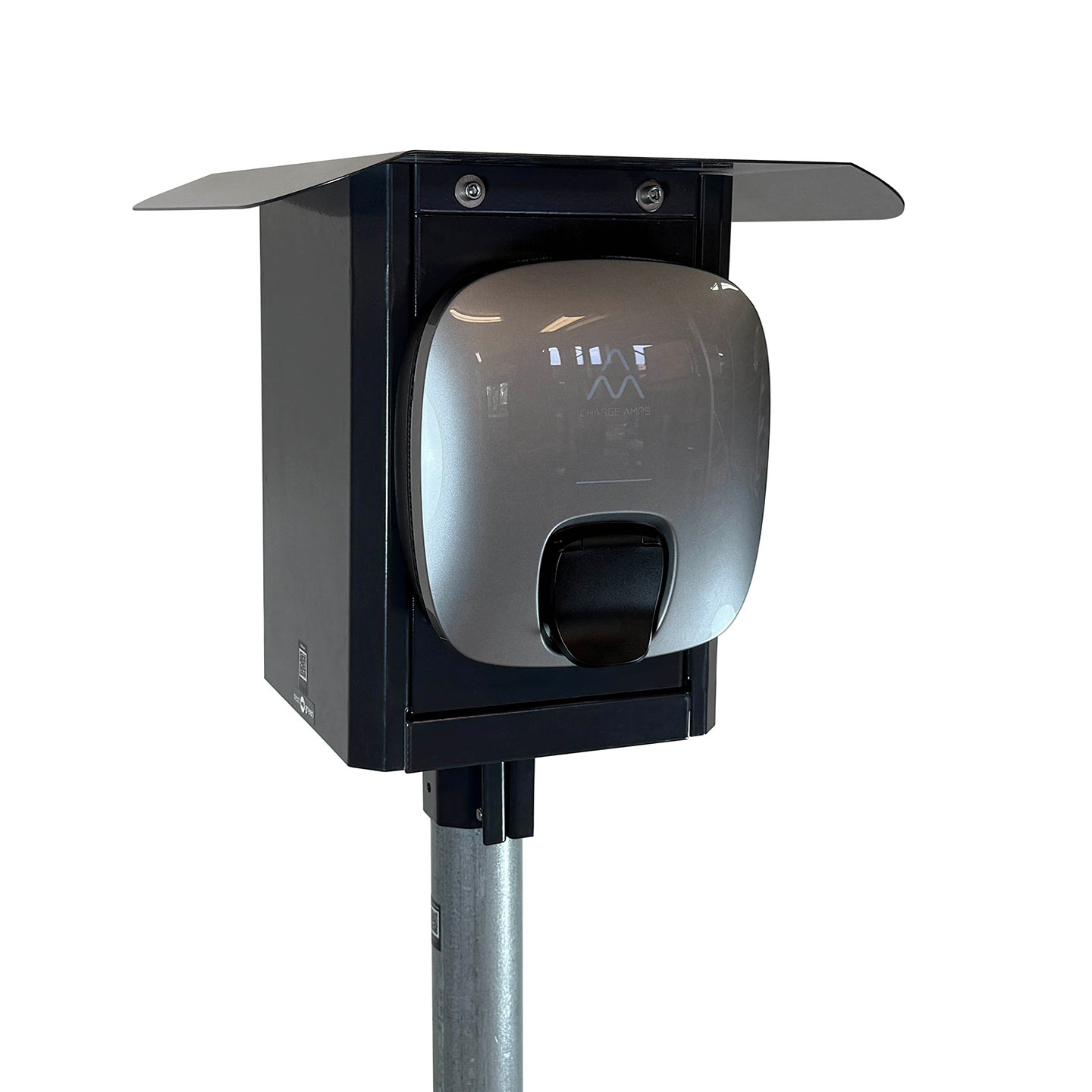

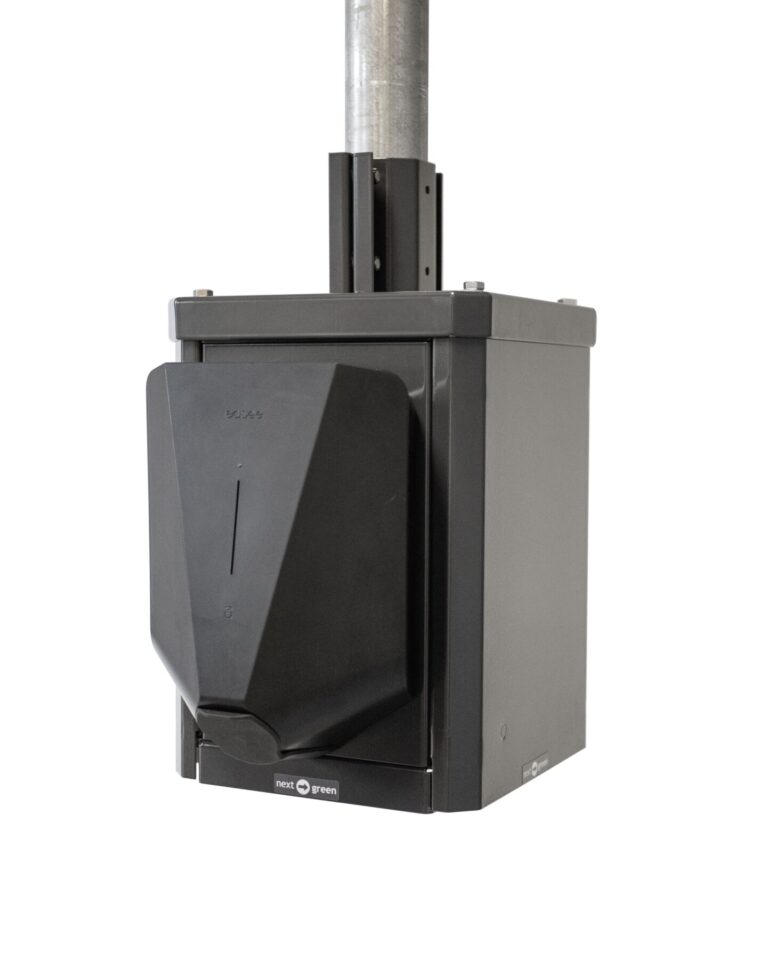

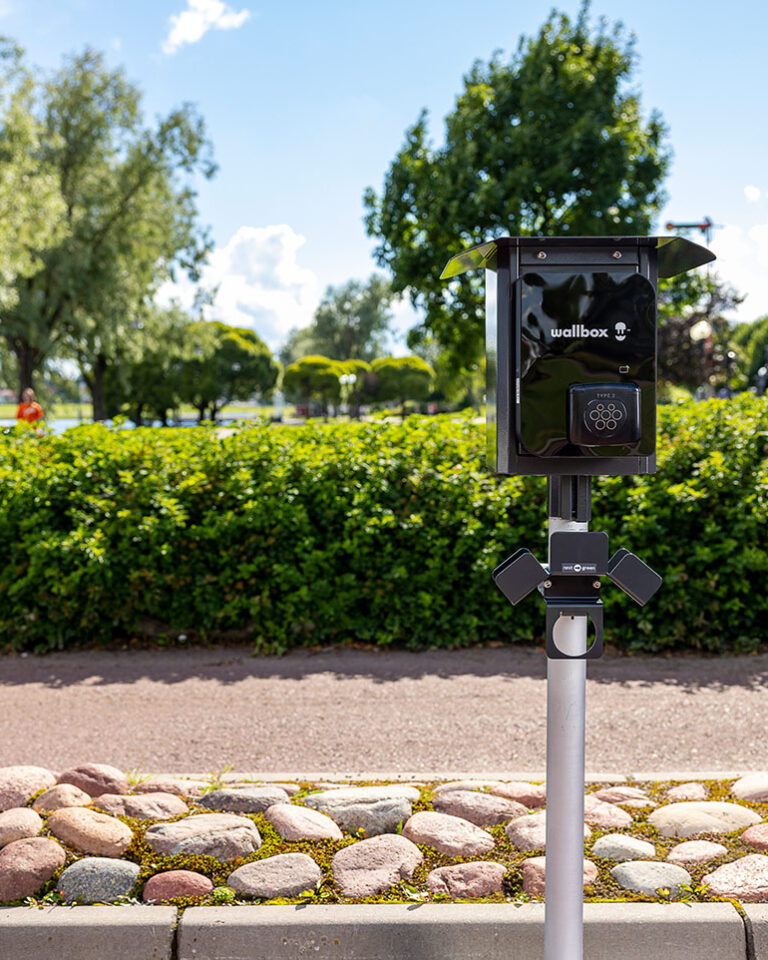

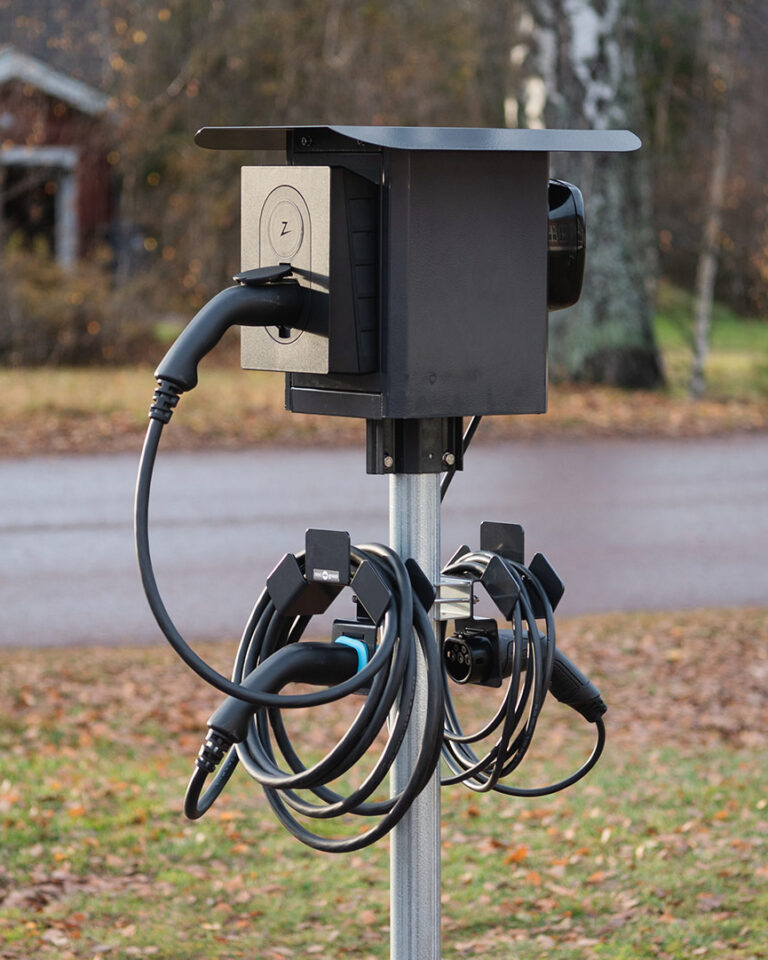

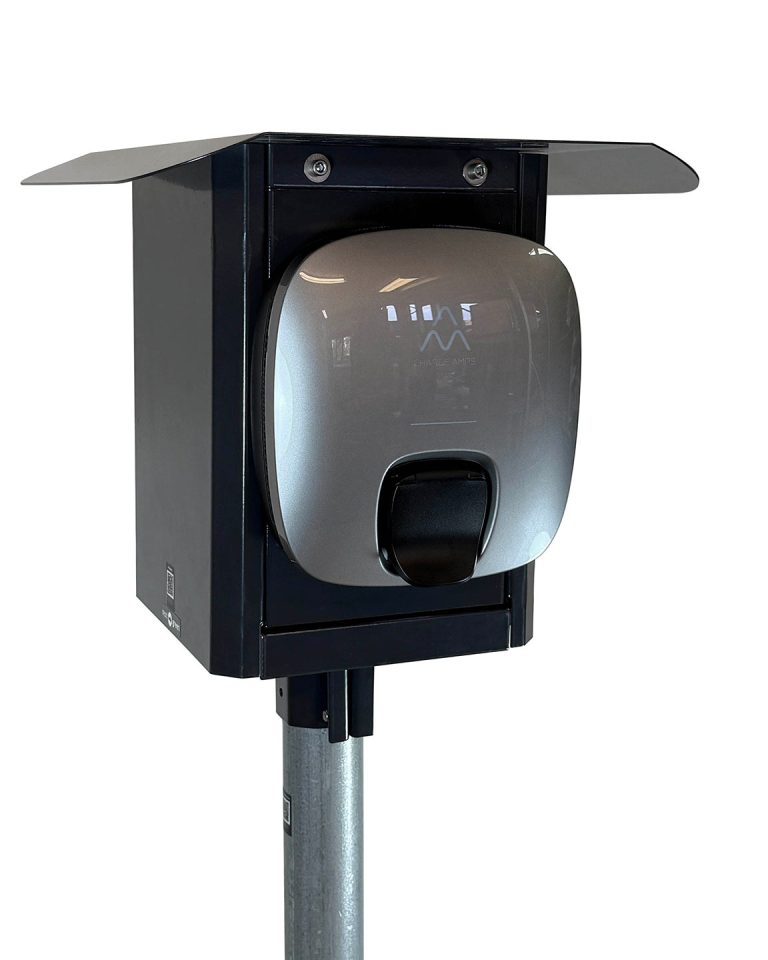

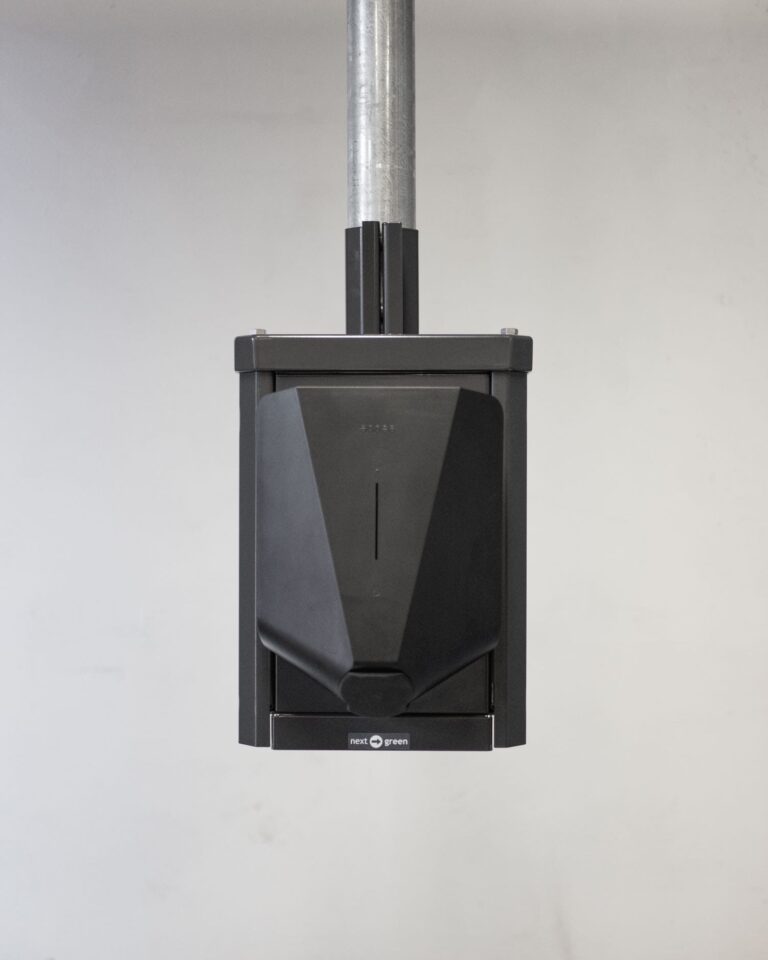

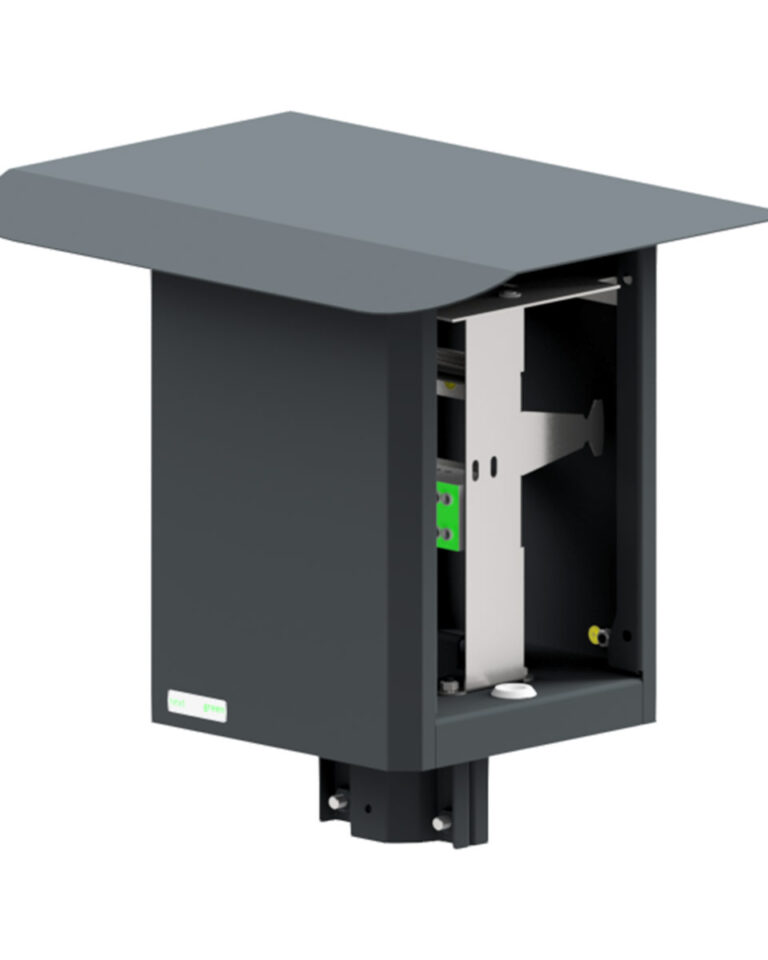

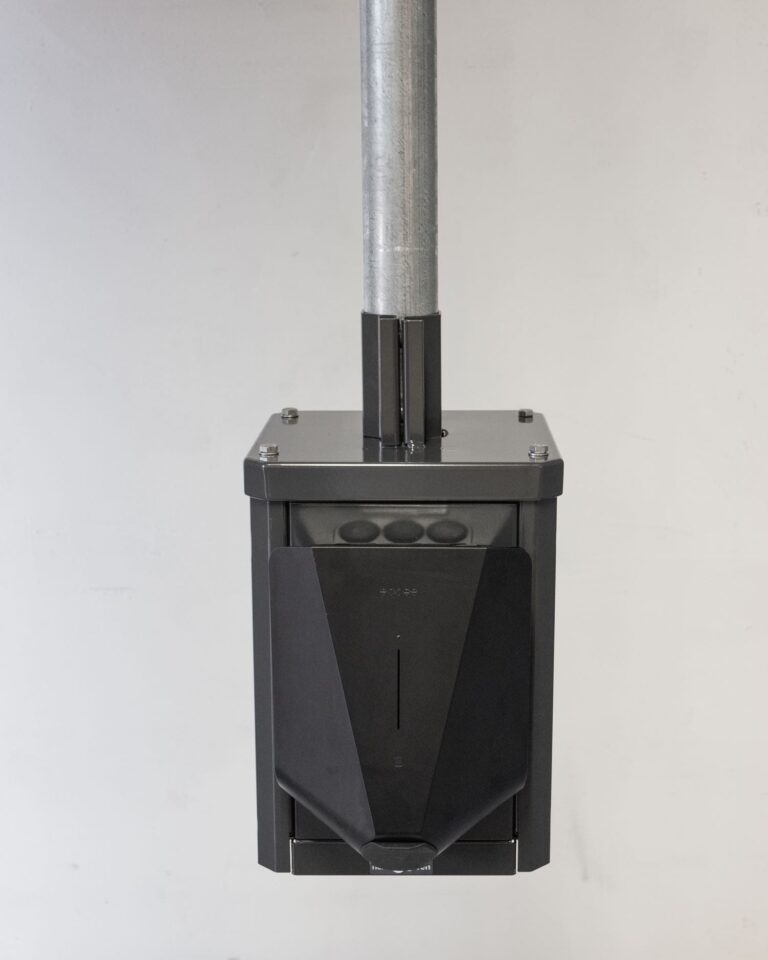

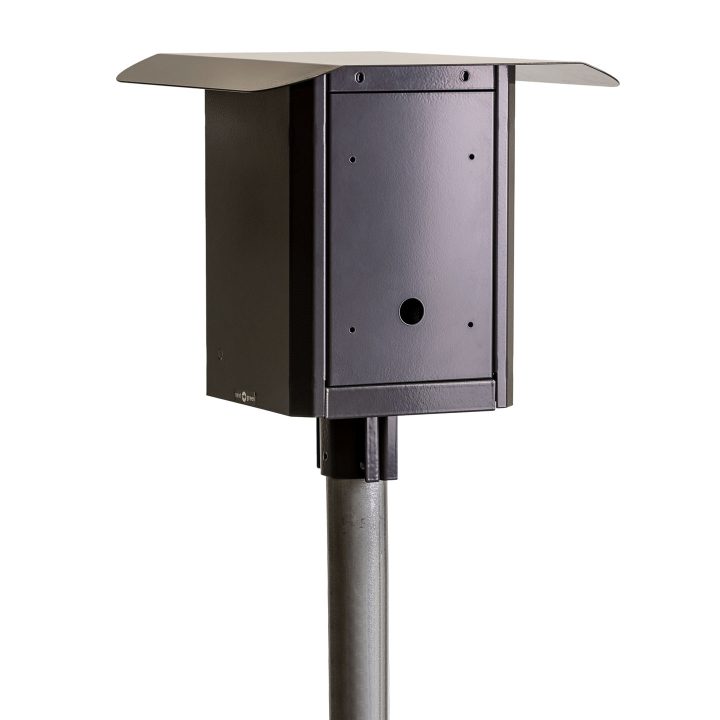

Polebox Compact

E-Number: 27 004 12
Product name: Charging box mount Polebox Compact

Product sheet

Assembly instructions

Share

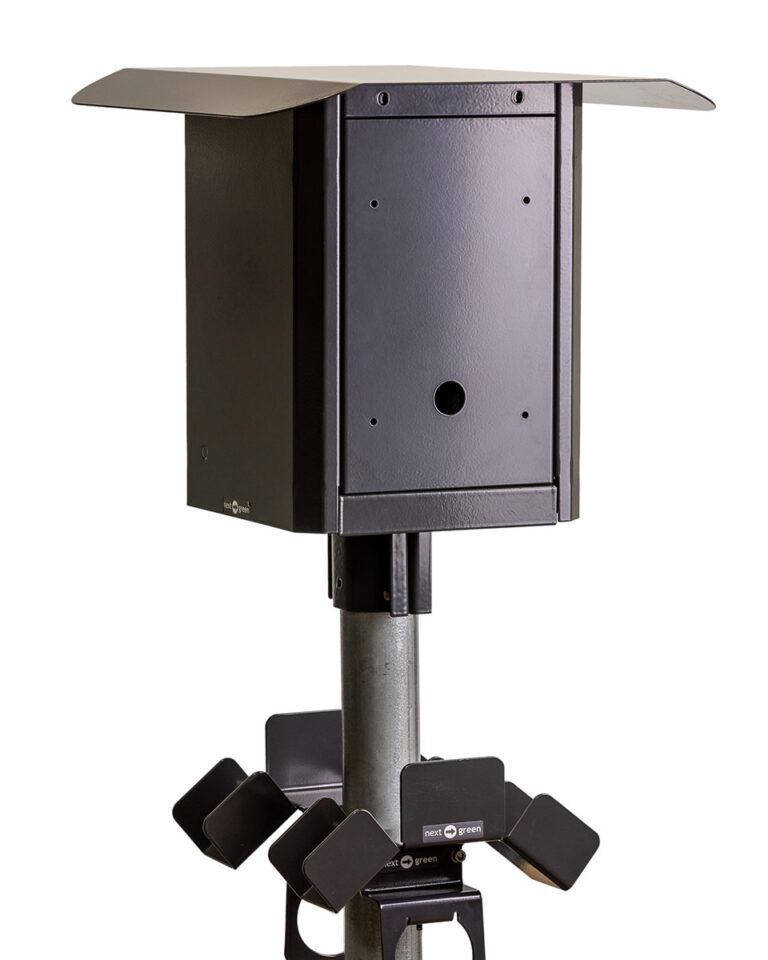

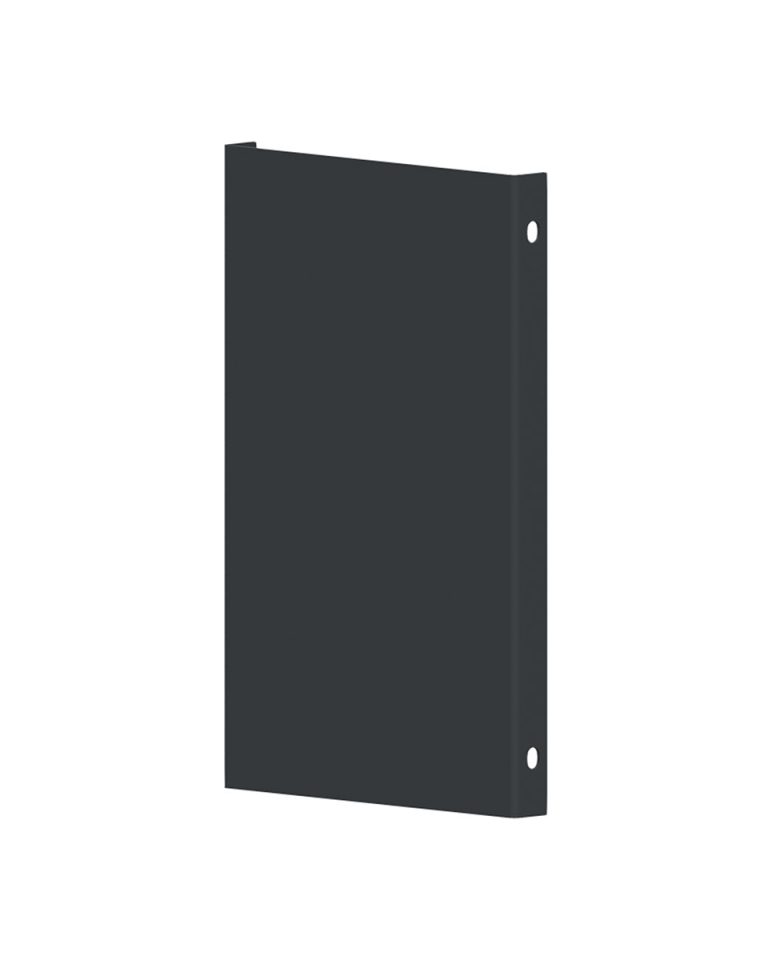

MOUNTING PLATES ARE AVAILABLE FOR THE FOLLOWING EV-CHARGERS

  • Coverplate Blank E-nr: 27 004 50
  • Charge Amps Halo E-nr: 27 004 13

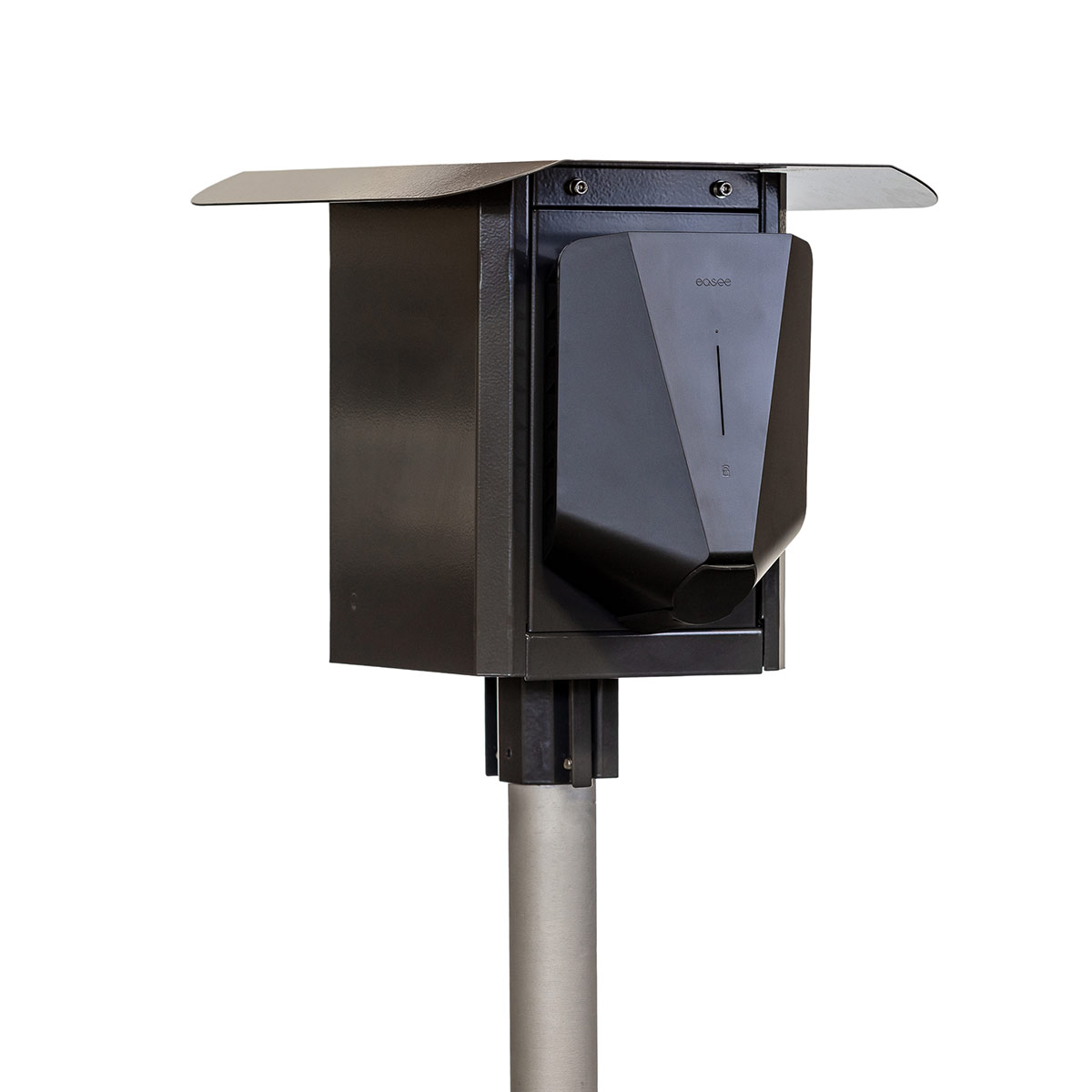

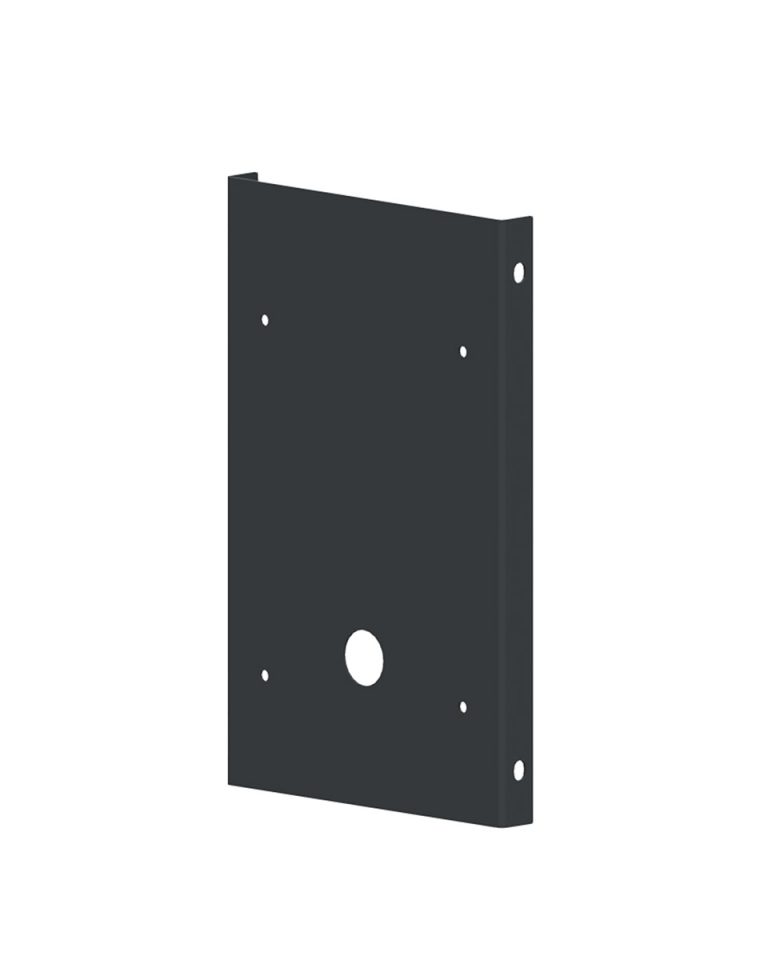

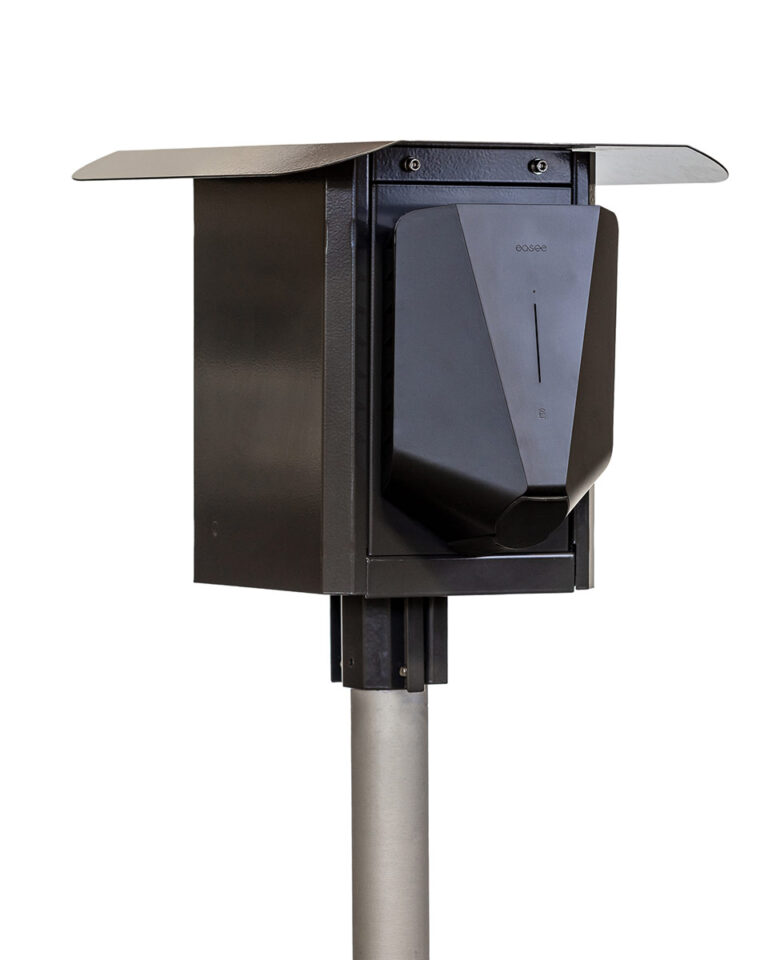

  • Easee Home E-nr: 27 004 51

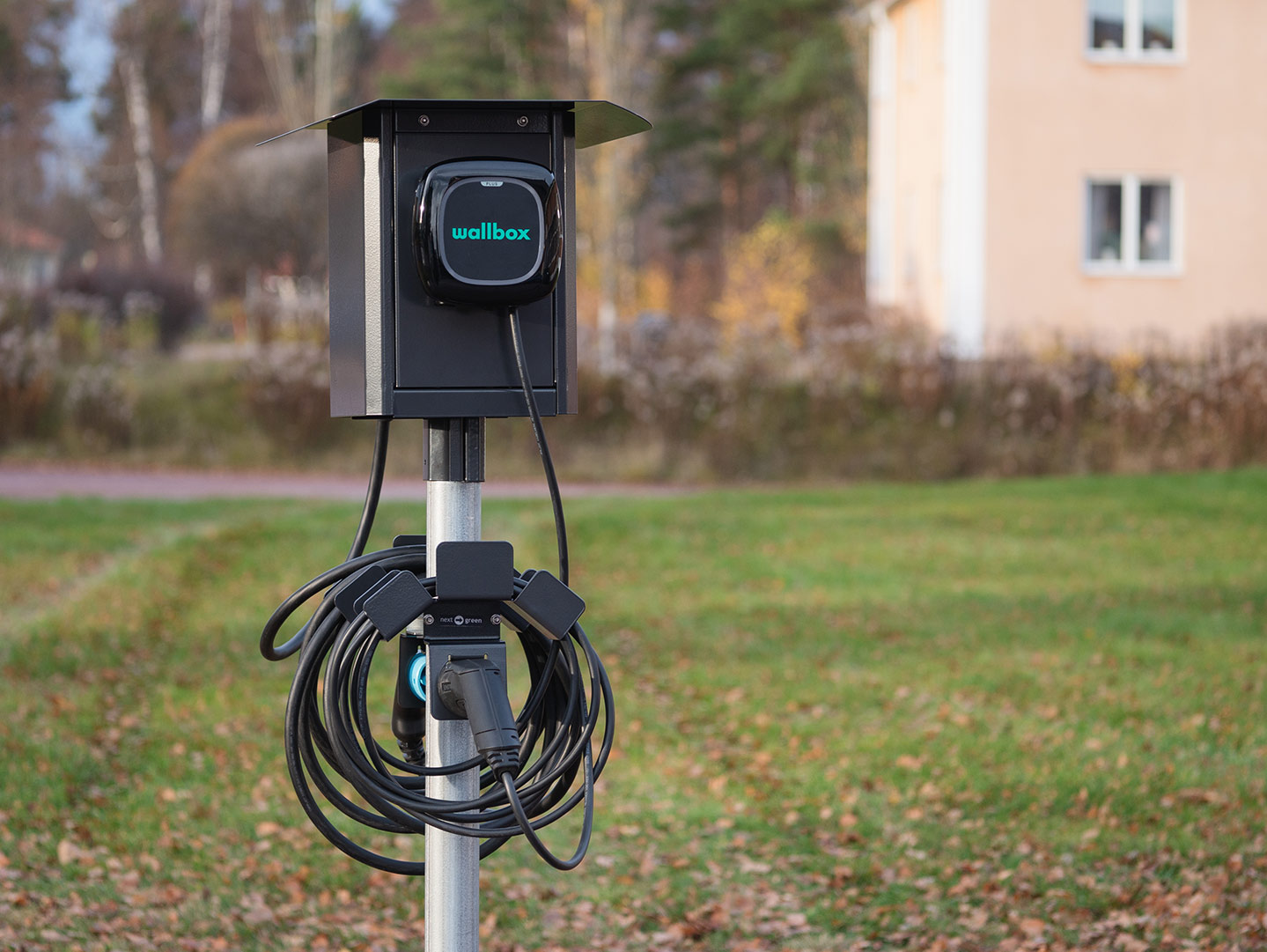

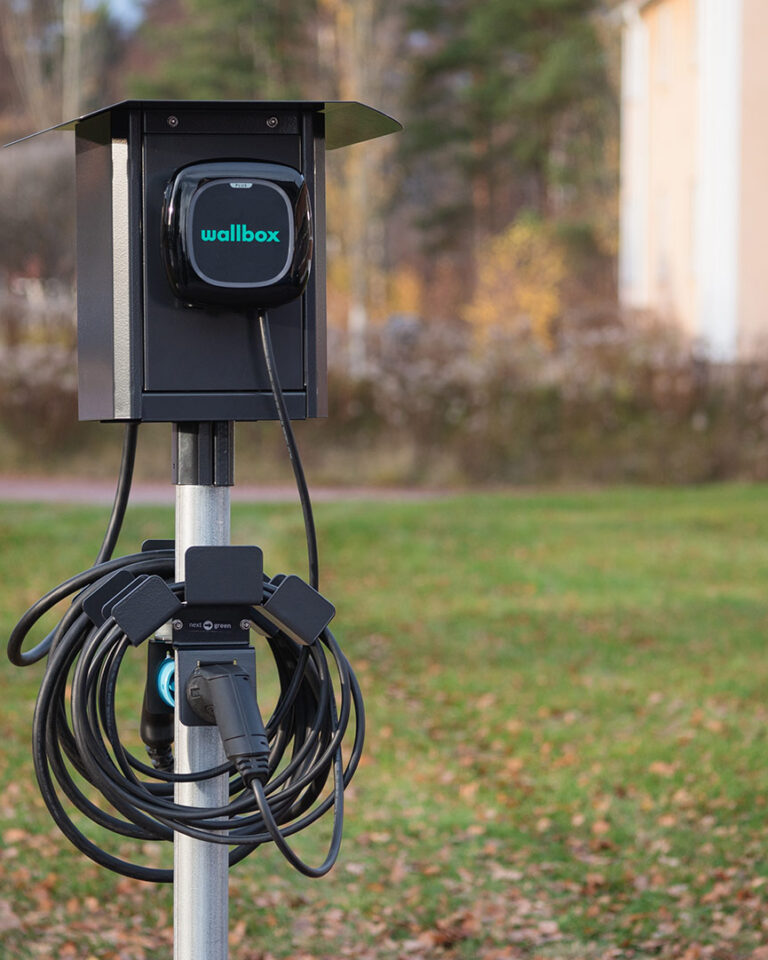

  • Wallbox Pulsar E-nr: 27 004 52
  • Wallbox Copper SB E-nr: 27 004 53
  • Zaptec Go E-nr: 27 004 58

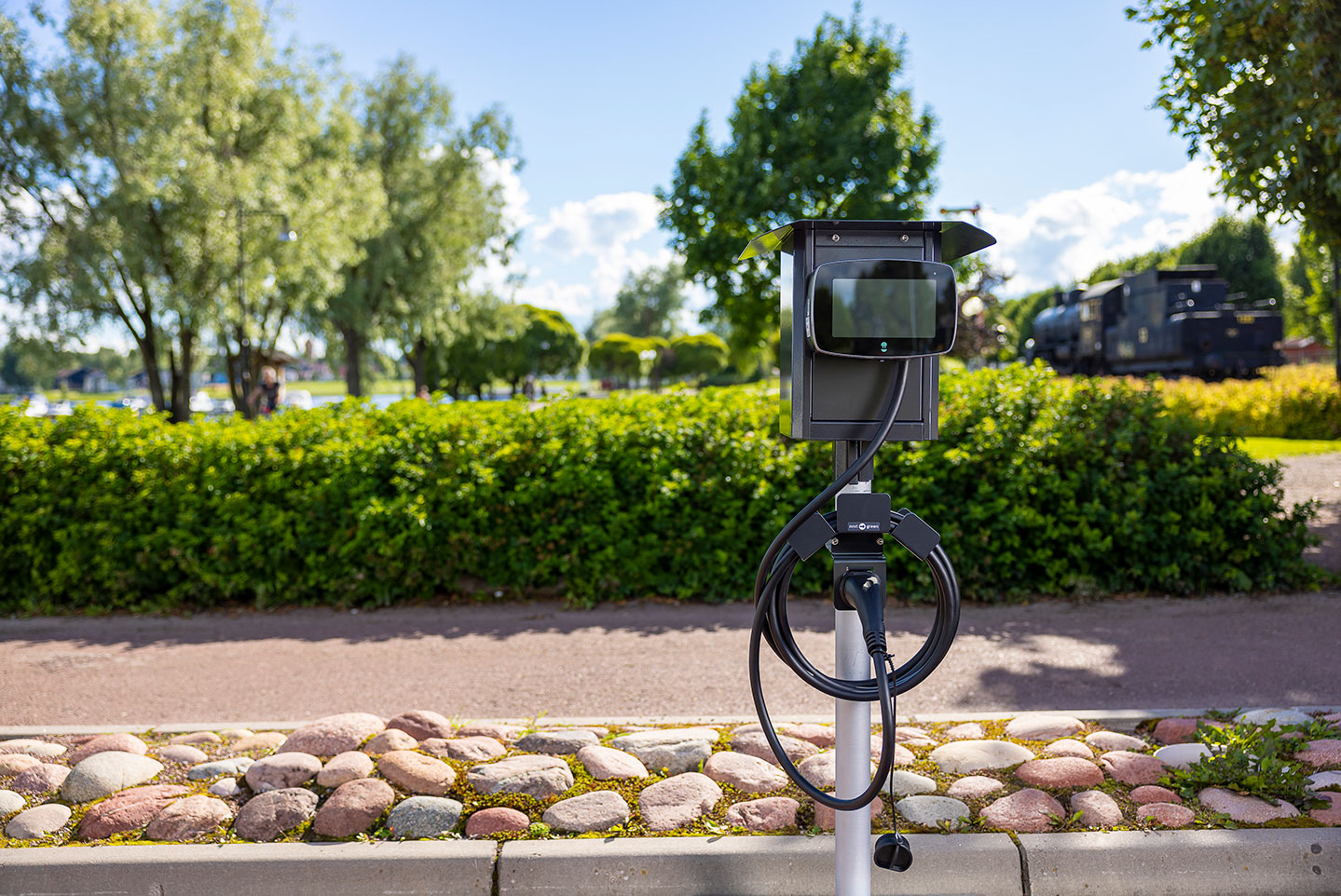

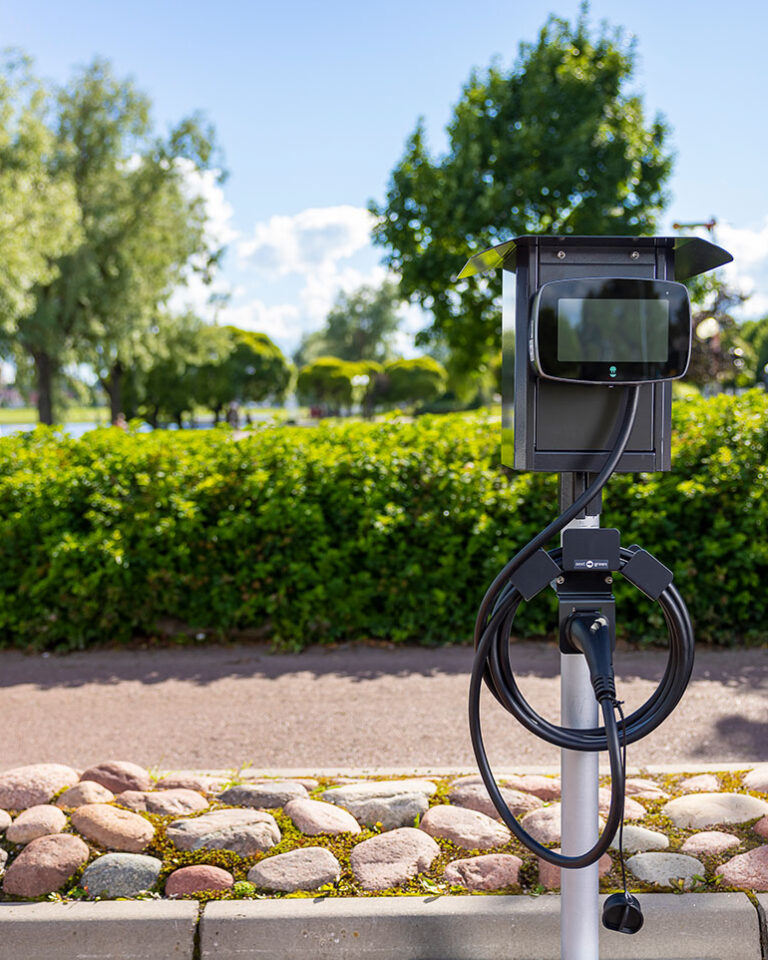

  • Wallbox Commander E-nr: 27 004 59

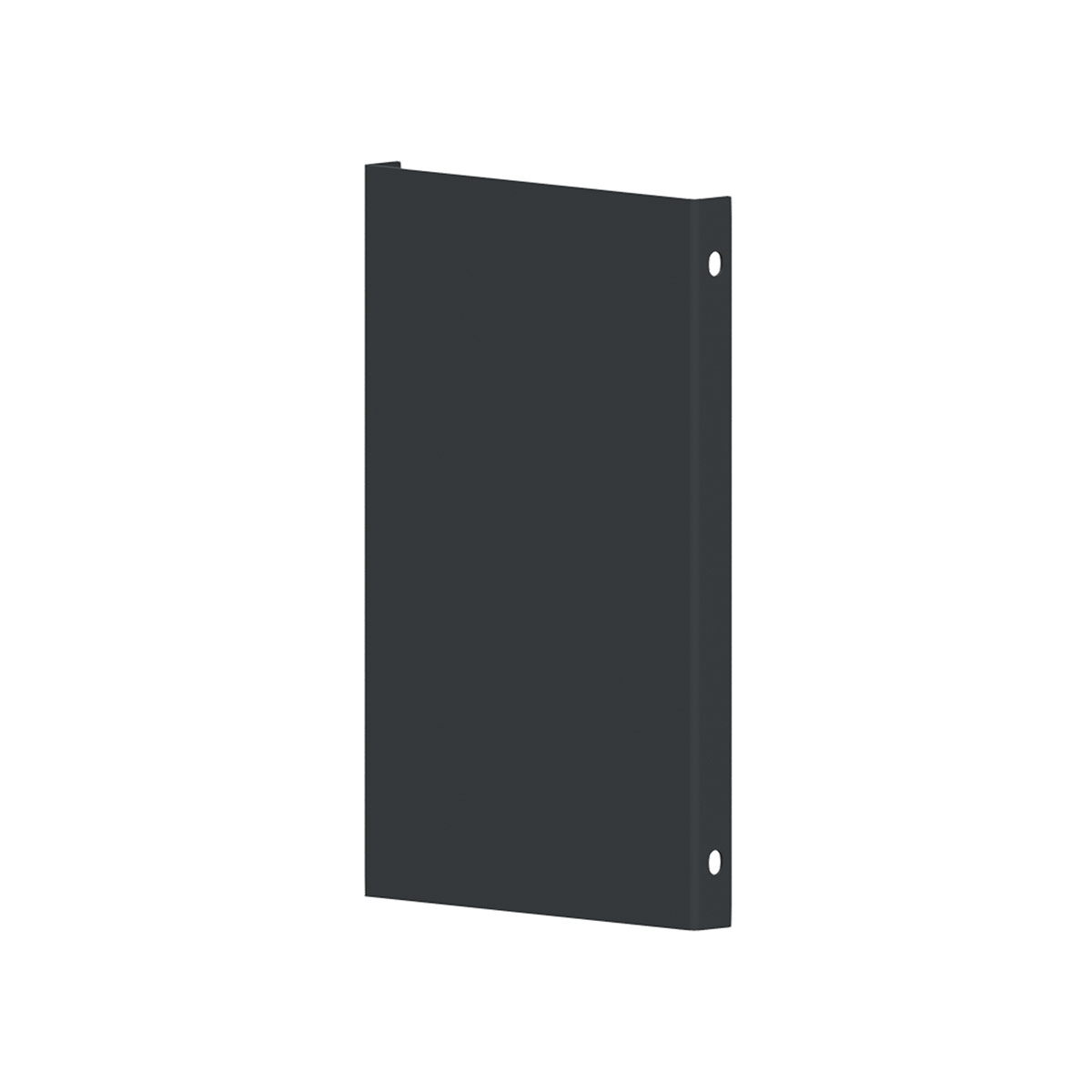

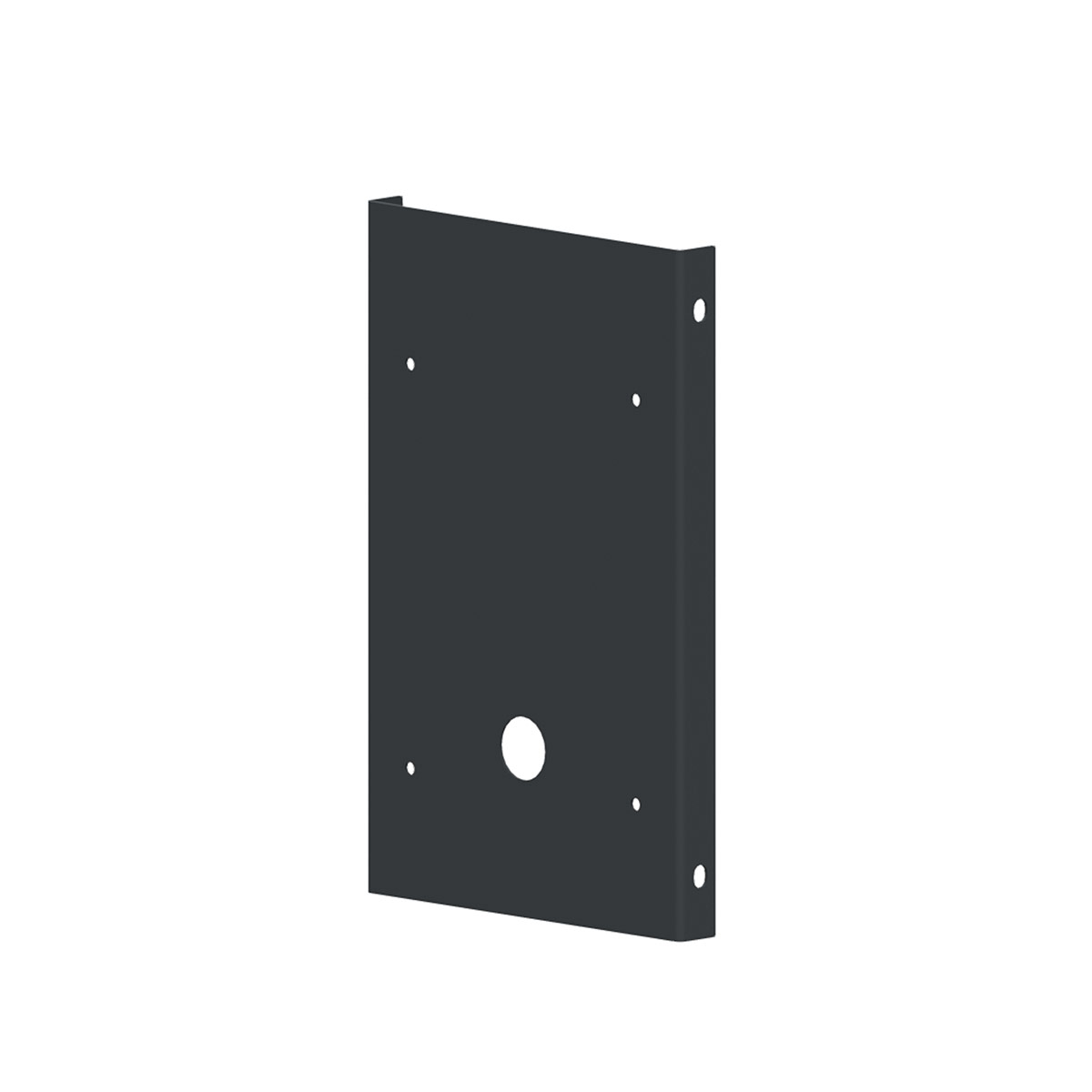

Mountingplates are ordered separately on above E-numbers. Two mounting plates are needed.

  • Laser precut mounting plates for selected EV-chargers. The mounting plates are ordered on a separate E-number. See in the green box abowe.
  • For mounting two chargers back-to-back
  • For mounting on Ø 60 mm steel tubes
  • Most of the installation can be prepared indoors
  • Robust steel construction
  • Distribution block (1.5mm2 –25mm2)
  • Prepared for mounting up to two earth fault circuit breakers, 3G / 4G router
  • Powder coated, available in various colors. Contact Next Green for more information.

Material

Steel, High-strength steel

Color

Graphite grey

Dimensions

Weight 8 kg
Height 400 mm
Width 235 mm
Depth 235 mm
Mounting surface 175 mm

Packaging dimensions

Weight 8,1 kg
Height 250 mm
Width 450 mm
Depth 450 mm

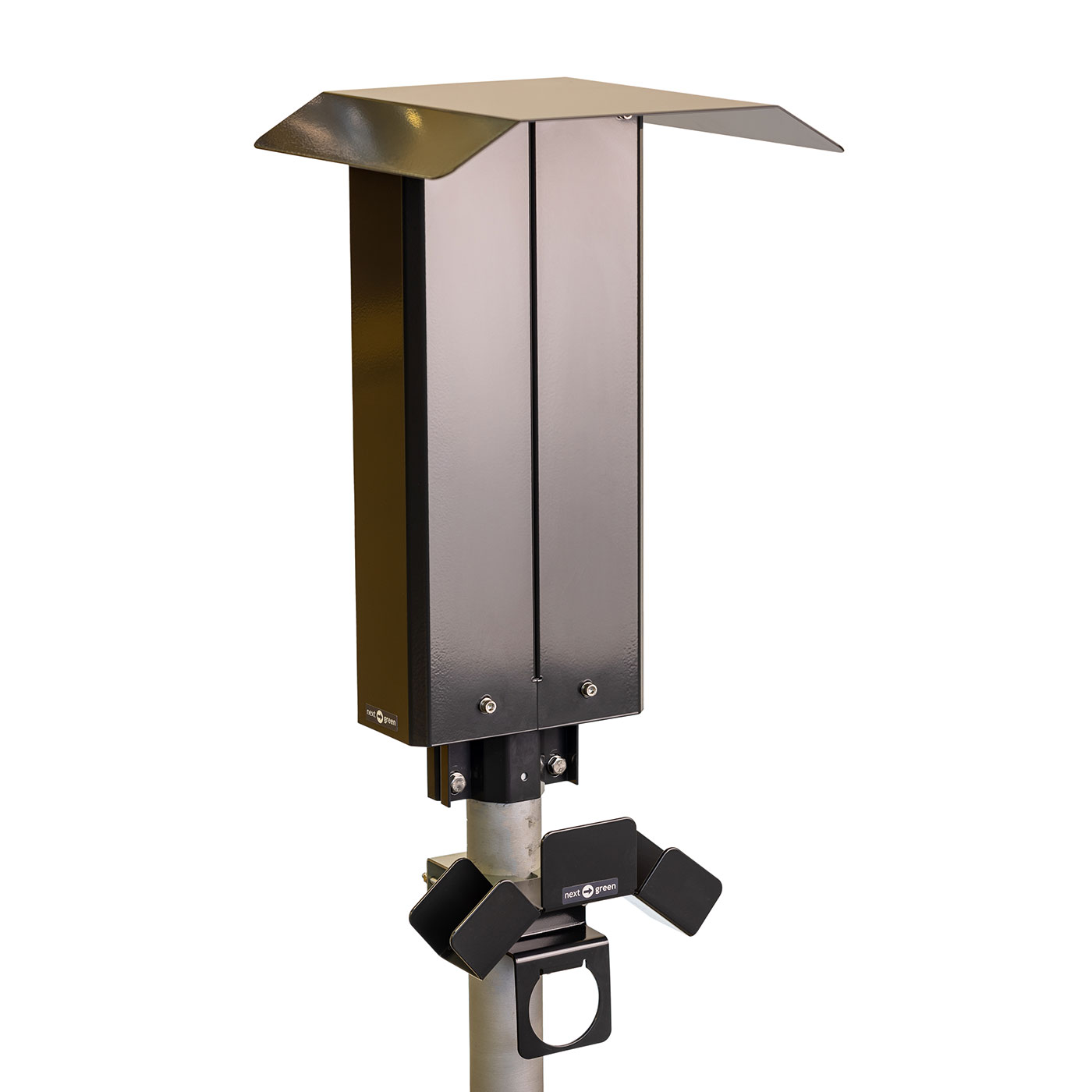

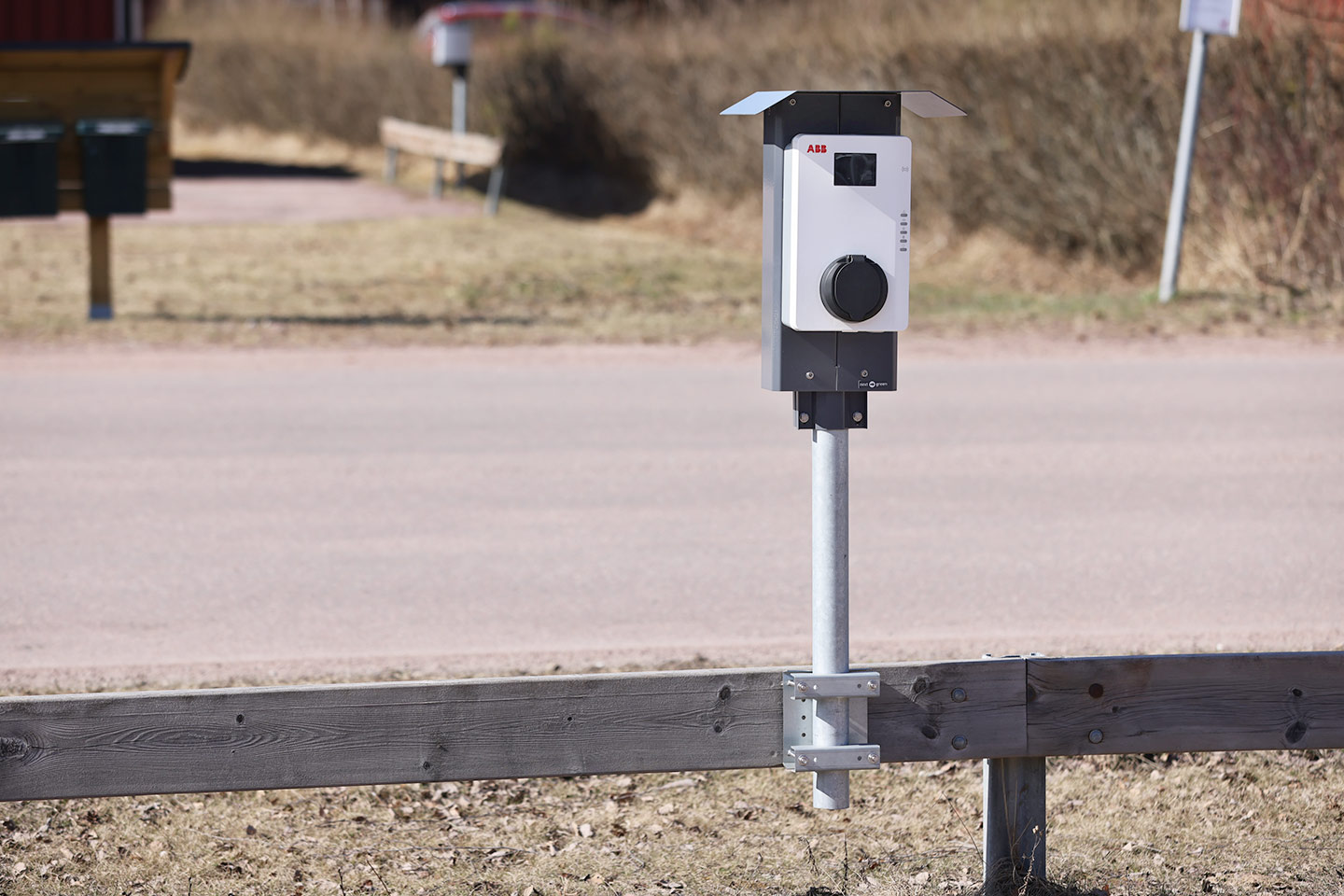

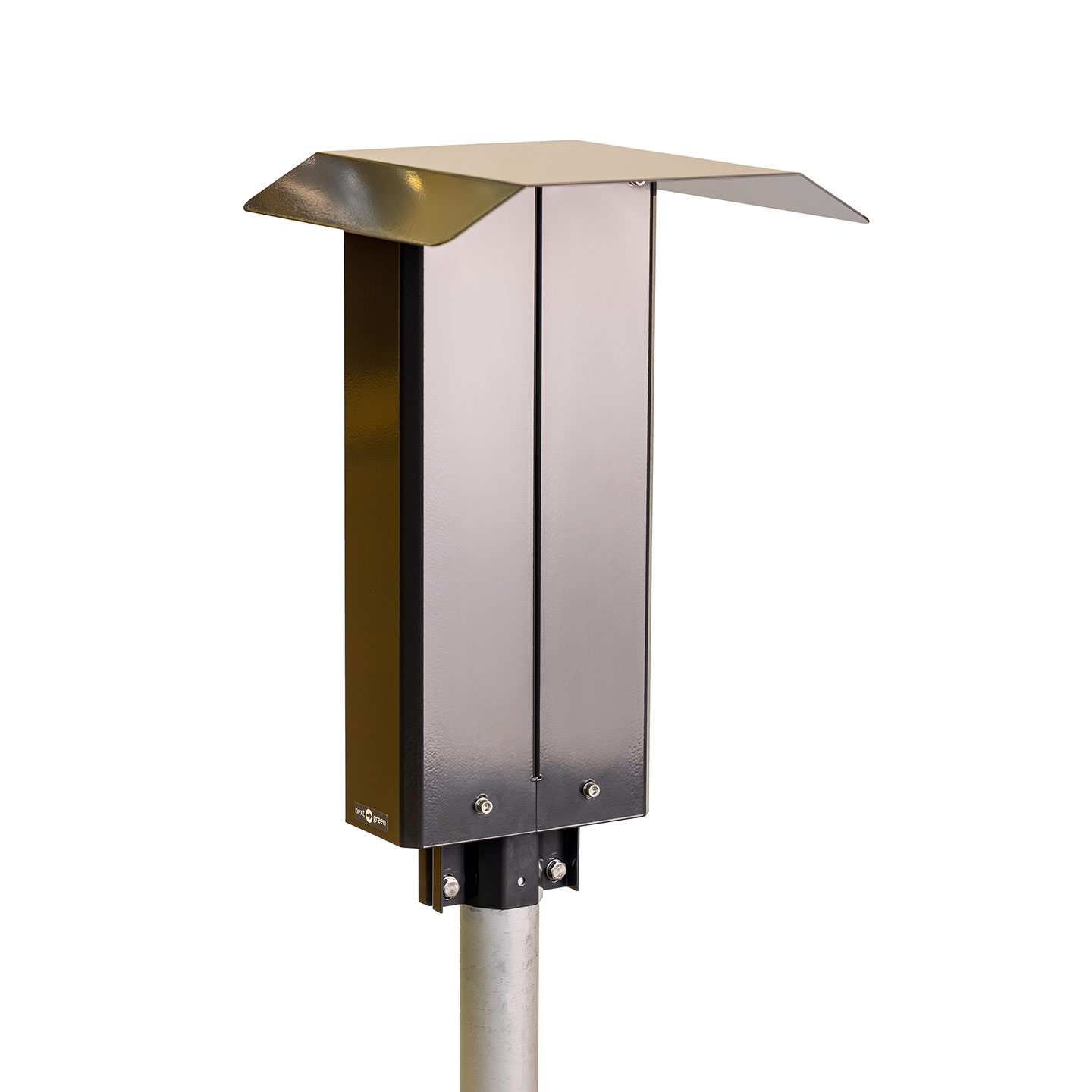

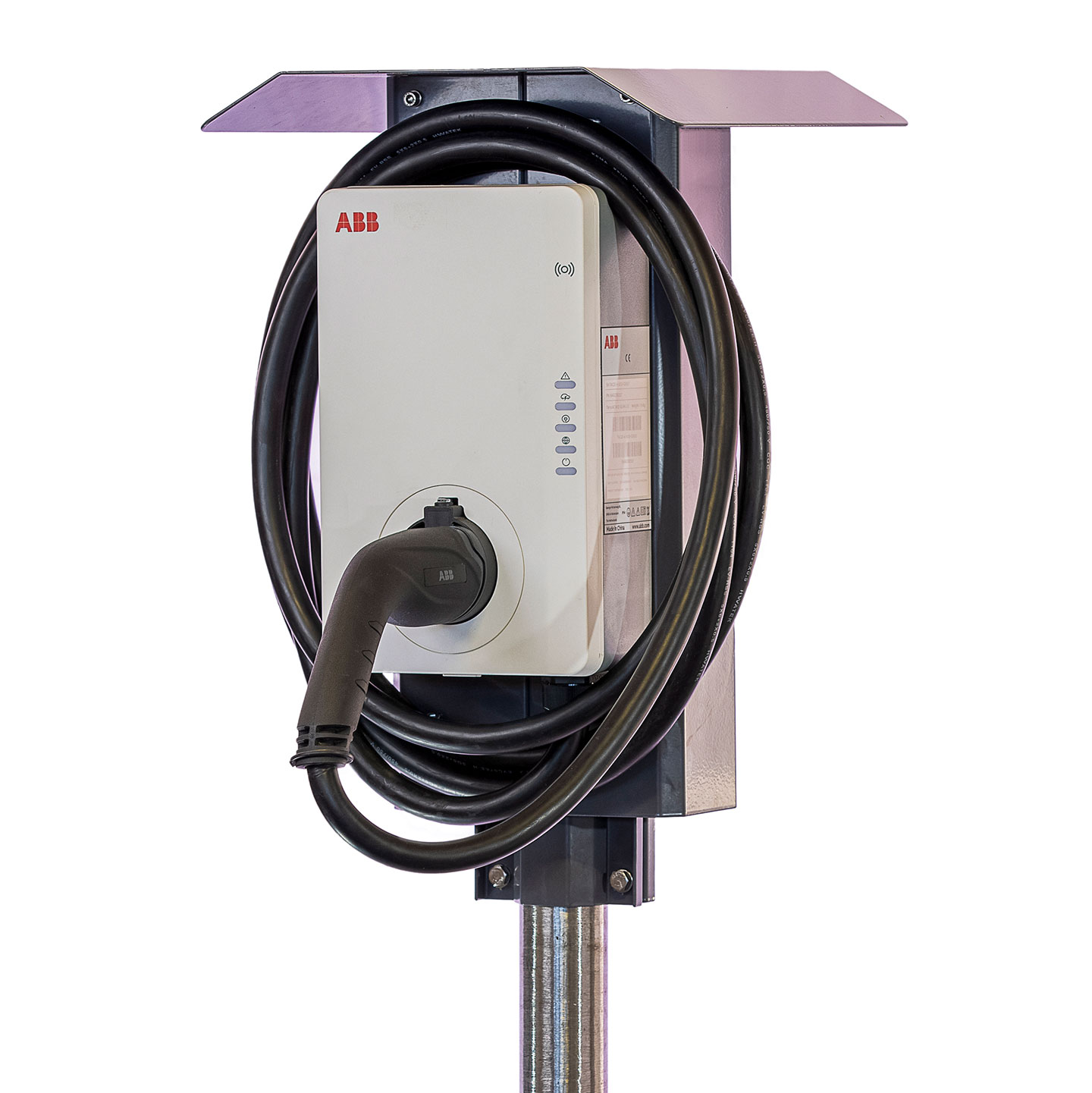

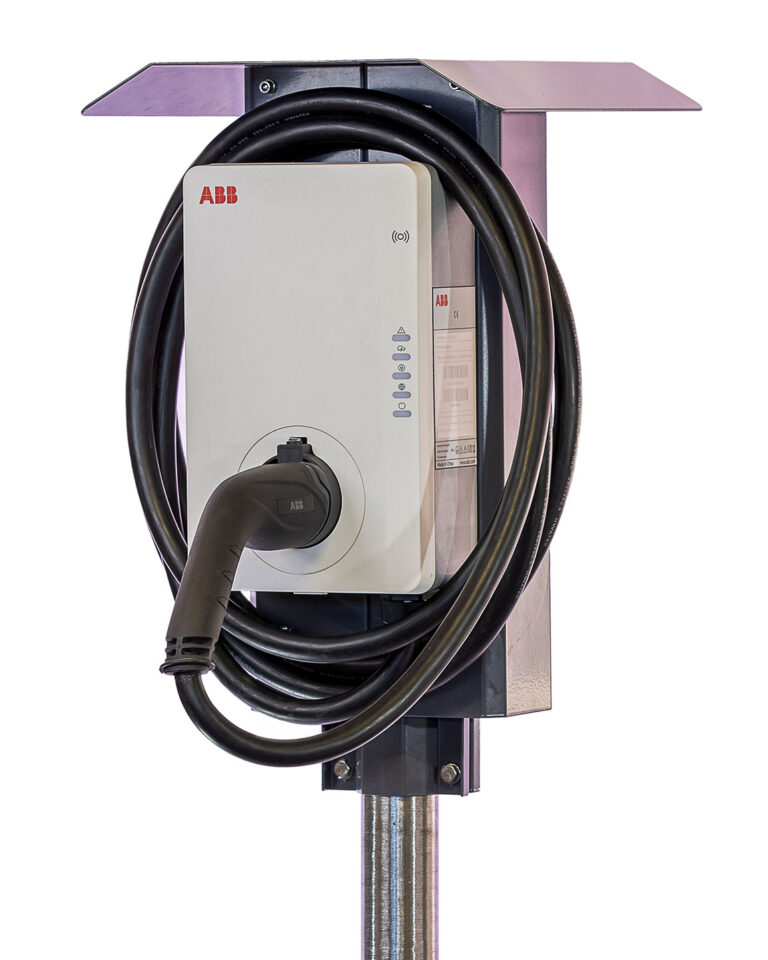

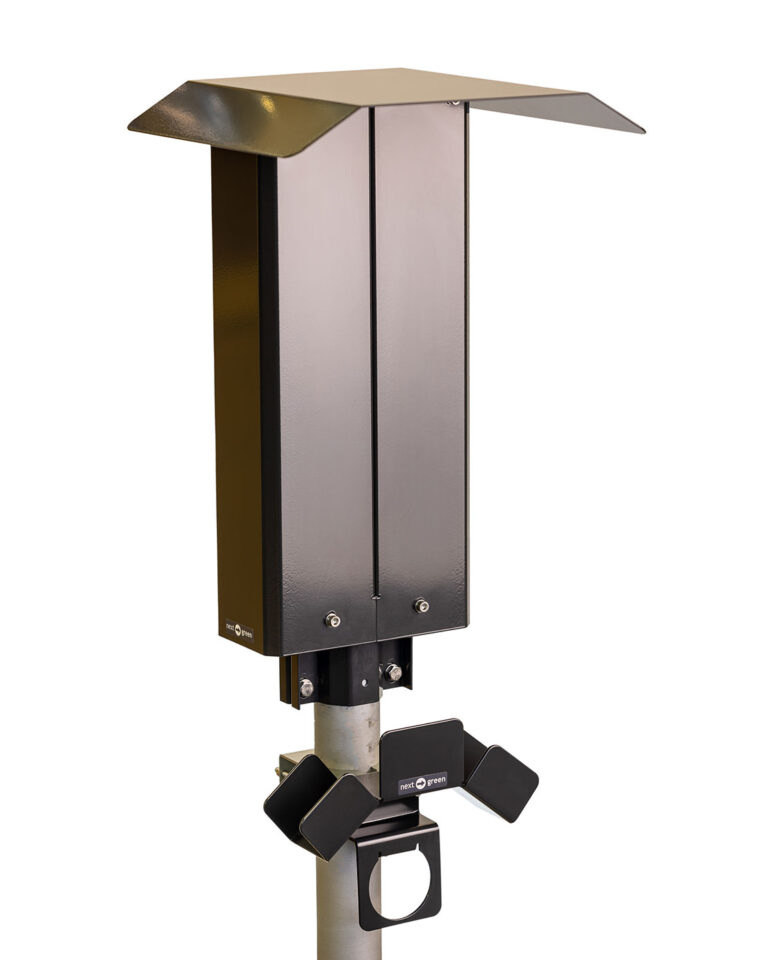

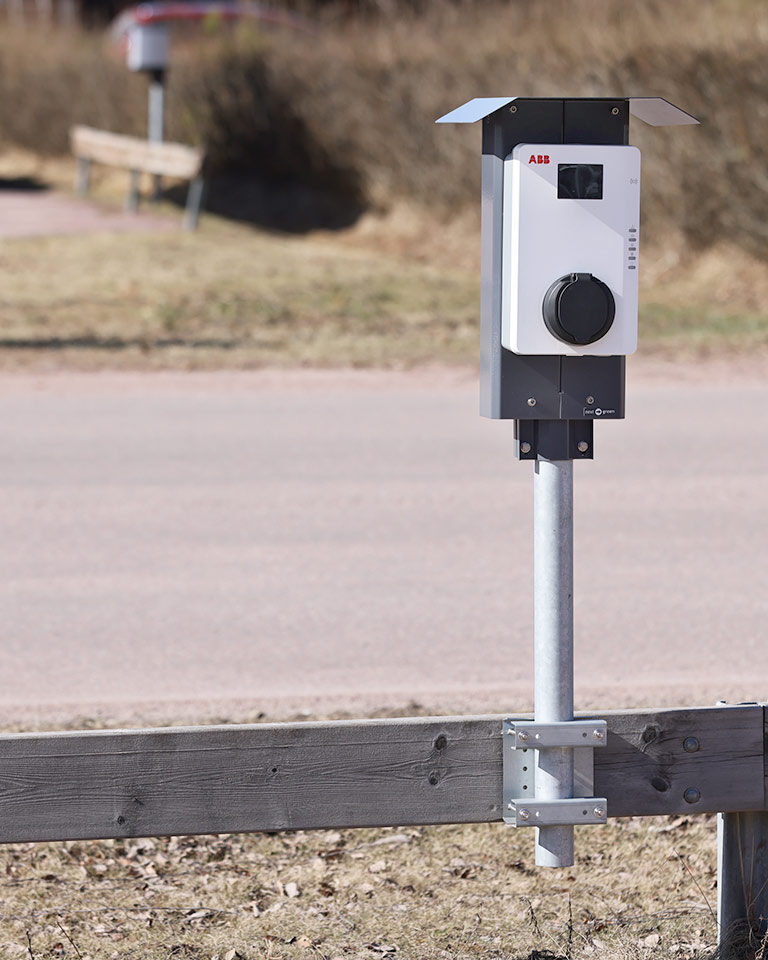

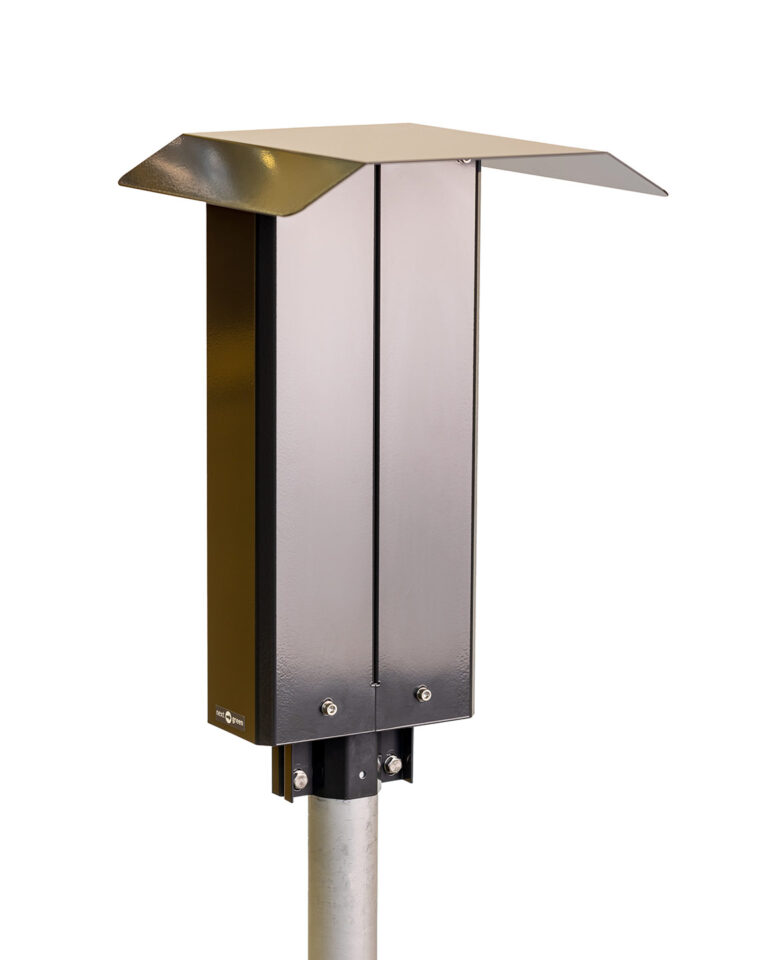

Polebox 190 S

E-Number: 24 803 57
S-No: 34 079 01
Product name: Charging box mount Polebox 190 S

Product sheet

Assembly instructions

Share

SELECTION OF COMPATIBLE CHARGING BOXES

  • ABB Terra AC
  • Charge Amps Halo
  • Easee Home
  • Easee Charge
  • Elinta Homebox Slim
  • Garo GLB
  • Wallbox Pulsar
  • Wallbox Copper SB
  • Zaptec GO
  • For mounting on Ø 60 mm steel tubes
  • Most of the installation can be prepared indoors
  • Robust steel construction
  • Distribution block (1.5mm2 – 25mm2)
  • Prepared for mounting an earth fault circuit breaker, 3G / 4G router
  • Powder coated, available in various colors. Contact Next Green for more information.

Material

Steel, High-strength steel

Color

Graphite grey

Dimensions

Weight 9 kg
Height 552 mm
Width 351 mm
Depth 295 mm
Mounting surface 190 mm

Packaging dimensions

Weight 9 kg
Height 575 mm
Width 310 mm
Depth 180 mm

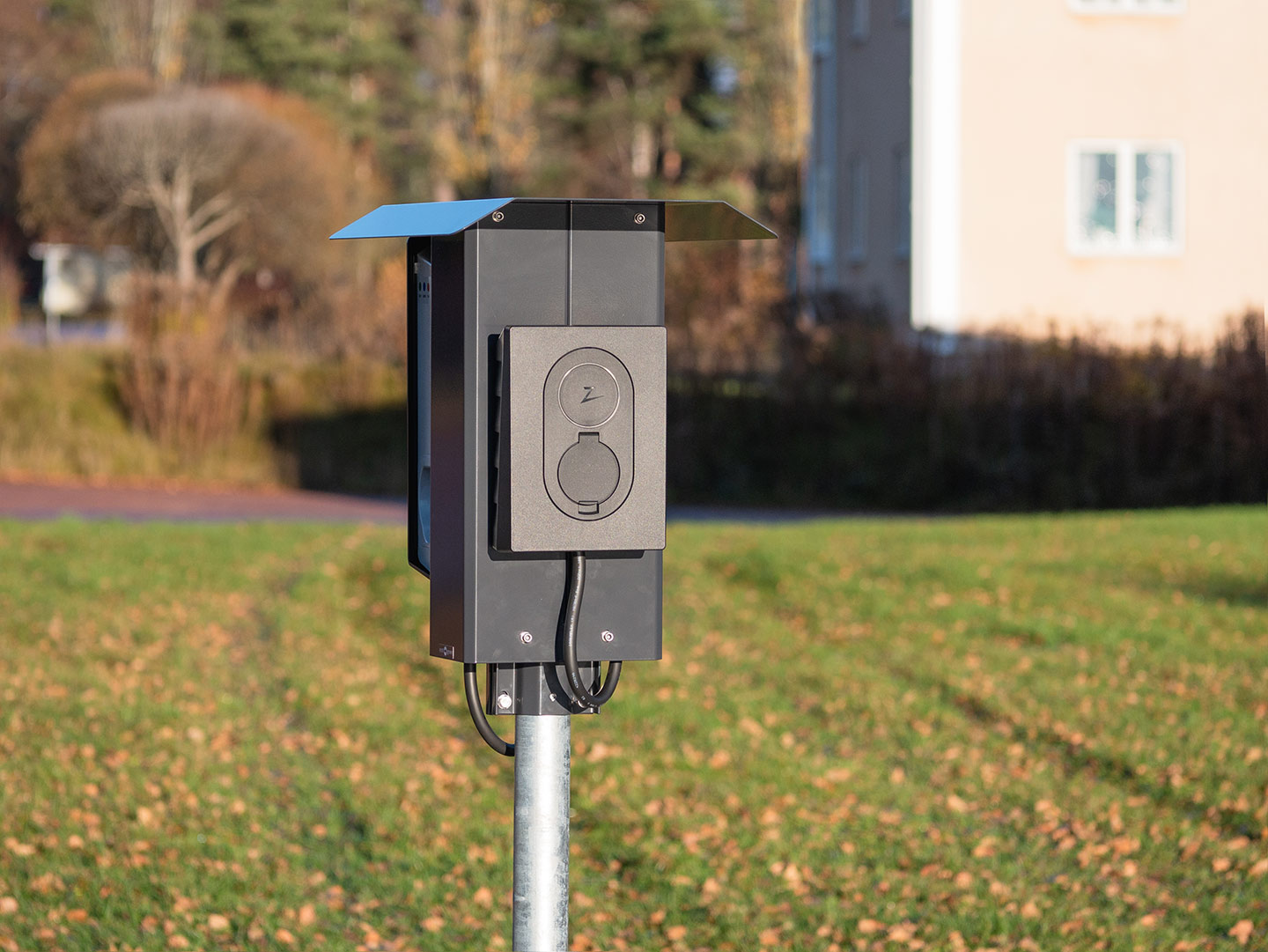

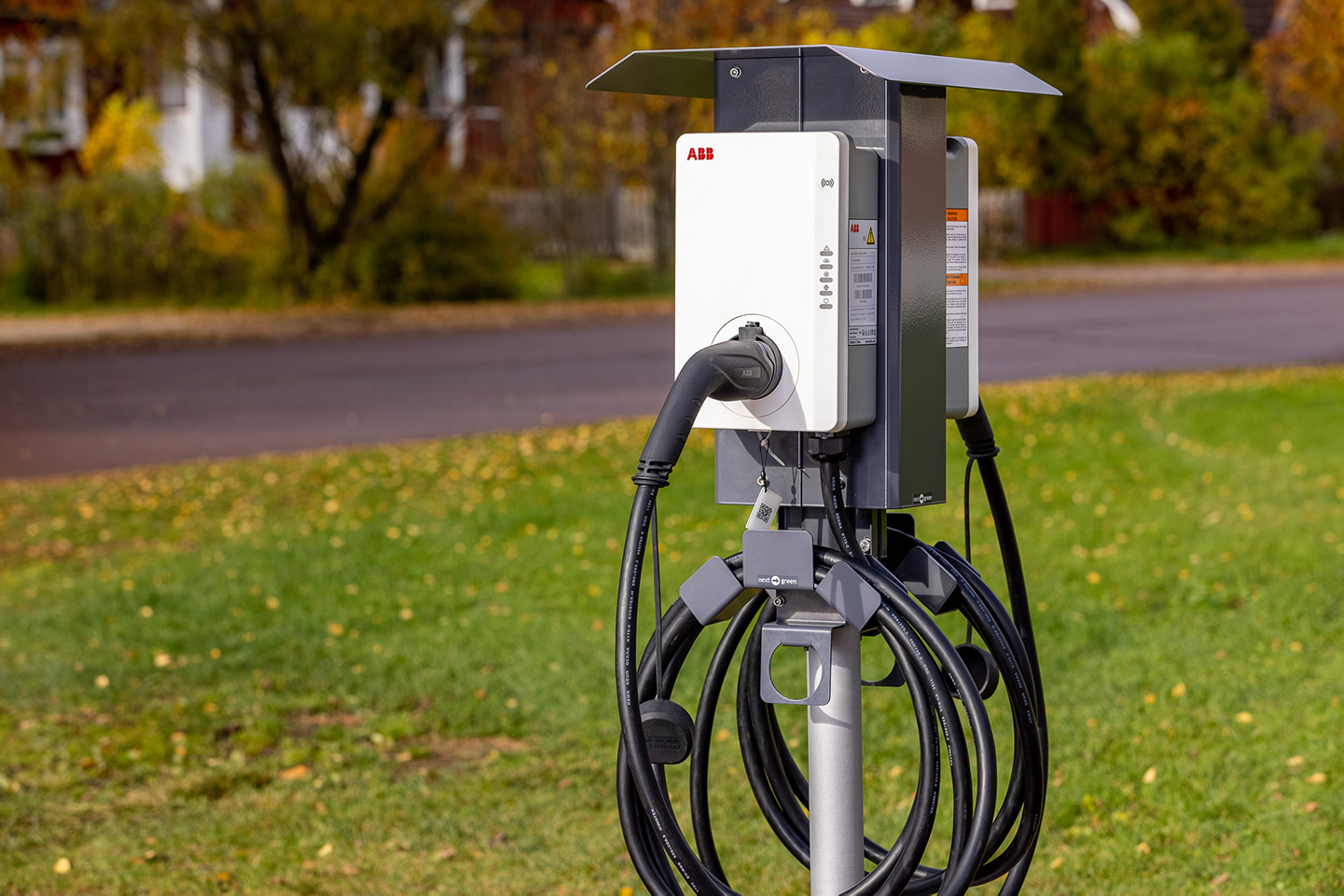

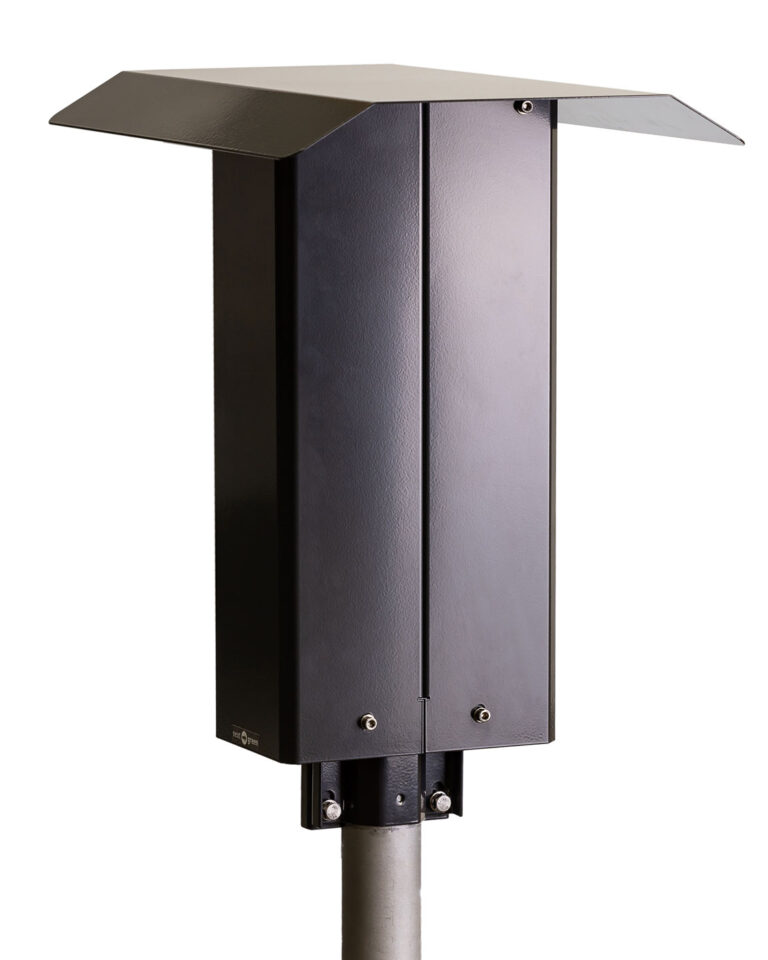

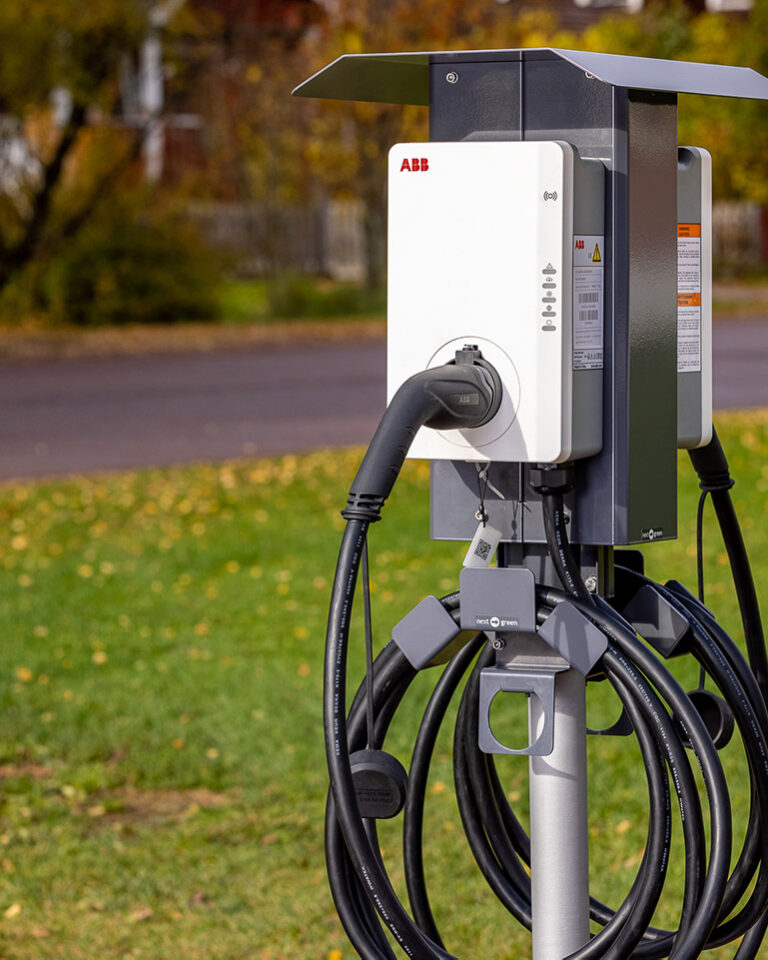

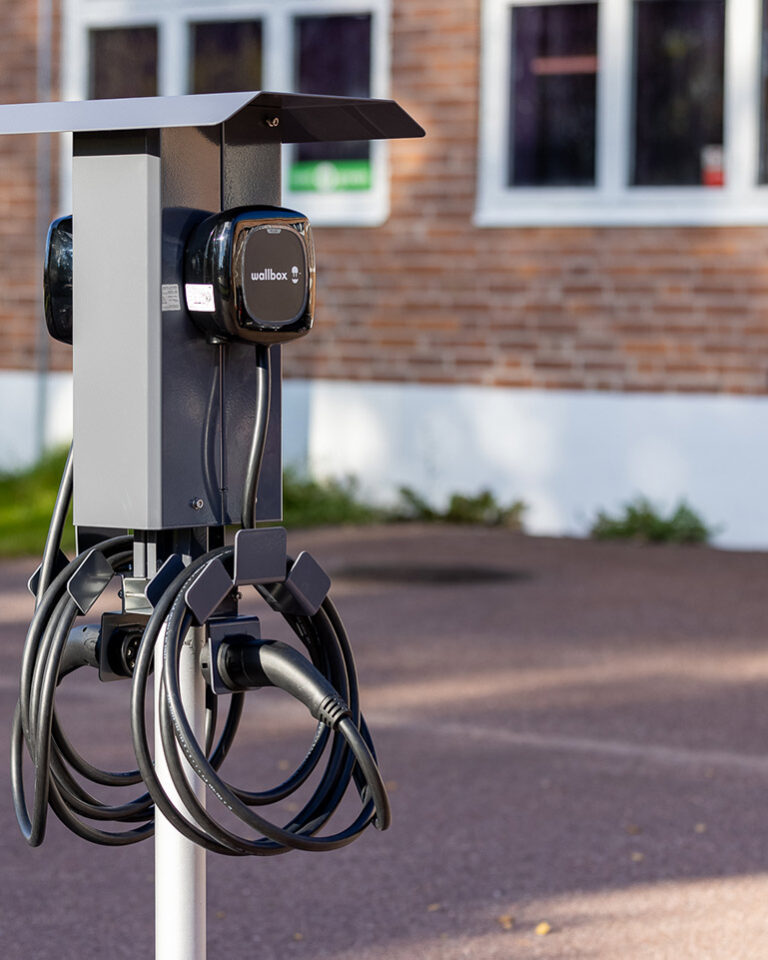

Polebox 205 D2

E-Number: 24 804 40
S-No: 34 079 03
Product name: Charging box mount 205 D2

Product sheet

Assembly instructions

Share

SELECTION OF COMPATIBLE CHARGING BOXES

  • ABB Terra AC
  • ALFEN Eve Single
  • Charge Amps Halo
  • Easee Home
  • Easee Charge
  • Elinta Homebox Slim
  • Garo GLB
  • Wallbox Pulsar
  • Wallbox Copper SB
  • Zaptec GO
  • For mounting two chargers back-to-back
  • For mounting on Ø 60 mm steel tubes
  • Most of the installation can be prepared indoors
  • Robust steel construction
  • Distribution block (1.5mm2 – 25mm2)
  • Prepared for mounting up to two earth fault circuit breakers, 3G / 4G router
  • Powder coated, available in various colors. Contact Next Green for more information.

Material

Steel, High-strength steel

Color

Graphite grey

Dimensions

Weight 11 kg
Height 552 mm
Width 362 mm
Depth 470 mm
Mounting surface 203 mm

Packaging dimensions

Weight 11 kg
Height 570 mm
Width 390 mm
Depth 205 mm

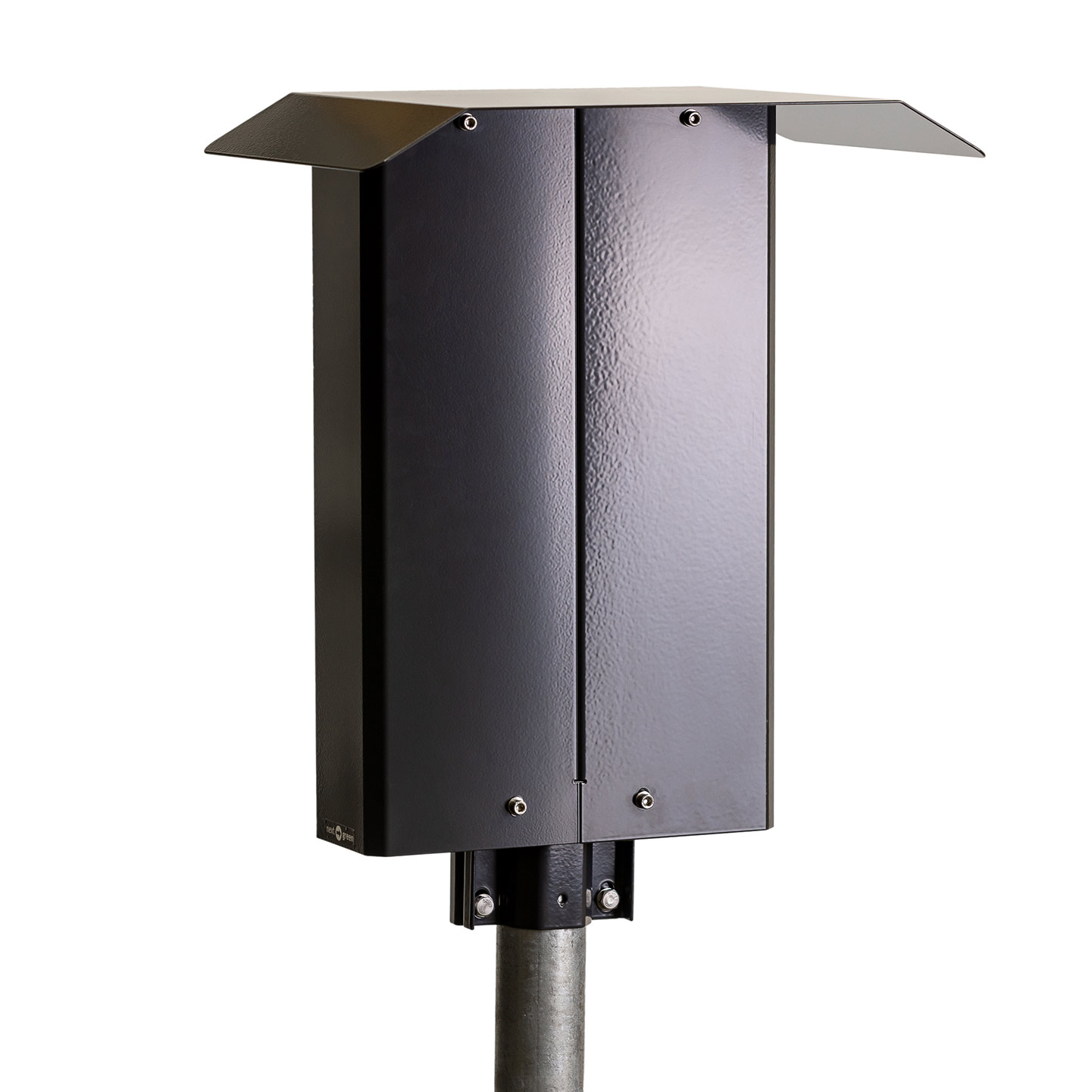

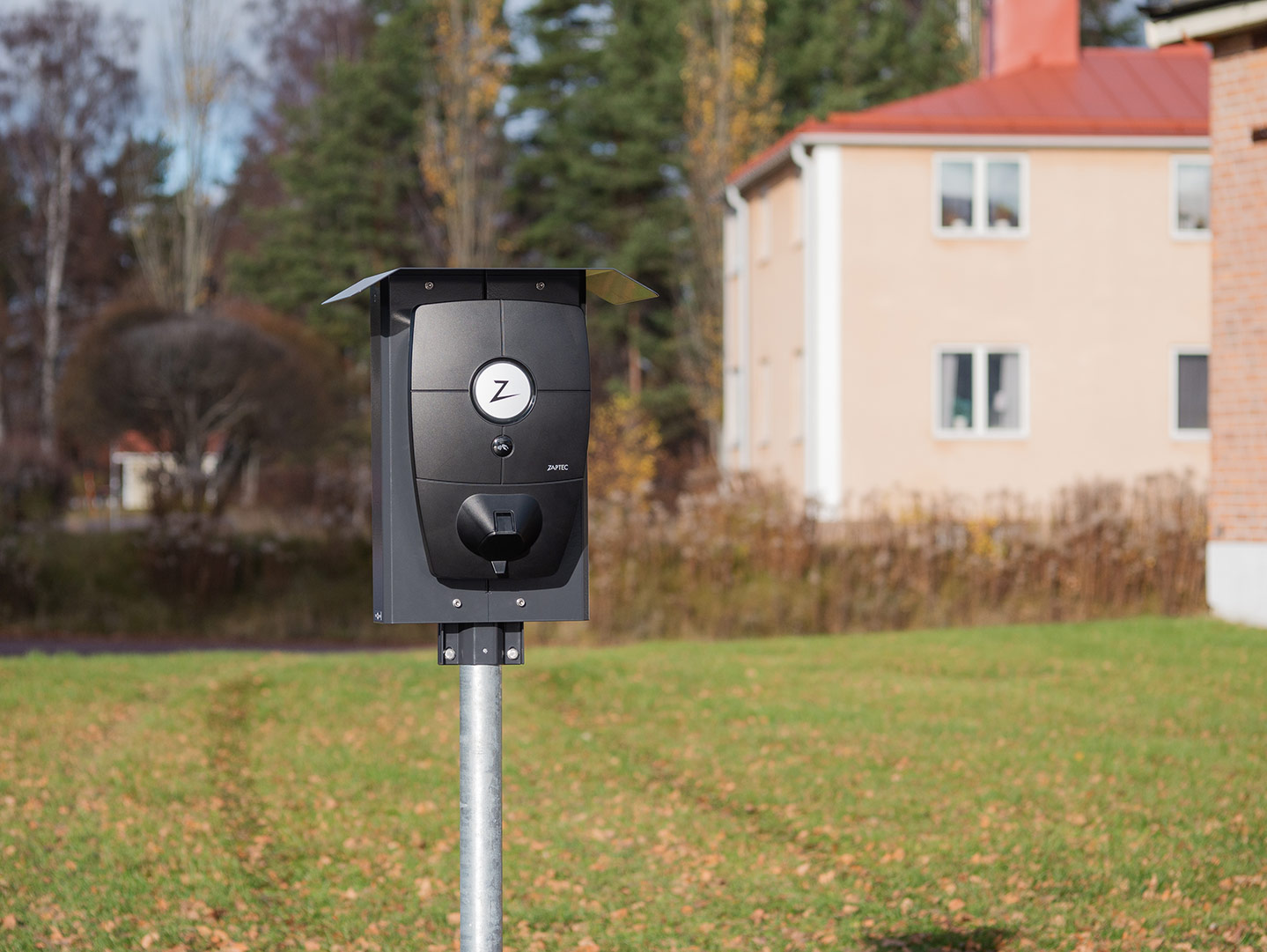

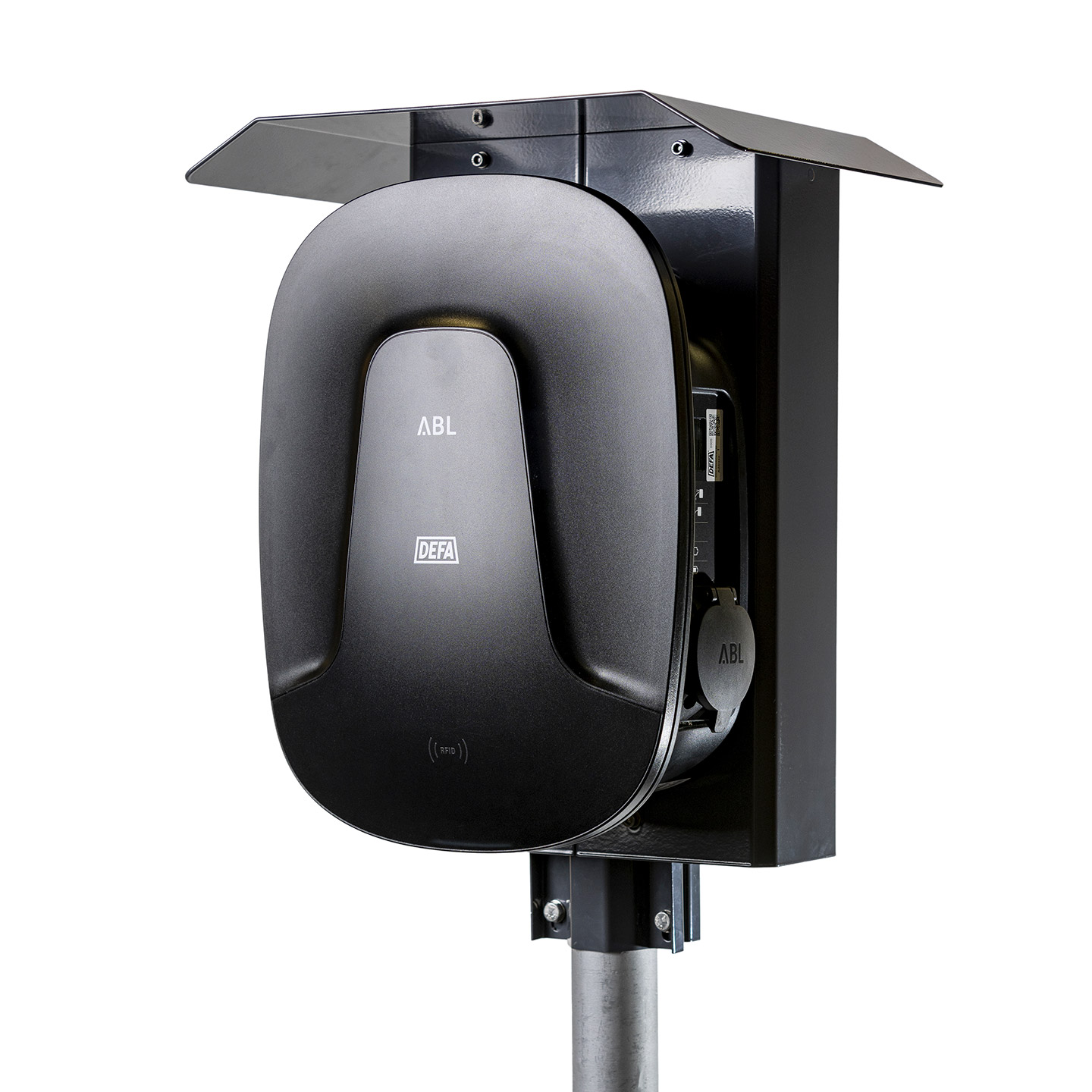

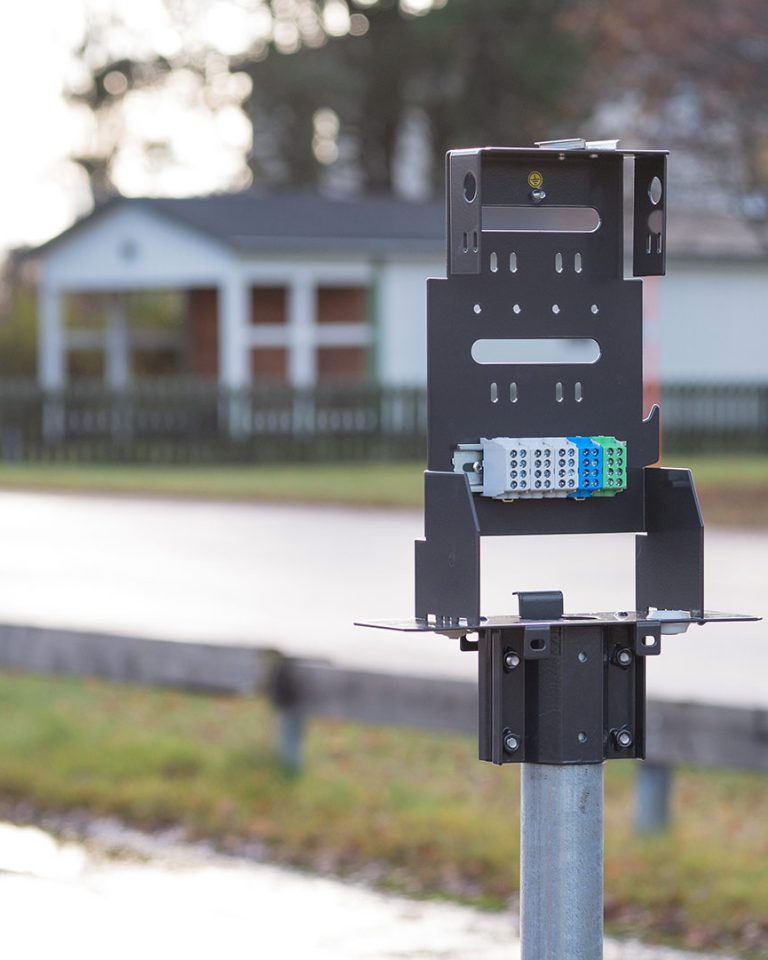

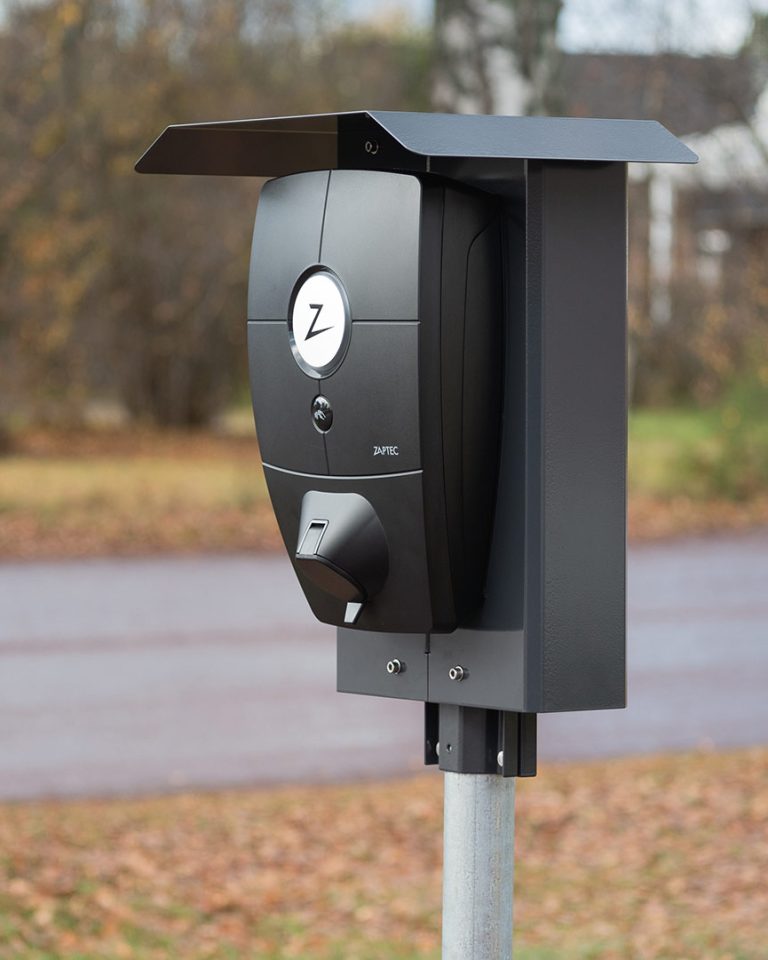

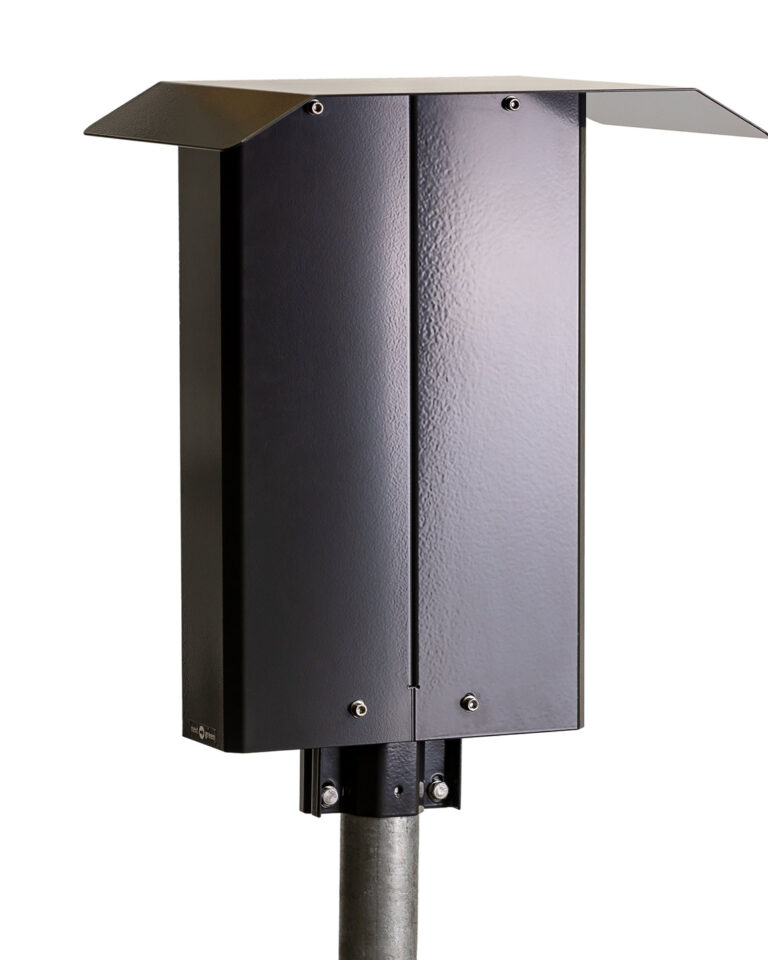

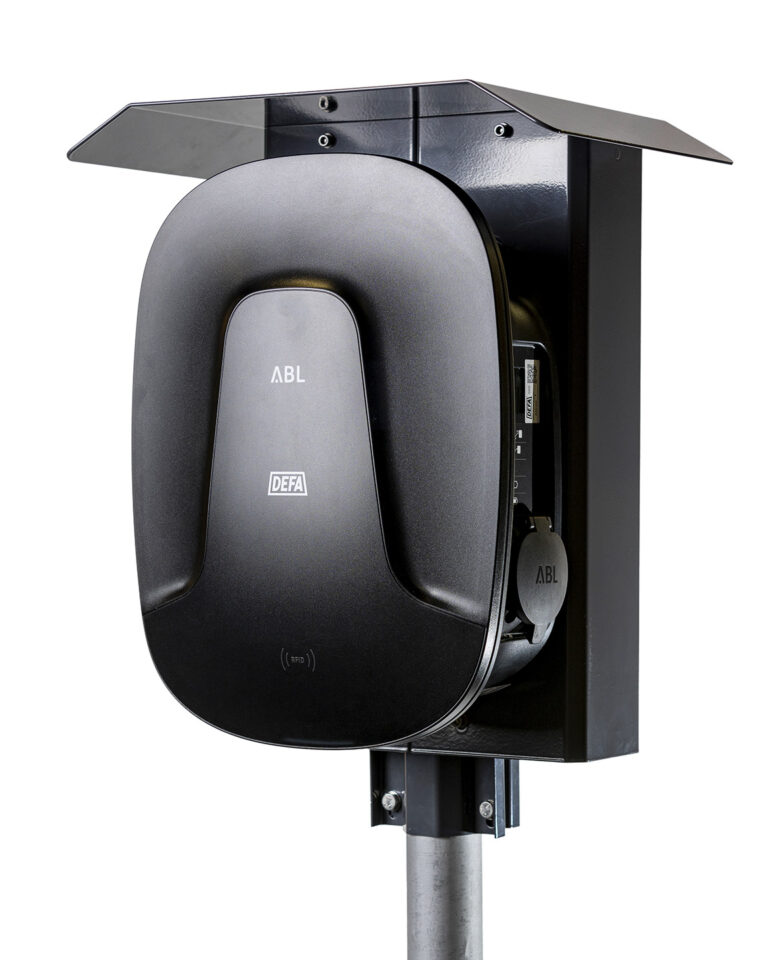

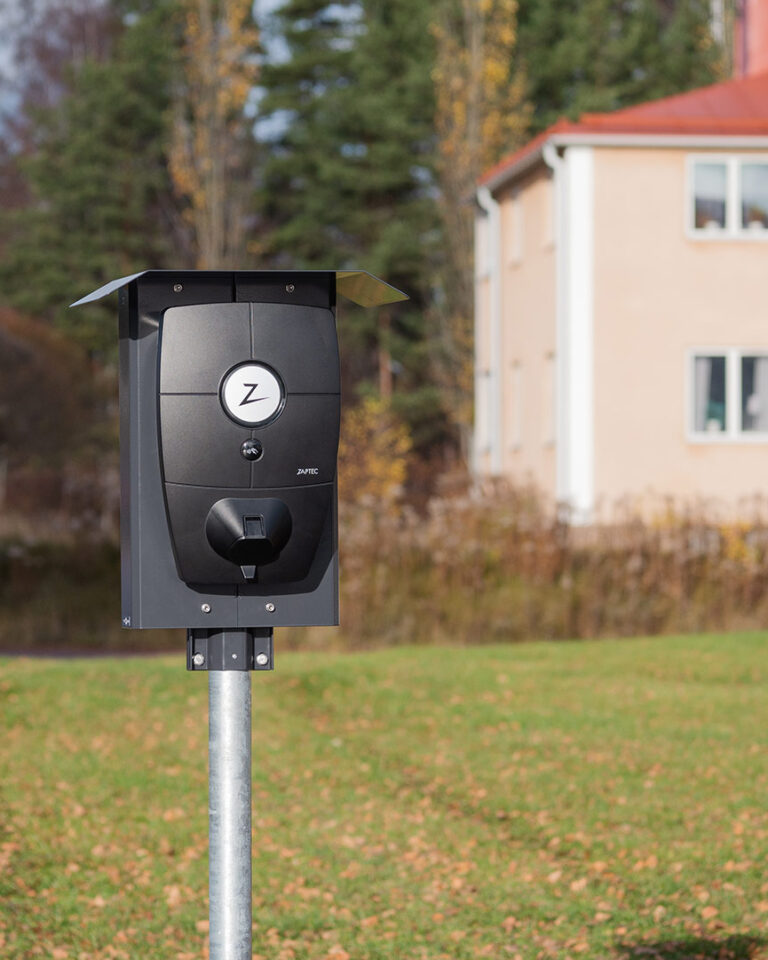

Polebox 270 S

E-Number: 24 803 65
S-No: 34 079 07
Product name: Charging box mount Polebox 270 S

Product sheet

Assembly instructions

Share

SELECTION OF COMPATIBLE CHARGING BOXES

  • Elinta Homebox
  • Elinta Homebox Slim
  • DEFA eRange IQ
  • Norwesco Refuel

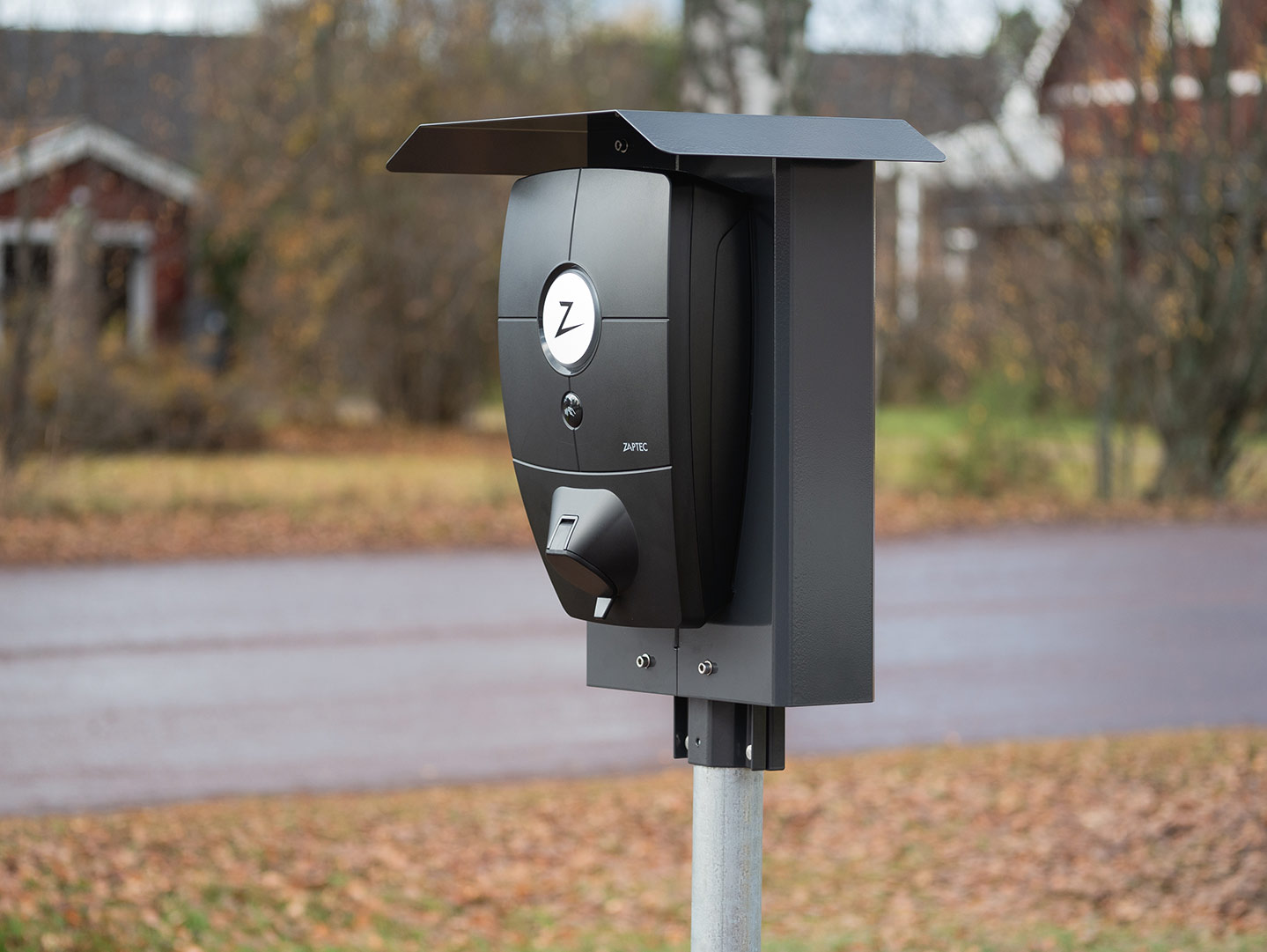

  • Zaptec PRO
  • For mounting on Ø 60 mm steel tubes
  • Most of the installation can be prepared indoors
  • Robust steel construction
  • Distribution block (1.5mm2 – 25mm2)
  • Prepared for mounting an earth fault circuit breaker, 3G / 4G router
  • Powder coated, available in various colors. Contact Next Green for more information.

Material

Steel, High-strength steel

Color

Graphite grey

Dimensions

Weight 10 kg
Height 552 mm
Width 432 mm
Depth 295 mm
Mounting surface 270 mm

Packaging dimensions

Weight 10 kg
Height 570 mm
Width 390 mm
Depth 205 mm

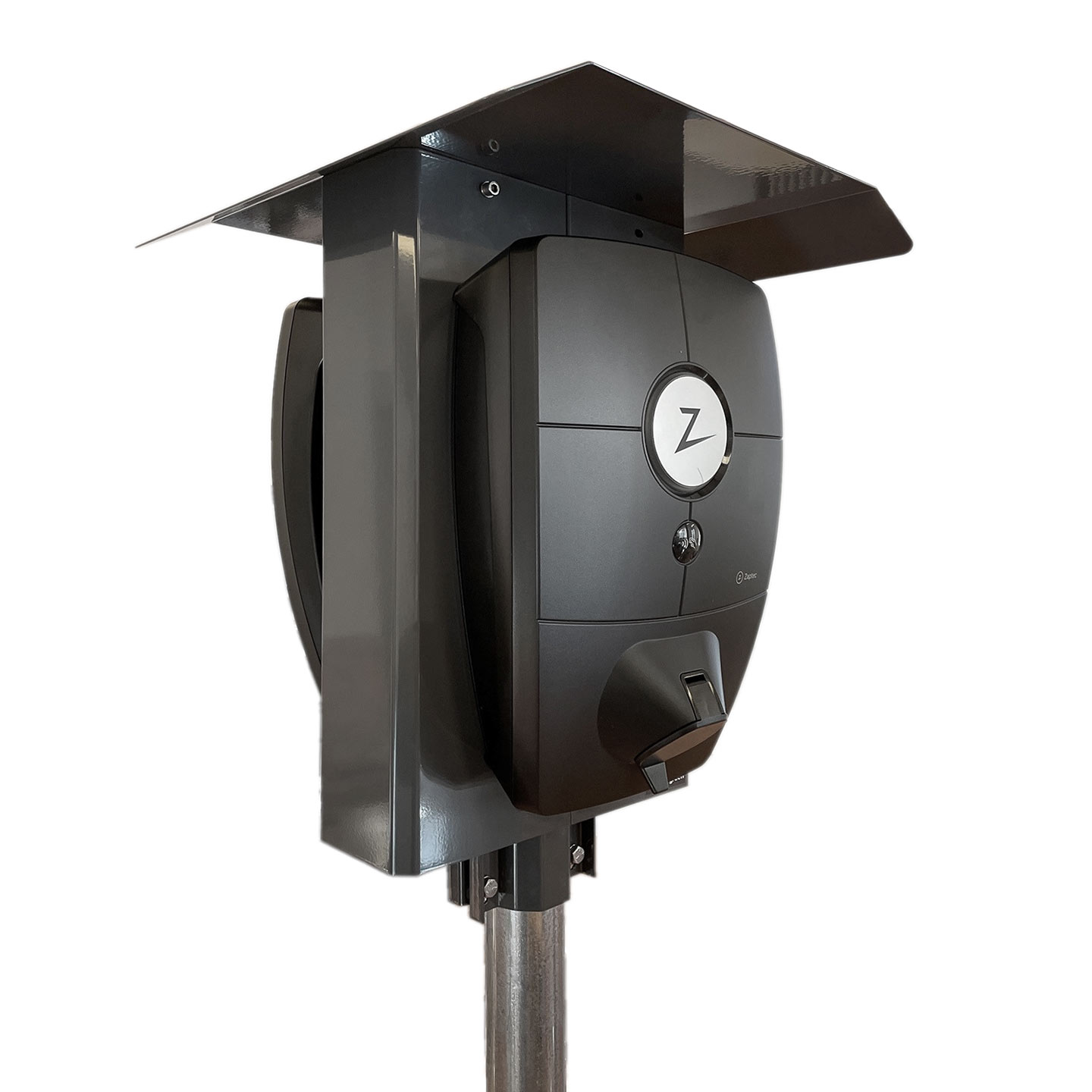

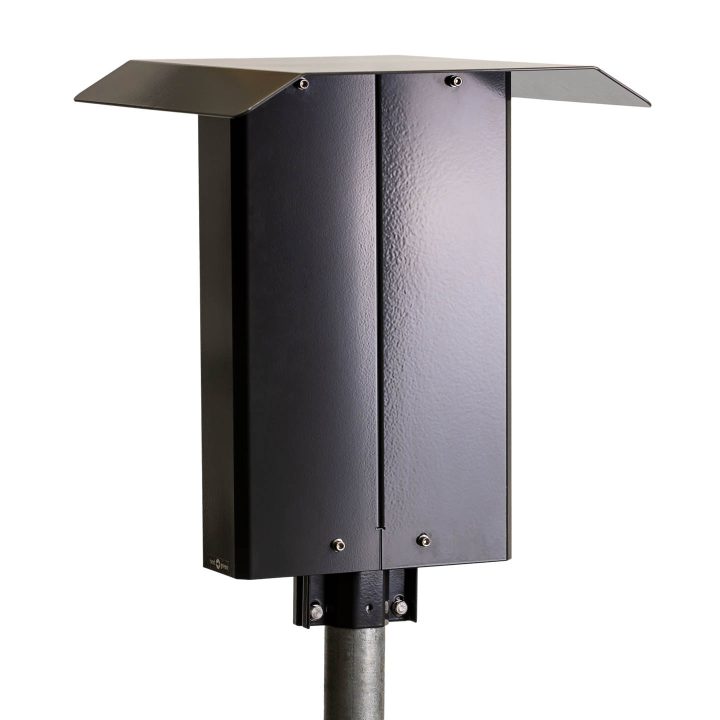

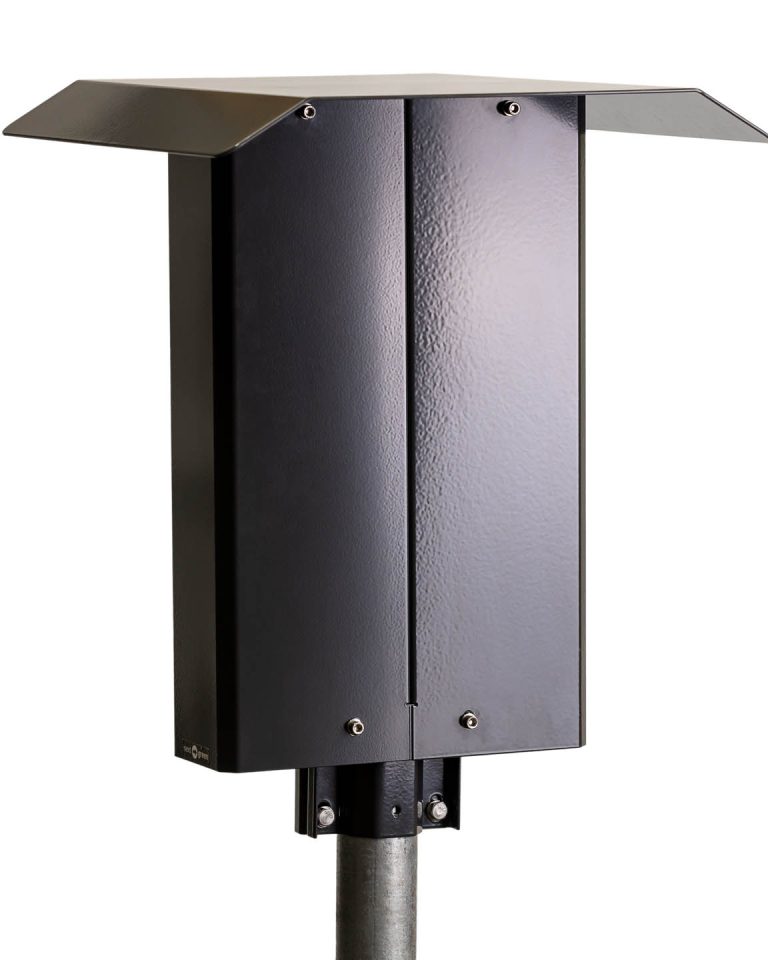

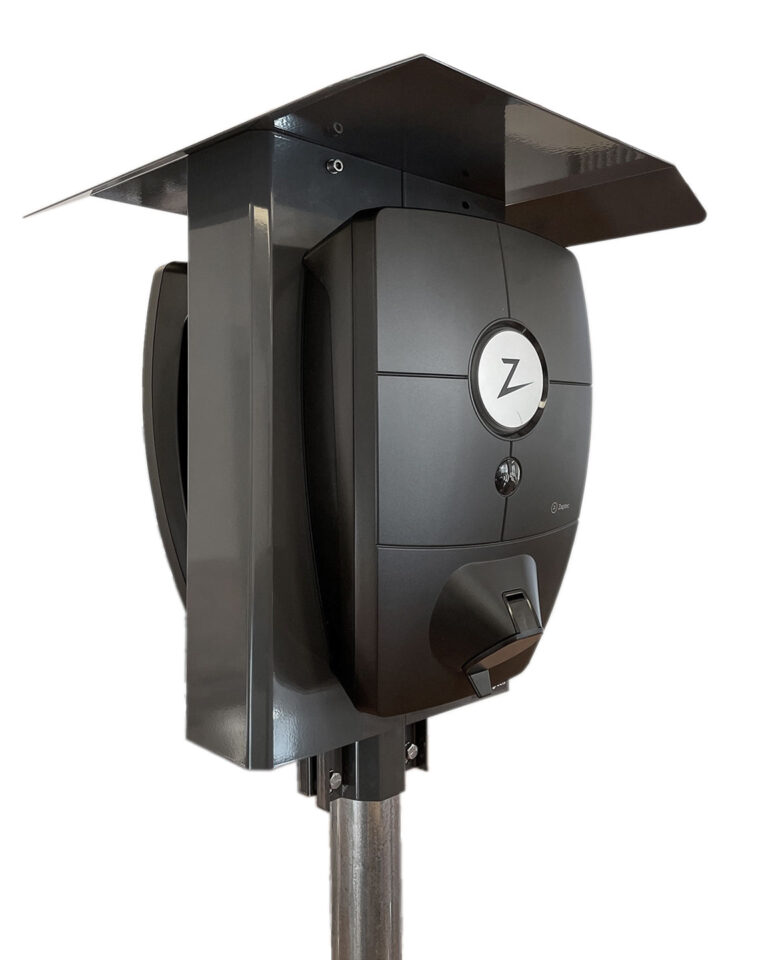

Polebox 270 D

E-Number: 27 000 70
S-No: 34 079 08
Product name: Charging box mount Polebox 270 D

Product sheet

Assembly instructions

Share

SELECTION OF COMPATIBLE CHARGING BOXES

  • Elinta Homebox
  • Elinta Homebox Slim
  • DEFA eRange IQ
  • Norwesco Refuel
  • Zaptec PRO
  • For mounting on Ø 60 mm steel tubes
  • Most of the installation can be prepared indoors
  • Robust steel construction
  • Distribution block (1.5mm2 – 25mm2)
  • Prepared for mounting an earth fault circuit breaker, 3G / 4G router
  • Powder coated, available in various colors. Contact Next Green for more information.

Material

Steel, High-strength steel

Color

Graphite grey

Dimensions

Weight 10 kg
Height 552 mm
Width 432 mm
Depth 437 mm
Mounting surface 270 mm

Packaging dimensions

Weight 10 kg
Height 595 mm
Width 410 mm
Depth 210 mm

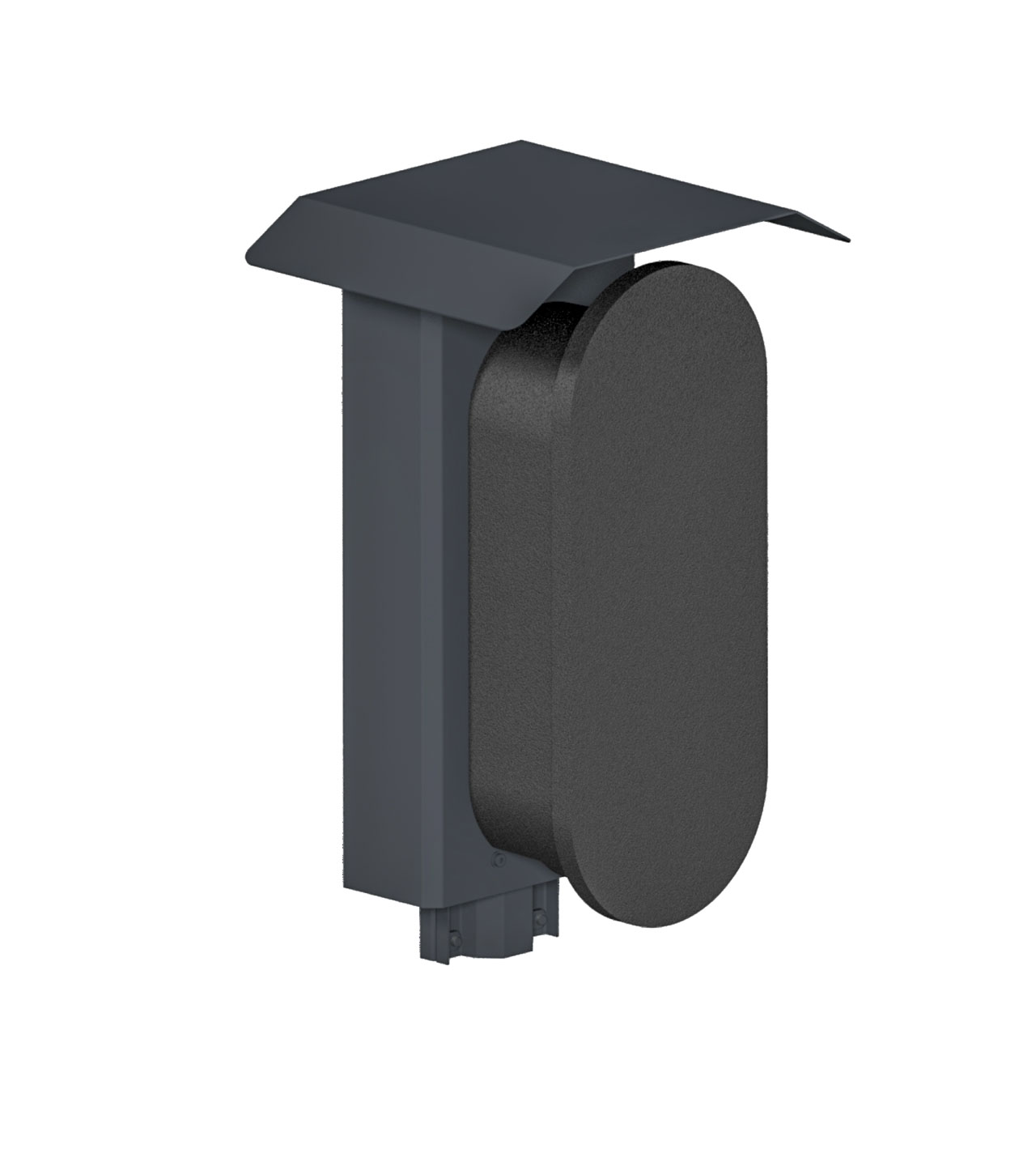

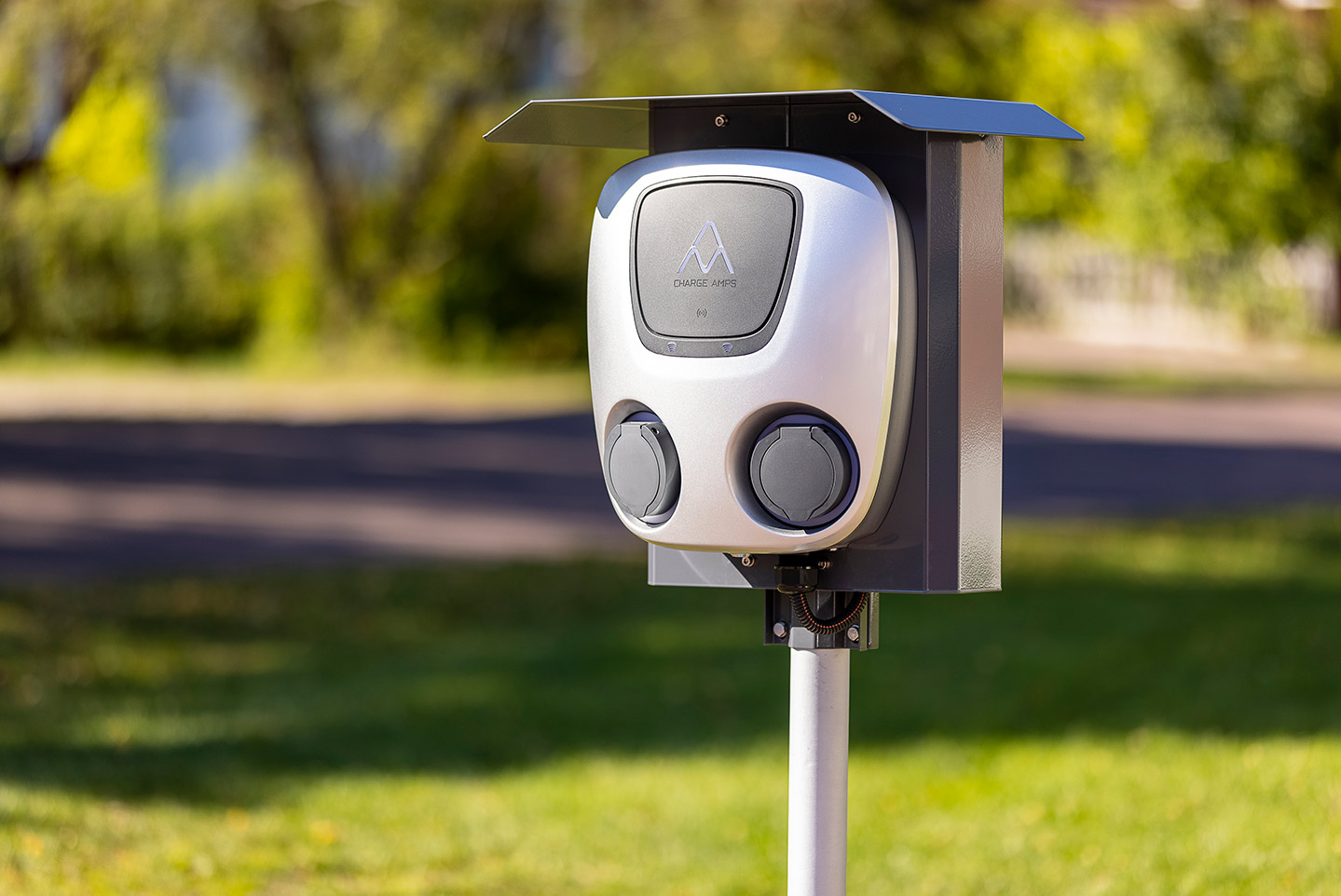

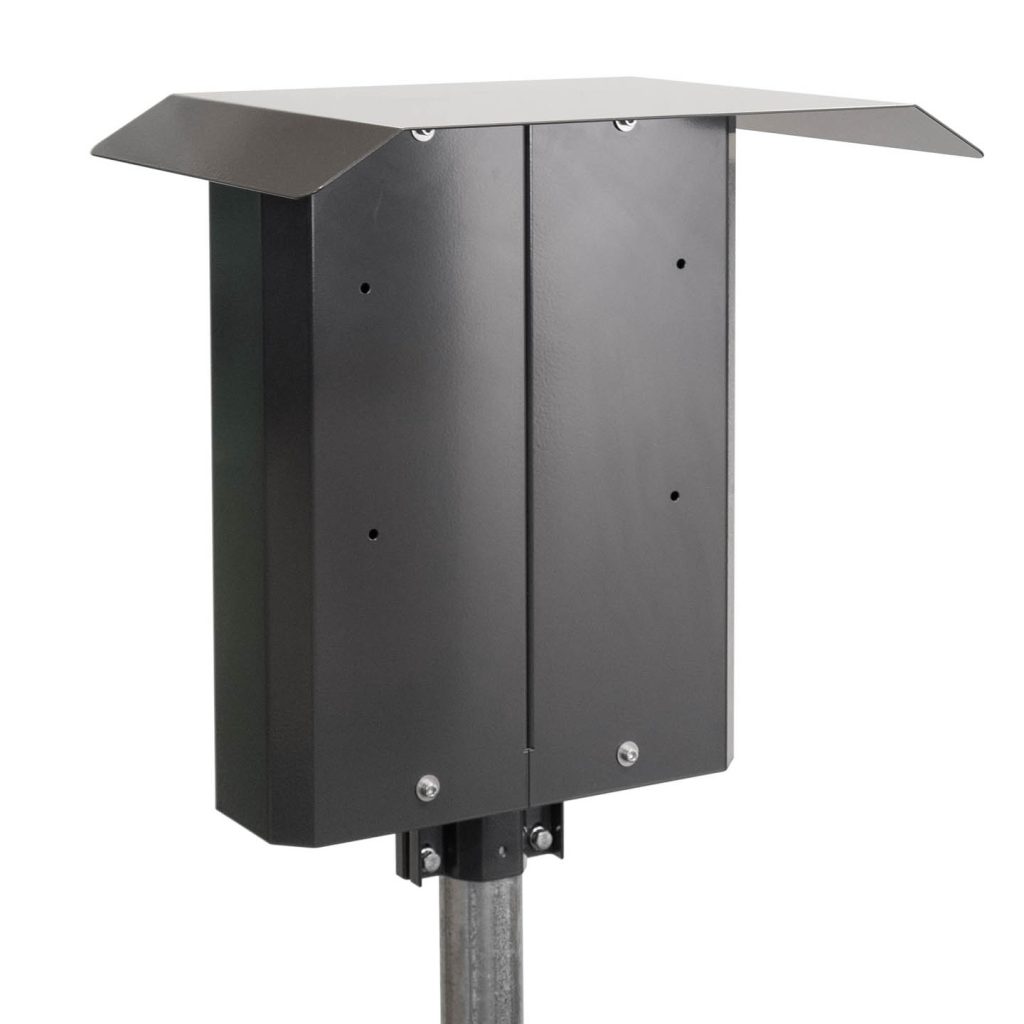

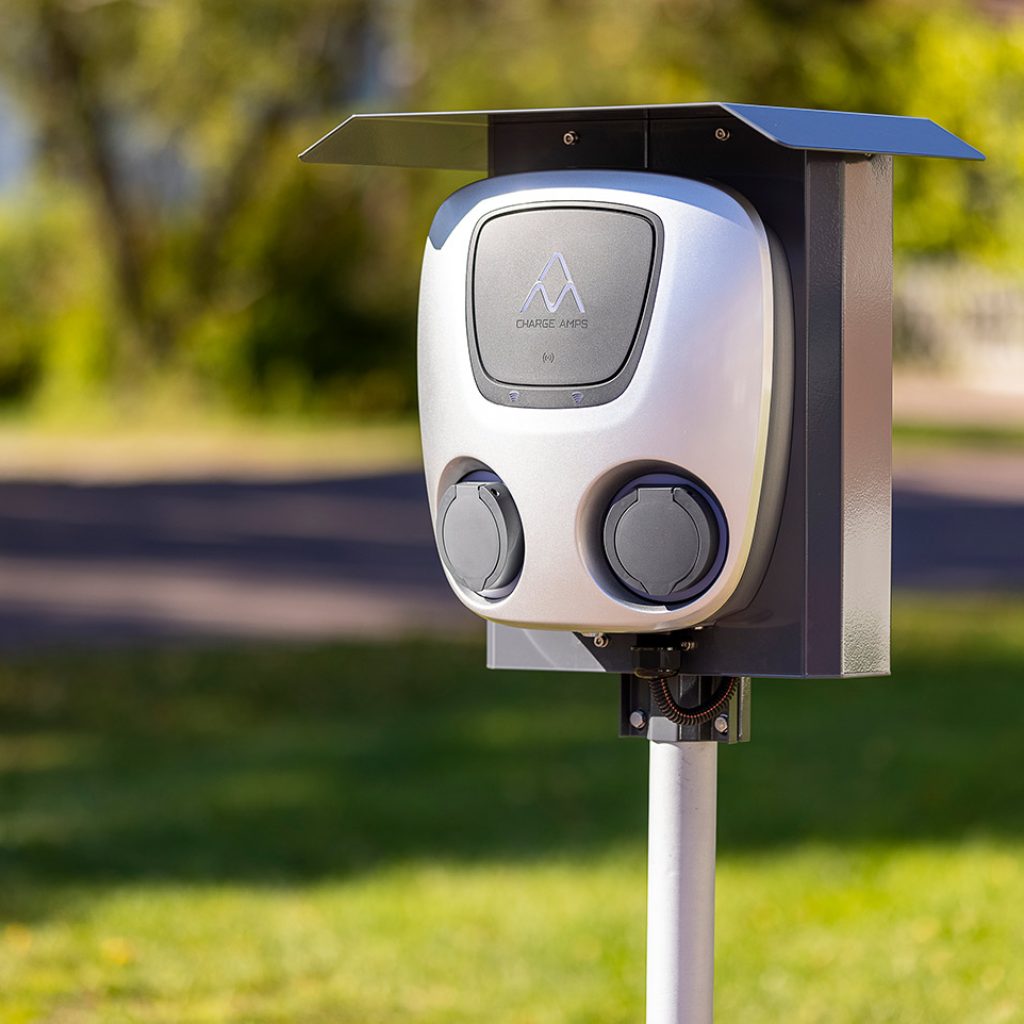

Polebox 330 S

E-Number: 24 803 66
Product name: Charging box holder Polebox 330 S

Product sheet

Assembly instructions

Share

SELECTION OF COMPATIBLE CHARGING BOXES

  • Charge Amps Aura
  • Precut hole pattern for Charge Amps Aura
  • For mounting on Ø 60 mm steel tubes
  • Most of the installation can be prepared indoors
  • Robust steel construction
  • Distribution block (1.5mm2 – 25mm2)
  • Prepared for mounting an earth fault circuit breaker, 3G / 4G router
  • Powder coated, available in various colors. Contact Next Green for more information

Material

Steel, High-strength steel

Color

Graphite grey

Dimensions

Weight 12 kg
Height 552 mm
Width 515 mm
Depth 342 mm
Mounting surface 330 mm

Packaging dimensions

Weight 12 kg
Height 570 mm
Width390 mm
Depth 205 mm

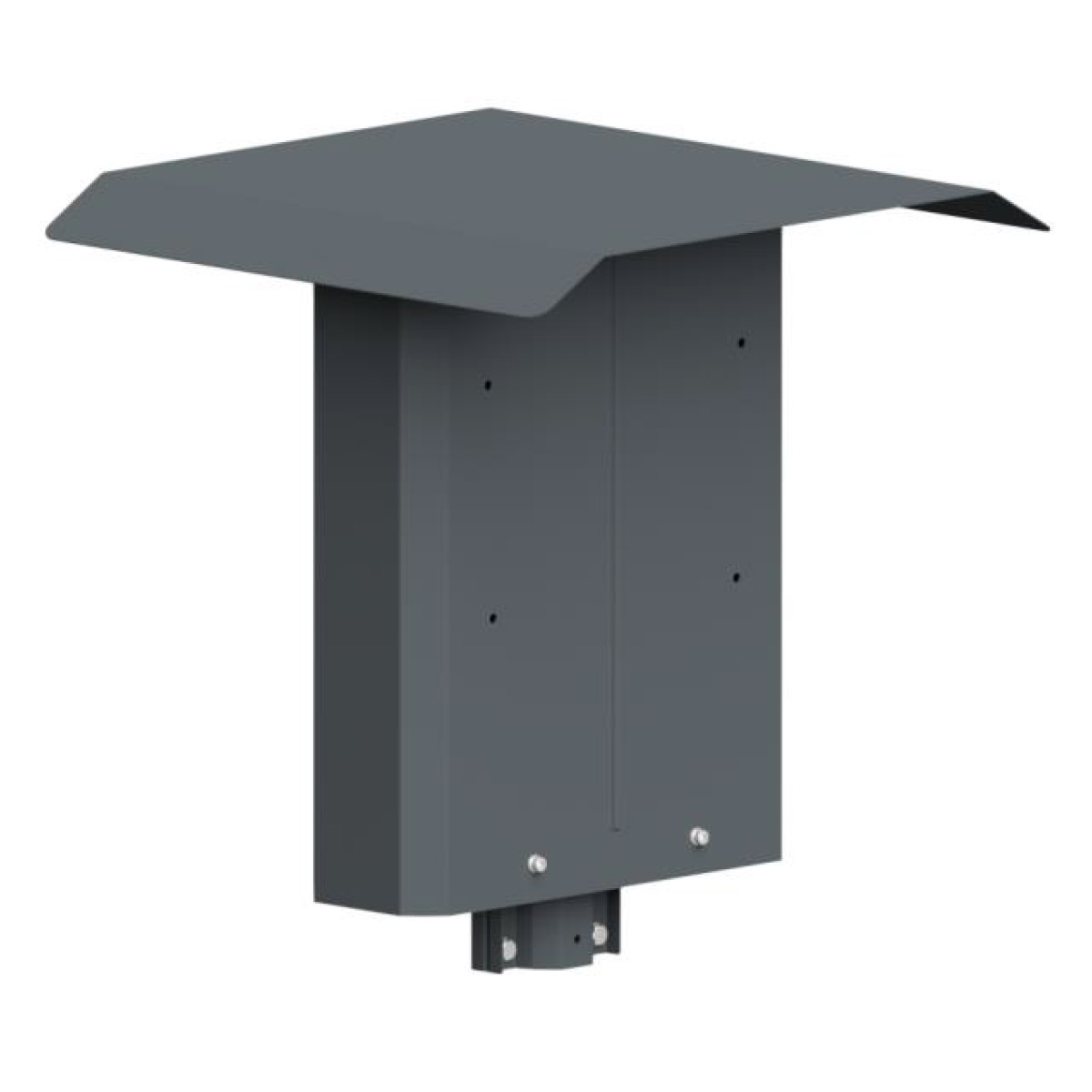

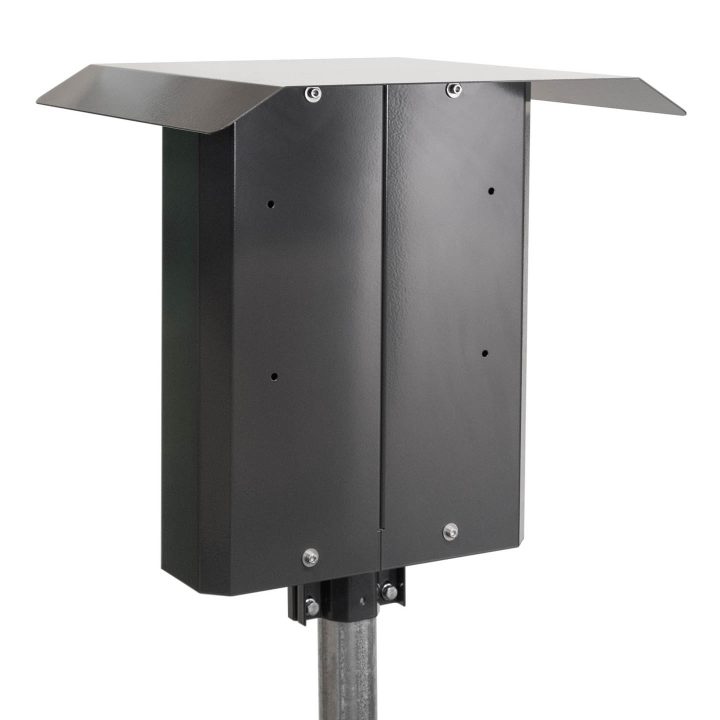

Polebox 330 D

E-Number: 27 002 50
Product name: Charging box holder Polebox 330 D

Product sheet

Assembly instructions

Share

SELECTION OF COMPATIBLE CHARGING BOXES

  • Charge Amps Aura
  • Precut hole pattern for Charge Amps Aura
  • Designed to suit two EV-chargers back-to-back
  • For mounting on Ø 60 mm steel tubes
  • Most of the installation can be prepared indoors
  • Robust steel construction
  • Distribution block (1.5mm2 – 25mm2)
  • Prepared for mounting an earth fault circuit breaker, 3G / 4G router
  • Powder coated, available in various colors. Contact Next Green for more information

Material

Steel, High-strength steel

Color

Graphite Grey

Dimensions

Weight 12,1 kg
Height 552 mm
Width 514 mm
Depth 492 mm
Mounting surface 330 mm

Packaging dimensions

Weight 12,5 kg
Height 560 mm
Width 520 mm
Depth 350 mm

Polebox 205 ES

E-Number: 24 803 64
Product name: Charging box holder Polebox 205 ES

Product sheet

Assembly instructions

Share

SELECTION OF COMPATIBLE CHARGING BOXES

  • Ensto One
  • Precut hole pattern to suit one Ensto One
  • For mounting on Ø 60 mm steel tubes
  • Most of the installation can be prepared indoors
  • Robust steel construction
  • Distribution block (1.5mm2 – 25mm2)
  • Prepared for mounting an earth fault circuit breaker, 3G / 4G router
  • Powder coated, available in various colors. Contact Next Green for more information

Material

Steel, High-strength steel

Color

Graphite grey

Dimensions

Weight 9 kg
Height 592 mm
Width 367 mm
Depth 295 mm
Mounting surface 205 mm

Packaging dimensions

Weight 9 kg
Height 600 mm
Width 400 mm
Depth 300 mm

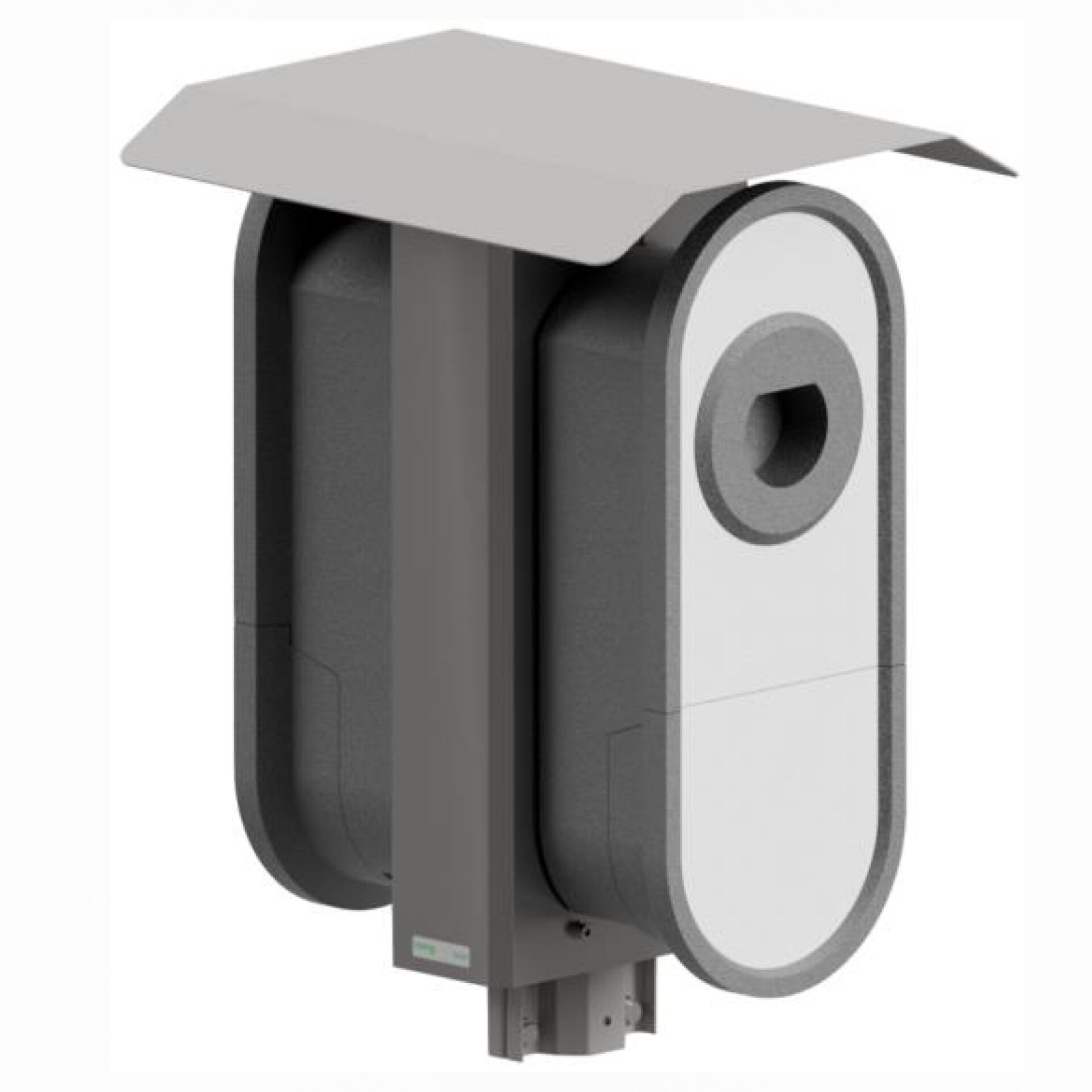

Polebox 205 ED

E-Number: 27 001 77
Product name: Charging box mount Polebox 205 ED

Product sheet

Assembly instructions

Share

SELECTION OF COMPATIBLE CHARGING BOXES

  • Ensto One
  • Precut hole pattern to suit one Ensto One
  • For mounting on Ø 60 mm steel tubes
  • Most of the installation can be prepared indoors
  • Robust steel construction
  • Distribution block (1.5mm2 – 25mm2)
  • Prepared for mounting an earth fault circuit breaker, 3G / 4G router
  • Powder coated, available in various colors. Contact Next Green for more information

Material

Steel, High-strength steel

Color

Graphite grey

Dimensions

Weight 9 kg
Height 592 mm
Width 367 mm
Depth 437 mm
Mounting surface 205 mm

Packaging dimensions

Weight 9 kg
Height 600 mm
Width 400 mm
Depth 450 mm
