NEXT GREEN – CHARGING BOX POLE STEPPED 108 – 60

Next Green charging box pole Stepped 108 – 60
E-number: 27 000 22

Next Green charging box pole
Stepped 108 – 60

E-number: 27 000 22 2700022

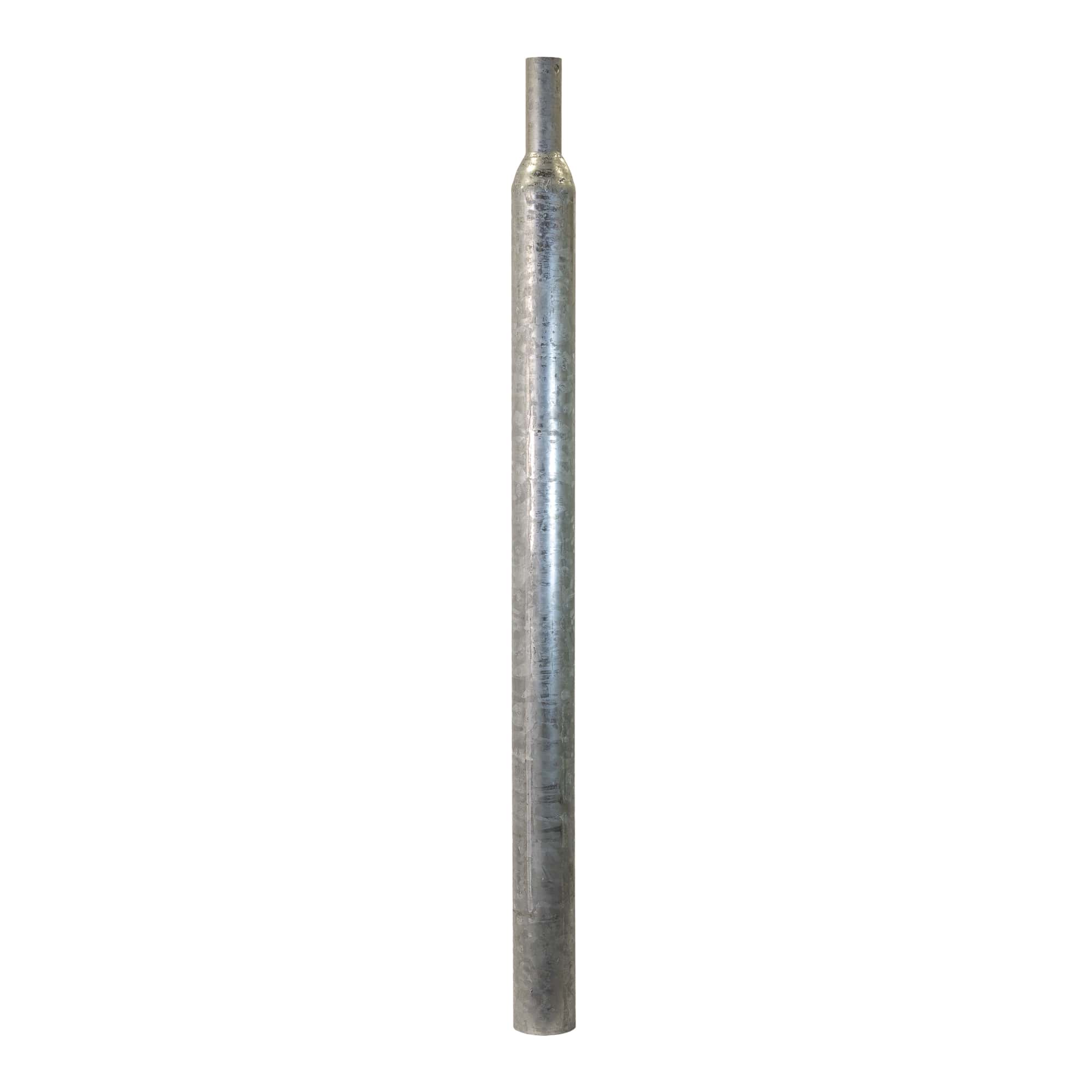

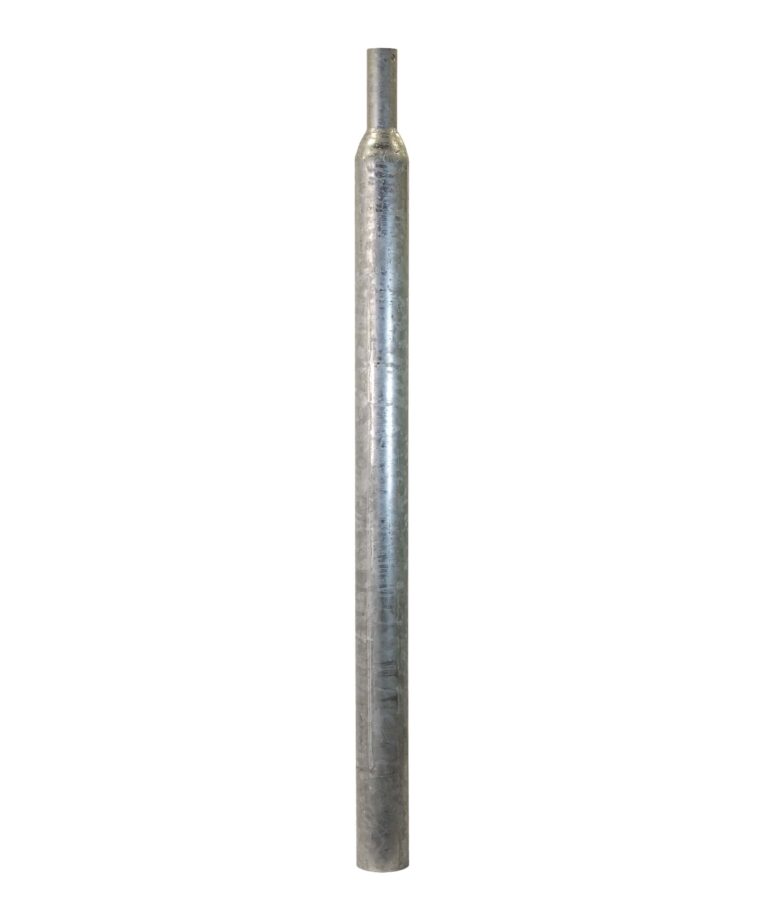

Next Green – Charging box pole Stepped 108 – 60 is a solid steel post with a base diameter of 108 mm and root-adapted for a plug-in foundation. Perfect for Next Green Foundation GP108 and Next Green charging box holder Polebox.

Gives a solid and robust impression for all charging boxes and is particularly suited for heavier charging boxes and charging box holders.

Can be powder coated in any RAL color.

Charging box pole Stepped 108-60

E-number: 27 000 22
Product name: Next Green charging box pole Stepped 108 – 60

Product sheet

Monteringsanvisning

Share

  • Allows extra powerful and stable
    mounting of charging boxes
  • Insert in Ø 108 mm foundation
  • Ø 60 mm top tube
  • Galvanized
  • Can be provided powder coated in any color. Contact Next Green for more information

Material

Galvanized steel –  SS-EN ISO
Form 1461 Stepped
Attachment Insert

Color

Galvanized

Dimensions

Weight 12 kg
Length 1660 mm
Base diameter 108 mm
Top diameter 60 mm
Foundation insert 500 mm

Dimensioner GP60

Vikt 3,5 kg
Höjd 519 mm
Bredd 268 mm
Djup 268 mm

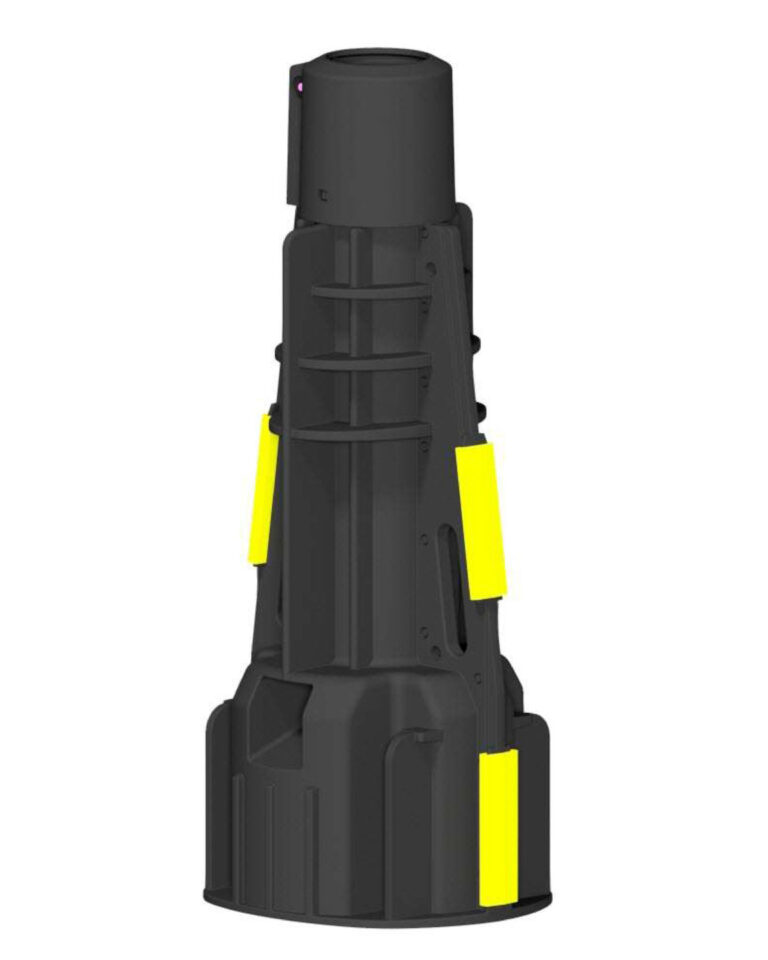

Foundation GP108

Item number: 24 120 001
Product name: Foundation GP108

Product link:
